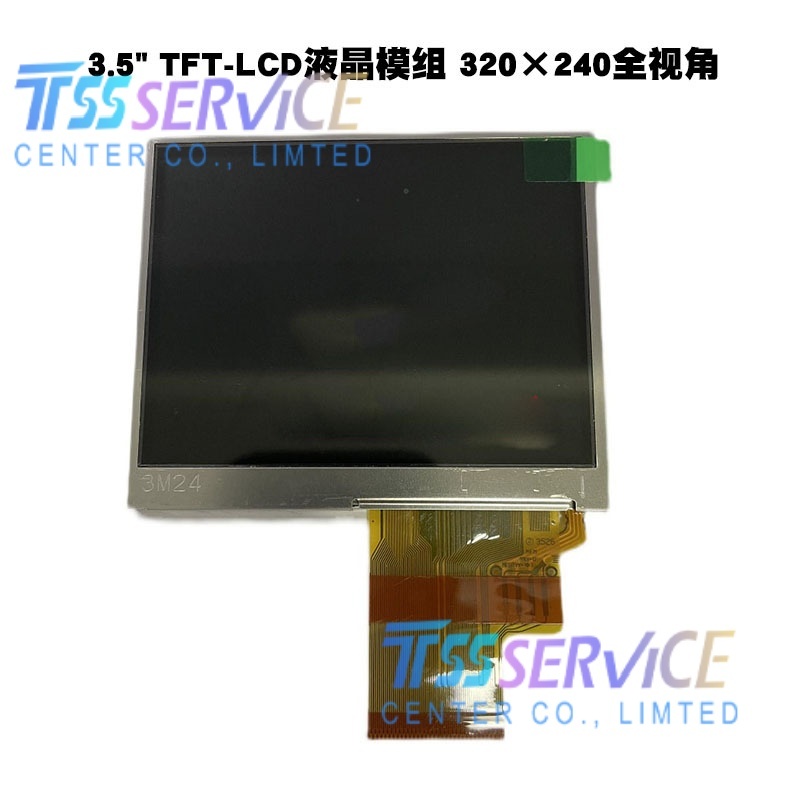

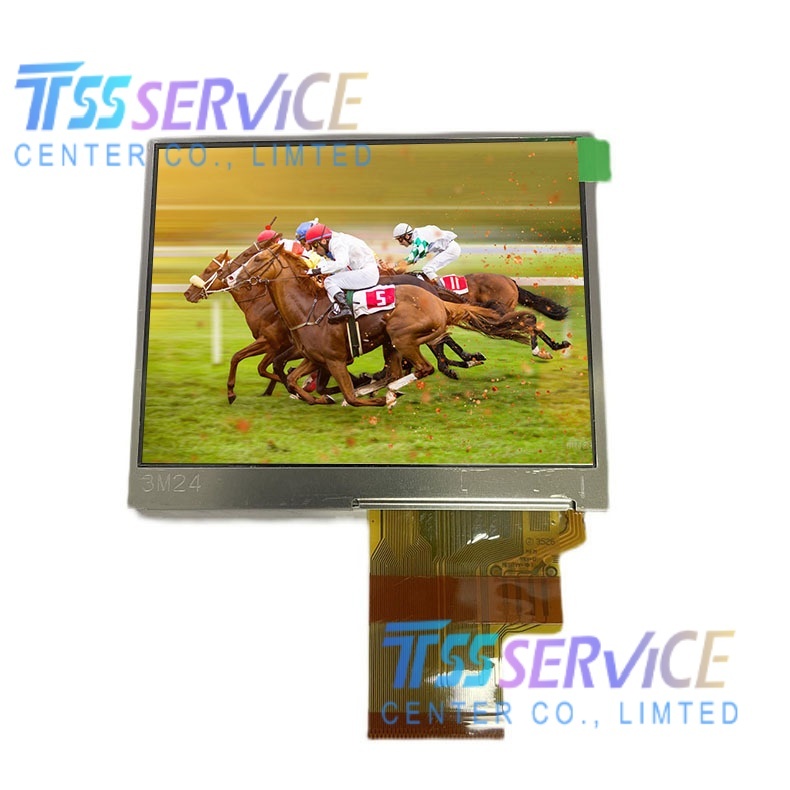

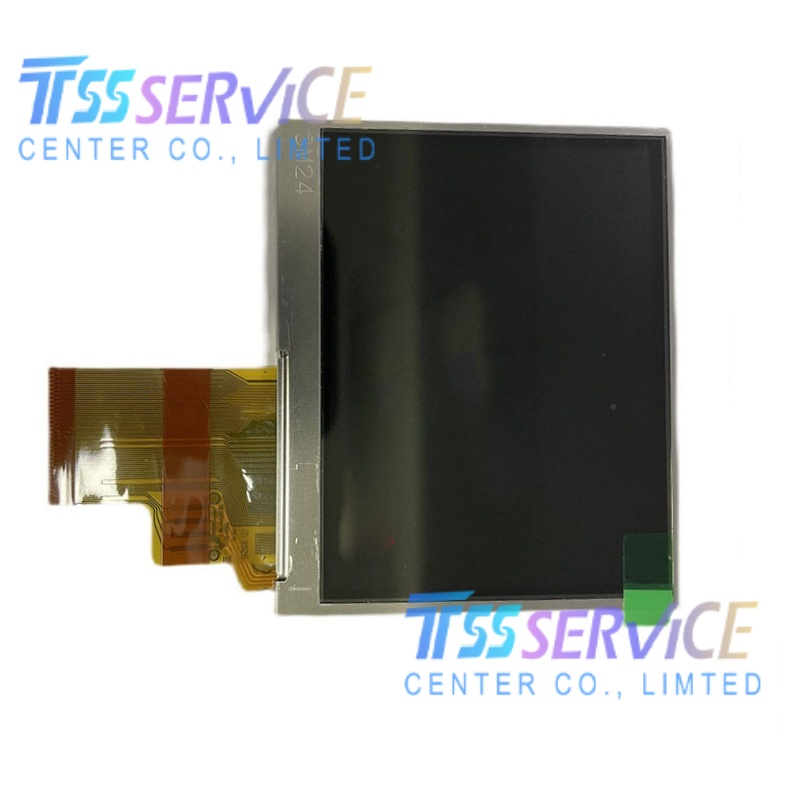

Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine

SKU: COM35T3N94XLC
Model P/N: COM35T3N94XLC
Diagonal Size: 3.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA  115PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$66.00 $65.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
1/1
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
  • Description
Ortustech COM35T3N94XLC 3.5 inch LCD Panel for Industrial Machine
Parameter Details
Manufacturer Ortustech (Ortus Technology Co., Ltd.)
Part Number COM35T3N94XLC
Module Type a-Si TFT-LCD Module
Diagonal Size 3.5 inches
Resolution 320 (H) × 240 (V) pixels (QVGA)
Display Mode TN, Normally White, Transmissive
Active Area 70.32 (W) × 52.74 (H) mm
Outline Dimensions 76.9×63.9×3.38 (H×V×D)
Pixel Format RGB Vertical Stripe
Brightness 500 cd/m² (Typical)
Contrast Ratio 400:1 (Typical)
Viewing Angle (CR≥10) 80/80/80/80 (Min.)(CR≥10)
Display Colors 262K / 16.7M (6/8-bit)
Backlight WLED, Long Life, Built-in Driver
Backlight Current 13 mA (Typical)
Signal Interface Parallel RGB (1 ch, 6/8-bit), 67 pins
Supply Voltage 3.3V (Typical)
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Surface Treatment Anti-glare
RoHS Compliance RoHS Compliant
Production Status Discontinued

Typical Applications

  • Portable Handheld Devices: Industrial PDAs, barcode scanners, portable data terminals
  • Medical & Wellness: Portable medical meters, health monitors, small diagnostic equipment
  • Consumer Electronics: Digital cameras, MP3/MP4 players, portable gaming devices
  • Instrumentation & Test: Handheld multimeters, portable oscilloscopes, field meters
  • Industrial Control: Small HMI panels, equipment control interfaces, factory automation
  • Automotive & Marine: Car dash monitors, marine GPS displays, vehicle infotainment
  • Smart Home & Appliances: Smart control panels, kitchen appliance displays, security monitors
