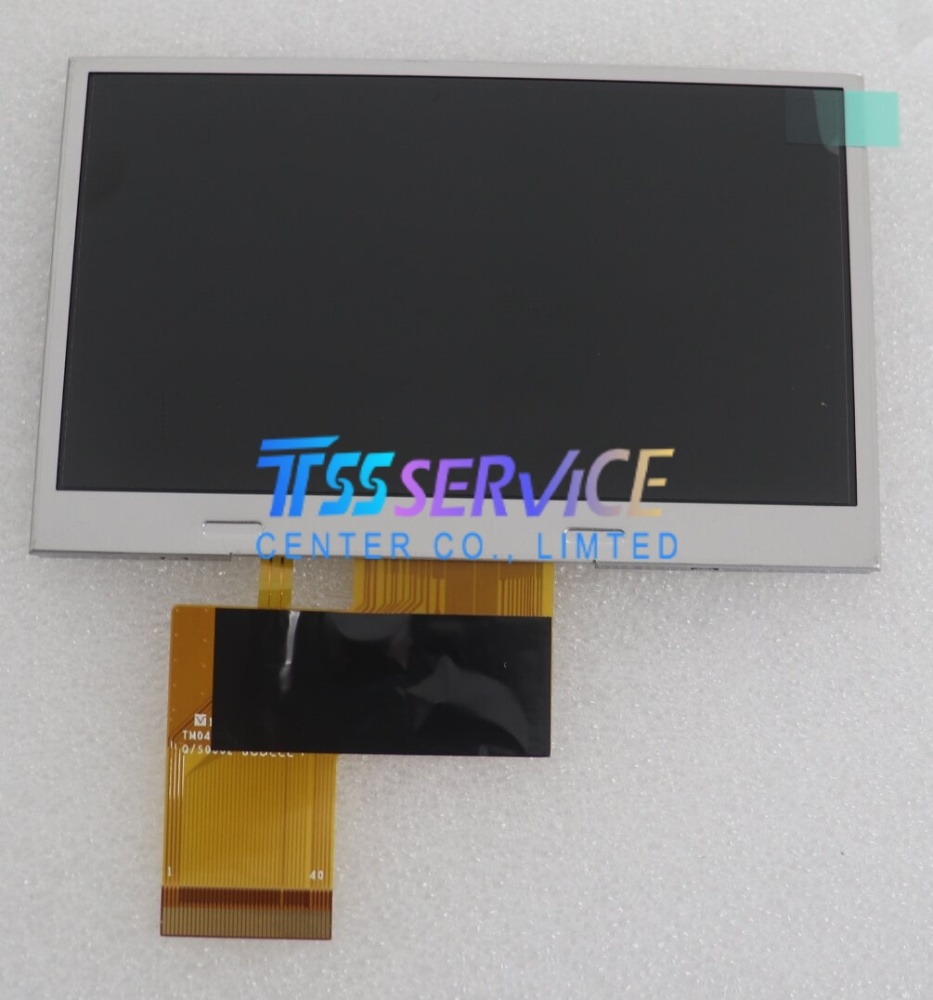

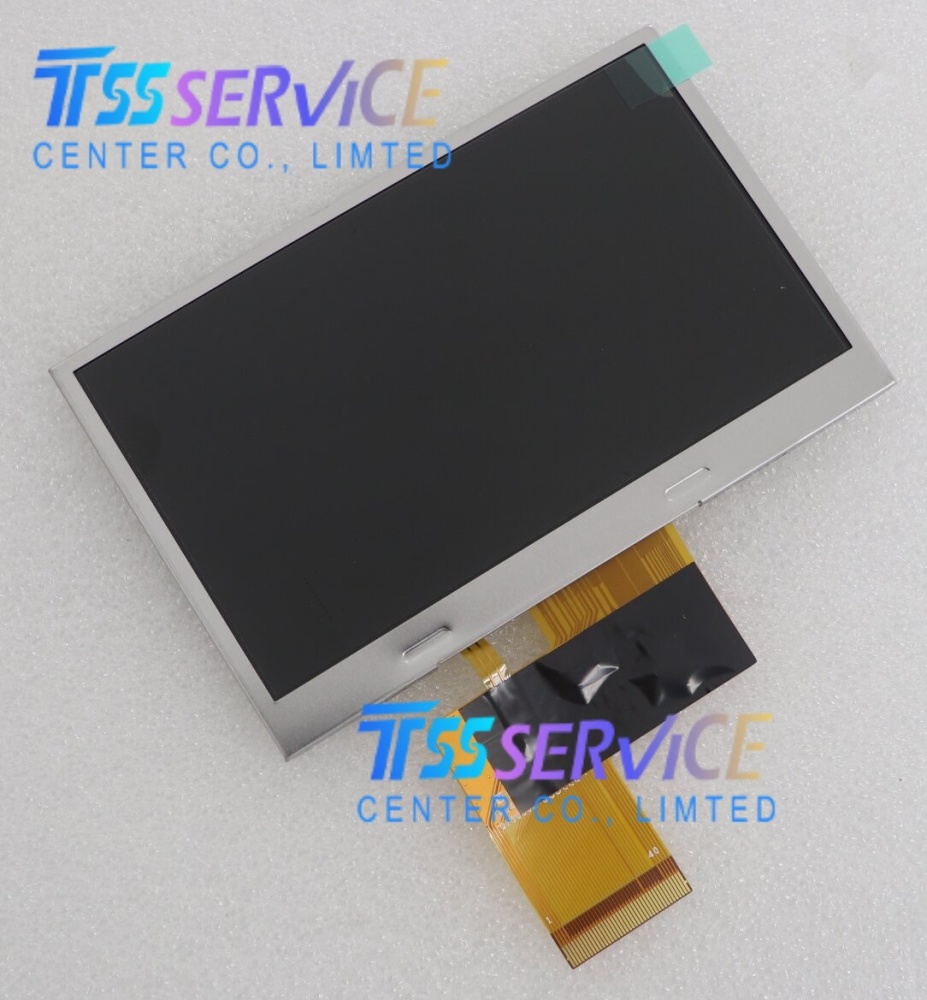

Ortustech 4.3 INCH 480×272 LCD Panel COM43H4M10XTC for Industrial
| Category |
Parameter |
Details (with Unit Conversions) |
| Basic Info |
Manufacturer |
Ortustech |
|
Model |
COM43H4M10XTC |
|
Display Size |
4.3 inches |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB) × 272 (WQVGA, 16:9 aspect ratio) |
|
Pixel Format |
RGB Vertical Stripe |
| Mechanical |

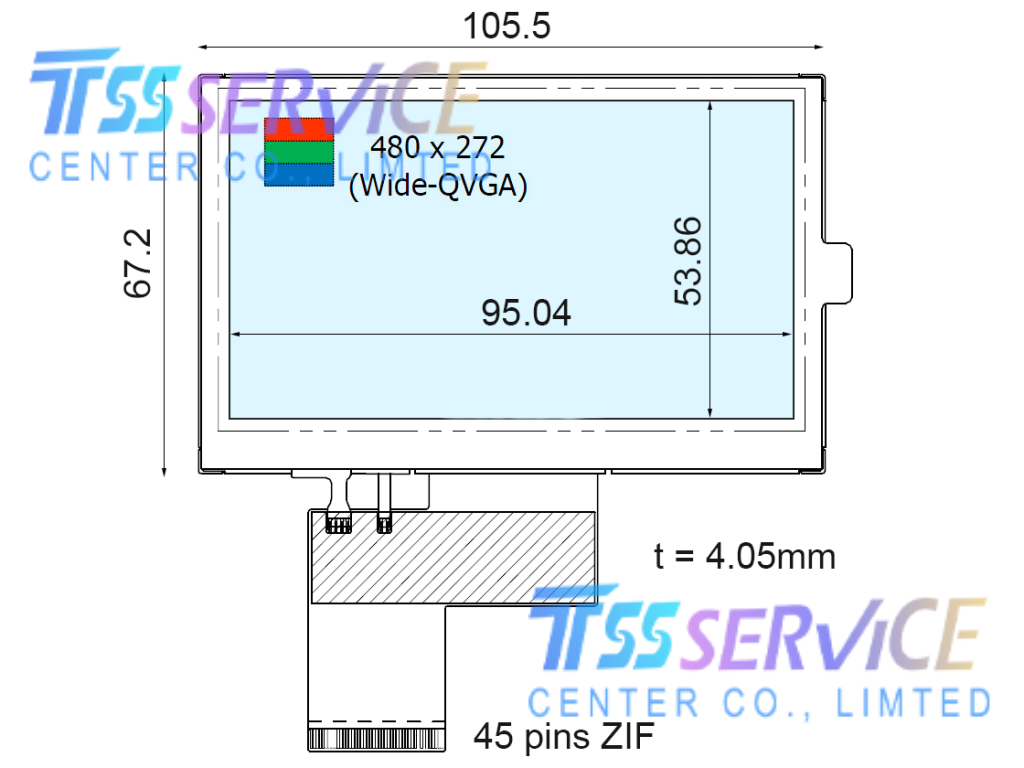

Display Area |
95.04(W) × 53.856(H) mm (3.74” × 2.12”) |
|
Outline Dimensions |
105.5(W) × 67.2(H) × 4.25(D) mm (4.15” × 2.65” × 0.17”) |
|
Panel Weight |
54.5 g (Typ.) (0.120 lbs) |
|
Surface Treatment |
Hard coating (3H) |
| Optical |
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ., Transmissive/TM) |
|
Viewing Angle |
80°/80°/80°/80° (L/R/U/D, Min., CR≥10) |
|
Display Mode |
TN, Normally White, Transflective |
|
View Direction |
Not specified |
|
Display Colors |
16.7M (24-bit true color) |
|
Response Time |
40/60 ms (Max., Tr/Td) |
|
Refresh Rate |
60 Hz |
| Backlight |
Light Source |
9S1P WLED, 20,000 hrs lifespan, no built-in driver |
| Touch Panel |
Type |
4-wire Resistive Touch Screen |
| Electrical |
Interface |
Parallel RGB (1 channel, 8-bit), 45-pin FPC |
|
Input Voltage |
3.3 V (Typ.) |
|
Power Usage |
Not specified |
| Environmental |
Operating Temperature |
-20 °C ~ +70 °C (-4 °F ~ +158 °F) |
|
Storage Temperature |
-30 °C ~ +80 °C (-22 °F ~ +176 °F) |
Typical Applications
This transflective LCD with integrated resistive touch is ideal for handheld and outdoor applications requiring sunlight readability and rugged interaction:
- Handheld Industrial Devices: Data collectors, barcode scanners, and field service terminals with touch-based input.
- Outdoor Consumer Electronics: Portable GPS units, marine navigation systems, and rugged handheld PDAs.
- Industrial HMI & Control Panels: Small machine interfaces, factory automation terminals, and portable process monitors.
- Medical Devices: Portable diagnostic tools and patient monitors requiring reliable touch interaction in variable lighting.
- Retail & Logistics: Rugged handheld inventory scanners and point-of-sale (POS) terminals for outdoor/warehouse use.
