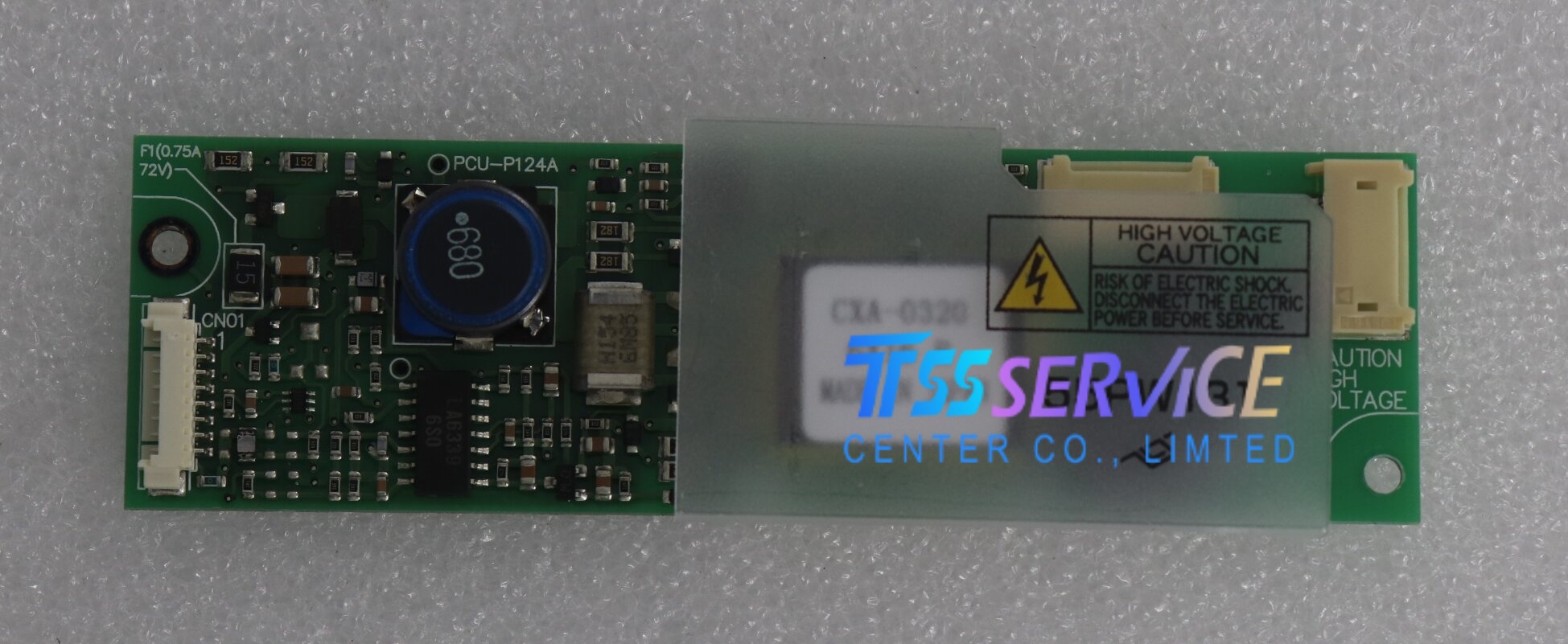

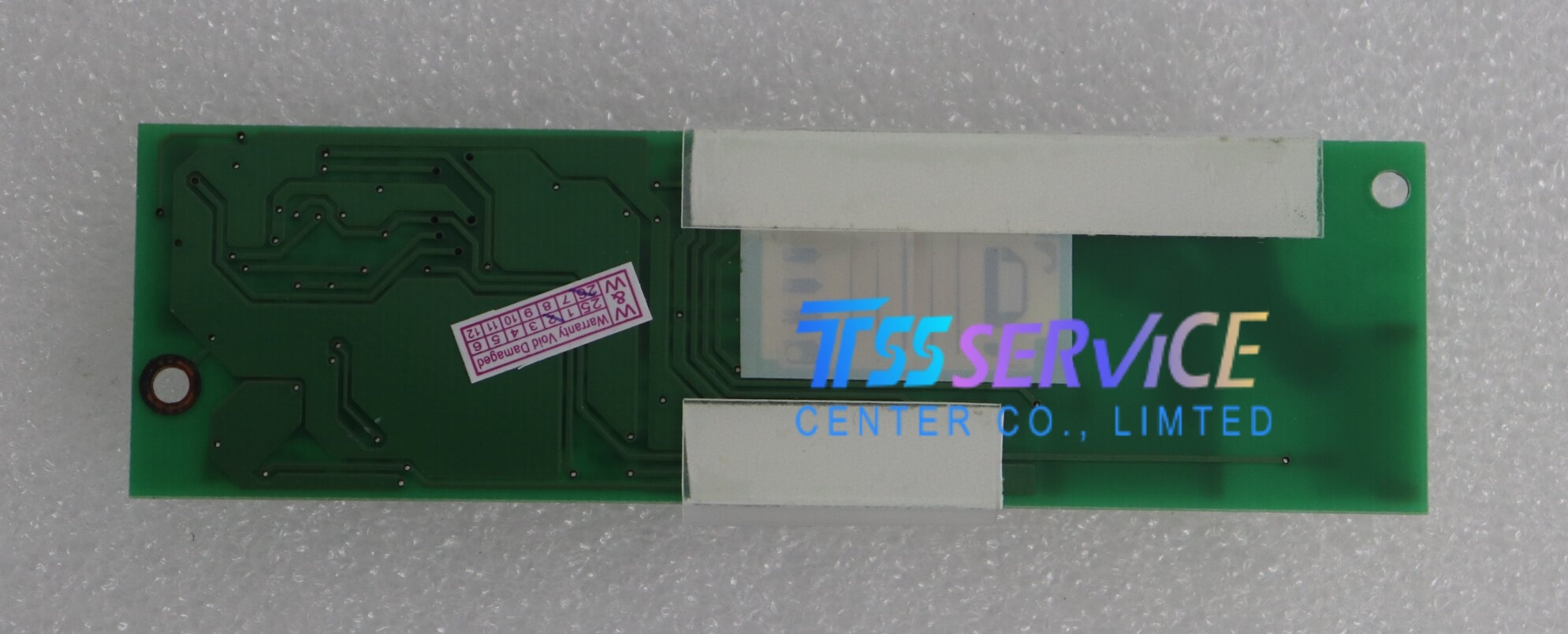

CXA-0320 55PW131 PCU-P124A CCFL Inverter Board
Specifications
1. Basic information
- Model:CXA-0320 55PW131 PCU-P124A
- Brand & Origin: TDK (Original Japan production)
- Type: Single-lamp CCFL backlight inverter for industrial TFT LCD
- Rated Input Voltage: DC 12V
- Input Power Max: 5W
- Input Fuse: Built-in overcurrent protection fuse
- Control Signal: Remote ON/OFF pin, analog dimming control
2. Electrical Specifications
Input Power
- Rated Input Voltage: DC 12V
- Input Power Max: 5W
- Input Fuse: Built-in overcurrent protection fuse
- Control Signal: Remote ON/OFF pin, analog dimming control
Output for CCFL Tube
- Open-circuit Output Voltage: 340V AC
- Rated Lamp Operating Current: 5.0mA
- Operating Switch Frequency: 43kHz
- Dimming Range: Adjustable brightness down to 30% of full brightness (voltage / resistance dimming)
- Protection Functions:
- Lamp open / broken tube shutdown alarm signal output
- Overvoltage protection
- Overcurrent protection
- Overheat protection
Mechanical Dimension
- Board Size: 103mm (L) × 30mm (W) × 8mm (T)
- Net Weight: ~20g
- Mounting: Chassis hole mounting for LCD metal frame
- High-voltage area coated with insulating silicone gel to prevent arcing
3. Environmental Parameters
- Operating Temperature: -10 ℃ ~ +70 ℃
- Storage Temperature: -30 ℃ ~ +85 ℃
- Max Humidity: 95% RH non-condensing
- Vibration & Shock: Industrial grade, withstand factory equipment vibration
Typical Applications
-
-
-
-
-
-
-
-
- Factory Automation HMI Panels
- CNC machine operation screens, injection molding machine control displays, assembly line PLC touch panels
-
- Portable Test & Measurement Instruments
- Signal analyzers, industrial inspection testers, laboratory diagnostic equipment
-
- Medical Auxiliary Devices
- Portable vital sign monitors, medical testing equipment small display modules
-
- Construction & Logistics Machinery
- Forklift control screens, mini excavator auxiliary monitors
-
- Old-Style Industrial Monitoring Terminals
- Security access control panels, vending machine master displays, marine small control screens
-
- Discontinued LCD Equipment Repair
- Replacement spare part for obsolete 5.7-inch CCFL industrial screens with broken original inverters
