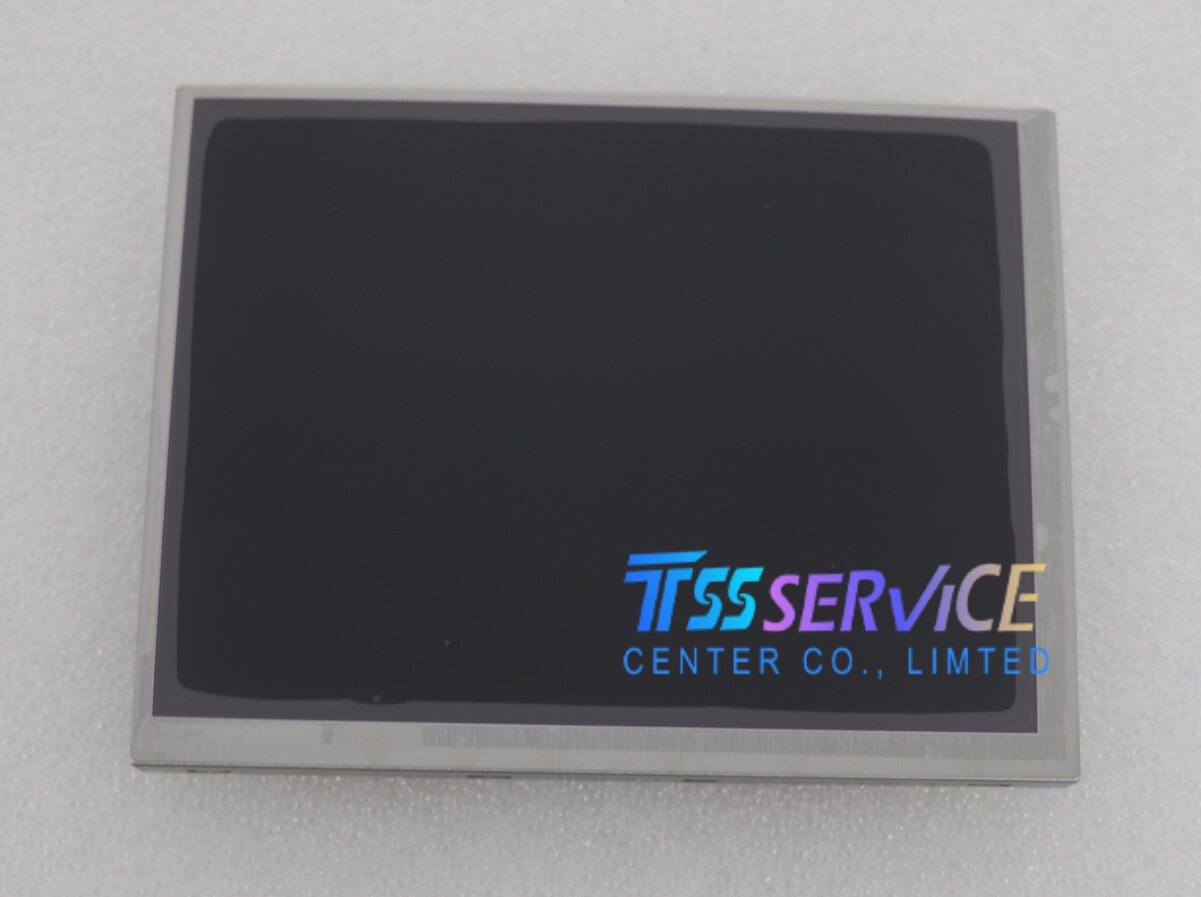

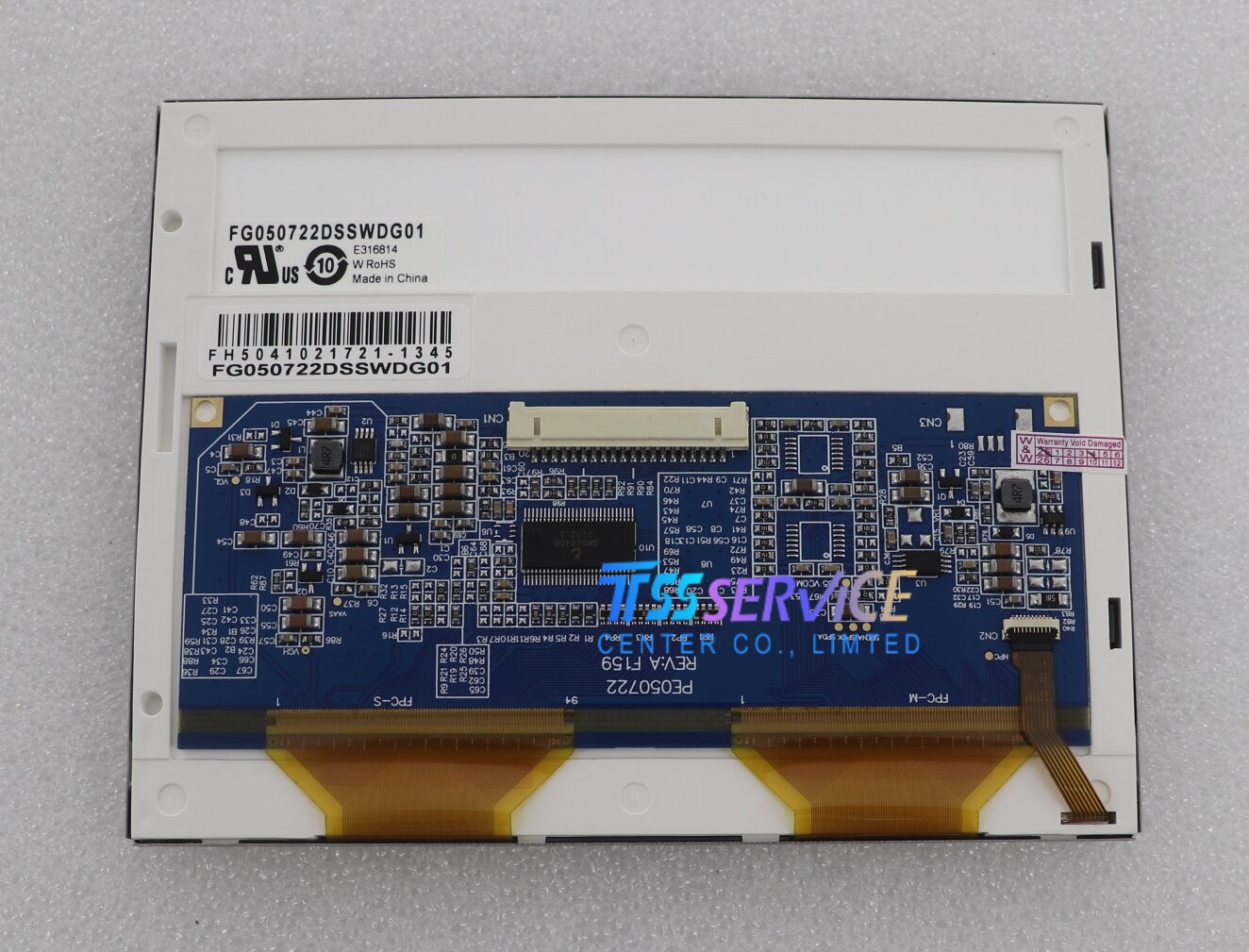

Data Image 5.7 Inch  LCD PANEL DISPLAY FG050722DSSWDG01 use for Industrial

SKU: FG050722DSSWDG01

Item: Data Image   5.7"  LCD DISPLAY
Condition: NEW ORIGINAL A GRADE

Warranty : 6 Months
Lead time : 3 DAYS
Shipping : DHL/FEDEX EXPRESS

0.0 (0 Reviews)
0 Sold
$0.00 $80.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
1/1
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
  • Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial
  • Description
Data Image  5.7  Inch  LCD PANEL DISPLAY  FG050722DSSWDG01  use for  Industrial

Specifications

Brand Data Image  Model FG050722DSSWDG01
Size  5.7  Inch  Pixel Format RGB Vertical Stripe
Active Area 115.2 mm (W) × 86.4 mm (H) Outline Size 129(H)×98(V)×8.9(D) mm
Brightness 400cd/m² Contrast Ratio 300:1
Resolution 640(RGB)×480                  Lamp WLED
Surface Clear Frequency 60HZ
Panel Type TFT-LCD, LCM Touch screen Without
Signal Interface
  • LVDS (1 ch, 6-bit), 20 pins Connector
Environment
  • Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C

Typical Applications

    • Replacement display for Siemens SIMATIC OP277-6 HMI (6AV6643-0BA01 series operator panels)
    • Industrial human-machine interface (HMI) touch screens for injection molding machines, packaging equipment and conveyor control stations
    • CNC machine tool control panels, including lathes, milling machines and machining centers for process parameter monitoring and fault code display
    • Portable industrial testing & measurement instruments such as flaw detectors, environmental analyzers and battery testers
    • Small agricultural machinery and light construction equipment cabin monitoring dashboards for runtime and equipment status display
    • Factory automation local control terminals for filling, labeling, sealing and sorting production lines
    • Medical lab auxiliary analytical equipment and small diagnostic monitoring devices
    • Retrofit spare LCD module for 5.7-inch VGA industrial display units from various brands like Pro-face, Weinview and Mitsubishi

  • FAQ

    Q: How long will I receive my goods ?

    A: Generally speaking ,It will take 5-7days to your hand by DHL/FEDEX EXPRESS

    Q:Can you give me a discount if I need  bulk quantity?

    A:Of course!If you make a large order, we will give you discount.

    Q:If goods have problem when test, How we get warranty ?

    A:Please kindly contact me .we will offer technical support to resolve. or change replacment goods for you.
