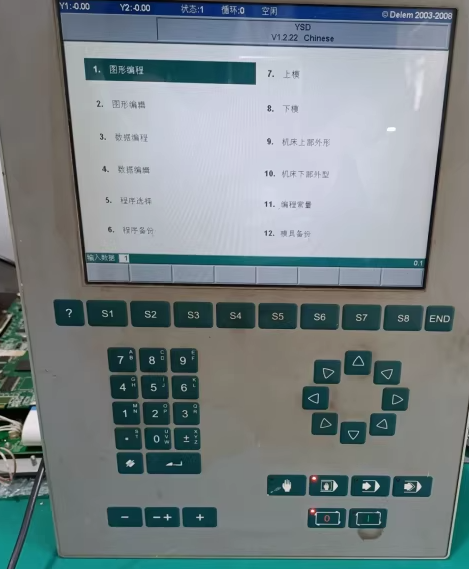

Membrane Keypad for DELEM DA56
Parameter Details Source
Model Name/Number DA-56
Compatible With DELEM DA56 CNC Controller
Product Type Membrane Keypad / Keyboard
Key Technology Membrane switch (capacitive or contact-based)
Mounting Type Panel-mount
Industry Application CNC Machines, Press Brakes, Industrial Control
2. Physical & Material Specifications
Parameter Details Source
Dimensions (L x W) 413 mm x 288 mm
Thickness 2 mm
Material Stainless Steel (SS) / Autotype Polyester
Color Grey
Number of Keys 41 Keys (with wire)
Keyboard Type With Wire (e.g., USB or proprietary connector)
Connectivity Wired (USB) or via flat flexible tail
3. Functional & Environmental Features
Feature Description Source
Operating Principle Electrical contact closes a circuit when a key area is pressed.
Durability Described as "Durable," "Long Lasting," and "Crack Resistance."
Adhesive Features "Good Adhesive" for mounting on the control panel.
Installation Easy to install; typically replaces a faulty existing membrane.
Protection Often waterproof and dustproof due to the sealed membrane design.
Application Replacement for faulty membranes on DELEM, Fanuc, Siemens, Mitsubishi CNCs.
