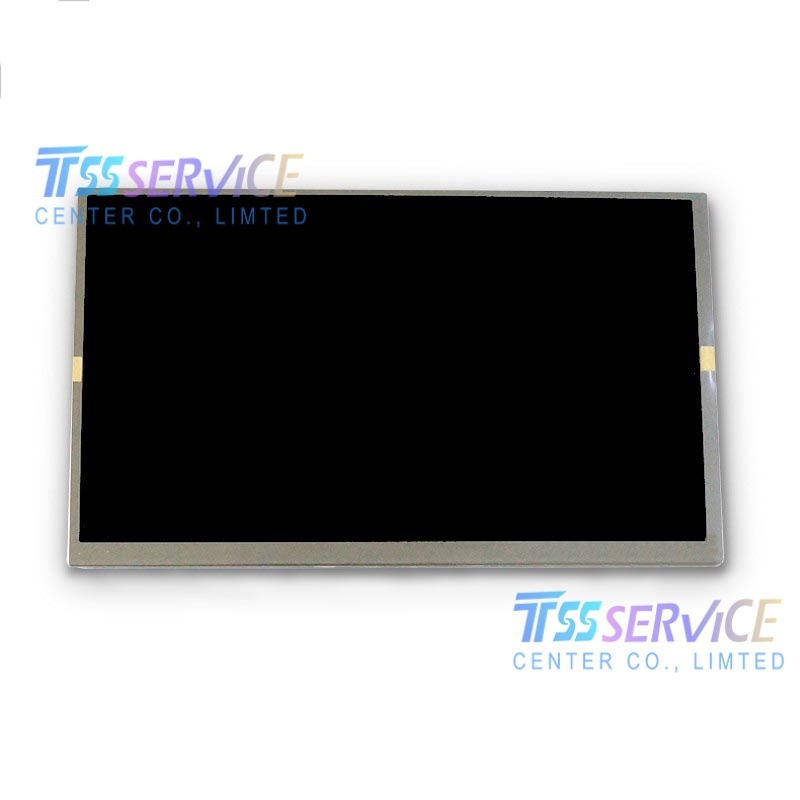

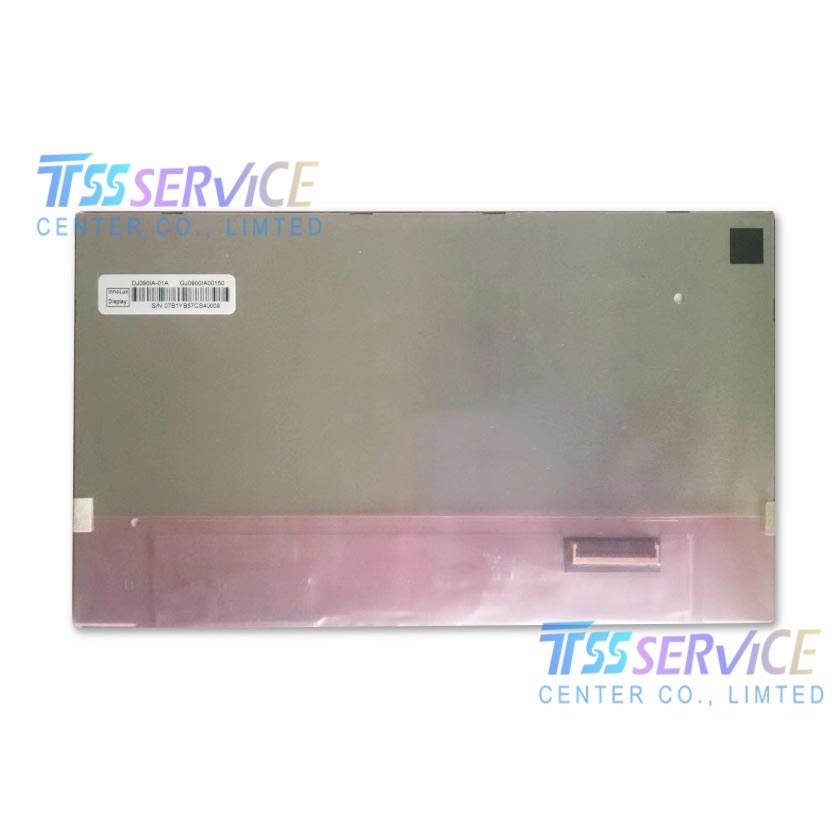

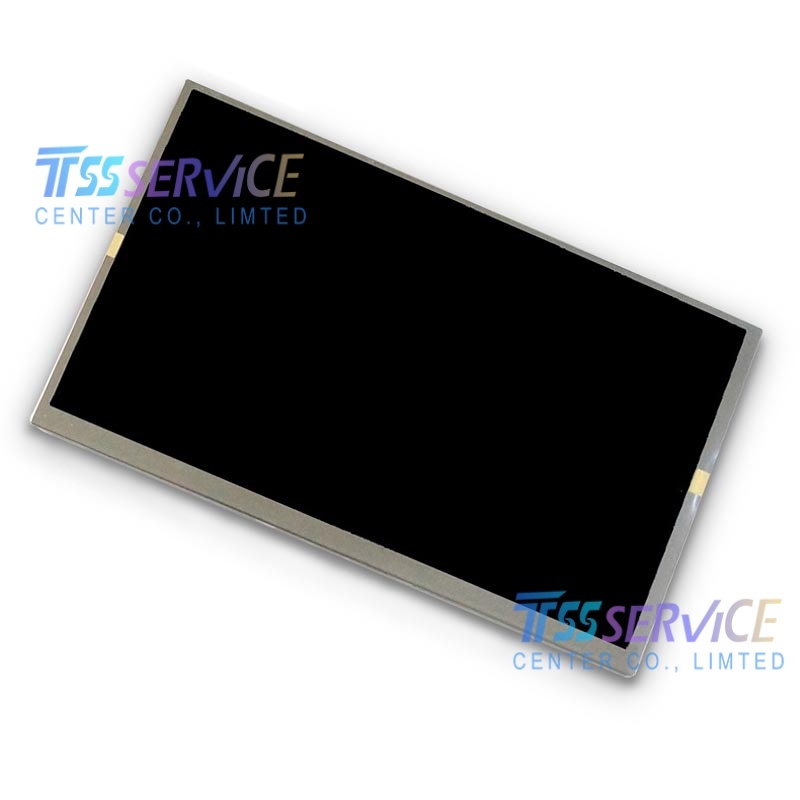

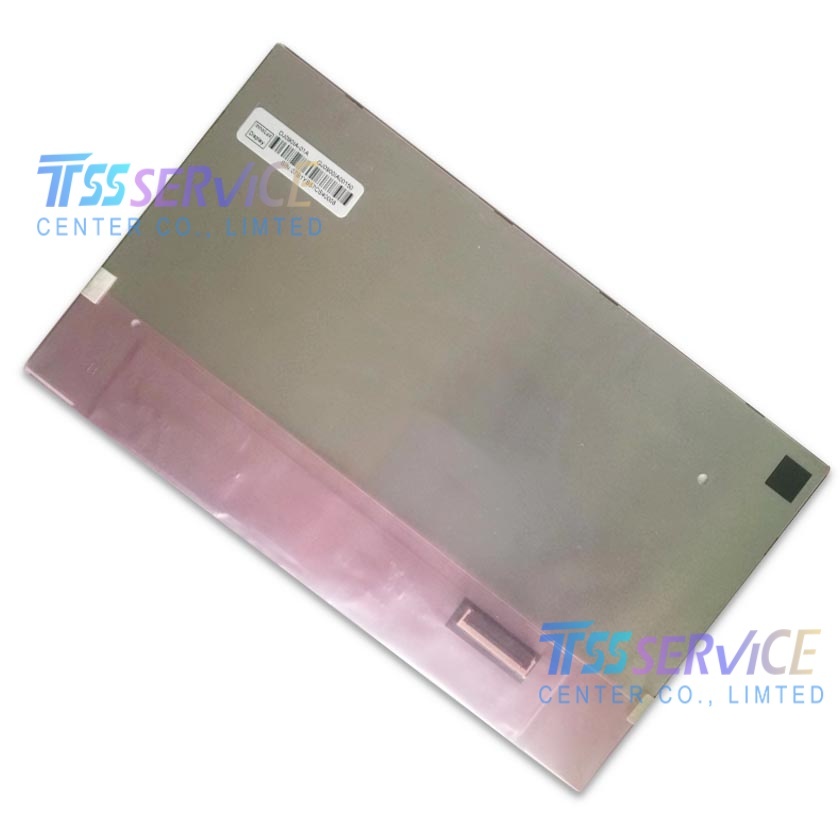

Innolux DJ090IA-01A 9 Inch 1280×720 TFT LCD Panel Industrial Display Screen
| Item |
Detailed Parameter |
| Manufacturer |
Innolux |
| Model Number |
DJ090IA-01A |
| Diagonal Screen Size |
9.0 Inch |
| Panel Type |
a-Si TFT-LCD, Transmissive LCM Module |
| Native Resolution |
1280(RGB) × 720 (WXGA), 16:9 Aspect Ratio, 163 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Display Area |
198.912(W) × 111.888(H) mm |
| Overall Outline Dimension |
211.2(W) × 125.3(H) × 9.55(D) mm |
| Max Net Weight |
230g |
| Surface Treatment |
Antiglare Matte Coating |
| Typical Luminance (Brightness) |
750 cd/m² (Sunlight Readable) |
| Typical Contrast Ratio |
1000:1 (TM Mode) |
| Viewing Angle (U/D/L/R) |
85° / 85° / 85° / 85° (CR≥10) |
| Display Operating Mode |
AAS, Normally Black, Transmissive |
| Response Time |
15ms Tr / 10ms Td (Typical) |
| Supported Display Colors |
16.7M True Colors, 70% NTSC Color Gamut |
| Refresh Frame Rate |
60Hz |
| Touch Panel Function |
Without Touch Screen |
| Backlight Light Source |
7S4P WLED, 20,000 Hours Lifespan, Without Built-in LED Driver IC |
| Signal Interface Type |
LVDS (1 Channel, 8-bit), 40 Pins FPC Connector |
| Typical Supply Voltage |
3.3V |
| Operating Temperature Range |
-30 ℃ ~ +85 ℃ |
| Storage Temperature Range |
-40 ℃ ~ +90 ℃ |
| Compliance Standard |
RoHS Certified |
Application Scenarios
1. Automotive & Construction Machinery Displays
- Engineering vehicle cabin control HMI panels (excavators, loaders, forklifts)
- Agricultural tractors & harvester operation dashboard screens
- Marine ship cabin parameter monitoring displays
- RV, special vehicle and bus central control touch base screens
- Off-road heavy equipment outdoor operation terminals
2. Outdoor & Semi-Outdoor Self-Service Kiosks
- Roadside parking payment self-service terminals
- Outdoor vending machine interactive display modules
- Public park information inquiry kiosks
- Outdoor retail advertising small-size digital signage
- Gas station fuel dispenser operation screens
3. Harsh Environment Industrial Equipment
- Outdoor portable industrial testing & measuring instruments
- Factory semi-outdoor workshop control display panels
- Mining equipment auxiliary parameter monitoring screens
- Environmental field monitoring data collection terminals
4. Medical & Commercial Embedded Devices
- Outdoor portable medical diagnostic equipment
- Beauty salon large HD operation display panels
- Small industrial all-in-one embedded control PCs
- Security outdoor monitoring auxiliary display screens
