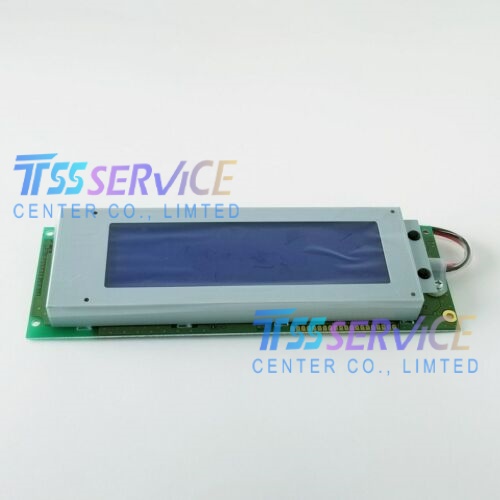

DMF-5010NBU-FW OPTREX 5.2" 240×64 STN-LCD panel
| Parameter |
Specification |
| Manufacturer |
Optrex |
| Part Number |
DMF-5010NBU-FW |
| Display Type |
STN‑LCD |
| Diagonal Size |
5.2 inches |
| Resolution |
240×64 47PPI |
| Dot Pitch |
0.49 (W) × 0.49 (H) mm |
| Active Area |
127.2(W)×33.9(H) mm |
| Outline Dimensions |
200.0 (W) × 66.0 (H) × 23.0 max. (D) mm |
| Weight |
250 g max. |
| Brightness |
400 cd/m² (Min.) |
| Contrast Ratio |
7:1 (Typ., Transmissive) |
| Display Colors |
Monochrome |
| Response Time |
70/260 ms (Tr/Td, Typ.) |
| Viewing Angle (CR≥2) |
L/R: ±50°; U/D: +50°/-35° |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) × 1 |
| Backlight Lifetime |
50,000+ hours (Typ.) |
| Controller IC |
Toshiba T6963C‑0101 |
| Interface |
8‑bit parallel data, parallel control |
| Logic Voltage (VCC) |
4.5–5.5 V (Typ. 5.0 V) |
| LCD Drive Voltage (VEE) |
0–28 V |
| Supply Current (ICC) |
7.8–11.7 mA (VCC=5.0 V) |
| Operating Temperature |
10°C to +40°C |
| Storage Temperature |
-20°C to +60°C |
| Refresh Rate |
70 Hz |
| RoHS Compliance |
Non‑compliant (CCFL contains mercury) |
| Application Grade |
Industrial / Embedded |
This compact graphic STN LCD is widely used in industrial control, instrumentation, and embedded systems requiring reliable monochrome text/graphic display:
- Industrial Control & HMI
- Industrial operator panels, PLC status displays, and machine tool interfaces
- Factory automation controllers, process monitoring terminals, and equipment control panels
- Test & Measurement Instruments
- Benchtop multimeters, signal generators, and data loggers
- Portable test meters, oscilloscopes, and field measurement devices
- Office & Business Equipment
- POS terminals, receipt printers, and cash register displays
- Fax machines, copiers, and small office automation devices
- Medical & Laboratory Devices
- Portable medical monitors, diagnostic instruments, and lab equipment displays
- Patient monitoring terminals and clinical testing devices
- Embedded & Industrial Computing
- Industrial panel PCs, ruggedized terminals, and embedded computing systems
- Industrial printers, barcode scanners, and data acquisition units
- Specialized Equipment
- Agricultural machinery interfaces, construction equipment control panels
- Marine navigation aids, vehicle dashboards, and industrial information kiosks
