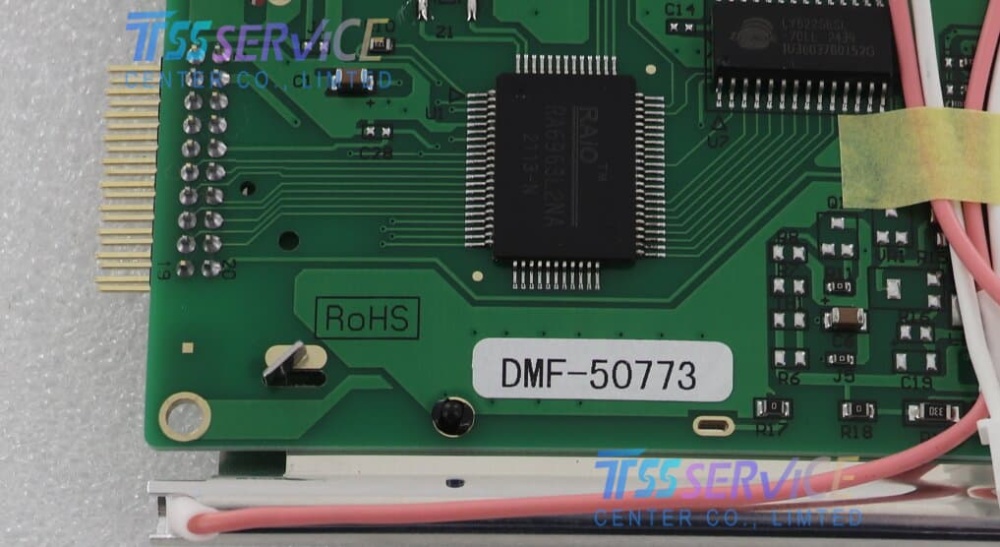

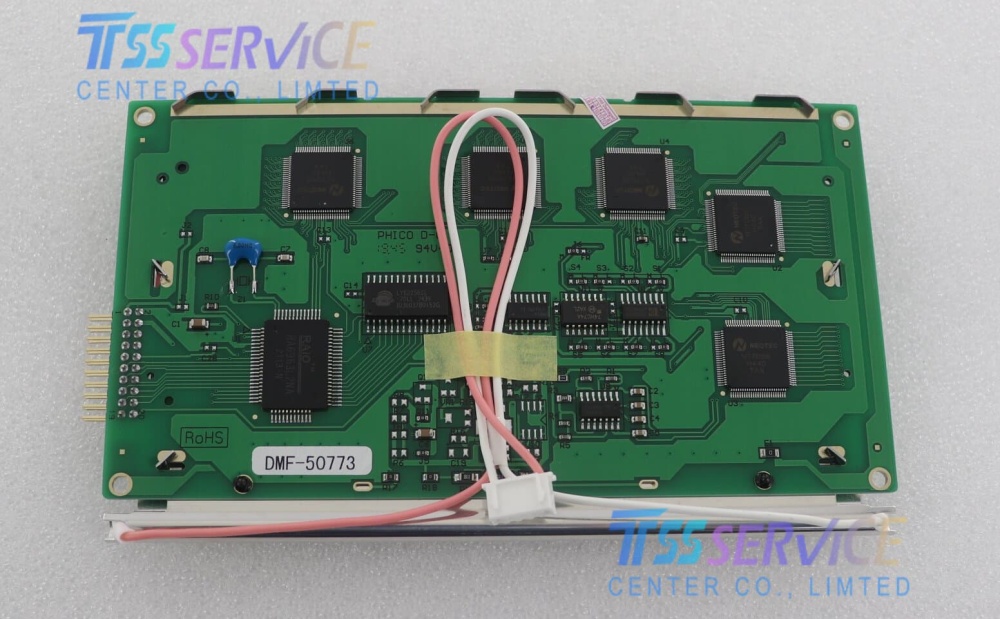

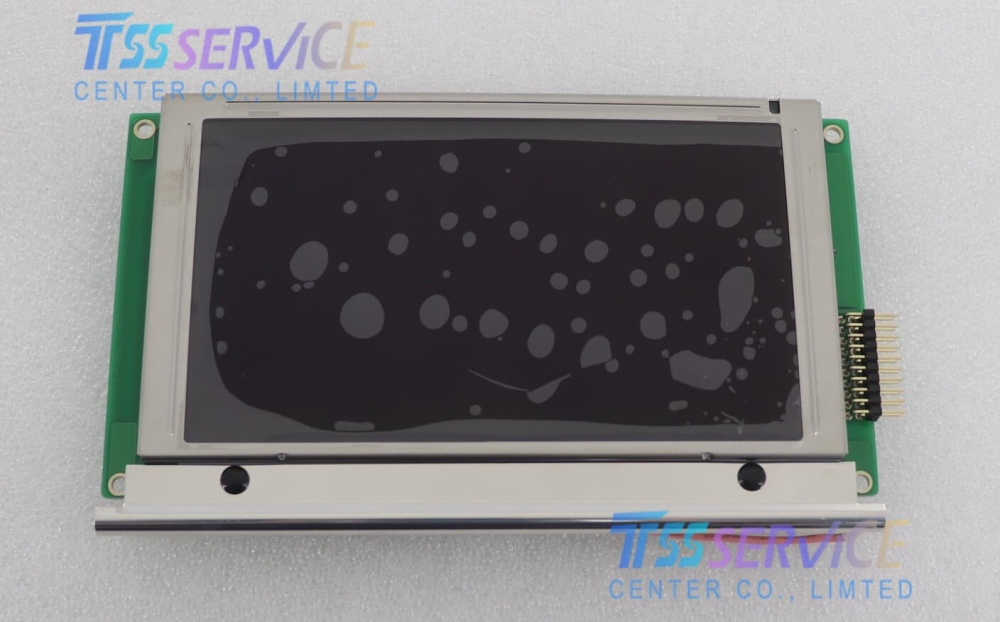

DMF-50773NF-FW-ACE-AI | Optrex(Kyocera) 5.4" 240×128 Monochrome FSTN Graphic LCD Module
DMF-50773NF-FW-ACE-AI is an upgraded industrial monochrome graphic LCD module manufactured by Optrex (Kyocera Display), upgraded from base model DMF-50773NF-FW. It integrates onboard T6963C graphic controller, single CCFL backlight, 8-bit parallel 20-pin MCU interface, enhanced ACE series anti-interference PCB circuit and AI optimized ESD & vibration resistance. This 5.4-inch wide landscape FSTN negative display (black background with white dots) adopts full metal shielding frame, standard 0℃~+50℃ industrial temperature range, without integrated touch panel and compatible with external resistive touch overlay. Widely used for legacy injection molding machine controllers, laboratory analytical instruments, textile machinery HMI, industrial testing equipment and maintenance replacement of obsolete monochrome display modules.
| Parameter Item |
Specification Details |
| Full Part Number |
DMF-50773NF-FW-ACE-AI |
| Manufacturer |
Optrex (Kyocera Display, Japan) |
| Diagonal Size |
5.4 inch, landscape wide screen, 17:9 ratio |
| Native Dot Resolution |
240(H) × 128(V) monochrome graphic dots (50 PPI) |
| Display Technology |
FSTN-LCD, Negative mode (Black background / white dot), Transmissive |
| Dot Pitch |
0.50 mm (H) × 0.50 mm (V) |
| Active View Area (AA) |
119.97 mm (W) × 63.97 mm (H) |
| Window Opening Area |
126.0 mm (W) × 70.0 mm (H) |
| Overall Outline Dimension |
170.0 mm (W) × 105.0 mm (H) × 14.0 mm (Max Thickness) |
| Typical Brightness |
100 cd/m² |
| Typical Contrast Ratio |
10:1 |
| Optimal Viewing Direction |
6 o'clock |
| Viewing Angle (L/R/U/D, CR≥2) |
50° / 45° / 35° / 50° |
| Response Time (Tr / Td Typical) |
250 ms / 230 ms |
| Refresh Frequency |
70 Hz standard |
| Built-in Controller IC |
T6963C graphic controller integrated on ACE optimized PCB |
| Backlight System |
Single edge CCFL lamp, service life ≥15,000 hours, external inverter required |
| Signal Interface |
8-bit parallel MCU bus, 20-pin gold finger connector |
| Logic Supply Voltage VDD |
4.5V ~ 5.5V DC (Typical 5.0V industrial standard) |
| LCD Driving Voltage |
VDD-VEE = 18.5V typical |
| Typical Operating Current |
IDD=9mA, IEE=2.9mA |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Housing & PCB Upgrade |
Full metal shielding frame; ACE circuit enhances EMI suppression; AI version upgraded ESD & shock resistance |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Net Weight |
Max 250 g |
| Version Difference vs Base DMF-50773NF-FW |
ACE enhanced anti-interference circuit, AI upgraded ESD protection, same mechanical size & pin definition, fully pin-to-pin interchangeable |
| Compliance Standard |
Industrial grade, RoHS compliant |
| Production Status |
Discontinued original mass production, surplus stock only for equipment maintenance retrofit |
| Compatible Variant |
DMF-50773NF-FW, DMF-50773NB-FW |
