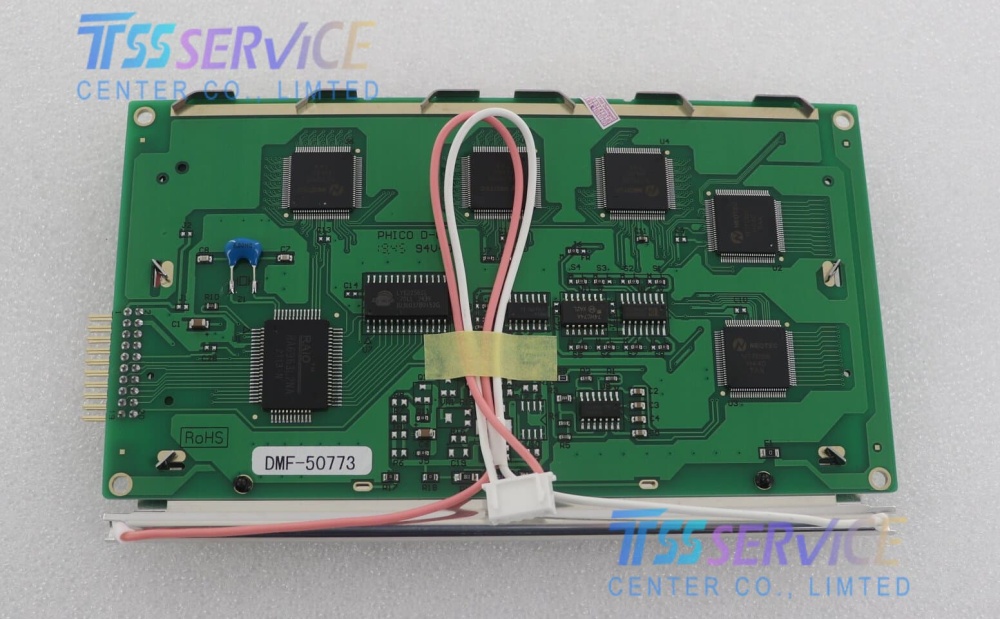

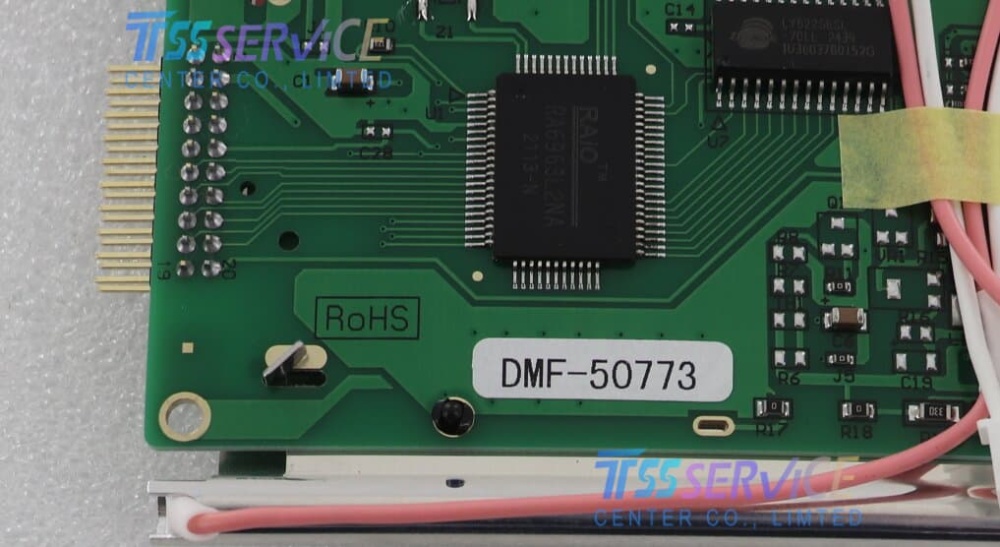

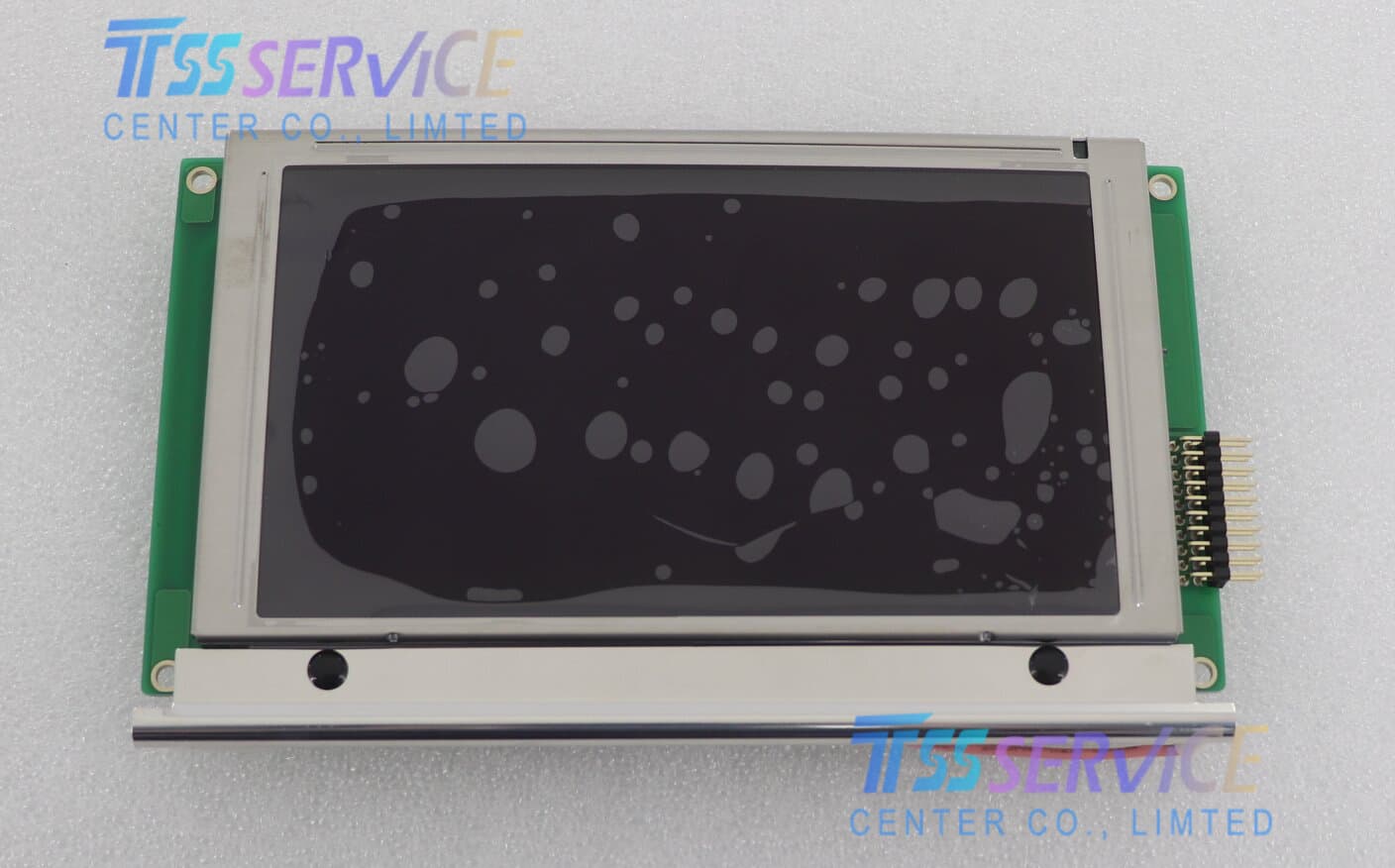

DMF-50773NF-FW | Optrex (Kyocera) 5.4" 240×128 Monochrome FSTN Graphic LCD Module
DMF-50773NF-FW is a 5.4-inch monochrome FSTN transmissive graphic LCD module manufactured by Optrex (sub-brand of Kyocera Display). It integrates built-in T6963C graphic controller IC, single CCFL backlight unit and standard 8-bit parallel 20-pin MCU interface. With 240×128 dot resolution, black background white dot display mode, metal shielding frame and stable industrial temperature range 0℃~+50℃, it supports text, curve and bitmap display without external driver chips. No integrated touch panel, widely applied for legacy injection molding machine controllers, laboratory analytical instruments, textile machinery HMI, industrial test measuring equipment and maintenance replacement for obsolete monochrome industrial display modules.
| Parameter Item |
Specification Details |
| Full Part Number |
DMF-50773NF-FW |
| Manufacturer |
Optrex (Kyocera Display, Japan) |
| Diagonal Size |
5.4 inch, landscape, 17:9 wide ratio |
| Native Dot Resolution |
240(H) × 128(V) dots monochrome graphic |
| Display Technology |
FSTN-LCD, Negative (Black background / white dot), Transmissive |
| Dot Pitch |
0.50 mm (H) × 0.50 mm (V) |
| Active Area (AA) |
119.97 mm (W) × 63.97 mm (H) |
| View Opening Area |
126.0 mm (W) × 70.0 mm (H) |
| Overall Outline Dimension |
170.0 mm (W) × 105.0 mm (H) × 14.0 mm (Max Thickness) |
| Typical Brightness |
100 cd/m² |
| Typical Contrast Ratio |
10:1 |
| Optimal Viewing Direction |
6 o'clock |
| Viewing Angle (L/R/U/D, CR≥2) |
50° / 45° / 35° / 50° |
| Response Time (Tr / Td Typical) |
250 ms / 230 ms |
| Refresh Frequency |
70 Hz standard |
| Built-in Controller IC |
Toshiba T6963C integrated on PCB |
| Backlight System |
Single CCFL lamp, service life ≥15,000 hours, external inverter required |
| Signal Interface |
8-bit parallel MCU bus, 20-pin gold finger connector |
| Logic Supply Voltage VDD |
4.5V ~ 5.5V DC (Typical 5.0V) |
| LCD Drive Voltage |
VDD-VEE = 18.5V typical |
| Operating Current |
IDD=9mA typ., IEE=2.9mA typ. |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Housing Structure |
Full metal shielding frame, anti-electromagnetic interference |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Net Weight |
Max 250 g |
| Compliance Standard |
RoHS compliant industrial grade |
| Production Status |
Discontinued original mass production, surplus stock only for equipment maintenance retrofit |
| Compatible Variant |
DMF-50773NB-FW, same mechanical size, fully pin-to-pin interchan |
