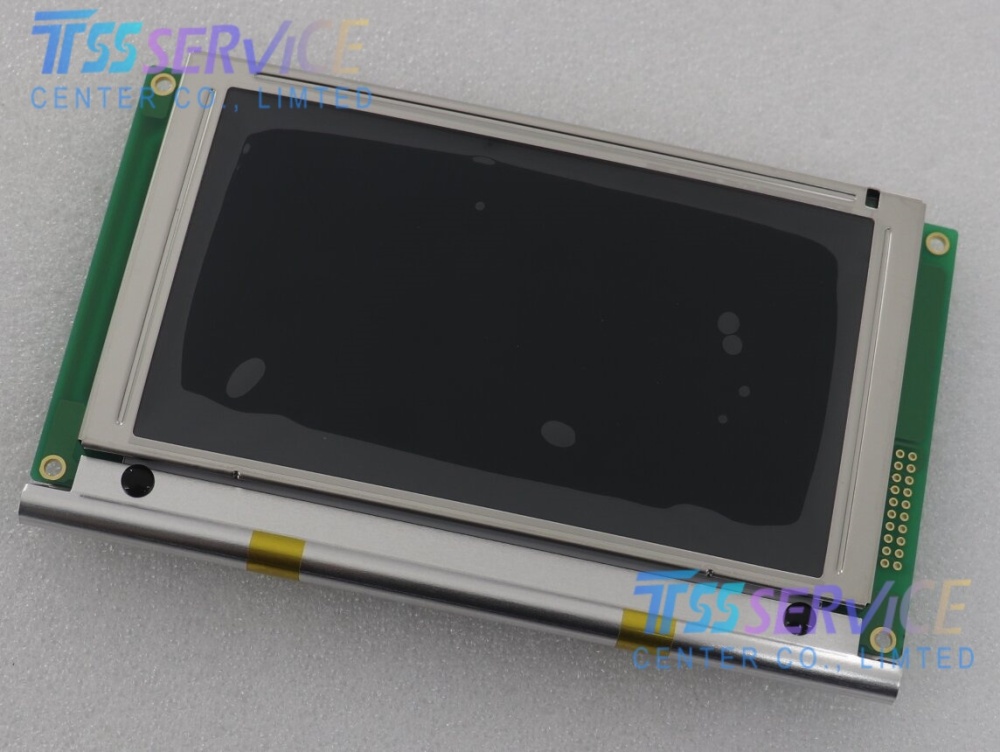

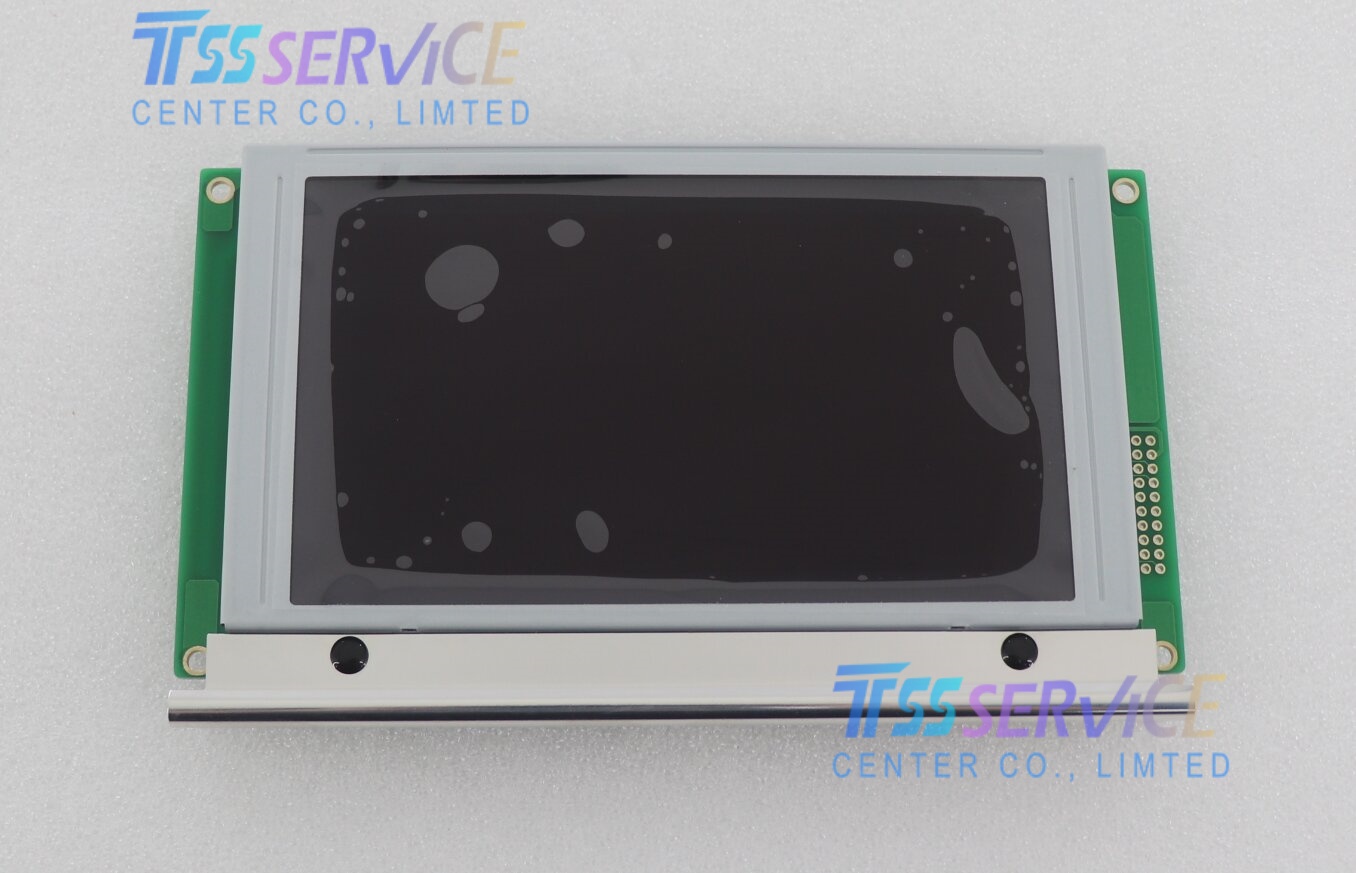

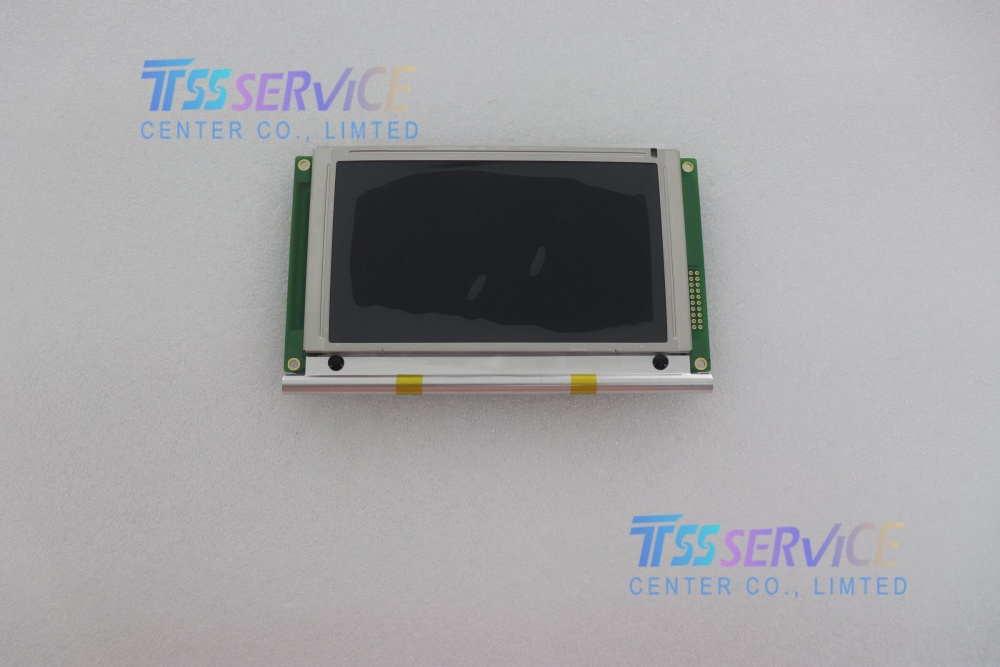

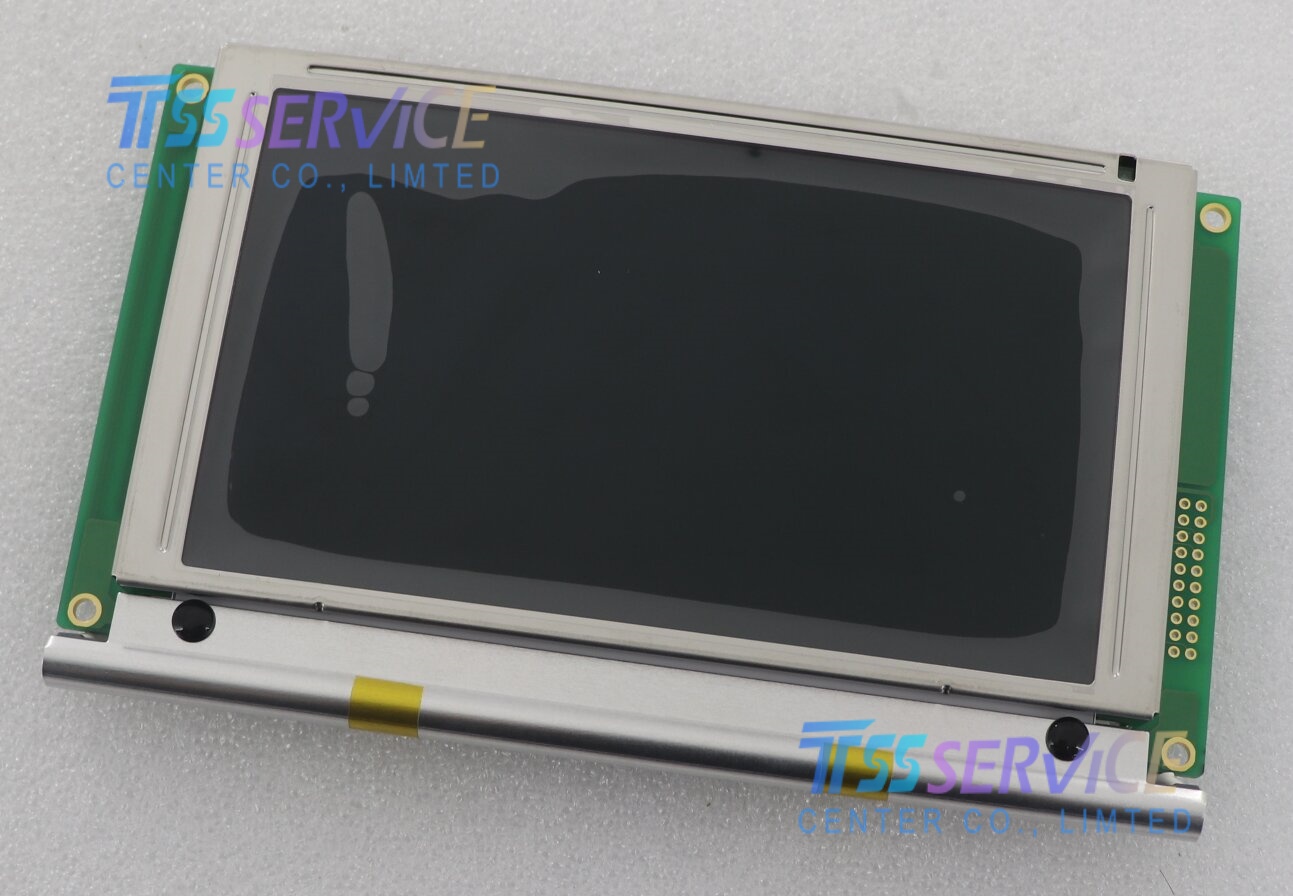

Optrex DMF-50773NY-LY 5.4 inch LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Optrex (Kyocera) |
| Part Number |
DMF-50773NY-LY |
| LCD Type |
STN, Yellow-mode, Transmissive |
| Resolution |
240 (W) × 128 (H) dots |
| Dot Size |
0.47 × 0.47 mm |
| Dot Pitch |
0.50 × 0.50 mm |
| Viewing Area |
126.0 × 70.0 mm |
| Outline Dimensions |
170.0 × 95.0 × 16.7 (max.) mm |
| Weight |
250g (max.) |
| Driver IC |
TOSHIBA T6963C-0101 |
| Interface |
8-bit parallel |
| Backlight |
LED, Yellow-green |
| Viewing Direction |
6:00 o’clock |
| Operating Temp. |
0°C to +50°C |
| Storage Temp. |
-20°C to +60°C |
- Industrial HMIs & Control Panels: Used in factory automation systems, machinery interfaces, and process control terminals.
- Medical & Laboratory Equipment: Monochrome graphic display for diagnostic devices, analyzers, and test instruments.
- Test & Measurement: Oscilloscopes, signal generators, multimeters, and data loggers.
- Office & Printing Devices: Printers, copiers, and multifunction peripherals.
- Embedded Systems: Industrial PCs, PLCs, and legacy equipment requiring stable 240×128 graphics.
