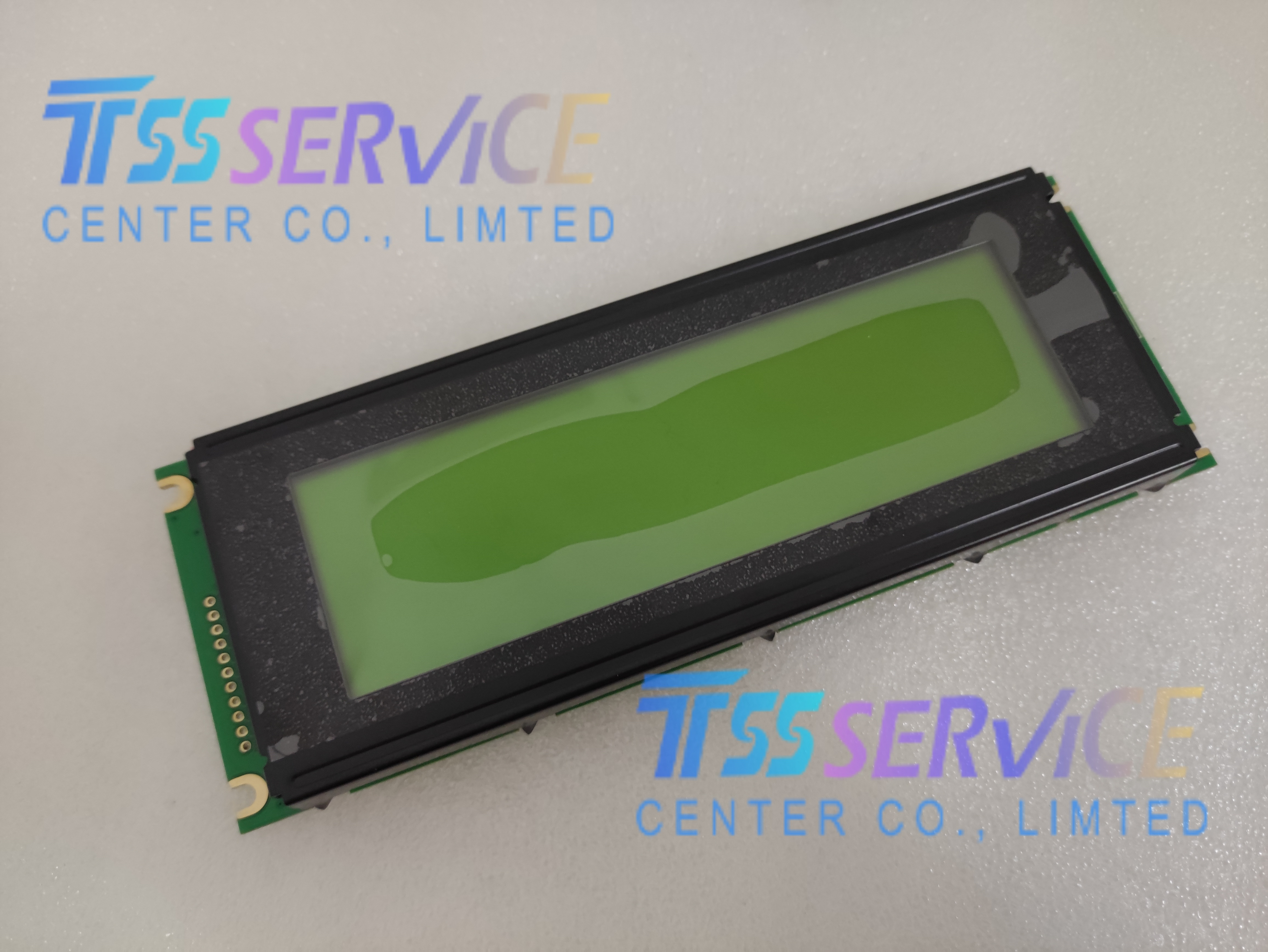

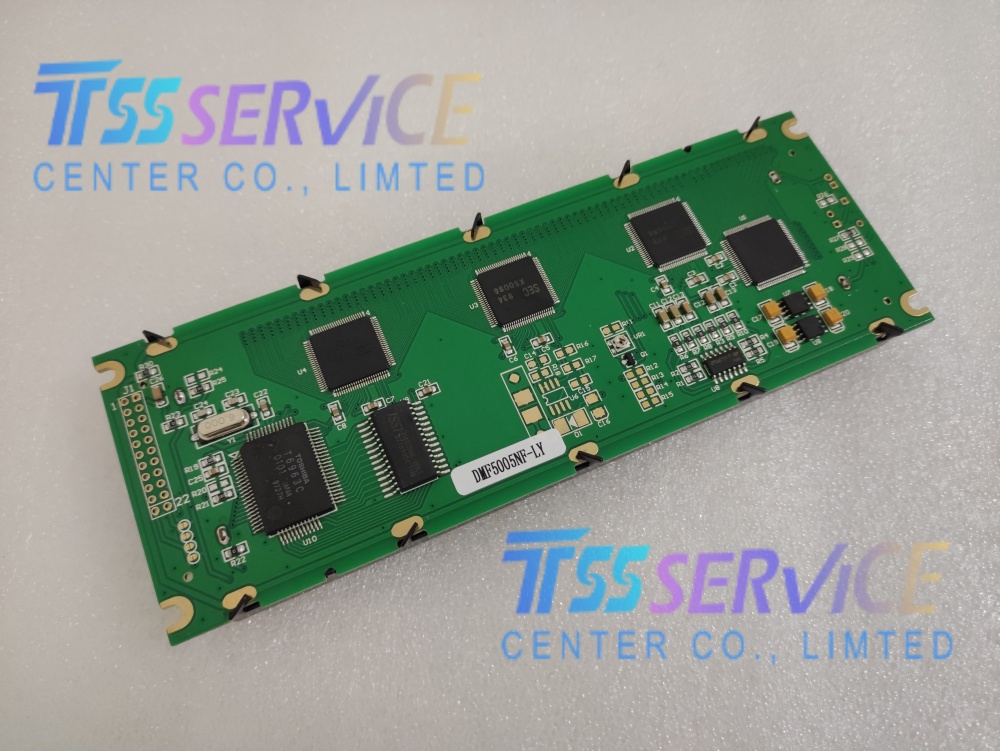

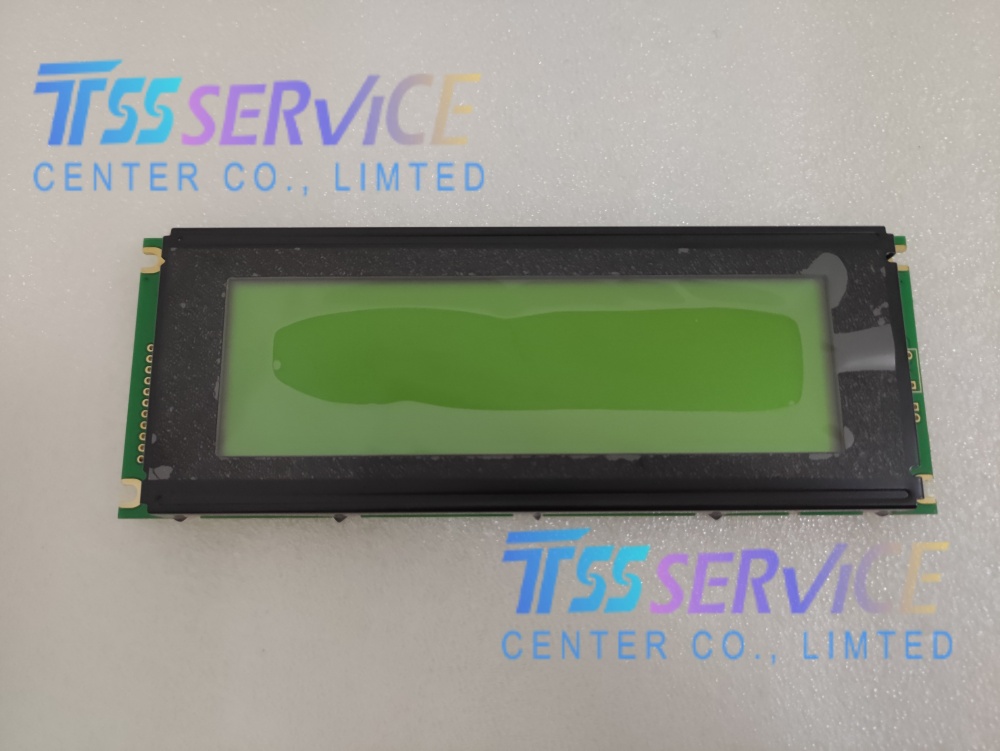

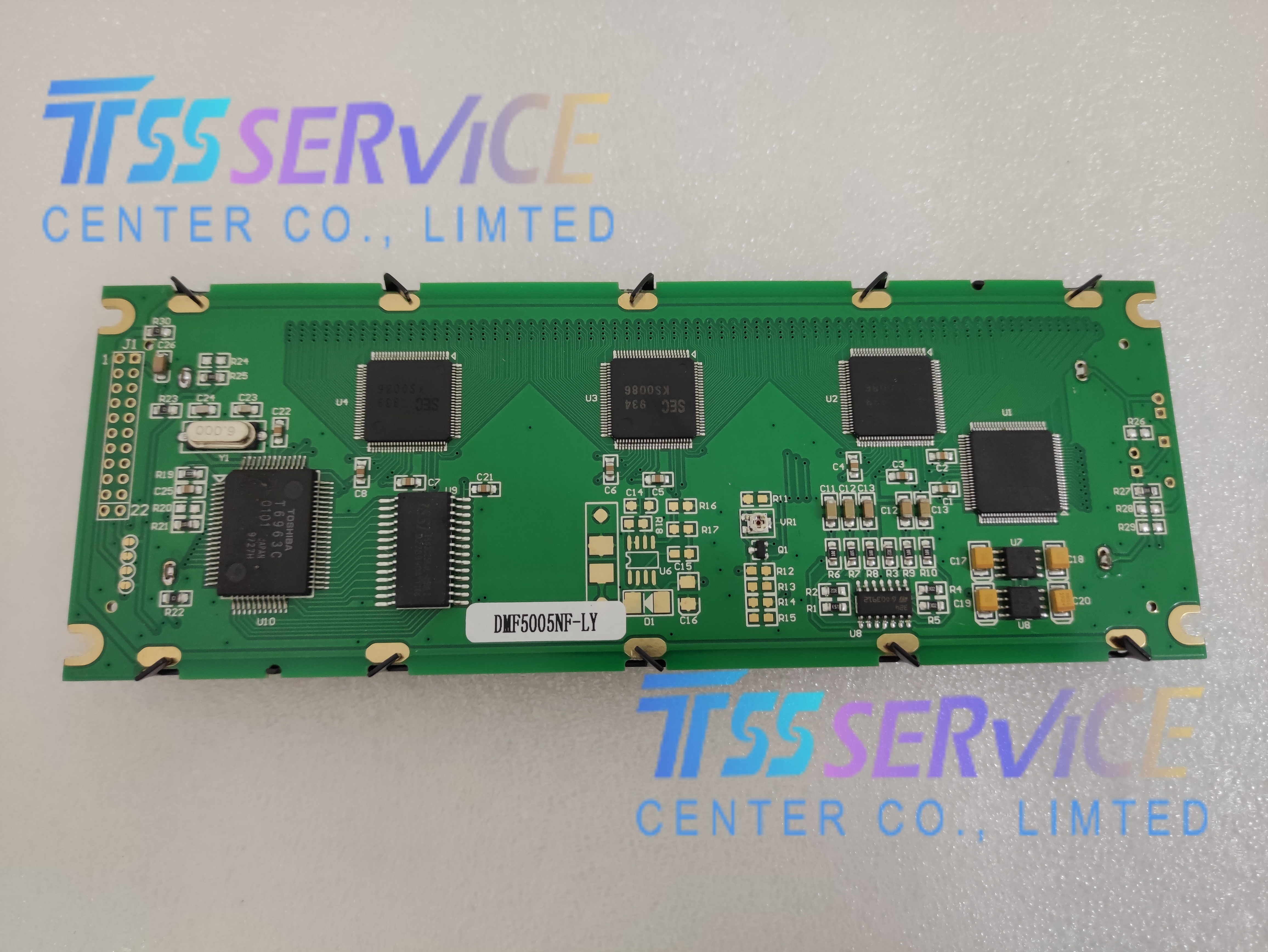

5.2 Inch DMF5005NF-LY 240×64 LCD Module Display for HMI Instrument Equipment

Name: 5.2 Inch DMF5005NF-LY 240×64 LCD Module Display for HMI Instrument Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: DMF5005NF-LY
Price: 60 USD
Availability: InStock

SKU: DMF5005NF-LY

Model Number: DMF5005NF-LY
Diagonal Size: 5.2 Inch Ultra Wide Strip
Dot Resolution: 240 (W) × 64 (H) Monochrome Dot Matrix

0.0 (0 Reviews)

0 Sold

~~$63.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

5.2 Inch DMF5005NF-LY 240×64 LCD Module Display for HMI Instrument Equipment

Item	Specification Parameter
Model Number	DMF5005NF-LY
Diagonal Size	5.2 Inch Ultra Wide Strip
Dot Resolution	240 (W) × 64 (H) Monochrome Dot Matrix
Panel Type	FSTN STN-LCD, Black & White Transmissive
Backlight	Yellow-Green (YG) LED Backlight, No Extra Driver Required
Typical Brightness	45 cd/m² (Min.)
Contrast Ratio	15:1 (Typical)
Viewing Angle L/R/U/D (CR≥2)	50° / 50° / 36° / 36°
Dot Size / Dot Pitch	0.49×0.49mm / 0.53×0.53mm
Active View Area	127.16 (W) × 33.88 (H) mm
Overall Outline Dimension	180 (W) × 65 (H) × 12 (T) mm
Signal Interface	8-bit Parallel CPU Interface, 22 Pins Pad Connector
Supply Voltage	5.0V VCC Standard Industrial Voltage
Refresh Rate	70Hz
Response Time Tr/Td	200ms / 130ms (Typical)
Touch Function	Without Touch Panel
Operating Temperature	0℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Net Weight	Max 170g
