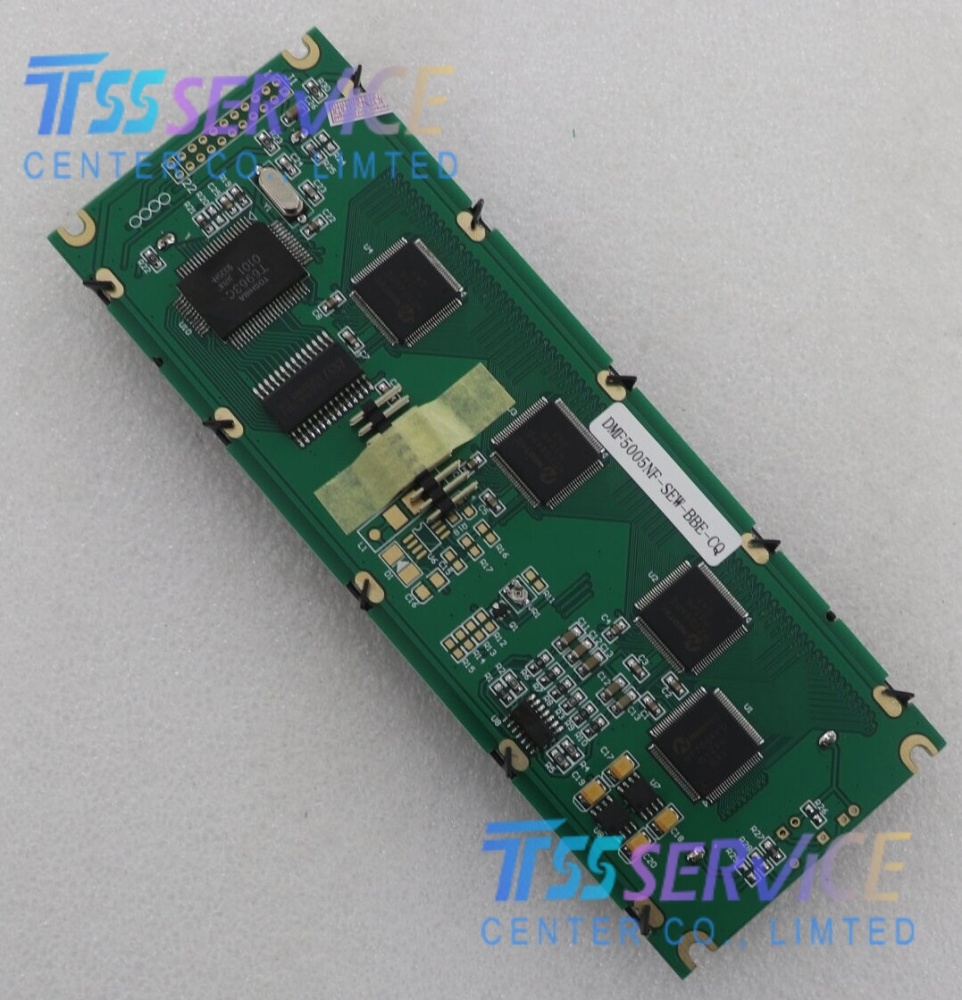

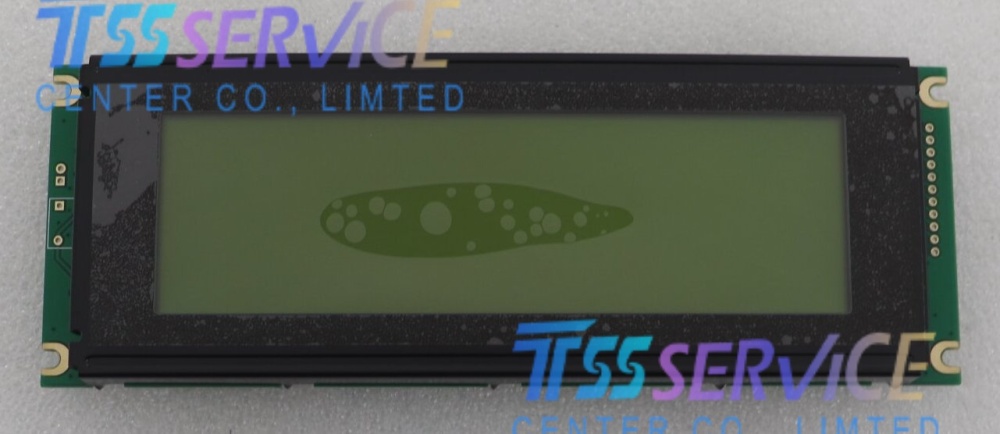

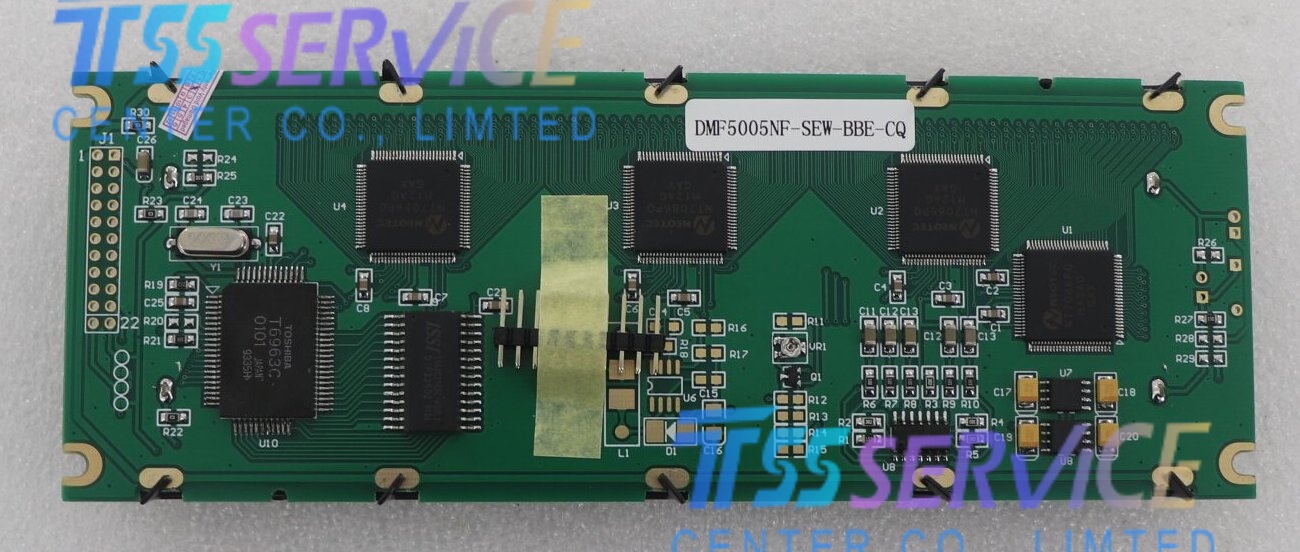

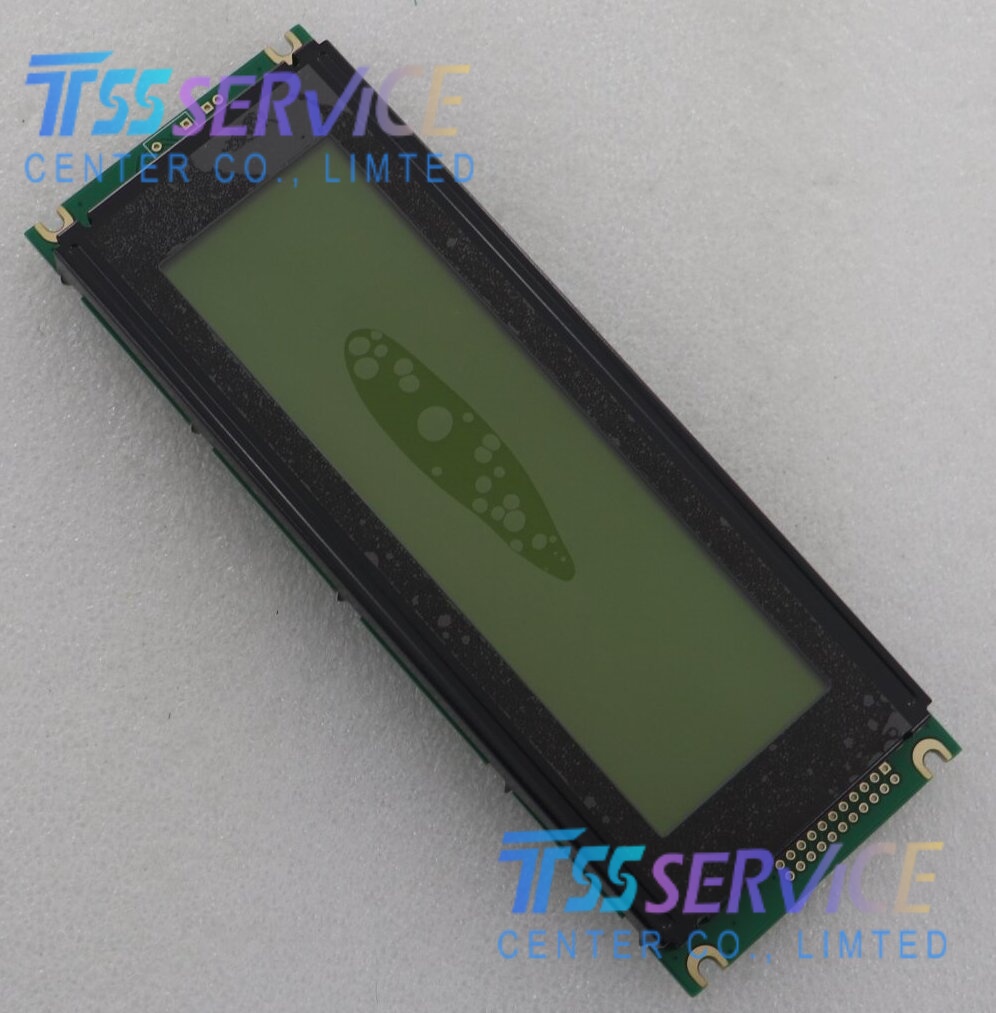

DMF5005NF-SEW-BBE-CQ 5.2 inch 240×64 Dot Monochrome FSTN LCD Module Display

Name: DMF5005NF-SEW-BBE-CQ 5.2 inch 240×64 Dot Monochrome FSTN LCD Module Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: DMF5005NF-SEW-BBE-CQ
Price: 60 USD
Availability: InStock

SKU: DMF5005NF-SEW-BBE-CQ

Model Number: DMF5005NF-SEW-BBE-CQ
Diagonal Size: 5.2 Inch
Dot Resolution: 240(W) × 64(H)
Panel Type: FSTN STN-LCD

0.0 (0 Reviews)

0 Sold

~~$63.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

DMF5005NF-SEW-BBE-CQ 5.2 inch 240×64 Dot Monochrome FSTN LCD Module Display

Item	Specification Parameter
Model Number	DMF5005NF-SEW-BBE-CQ
Diagonal Size	5.2 Inch
Dot Resolution	240(W) × 64(H) Monochrome Dot Matrix
Panel Type	FSTN STN-LCD
Backlight	White EL Electroluminescent Backlight, No extra driver required
Typical Brightness	200 cd/m²
Contrast Ratio	7:1 (Transmissive Mode)
Viewing Angle L/R/U/D (CR≥2)	37° / 40° / 37° / 34°
Dot Size / Dot Pitch	0.49×0.49mm / 0.53×0.53mm
Active View Area	127.16 (W) × 33.88 (H) mm
Overall Outline Dimension	180 (W) × 65 (H) × 11.0 (T) mm
Signal Interface	8-bit Parallel CPU Interface, 22 Pins Pad Connector
Supply Voltage	5.0V VCC Standard Industrial Voltage
Refresh Rate	70Hz
Response Time Tr/Td	70ms / 330ms (Typical)
Touch Function	Without Touch Panel
Operating Temperature	0℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Net Weight	Max 170g
RoHS Status	Non-RoHS

Applications

Legacy Industrial Control HMI & Automation Equipment
Vintage injection molding machine parameter strip displays, obsolete PLC operation terminals, packaging machine status monitors, assembly line text & waveform data screens, discontinued factory control panel replacement modules.
Laboratory & Portable Precision Test Instruments
Power monitoring analyzers, environmental gas detection equipment, precision weighing scales, signal testers, pipeline inspection handheld devices, oscilloscope auxiliary data bar displays.
Traditional Portable Medical Diagnostic Devices
Old patient vital parameter monitors, portable blood analysis equipment, infusion pump status display strips, veterinary handheld testing terminals, medical device text data display modules.
Commercial & Public Control Terminals
Industrial vending machine status bar screens, elevator floor information displays, access control system text monitors, charging pile parameter display panels, battery-powered portable industrial detectors.
Small Construction & Agricultural Vehicle Auxiliary Displays
Forklift parameter strip monitors, compact agricultural machinery status screens, mini engineering equipment operation data displays, vehicle dashboard auxiliary text panels.
