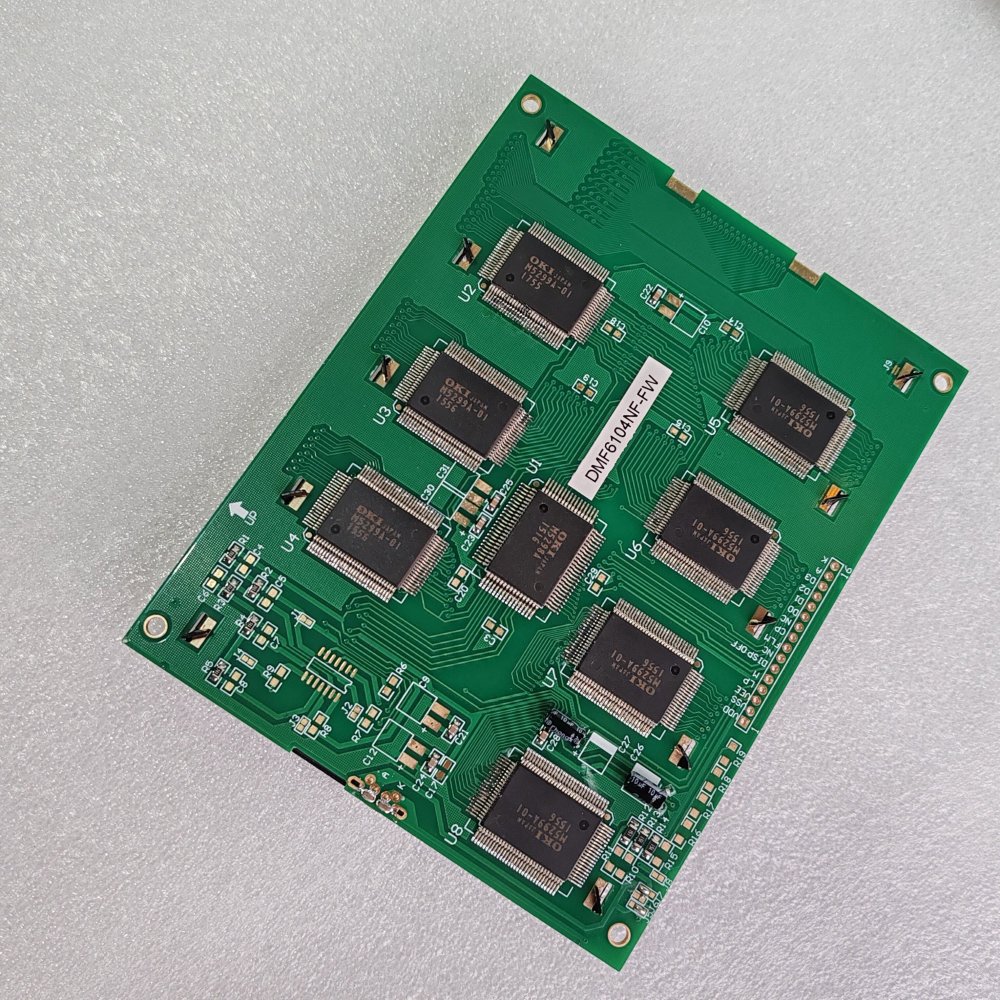

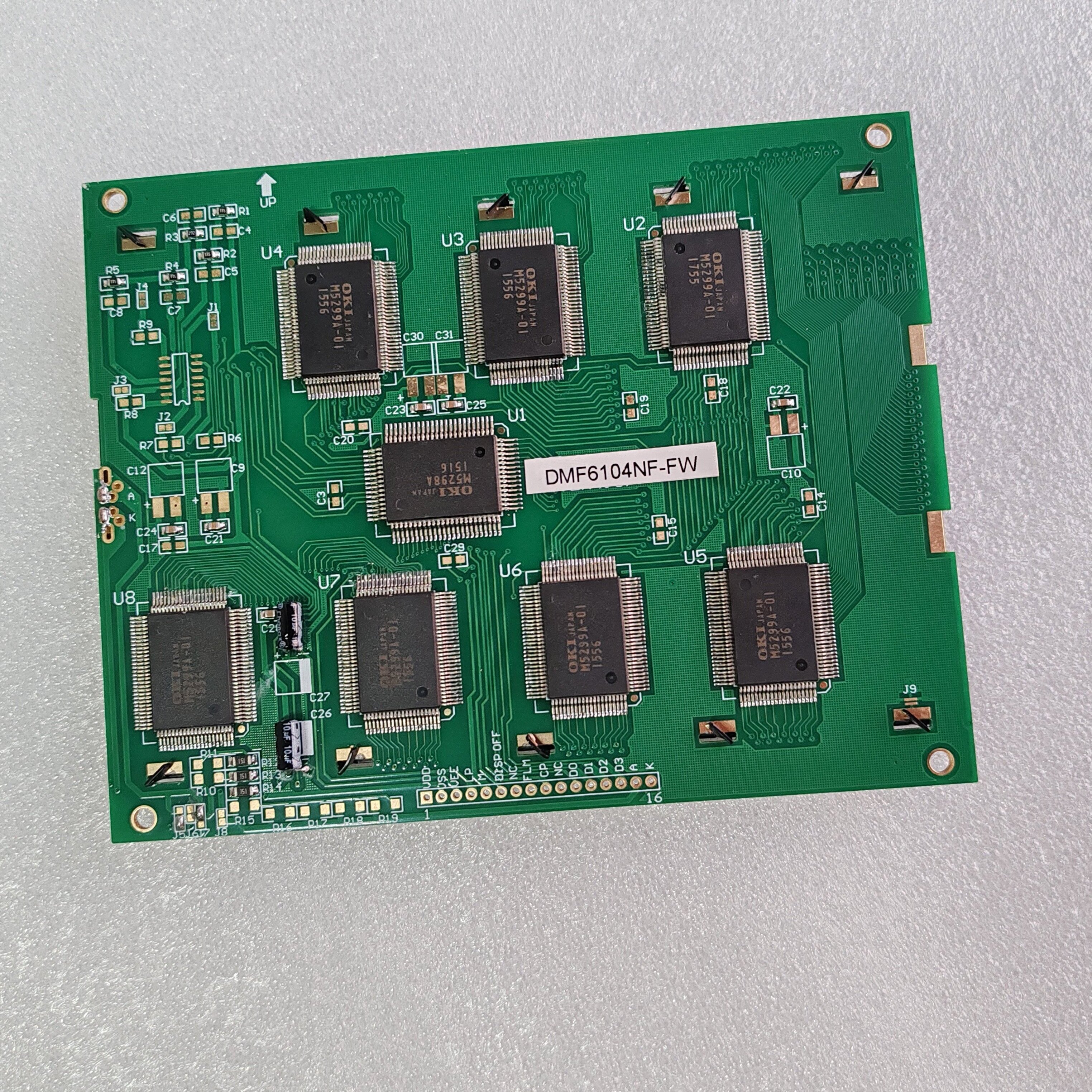

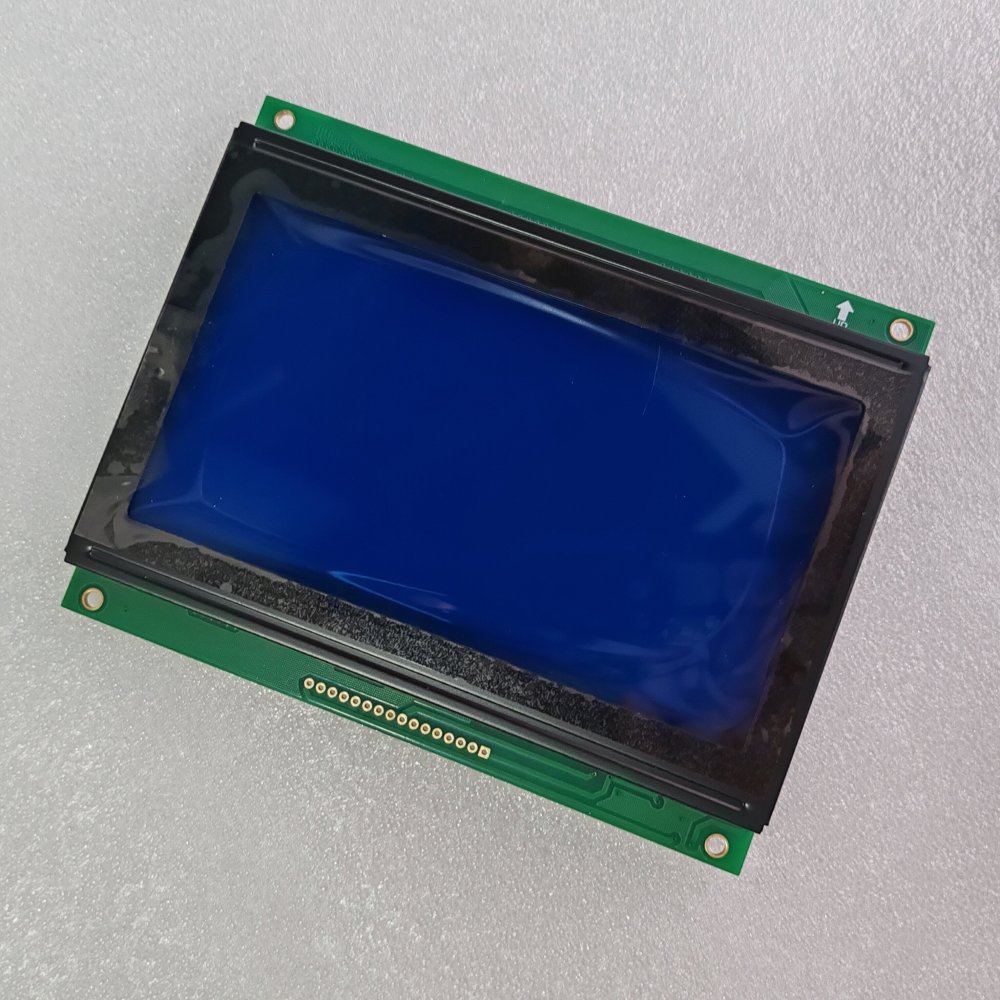

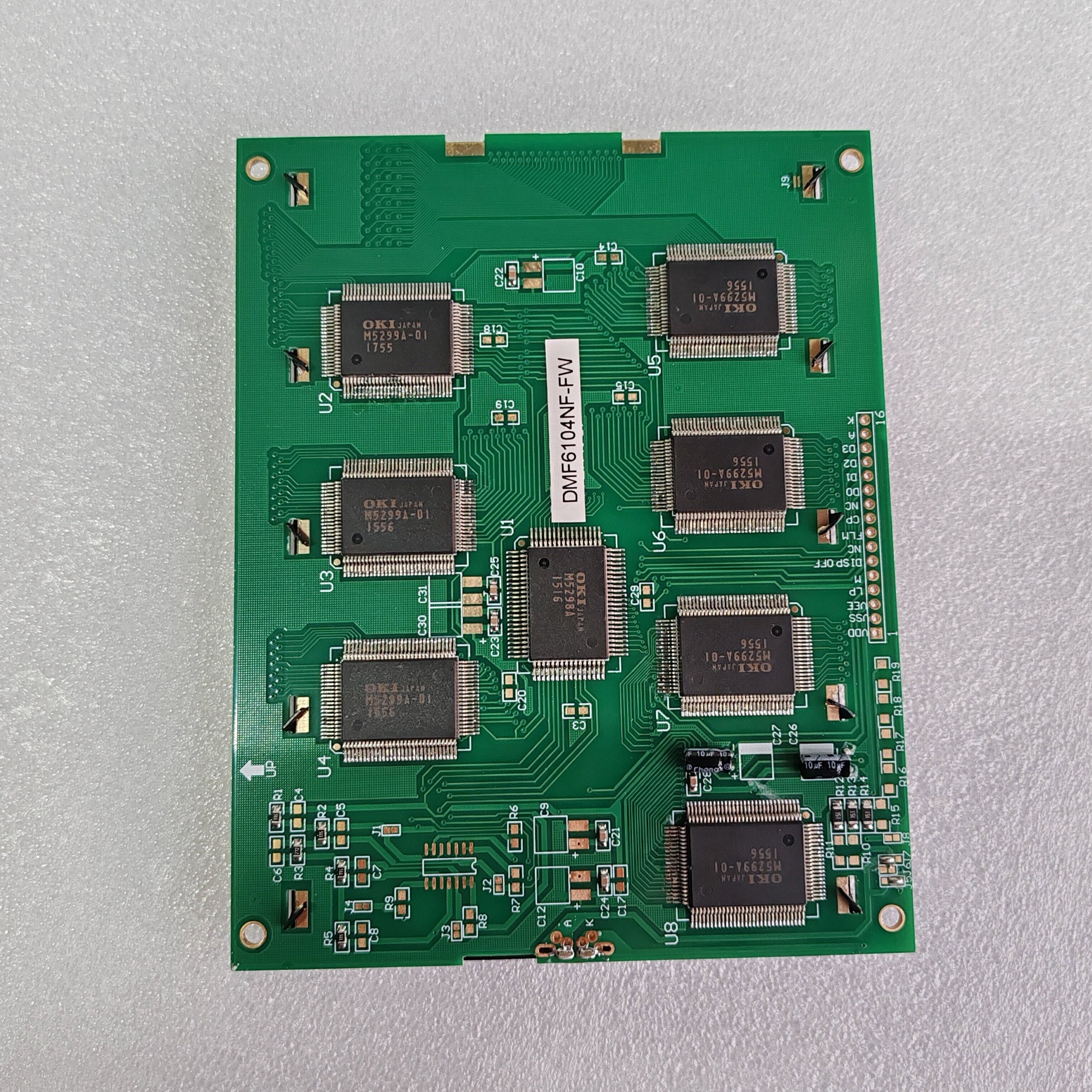

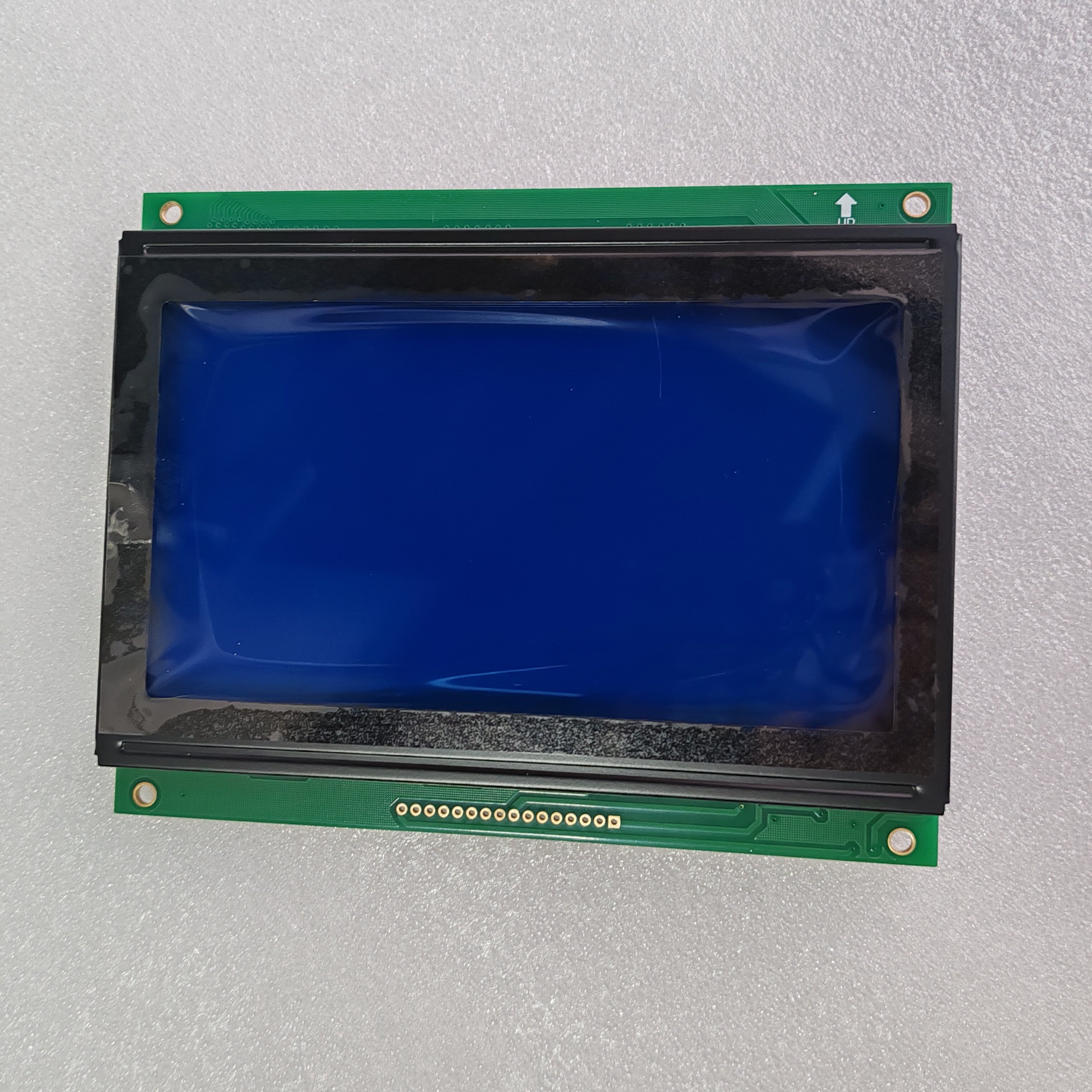

DMF6104NF-FW 5.3 Inch 256×128 LCD Panel For OPTREX

Name: DMF6104NF-FW 5.3 Inch 256×128 LCD Panel For OPTREX
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: DMF6104NF-FW
Price: 98 USD
Availability: InStock

SKU: DMF6104NF-FW

Model P/N: DMF6104NF-FW
Diagonal Size: 5.3"
Panel Type: FSTN-LCD, LCM
Resolution: 256×128 54PPI
Pixel Format: Rectangle

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

DMF6104NF-FW 5.3 Inch 256×128 LCD Panel For OPTREX

Parameter	Value
Part Number	DMF6104NF-FW
Manufacturer	Optrex
Display Type	FSTN-LCD, Monochrome
Display Mode	Transmissive, Negative (Black/White)
Resolution	256 × 128 pixels
Panel Size	5.3 inches
Active Area	120.32 (W) × 60.16 (H) mm
Outline Dimension	167 (W) × 116 (H) × 24.5 (D) mm
Dot Size	0.43 × 0.43 mm
Dot Pitch	0.47 × 0.47 mm
Brightness	50 cd/m² (Min.)
Contrast Ratio	15:1 (Typ.)
Response Time	110/160 ms (Tr/Td, Typ.)
Frame Frequency	70 Hz
Backlight	CCFL (White), Lifetime: 20,000 hours
Interface	16-pin Parallel (4-bit)
Supply Voltage	VCC: 4.5–5.5 V; VEE: 13.3 V
Operating Temperature	-10°C to +40°C
Storage Temperature	-20°C to +60°C
Weight	Max. 250 g
RoHS Compliance	Yes

Specific Applications

Industrial Control Panels: Used in PLCs, CNC machines, and factory automation HMI for clear text/graphic display in harsh environments.
Test & Measurement Instruments: Integrated into oscilloscopes, multimeters, and signal analyzers for data visualization.
Medical Devices: Applied in portable diagnostic equipment and patient monitors requiring stable monochrome display.
Embedded Systems & POS Terminals: Deployed in industrial PCs, kiosks, and retail POS machines for menu/transaction display.
Automotive & Marine Displays: Used in vehicle dashboards and marine navigation systems for reliable low-light readability.
