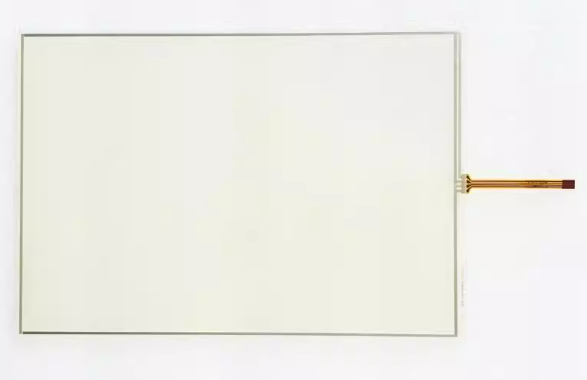

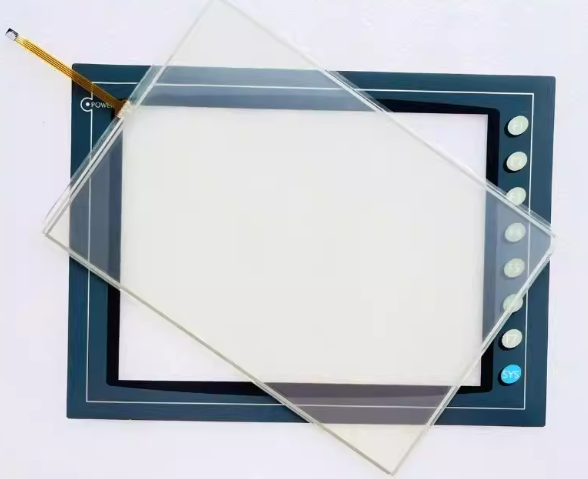

New Touch Screen DOP-A10THTD
1. Display Specifications
Parameter Specification Notes
Display Type 10.4" TFT LCD (Color) Thin-Film Transistor for vibrant color
Color Support 65,536 colors
Resolution 640 × 480 pixels (VGA) Standard VGA resolution
Backlight CCFL (Cold Cathode Fluorescent Lamp) Backlight lifespan data not specified in search results
Touch Screen Type Analog Resistive Durable, suitable for gloved operation
2. Processor & Memory
Parameter Specification Notes
CPU 32-bit RISC Microprocessor ARM9 core, 206.4 MHz
Flash Memory (Application) 8 Mbytes For user application storage
SRAM (System) 256 Kbytes Battery-backed for data retention
SDRAM (Data Temporary) 32 Mbytes
3. Communication Interfaces
Interface Type Notes
COM Ports 3x COM Ports (RS-232/RS-422/RS-485) Can connect to different devices simultaneously
USB 1x USB Client (Ver 1.1) For high-speed program upload/download
Expansion Slot Support for SM Card / USB Flash Drive For data backup, recipe storage, and updates
Protocol Support Supports major PLC brands Delta, Siemens, Mitsubishi, Omron, Allen-Bradley, etc.
4. Electrical Specifications
Parameter Specification Notes
Operating Voltage 24 VDC (-10% ~ +15%) 24 VDC nominal. Isolated power supply recommended
Power Consumption < 15 W (estimate) Not specified in search results; estimate based on similar model
Backup Battery Built-in Retains SRAM data and RTC
RTC (Real-Time Clock) Built-in With backup battery
5. Physical Specifications
Parameter Specification Notes
Dimensions (W×H×D) 297.1 × 222.1 × 51.1 mm
Panel Cutout (W×H) 285.2 × 210.2 mm
Weight Approx. 1735 g
Function Keys 6 or 7 user-defined keys + System key User-programmable function keys
6. Environmental Specifications
Parameter Specification Notes
Operating Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature -20°C to +60°C (-4°F to 140°F)
Operating Humidity 10% ~ 90% RH (non-condensing) @ 0-40°C
Protection Rating (Front) IP65 / NEMA4 Dust-tight and protected against water jets (when properly installed)
Vibration Resistance 5Hz≤f<9Hz: 1.75mm continuous / 3.5mm occasional
9Hz≤f≤150Hz: 0.5g continuous / 1.0g occasional
Cooling Method Natural air circulation Fanless operation
7. Certifications & Software
Parameter Specification Notes
Certifications CE, UL
Programming Software Delta Screen Editor Supports offline simulation, macro commands, recipe management, multi-language design
Language Support Supports up to 8 languages per project
8. Key Features & Benefits
Feature Benefit
Large 10.4" TFT Display Clear, vibrant 65,536-color visualization for complex process data
Fast 206 MHz ARM9 CPU Smooth screen transitions and fast macro execution
8MB Application Flash Ample memory for large and complex projects
Three Communication Ports Simultaneous connection to different devices and protocols
USB & SM Card Support Easy recipe management, data logging, and field firmware updates
IP65 Front Panel Reliable operation in dusty, wet industrial environments
Multi-Vendor PLC Support Compatible with Delta, Siemens, Mitsubishi, Omron, Allen-Bradley
