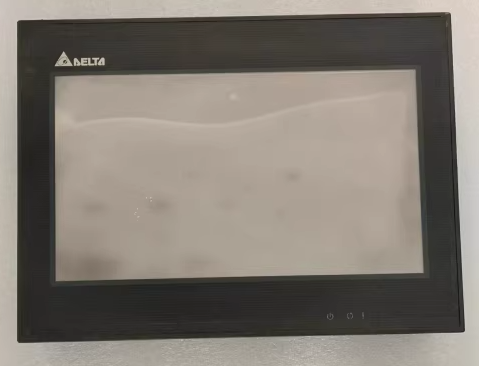

New Touch Screen DOP-B10S615
1. Display Specifications
Parameter Specification Notes
Display Type 10.1" TFT LCD (Widescreen) 16:9 aspect ratio
Resolution 1024 × 600 pixels Widescreen format
Display Colors 65,536 colors
Display Area (Active) 226 × 128.7 mm
Backlight Type LED
Backlight Lifetime >10,000 hours (half-life at 25°C) Backlight brightness declines to half the original brightness
Touch Screen Type Analog Resistive Durable, can be operated with gloved hands
Touch Screen Rating IP65 / NEMA4 Front panel protection
2. Processor & Memory
Parameter Specification Notes
Operating System Delta Real Time OS
CPU 32-bit RISC Micro-controller
Flash Memory (ROM) 128 MB total OS System: 30MB / Backup: 16MB / User Application: 82MB
SDRAM 64 MB
Backup Memory 16 MB Retains data when power is off
Real-Time Clock (RTC) Built-in CR2032 lithium battery-backed
Battery Life Approx. 3+ years at 25°C CR2032 × 1
3. Communication Interfaces
Interface Type Notes
Serial Ports COM1: RS-232 (with hardware flow control)
COM2: RS-232/RS-422/RS-485
COM3: RS-232/RS-422/RS-485 3 sets of COM ports, built-in isolation
USB Host USB 1.1 × 1 Supports USB flash drive, printer, mouse (max 5V/500mA)
USB Slave USB 2.0 × 1 For project download from PC
Ethernet None Ethernet available on DOP-B10E615 model only
Memory Card Slot SD Card (supports SDHC)
Audio Output Buzzer Multi-tone frequency (2K-4K Hz) / 85dB
Auxiliary Output None
4. Electrical Specifications
Parameter Specification Notes
Input Power DC +24V (-10% ~ +15%) Built-in isolation circuit
Power Consumption 12W (typical, without peripherals) Recommend power supply capacity 1.5-2 times rated consumption
Dielectric Withstand AC500V, 1 minute Between DC24V terminal and FG terminal
Insulation Resistance > 50 MΩ @ 500 VDC
5. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 272 × 200 × 61 mm
Panel Cutout (W × H) 261.3 × 189.3 mm Tolerance: +1.0/0 mm
Panel Thickness 1.6 mm to 6 mm
Weight Approx. 1520 g
Cooling Method Natural air circulation (fanless)
6. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 / NEMA4 Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature -20°C to +60°C (-4°F to 140°F)
Operating Humidity 10% to 90% RH [0-40°C]
10% to 55% RH [41-50°C] Pollution Degree 2
Vibration Resistance 5Hz ≤ f < 8.3Hz: 3.5mm continuous
8.3Hz ≤ f ≤ 150Hz: 1.0g continuous IEC61131-2 compliant
Shock Resistance 15G Peak, 11ms, 6 times each X, Y, Z axis IEC60068-2-27 compliant
Certifications CE, UL, KCC
7. Software
Parameter Specification Notes
Programming Software DOPSoft Supports Windows XP/Vista/7
Display Orientation Supports horizontal / vertical display
8. Key Features & Benefits
Feature Benefit
10.1" Wide-Screen TFT Display Clear, vibrant 65,536-color visualization with 1024×600 resolution
Three Communication Ports Simultaneous connection to different devices/protocols (RS232/422/485) with isolation
USB Host Support Direct connection to USB flash drive, printer, mouse for data transfer and peripheral support
SD Card Slot Easy data logging, recipe management, and project transfer
IP65 Front Panel Reliable operation in dusty, wet industrial environments
Fanless Cooling System Reliable long-term operation with no moving parts
Horizontal/Vertical Display Flexible installation options for space-constrained panels
9. Model Variants
Model Key Differences Notes
DOP-B10S615 Base model - No Ethernet Specifications as above
DOP-B10E615 Adds Ethernet, audio output, SD card as standard Network-enabled version
