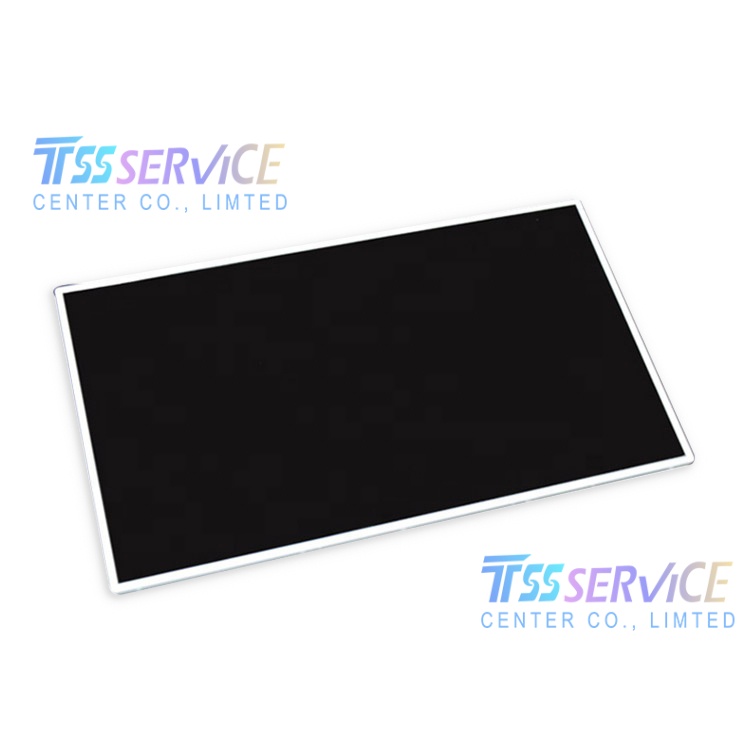

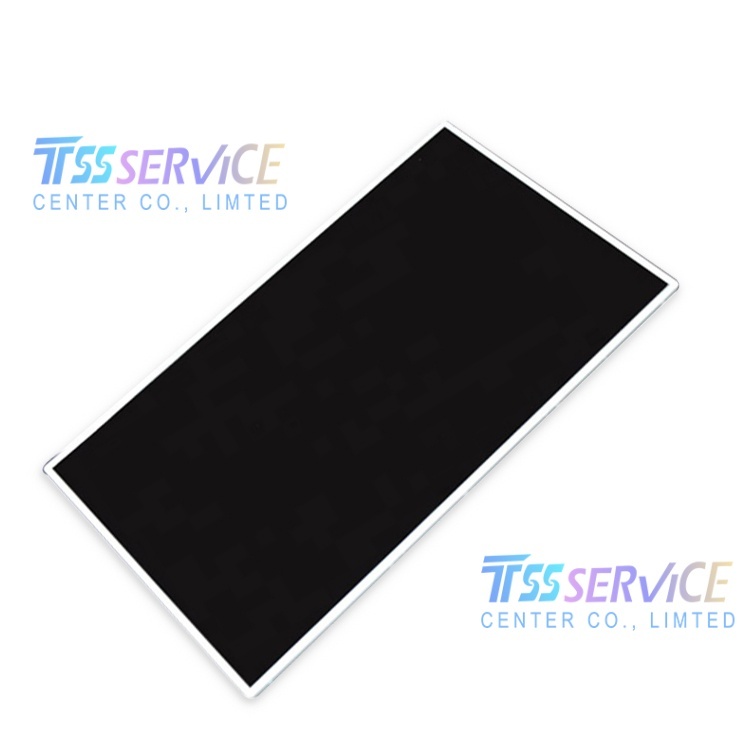

DV370FBM-N10 | BOE 37" Ultra-Wide Bar ADS Industrial TFT-LCD Panel
DV370FBM-N10 is a 37-inch ultra-wide bar-type a-Si ADS TFT LCD panel manufactured by BOE. It features a special stretched 32:9 ratio with 1920×540 resolution, 700 cd/m² high brightness, full symmetrical 89° wide viewing angle, dual-channel 8-bit LVDS 51-pin interface, matte anti-glare 3H hard coating and long-life WLED backlight. Designed for commercial bar digital signage, traffic guidance terminals, supermarket shelf displays, factory industrial monitoring and embedded long-strip information screens, it delivers consistent clear visuals under bright indoor lighting with stable industrial temperature performance.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
DV370FBM-N10 |
| Manufacturer |
BOE Technology (京东方) |
| Diagonal Size |
37.0 inch, landscape, ultra-wide 32:9 aspect ratio |
| Native Resolution |
1920(H) × 540(V) pixels |
| Display Technology |
a-Si TFT-LCD, ADS mode, Normally Black, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.1562 mm (H) × 0.4686 mm (V) |
| Active Area (AA) |
899.712 mm (W) × 253.044 mm (H) |
| Overall Outline Dimension |
914.9 × 280.9 × 22.7 mm |
| Typical Brightness |
700 cd/m² |
| Typical Contrast Ratio |
1000:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
89° / 89° / 89° / 89°, full symmetrical wide angle |
| Response Time (G-to-G) |
14 ms typical |
| Display Color Depth |
16.7M true colors (8-bit RGB) |
| Color Gamut |
72% NTSC |
| Backlight System |
WLED backlight, service life ≥ 50,000 hours, without built-in driver |
| Signal Interface |
Dual-channel LVDS, 8-bit, 51-pin FPC connector |
| Logic Supply Voltage |
12.0 VDC (typical) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Function |
Without integrated touch panel (capacitive/resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer (Haze 25%), 3H scratch-resistant hard coating |
| Net Weight |
Max 5.10 kg |
| Compliance Standard |
RoHS compliant |
| Production Status |
Mass production industrial bar display panel |
