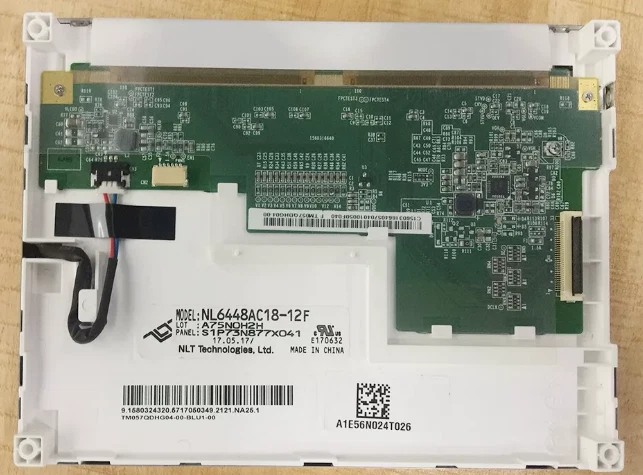

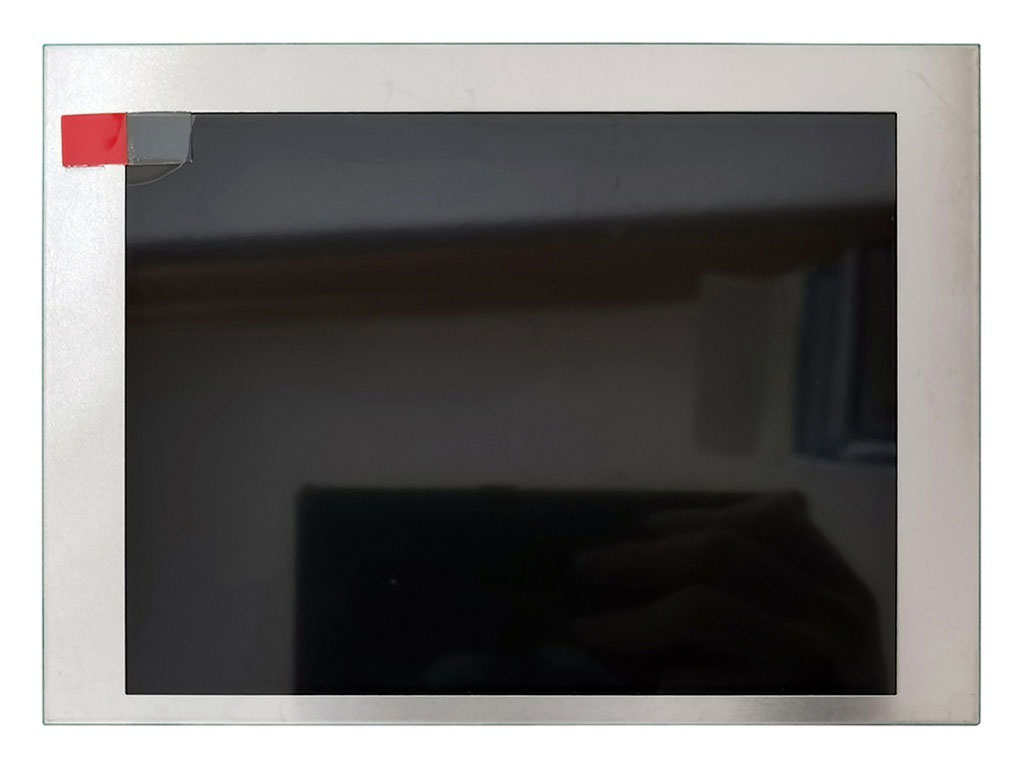

NL6448AC18-12F NEC 5.7 inch a-Si TFT-LCD LCM 640(RGB)×480

Name: NL6448AC18-12F NEC 5.7 inch a-Si TFT-LCD LCM 640(RGB)×480
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448AC18-12F
Price: 120 USD
Availability: InStock

SKU: NL6448AC18-12F

Quality:test ok before ship it
Stock Location:China
Warranty : 1 year
Delivery:WorldWide
Lead Time:1-3 Days
Shipping : DHL , FEDEX , EMS , UPS ..

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NEC Display NL6448AC18-12F General Features
NL6448AC18-12F is a 5.7-inch a-Si TFT-LCD module (LCM) manufactured by NEC, with a native resolution of 640 (RGB) × 480 pixels. This industrial-grade display offers stable performance, reliable contrast, and consistent color reproduction, making it well-suited for demanding applications such as industrial control panels, medical monitoring equipment, and embedded human-machine interfaces. Its robust construction ensures durability in challenging operational environments. As a direct-fit replacement part, it provides an exact and reliable solution for servicing or upgrading equipment that utilizes this specific NEC module, ensuring seamless integration and the restoration of clear, dependable visual performance.

Typical Applications

Industrial HMIs: Machine control panels in bright environments, PLC interfaces, SCADA systems.
Medical Devices: Patient monitors, ultrasound carts (secondary display), diagnostic stations where cost is a factor but brightness is needed.
Test & Measurement: Oscilloscopes, spectrum analyzers, network testers.
Legacy Systems: Upgrades or replacements for older
Transportation: Railway signaling panels, marine instrumentation.

Brand	NEC
Model	NL6448AC18-12F
Panel-type	a-Si TFT-LCD, LCM
Size	5.7"
Resolution	640(RGB)×480, VGA, 141PPI
Configuration	RGB Vertical Stripe
Display Area	115.2(W)×86.4(H) mm
Outline Dim.	144(W)×104.6(H)×12.8(D) mm
Bezel Area	118.2(W)×89.4(H) mm
Treatment	Antiglare, Hard coating (3H)
Brightness	800 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
Best View on	9 o'clock
Response Time	18 (Typ.)(Tr+Td) ms
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K , 50% NTSC
Light Source	WLED , 50K hours , With LED Driver
Panel Weight	150/165g (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without
Signal Interface	CMOS (1 ch, 6-bit) , 33 pins Connector
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²)

1.Question: How do you package this 5.7-inch LCD module during transport to ensure its safety?
Answer: Each module is individually sealed in an anti-static bag and placed in a custom shock-proof foam tray to secure its position. The outer box uses thickened rigid cardboard with cushioning materials to ensure the product is not squeezed or damaged during long-distance transit.
2.Question: Will this 640x480 resolution screen be tested before shipment?
Answer: Yes, every NL6448AC18-12F undergoes strict quality control before shipment. We perform visual inspections and screen lighting tests to ensure the display area is free of scratches, dead pixels are within acceptable limits, and that color display and functionality are fully normal.
