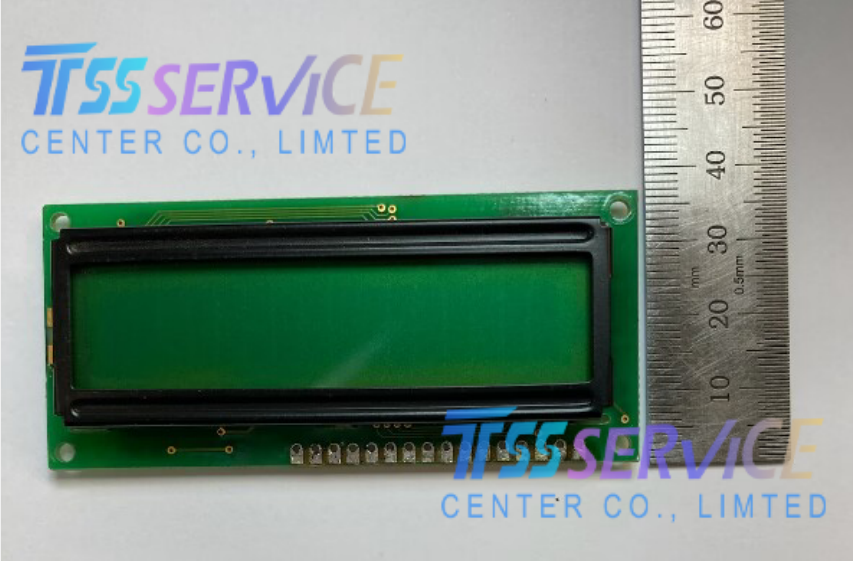

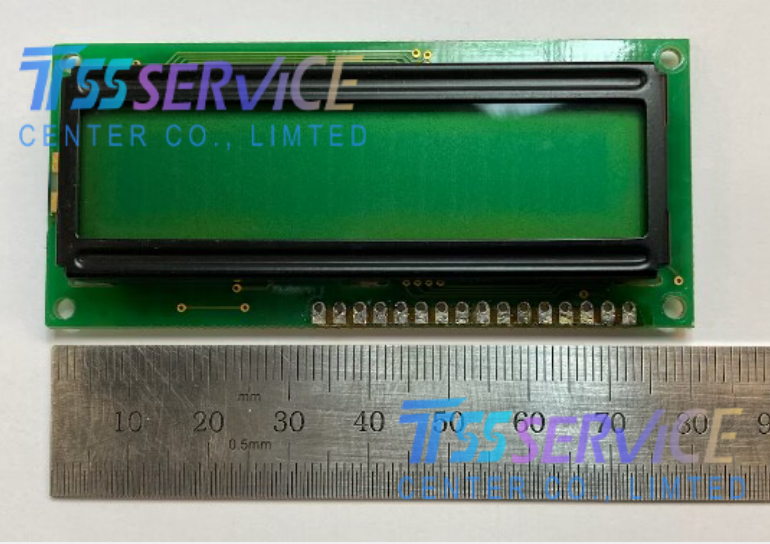

ED16205YLY EDT 16×2 LCD Panel Display For Industrial
| Parameter |
Details |
| Model Number |
ED16205YLY |
| Manufacturer |
EDT, Inc. |
| Display Type |
STN Character LCD Module (Transflective/Positive) |
| Format |
16 characters × 2 lines (16×2) |
| Display Mode |
Yellow/Green Background with Black Characters |
| Viewing Angle |
Bottom (6 o'clock) preferred viewing direction |
| Backlight |
Yellow/Green LED (integrated, low power consumption) |
| Module Dimensions |
80.0 × 36.0 × 13.0 mm (approx.) |
| Interface |
Parallel 4/8-bit MCU (HD44780-compatible) |
| Supply Voltage |
5.0V DC (typical) |
| Operating Temperature |
-20°C ~ +70°C (industrial wide range) |
| Storage Temperature |
-30°C ~ +80°C |
| Features |
RoHS compliant, wide temperature range, sunlight-readable transflective mode |
The ED16205YLY is designed for low-cost, high-reliability applications requiring simple text display:
- Industrial Control Panels: PLCs, process controllers, and factory automation systems.
- Embedded Systems & IoT Devices: Data loggers, smart meters, and monitoring equipment.
- Test & Measurement Instruments: Benchtop meters, signal generators, and field-test devices.
- Consumer & Office Equipment: Printers, vending machines, and point-of-sale terminals.
- Legacy System Replacements: Direct drop-in replacement for older 16×2 character LCD modules in industrial machinery.
