EDMGRB8KJF Panasonic 7.8 inch 640×480 LCD Display Panel For Industrial

Name: EDMGRB8KJF Panasonic 7.8 inch 640×480 LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EDMGRB8KJF
Price: 123 USD
Availability: InStock

SKU: EDMGRB8KJF

Model P/N: EDMGRB8KJF
Diagonal Size: 7.8"
Panel Type: CSTN-LCD, LCM
Pixel Number: 640(RGB)×480, VGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $123.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

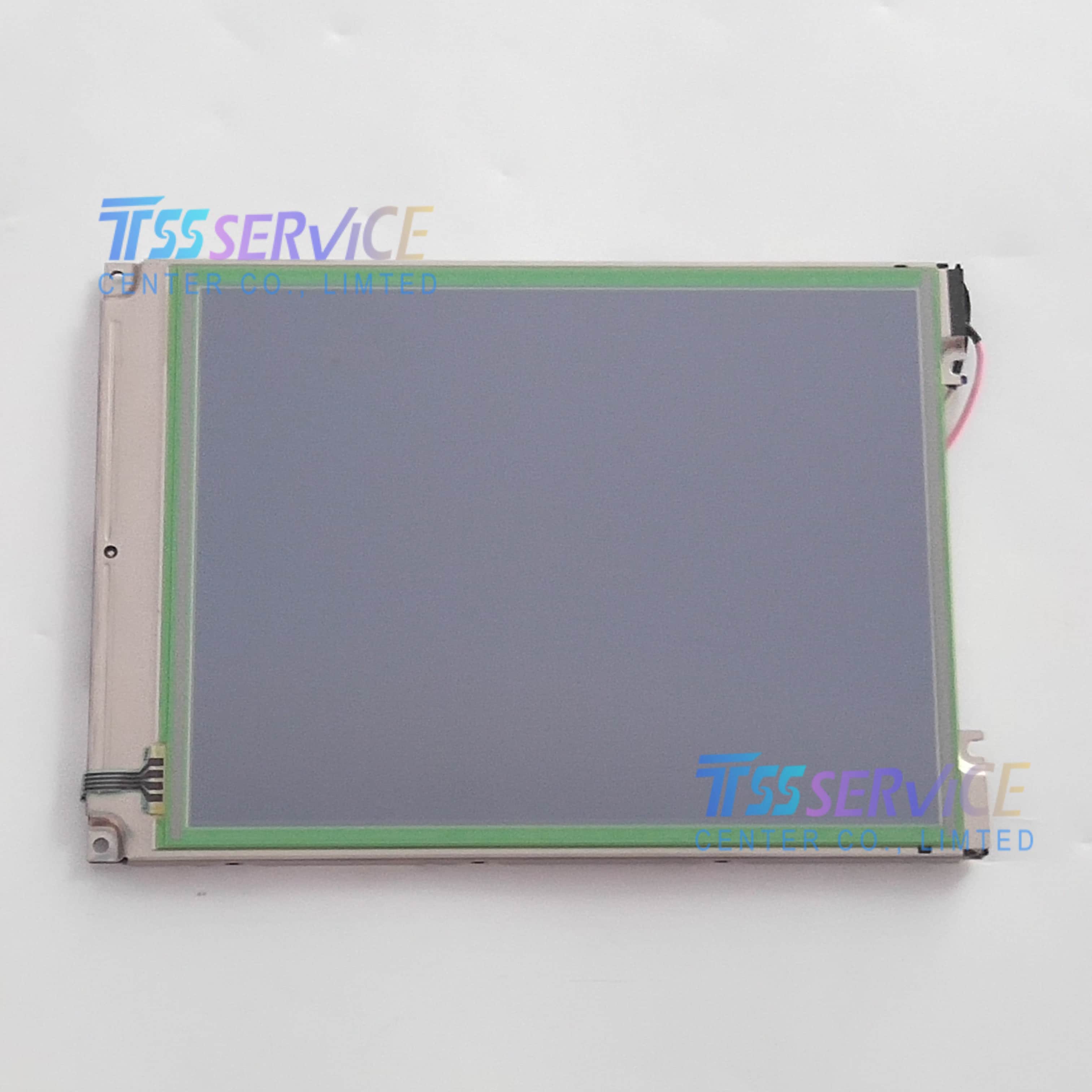

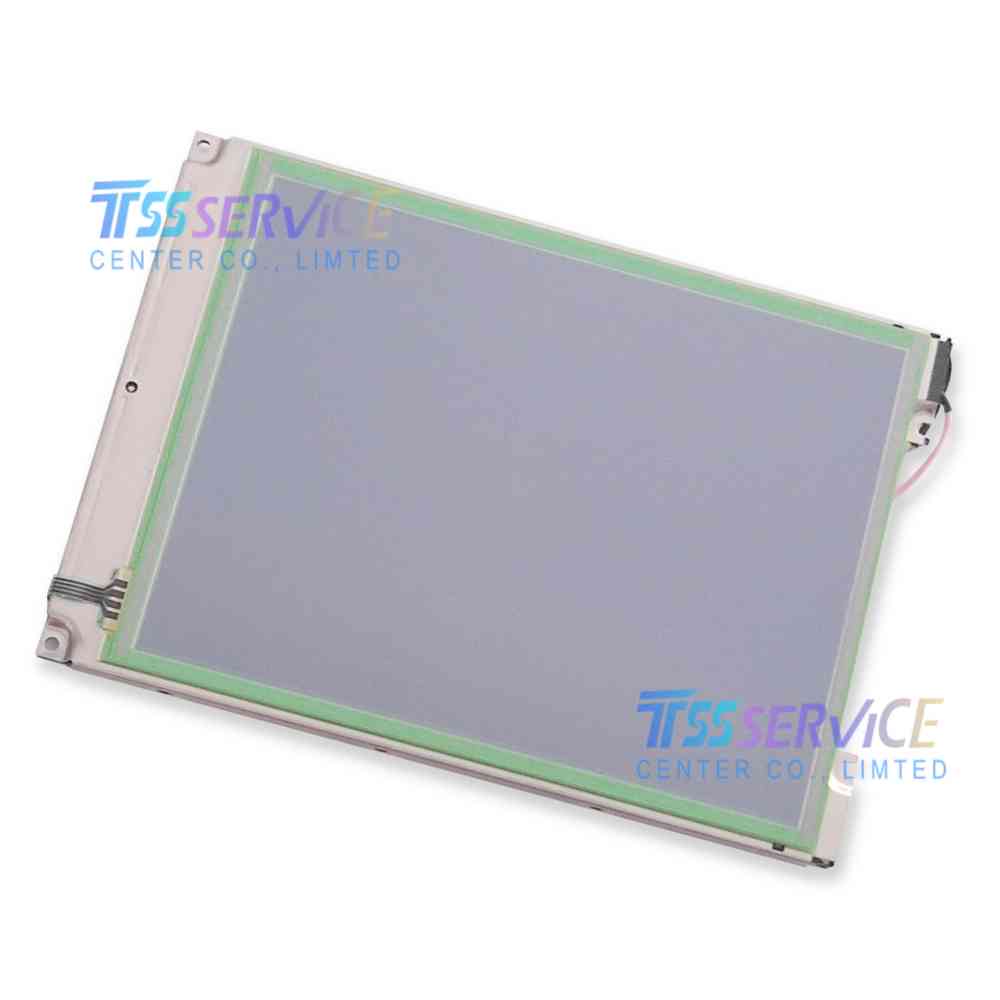

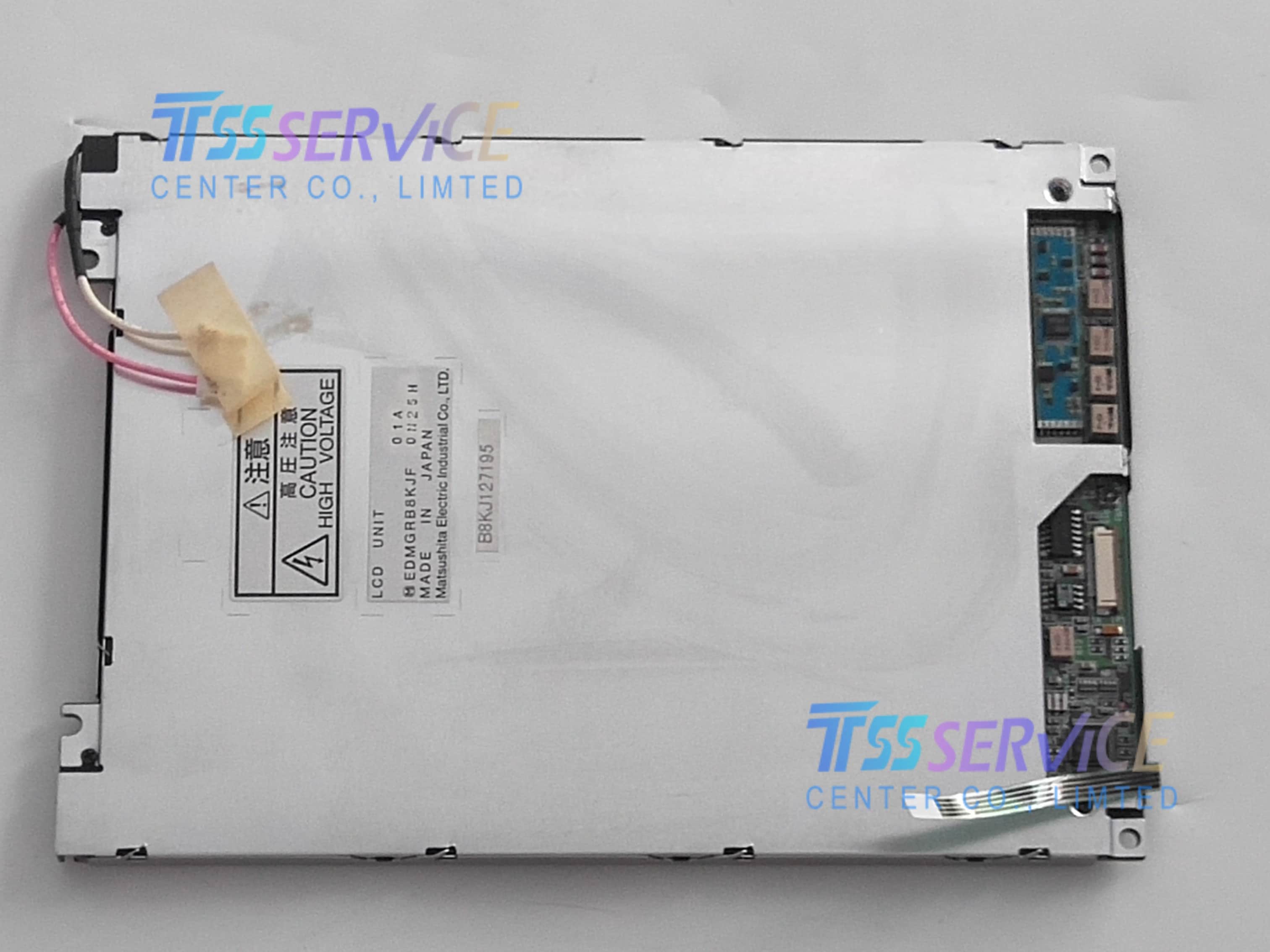

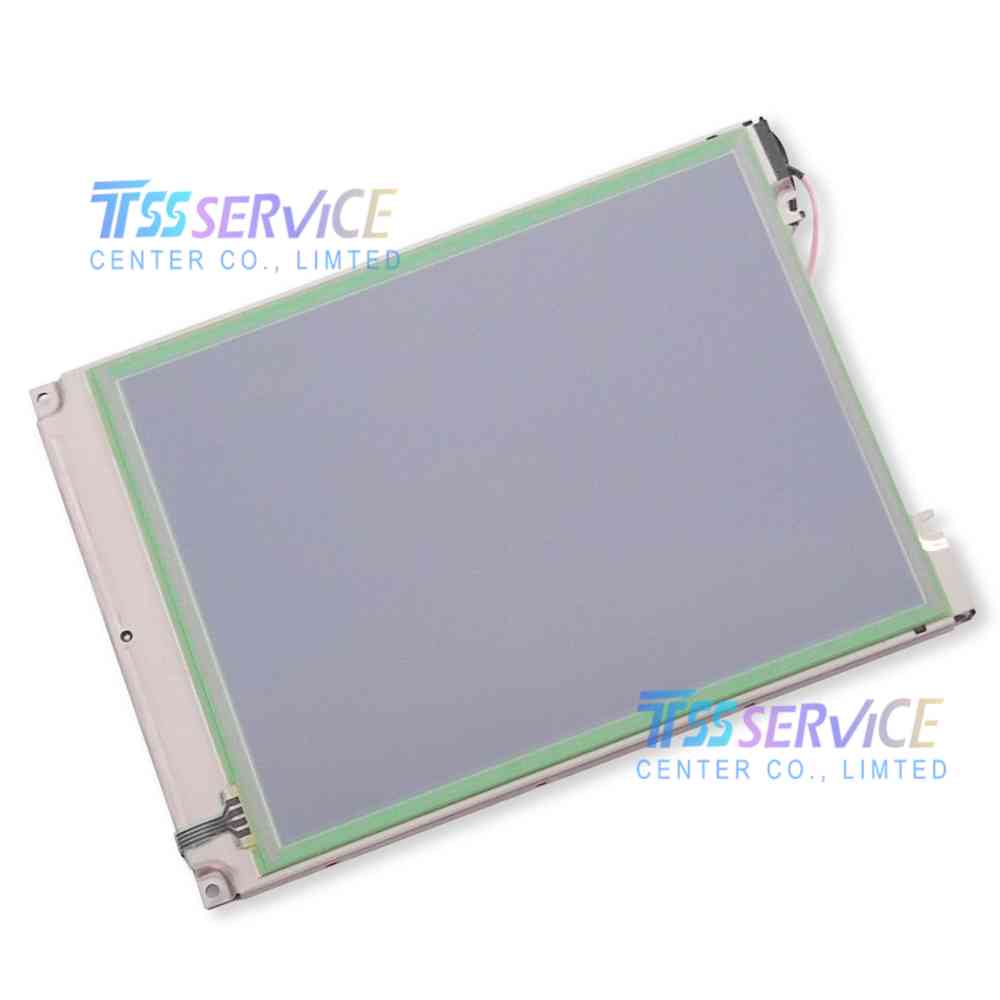

EDMGRB8KJF Panasonic 7.8 inch 640×480 LCD Display Panel For Industrial

Parameter	Value
Model	EDMGRB8KJF
Brand	Panasonic
Screen Size	7.8 inch (diagonal)
Panel Type	CSTN-LCD (Color Super Twisted Nematic)
Resolution	640 × 480 (VGA)
Active Area (H×V)	157.42 × 118.06 mm
Outline Dimensions (H×V×D)	195.2 × 137.5 mm
Brightness (Typ.)	60 cd/m²
Contrast Ratio (Typ.)	30:1
Viewing Angle (Typ.)	45°/45°/30°/20° (CR ≥ 1.5)
Display Mode	Normally Black, Transmissive
Color Depth	Color (RGB Vertical Stripe)
Refresh Rate	70 Hz
Backlight	1 × CCFL (Cold Cathode Fluorescent Lamp)

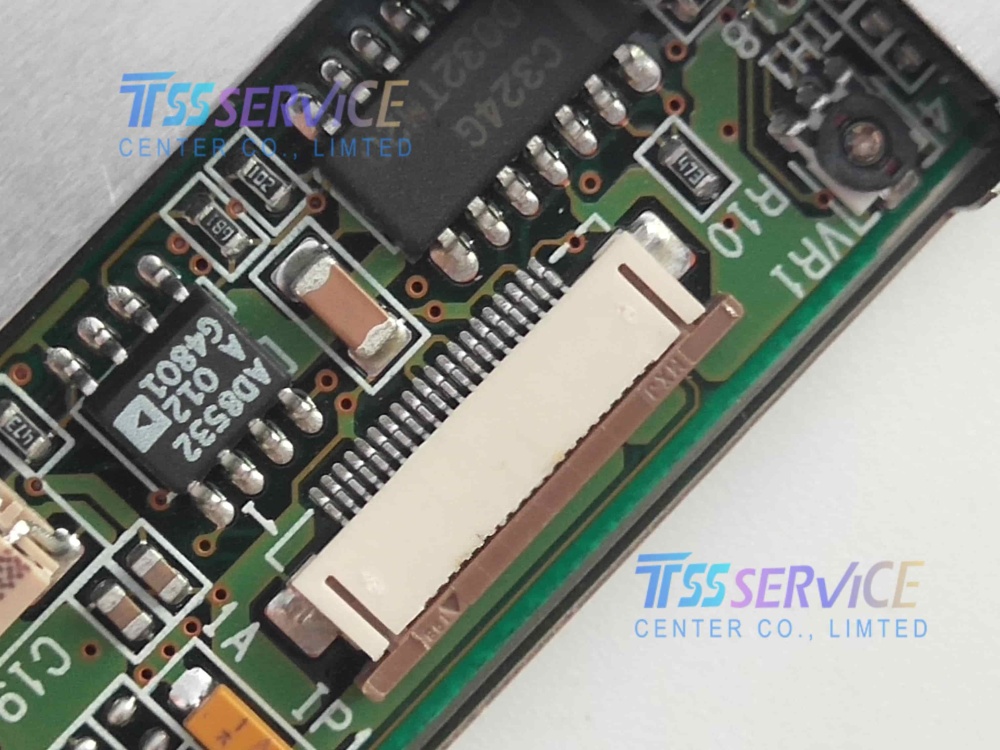

Signal Interface	Parallel Data (8-bit, 20-pin connector)
Surface Treatment	Clear, Hard Coating (2H)
Weight (Typ.)	230 g
Operating Temperature	-20°C ~ +60°C
RoHS Compliance	Yes

Applications

Industrial Control Systems: HMI (Human-Machine Interface) panels, PLC displays, factory automation terminals.
Medical Equipment: Patient monitors, diagnostic devices, portable medical instruments.
POS & Kiosk Systems: Point-of-sale terminals, industrial touchscreen kiosks, vending machines.
Marine & Vehicle Displays: Marine navigation, industrial vehicle dashboards (low power, wide temp range).
Embedded Systems: Rugged industrial computers, test/measurement equipment, legacy device replacements.
