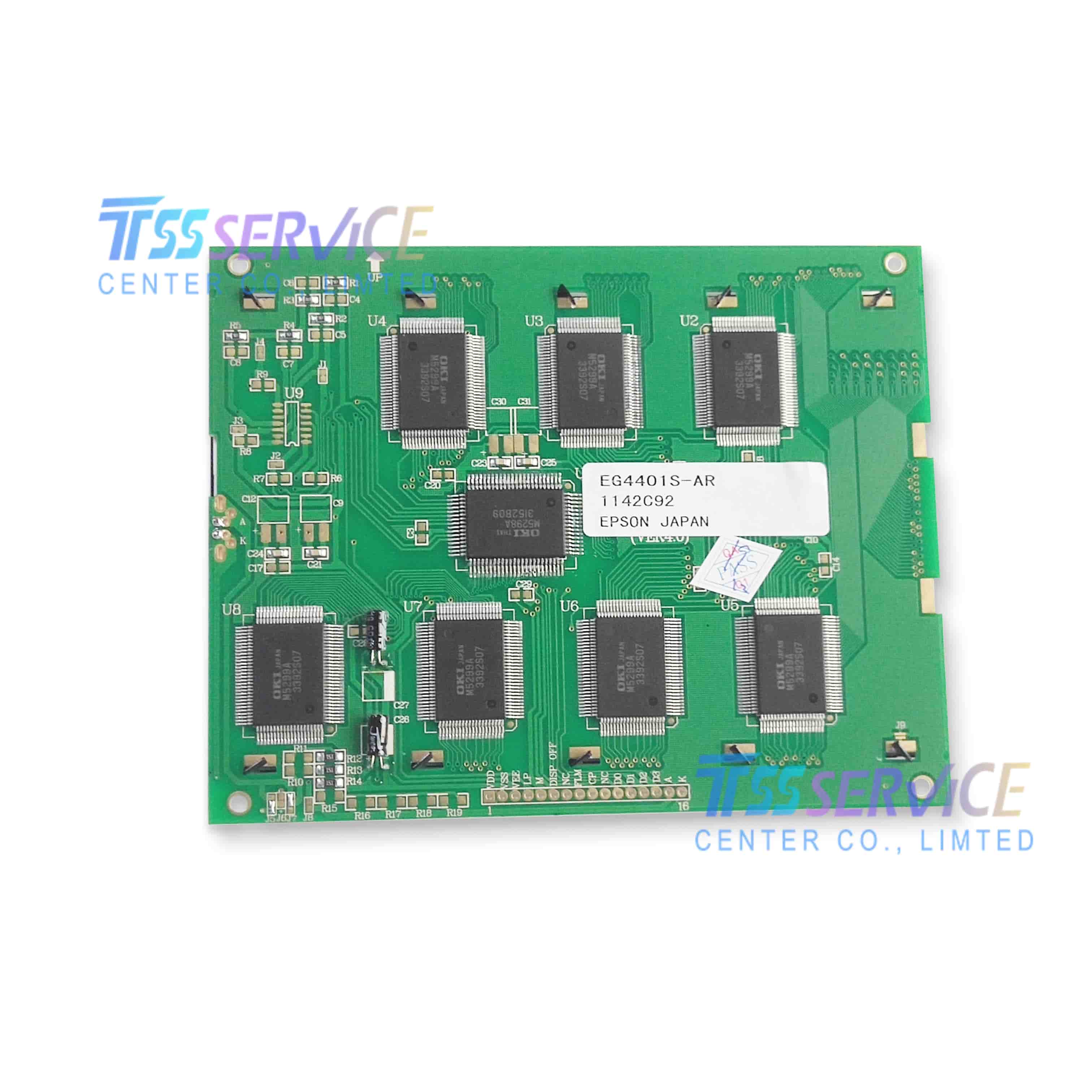

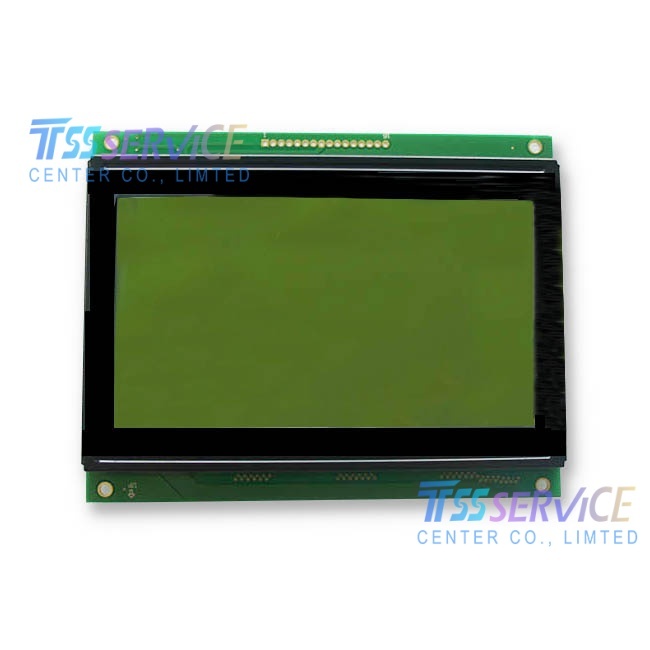

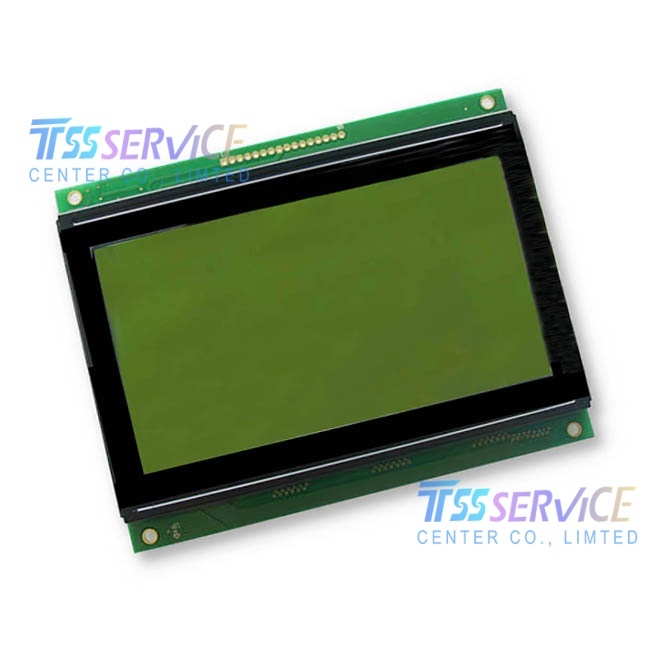

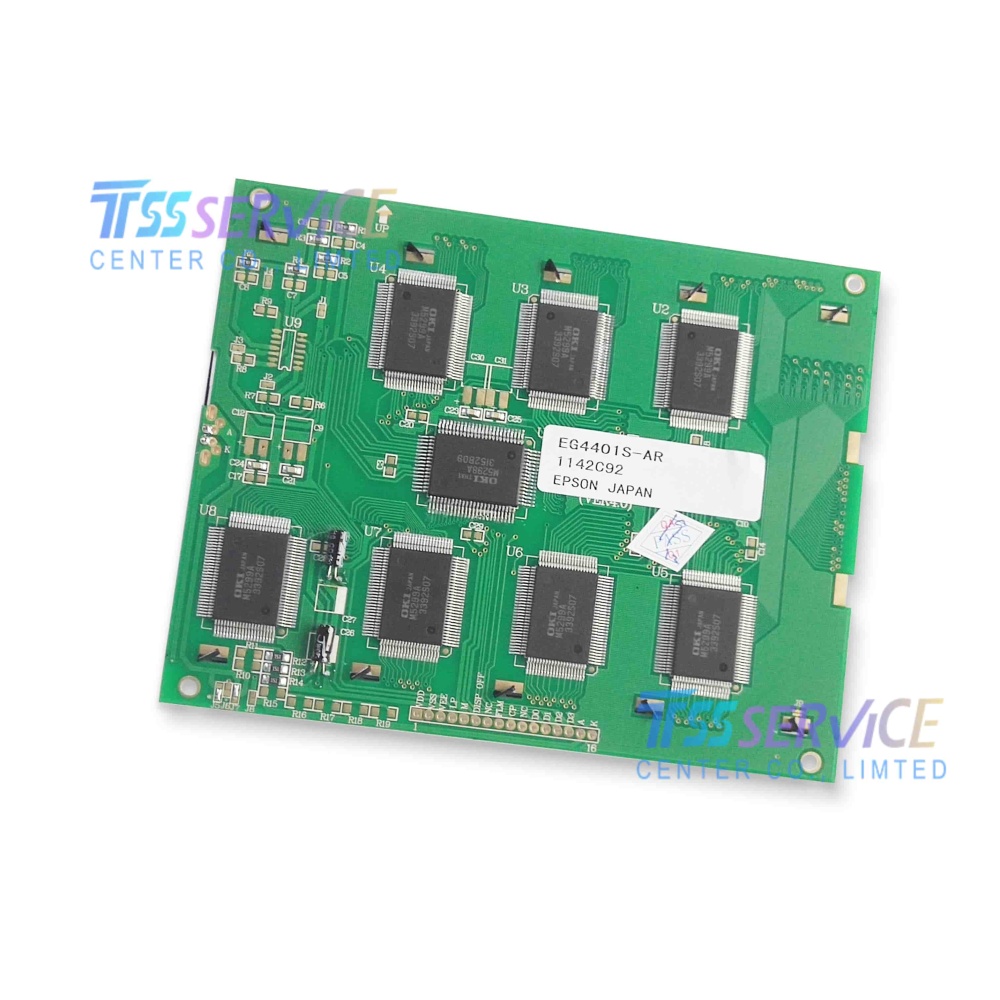

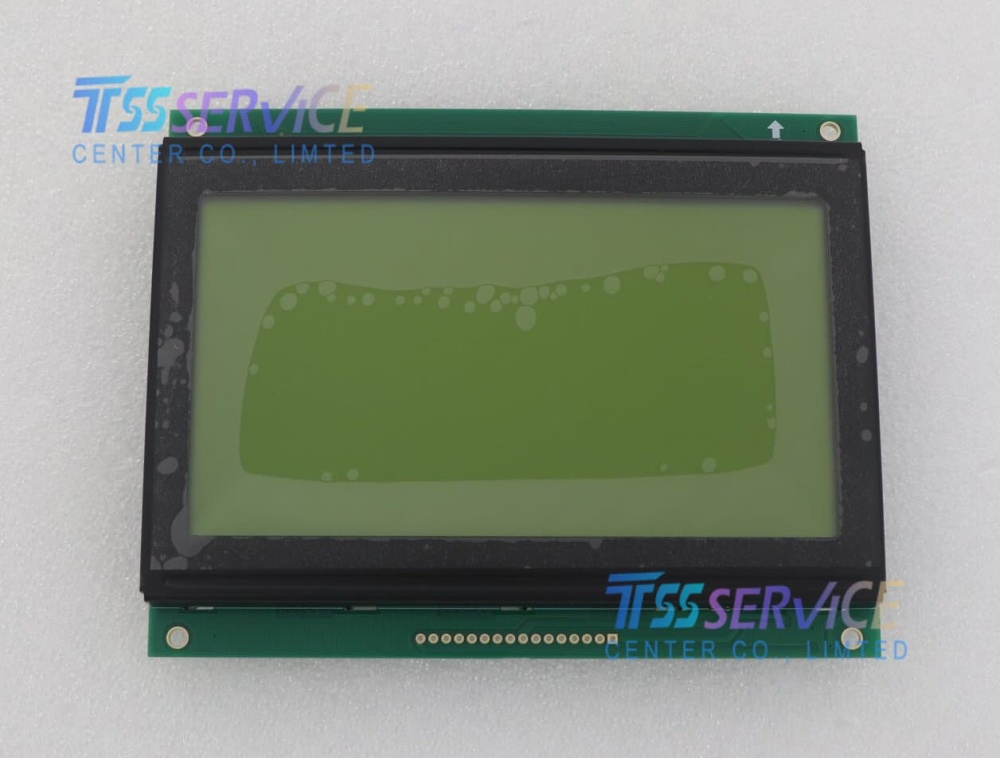

EG4401S-AR 5.3 inch LCD Panel Screen For Industrial

Name: EG4401S-AR 5.3 inch LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EG4401S-AR
Price: 109 USD
Availability: InStock

SKU: EG4401S-AR

Model: EG4401S-AR
Display Size: 5.3 inches (diagonal)
Panel Type: STN, Positive, Reflective, Monochrome (Blue/Grey)
Resolution: 256 × 128 pixels

0.0 (0 Reviews)

0 Sold

~~$111.00~~ $109.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

EG4401S-AR 5.3 inch LCD Panel Screen For Industrial

Parameter	Specification
Manufacturer	EPSON
Model	EG4401S-AR
Display Size	5.3 inches (diagonal)
Panel Type	STN, Positive, Reflective, Monochrome (Blue/Grey)
Resolution	256 × 128 pixels
Aspect Ratio	2:1 (wide)
Active Area (AA)	120.28 (W) × 60.12 (H) mm
Outline Dimensions	147.0 × 116.0 × 13.0 mm
Dot Pitch	0.47 × 0.47 mm
Viewing Angle	25°/25°/30°/20° (L/R/U/D, min. CR≥2)
Contrast Ratio	3:1 (Typ., reflective)
Backlight	Without backlight (reflective only)
Response Time	100 ms (Tr) / 150 ms (Td) (Typ.)
Refresh Frequency	75 Hz
Interface	4-bit parallel, 14-pin pad
Power Supply (VDD)	5.0V (Typ.)
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
Net Weight	Approx. 190g
Features	Low power, sunlight readable, compact, industrial grade

Typical Applications

Industrial Handheld Terminals
- Portable data collectors, warehouse scanners, field service devices.
- Reflective design works perfectly in direct sunlight; no backlight saves power.
Industrial Control Panels
- Factory automation, PLC HMIs, machinery control units.
- Stable monochrome graphics for parameter display and menu navigation.
Test & Measurement Instruments
- Portable meters, data loggers, environmental monitoring devices.
- Low power consumption extends battery life in field equipment.
Embedded & IoT Systems
- Smart controllers, industrial gateways, edge computing devices.
- Simple 4-bit parallel interface easy to integrate with MCUs.
Outdoor & Marine Equipment
- Navigation displays, outdoor kiosks, agricultural machinery.
- Sunlight readability and rugged construction for outdoor use.
