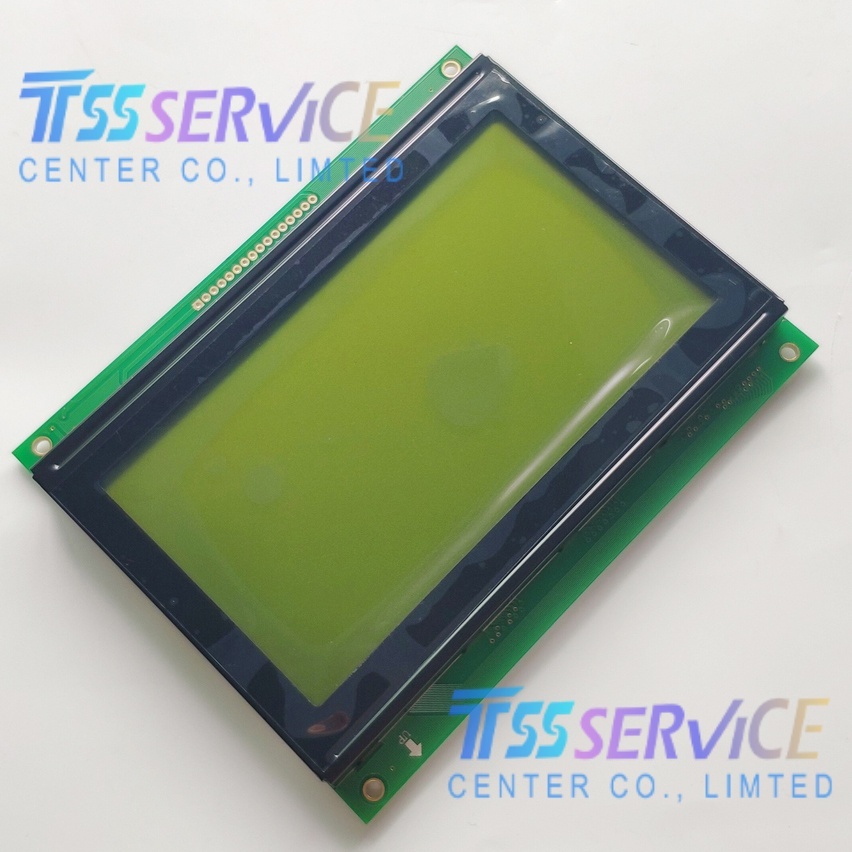

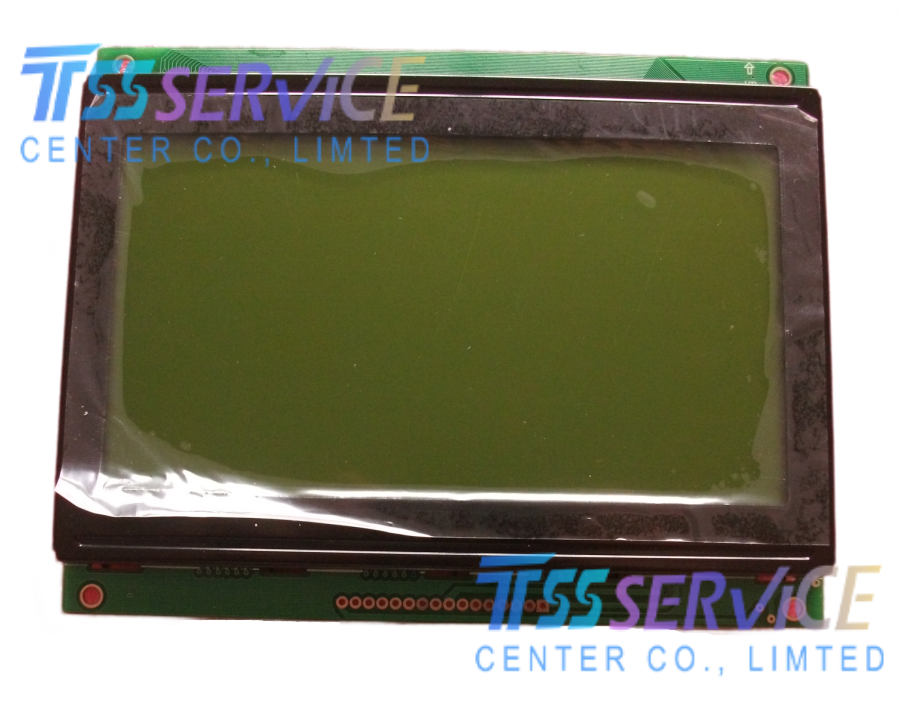

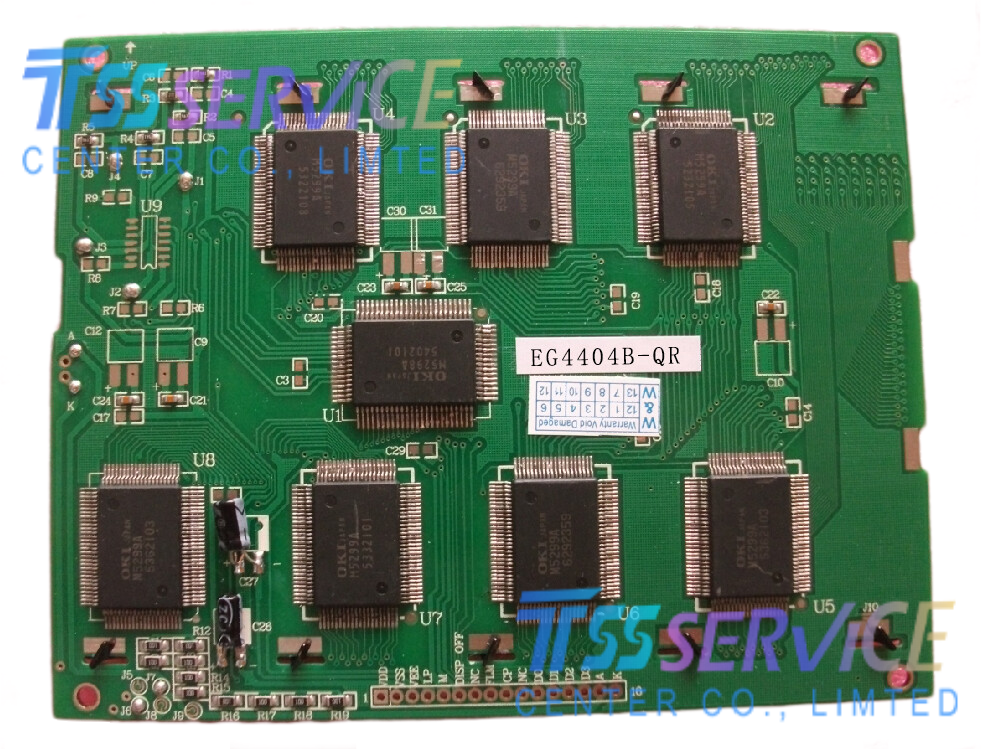

EG4404B-QR Compatible LCD Panel Screen For Industrial

Name: EG4404B-QR Compatible LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EG4404B-QR
Price: 108 USD
Availability: InStock

SKU: EG4404B-QR

Model: EG4404B‑QR
Display Type FSTN‑LCD, Monochrome
Resolution 256 × 128 dots
Display Size (Diagonal) 5.3 inch

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $108.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

EG4404B-QR Compatible LCD Panel Screen For Industrial

Parameter	Specification
Brand	EPSON
Model	EG4404B‑QR
Display Type	FSTN‑LCD, Monochrome
Resolution	256 × 128 dots
Display Size (Diagonal)	5.3 inch
Active Area	112.0 × 56.0 mm
Module Outline	130.0 × 68.0 × 10.5 mm
Backlight	LED (Yellow‑Green)
Contrast Ratio	Typ. 10:1
Viewing Angle	45°/45°/30°/40° (Typ.)
Interface	Parallel (8‑bit), 20‑pin
Controller IC	Built‑in
Operating Temp.	−20 °C ~ +70 °C
Storage Temp.	−30 °C ~ +80 °C
Touch Panel	Without

Key Applications

Industrial Control Panels
- Factory HMIs, PLC interfaces, process monitoring terminals.
- FSTN technology provides good visibility in indoor industrial lighting.
Medical Equipment
- Patient monitors, diagnostic devices, portable medical instruments.
- Stable performance under wide temperature and humidity ranges.
Test & Measurement Instruments
- Oscilloscopes, signal generators, spectrum analyzers (like E4404B user interfaces).
- High contrast for clear data display in lab environments.
Marine & Outdoor Devices
- Navigation equipment, ship control panels, outdoor rugged terminals.
- Reliable LED backlight and durable construction.
Consumer & Commercial Devices
- POS terminals, ticket printers, vending machine displays.
- Cost‑effective m
