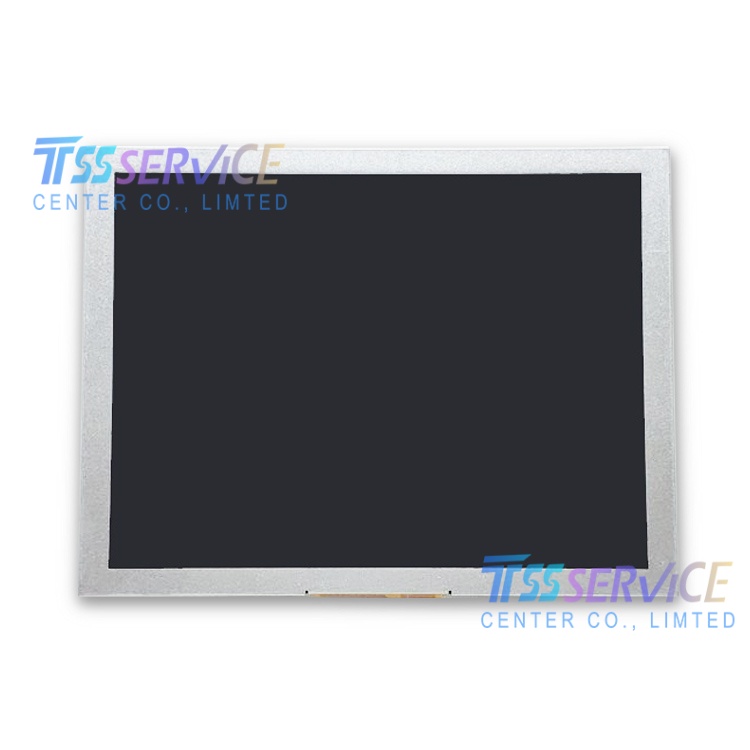

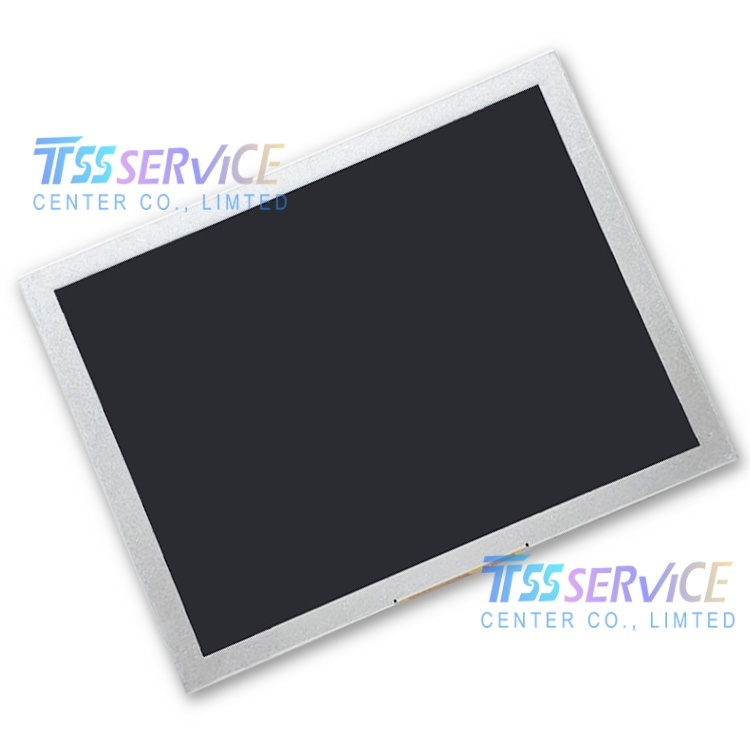

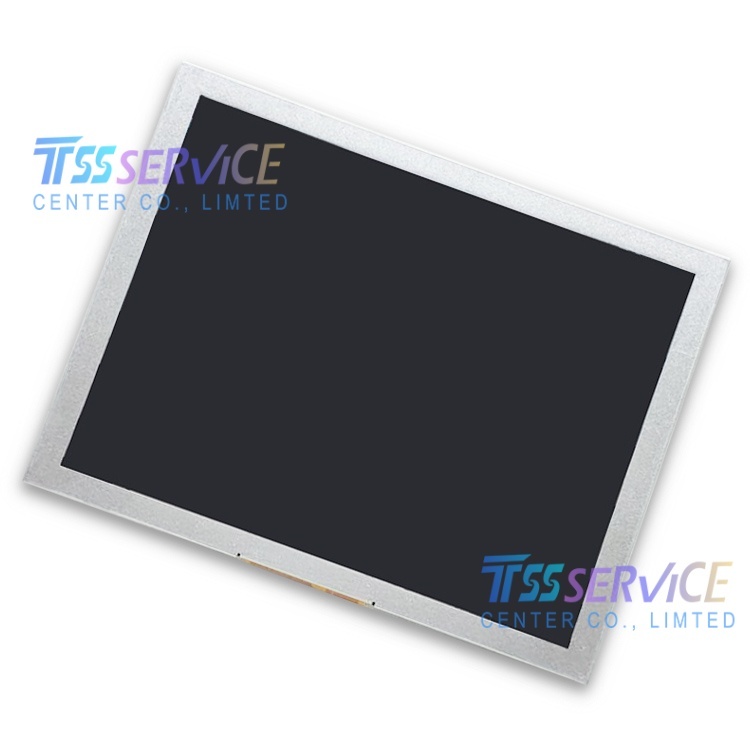

Innolux EJ080NA-05A 8.0inch 800x600 SVGA Industrial TFT LCD Display

Name: Innolux EJ080NA-05A 8.0inch 800x600 SVGA Industrial TFT LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EJ080NA-05A
Price: 23 USD
Availability: InStock

SKU: EJ080NA-05A

Model: EJ080NA-05A
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600 (SVGA, 4:3)
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$25.00~~ $23.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Innolux EJ080NA-05A 8.0inch 800x600 SVGA Industrial TFT LCD Display

Parameter	Details
Brand	Chimei Innolux
Model	EJ080NA-05A
Diagonal Size	8.0 inch
Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600 (SVGA, 4:3)
Dot Layout	RGB Vertical Stripe
Display Area	162(W) × 121.5(H) mm / 6.38" × 4.78"
Outline Size	183(W) × 141(H) × 5.9(D) mm / 7.20" × 5.55" × 0.23"
Panel Weight	243g (Typ.) / 0.54 lb
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	10/15 ms (Typ.) (Tr/Td)
View Direction	6 o'clock
Viewing Angle	70°/70°/50°/70° (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Display Colors	262K / 16.7M
Light Source	3S9P WLED, 20,000 hrs lifespan, Without Driver
Power Consumption	2.14W (Typ.)
Refresh Rate	60Hz
Touch Panel	Without Touch Screen
Interface	Parallel RGB (1 ch, 6/8-bit), 50-pin FPC Connector
Input Voltage	3.3/10.4/16.0/-7.0V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Surface Feature	Anti-Glare

Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, CNC machine controls, and industrial PCs.
Embedded Systems: Industrial computers, embedded control units, and IoT gateways.
Kiosks & POS Systems: Self-service terminals, industrial POS devices, and compact information displays.
Medical & Laboratory Equipment: Non-life-support medical devices, diagnostic tools, and laboratory instruments.
