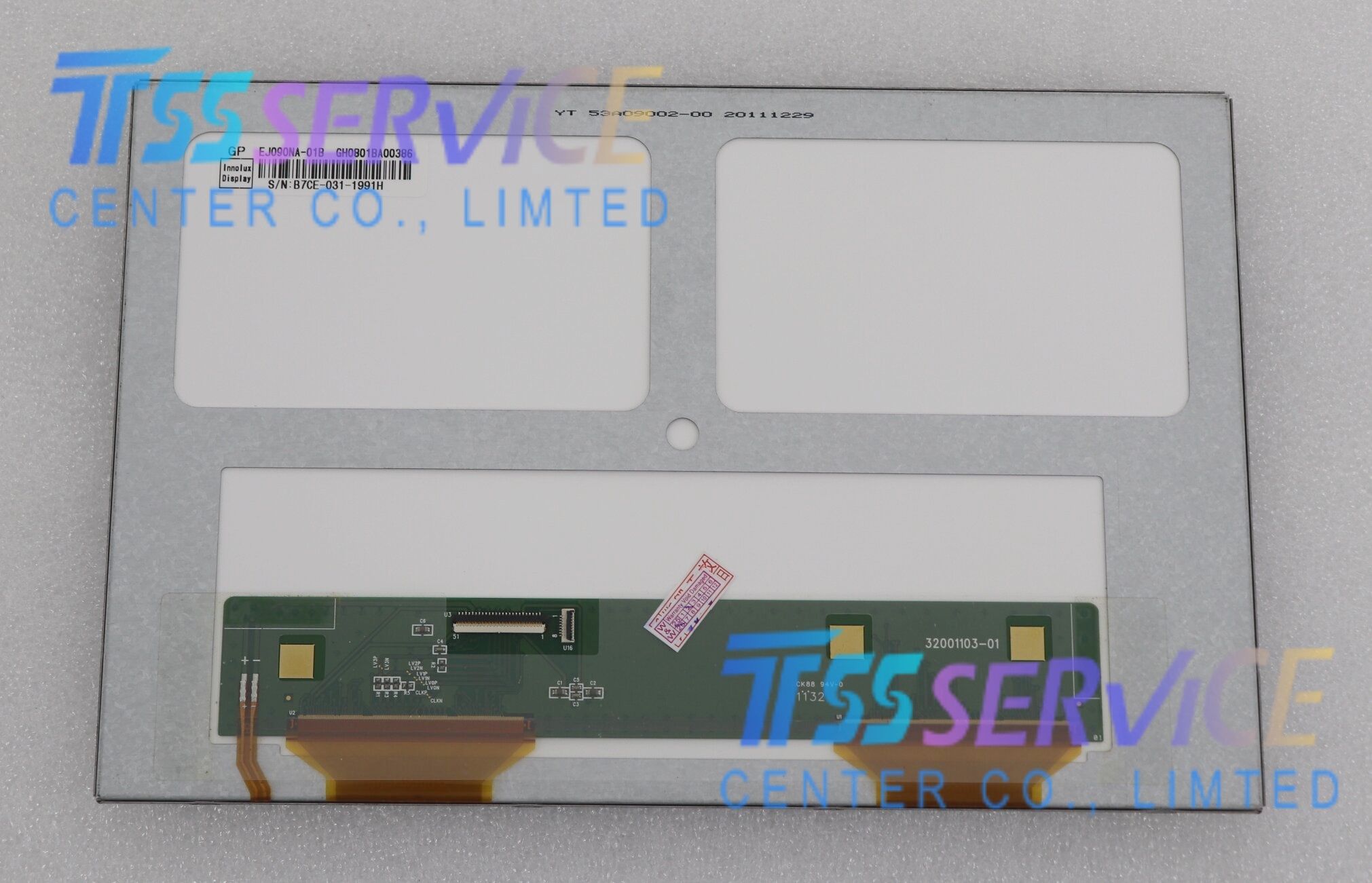

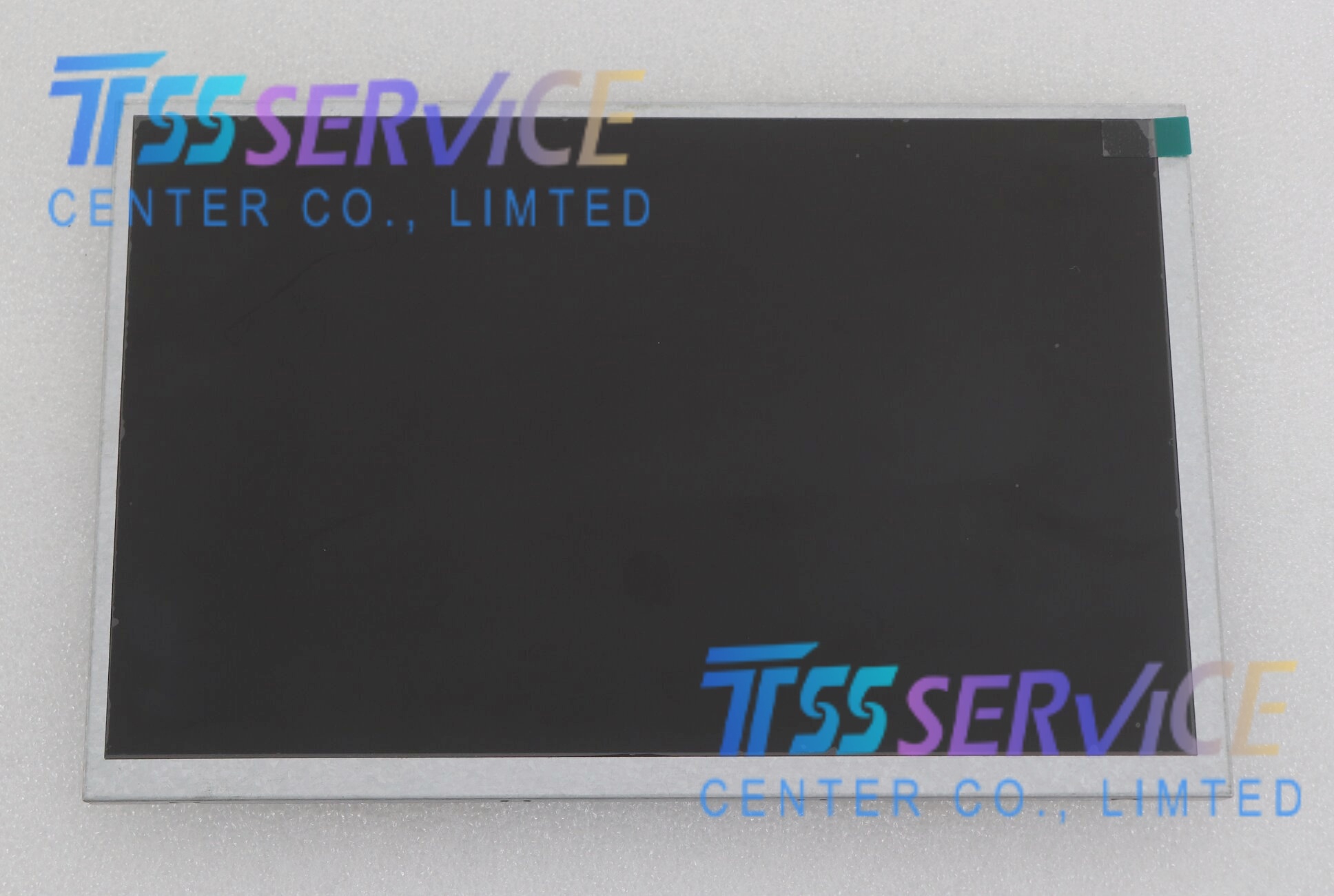

Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial

SKU: EJ090NA-01B
Model No.: EJ090NA-01B
Brand:  Innolux (Chimei Innolux)
Diagonal Size: 9.0 inch
Display Type: a-Si TFT-LCD, Transmissive Normally White
Native Resolution: 1280(RGB) × 800 (WXGA, 16:10), RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$50.00 $48.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
1/1
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
  • Description
Innolux EJ090NA-01B 9.0 Inch 1280×800 TFT LCD Panel Display Screen for Industrial
Parameter Item Specific Specification

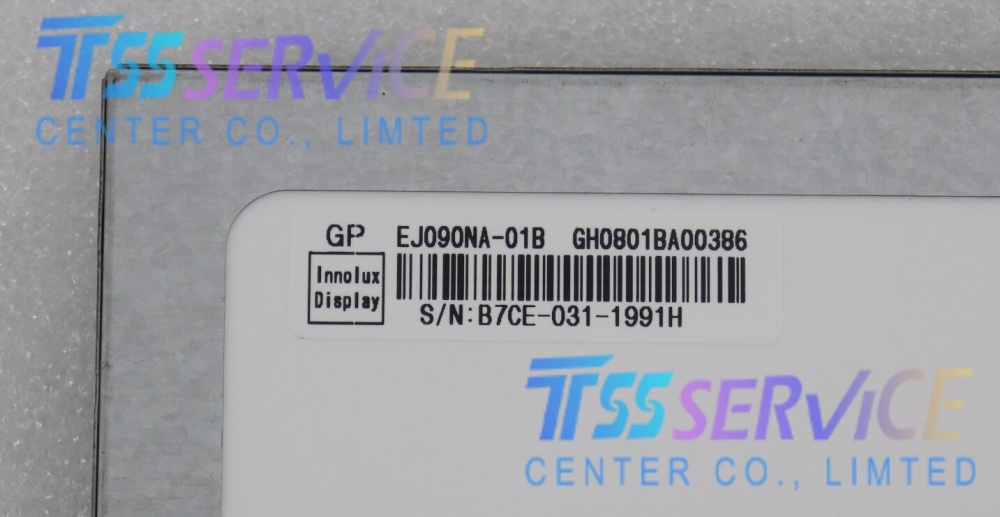

Model No. EJ090NA-01B
Brand Innolux (Chimei Innolux)
Diagonal Size 9.0 inch
Display Type a-Si TFT-LCD, Transmissive Normally White
Native Resolution 1280(RGB) × 800 (WXGA, 16:10), RGB Vertical Stripe
Active Area 194.4(W) × 121.5(H) mm
Overall Outline Dimension 208.0(W) × 134.0(H) × 4.2(D) mm
Typical Net Weight 185g
Typical Brightness 250 cd/m²
Contrast Ratio 700:1 (Typ., TM)
Viewing Angle (CR≥10) Horizontal 70°/70°, Vertical 70°/50°
View Direction 12 o’clock
Response Time 25ms (Typ. Tr+Td)
Display Color 16.2M Full Colors, 70% NTSC Color Gamut
Backlight 3S12P WLED, 20K hrs, Without Driver

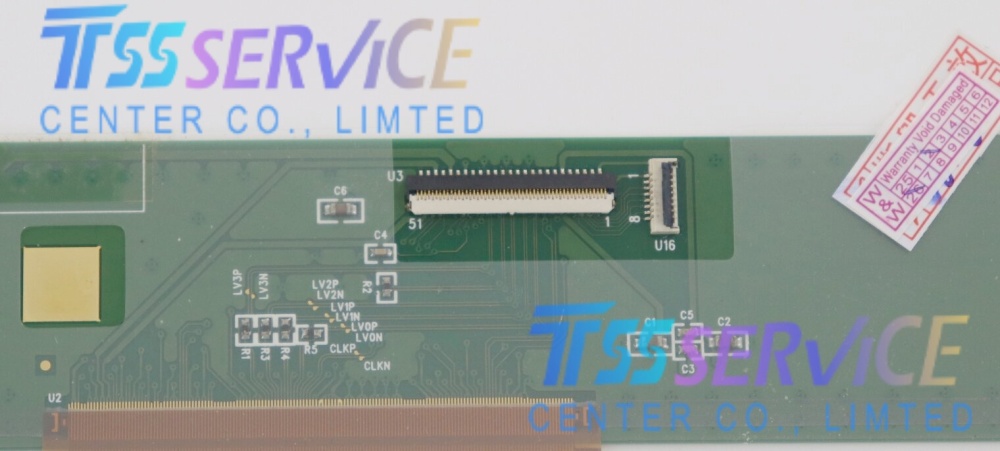

Signal Interface LVDS (1 ch, 6/8-bit), 51 pins Connector
Supply Voltage 3.3V DC (VDD)
Frame Rate 60Hz Standard Refresh Rate
Touch Panel Without Touch Glass, Compatible with Capacitive/Resistive Touch Overlay
Surface Treatment Standard Clear Glossy Polarizer
Operating Temperature -10℃ ~ +50℃
Storage Temperature -20℃ ~ +60℃

Application Scenarios

  1. Compact Industrial HMI, Mini Embedded Control Terminals
  2. Industrial Tablet PC, Handheld Data Collection Devices
  3. Portable Medical Diagnostic Instruments, Bedside Mini Monitoring Terminals
  4. Laboratory Portable Test & Measuring Analysis Equipment
  5. Small New Energy Charging Control Display Modules
  6. Logistics Handheld PDA, Warehouse Barcode Scanner Display
  7. Light-Duty Construction Machinery, Forklift Mini On-board Screen
  8. Intelligent Access Control, Small Retail POS Touch Terminals
  9. SLA Mini 3D Printer Auxiliary Operation Display Panels
