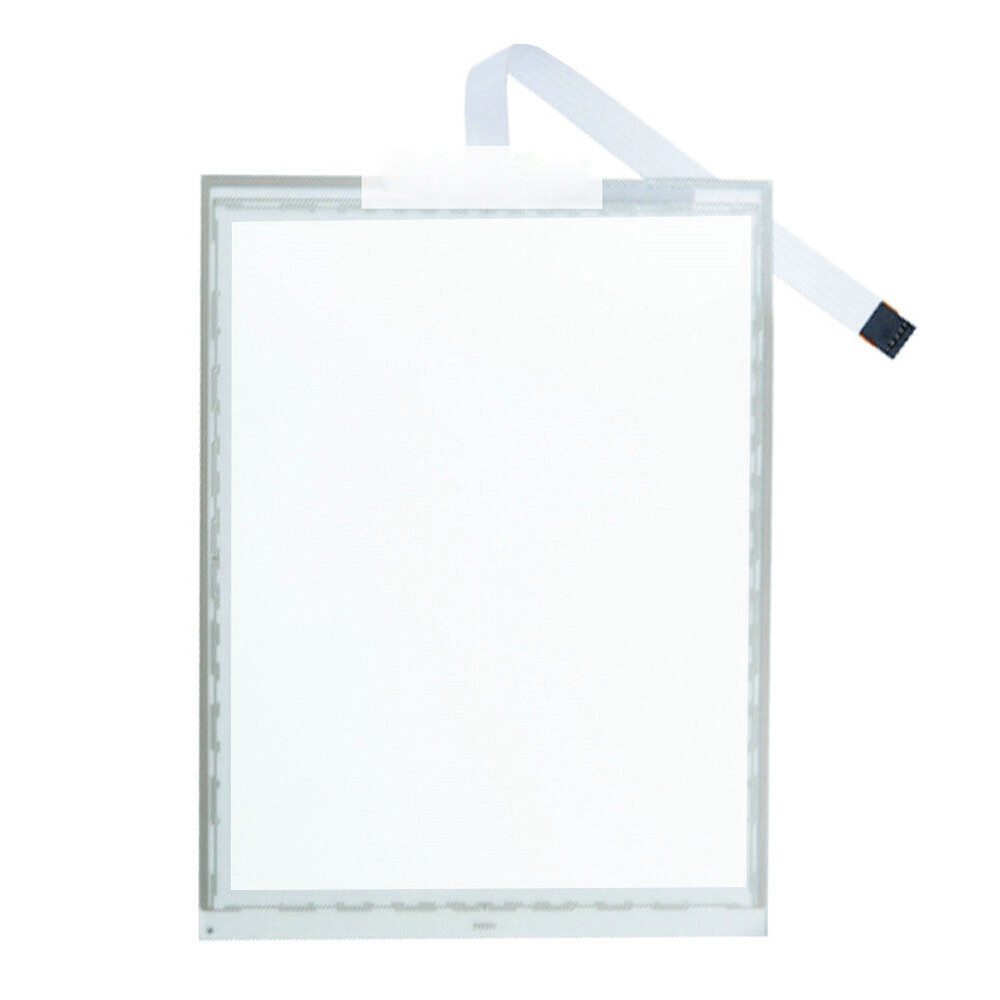

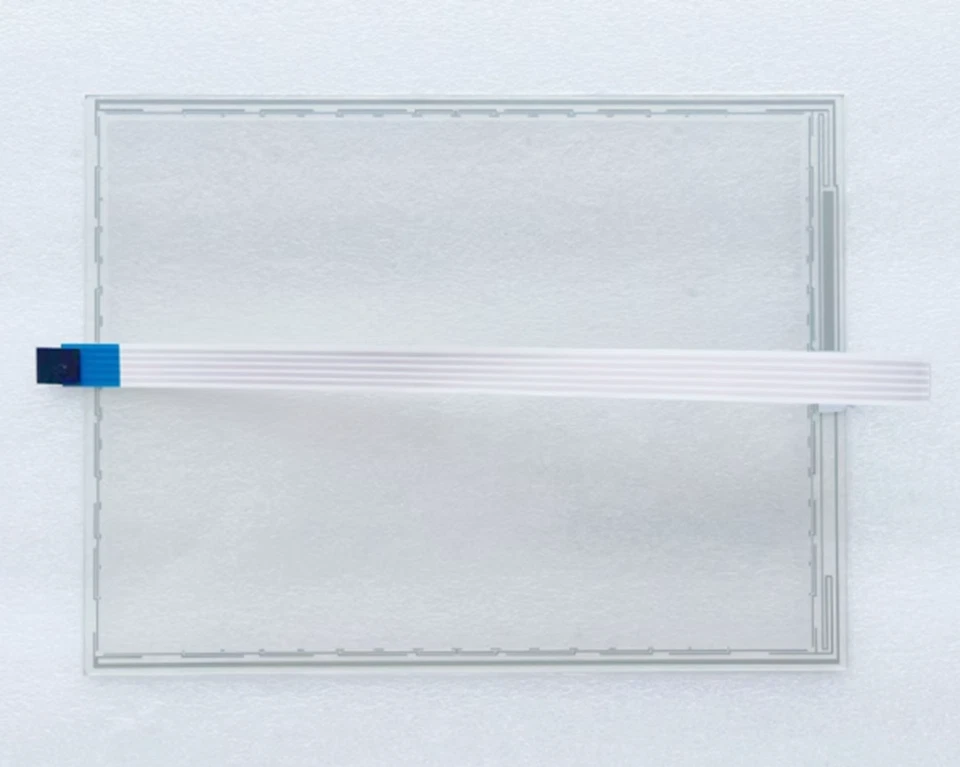

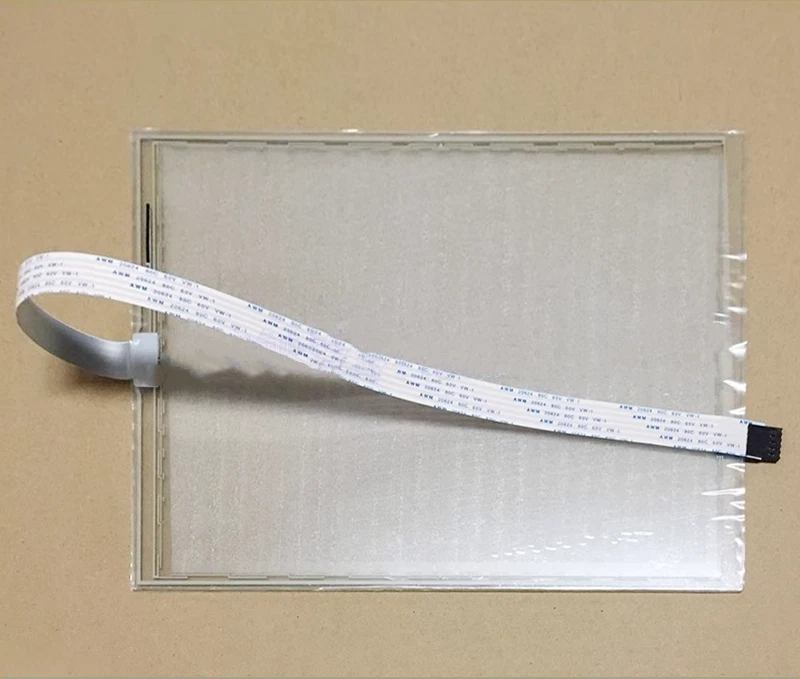

SCN-AT-FLT10.4-Z01-0H1-R is a high-performance 10.4-inch flat touch panel engineered by ELO, a leader in touch technology. This industrial-grade panel is designed for seamless integration into kiosks, point-of-sale systems, medical devices, and factory automation interfaces. It features exceptional optical clarity and robust touch performance, supporting reliable and accurate input even in high-use environments. The durable glass construction ensures resistance to scratches, impacts, and chemical exposure, making it suitable for demanding applications. This ELO touch panel is a trusted component for building intuitive and resilient interactive displays that require lasting reliability and precise responsiveness.
| Parameter | Specification |
|---|---|
| Model Number | SCN-AT-FLT10.4-Z01-0H1-R |
| Screen Size | 10.4 inches (diagonal) |
| Display Resolution | 640 × 480 (VGA) or 800 × 600 (SVGA) (depending on the LCD panel) |
| Touch Technology | 5-Wire Analog Resistive • Supports glove and stylus operation • Single-point touch, accuracy ±2mm • Surface hardness: 3H–4H (tempered glass optional) |
| Touch Interface | Built-in controller, output: • USB (HID compatible, plug and play) • RS232 (DB9 or TTL, adjustable baud rate) |
| Operating Temperature | 0°C to +50°C (standard industrial grade); some versions support -10°C ~ +60°C |
| Front Panel Protection | P65 (dustproof and splashproof, suitable for sealed embedded installation) |
| Lifespan | Touch click lifespan ≥ 35 million times |
| Compatible Systems | Windows 7/10/11, Linux, Android (driver required), mainstream HMI platforms |
| Certifications | CE, FCC, RoHS |
| Typical Applications | Replacement touchscreens for older HMI models such as HITECH PWS6A00, Pro-face GP2000, and Mitsubishi GOT Industrial control panel Human-machine interface for medical monitoring equipment Self-service kiosks and POS terminals Rail transit and power monitoring systems |
