Home > LCD Display > EDT > 5.7'' > ER0570B0NC6

1/1

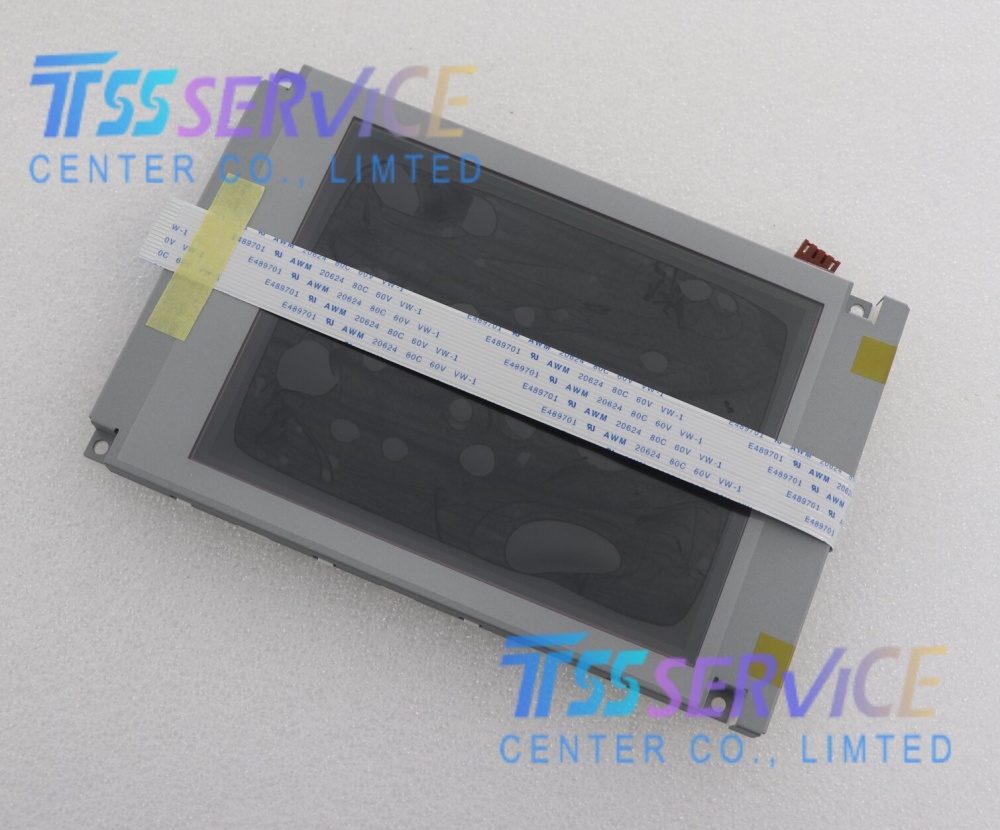

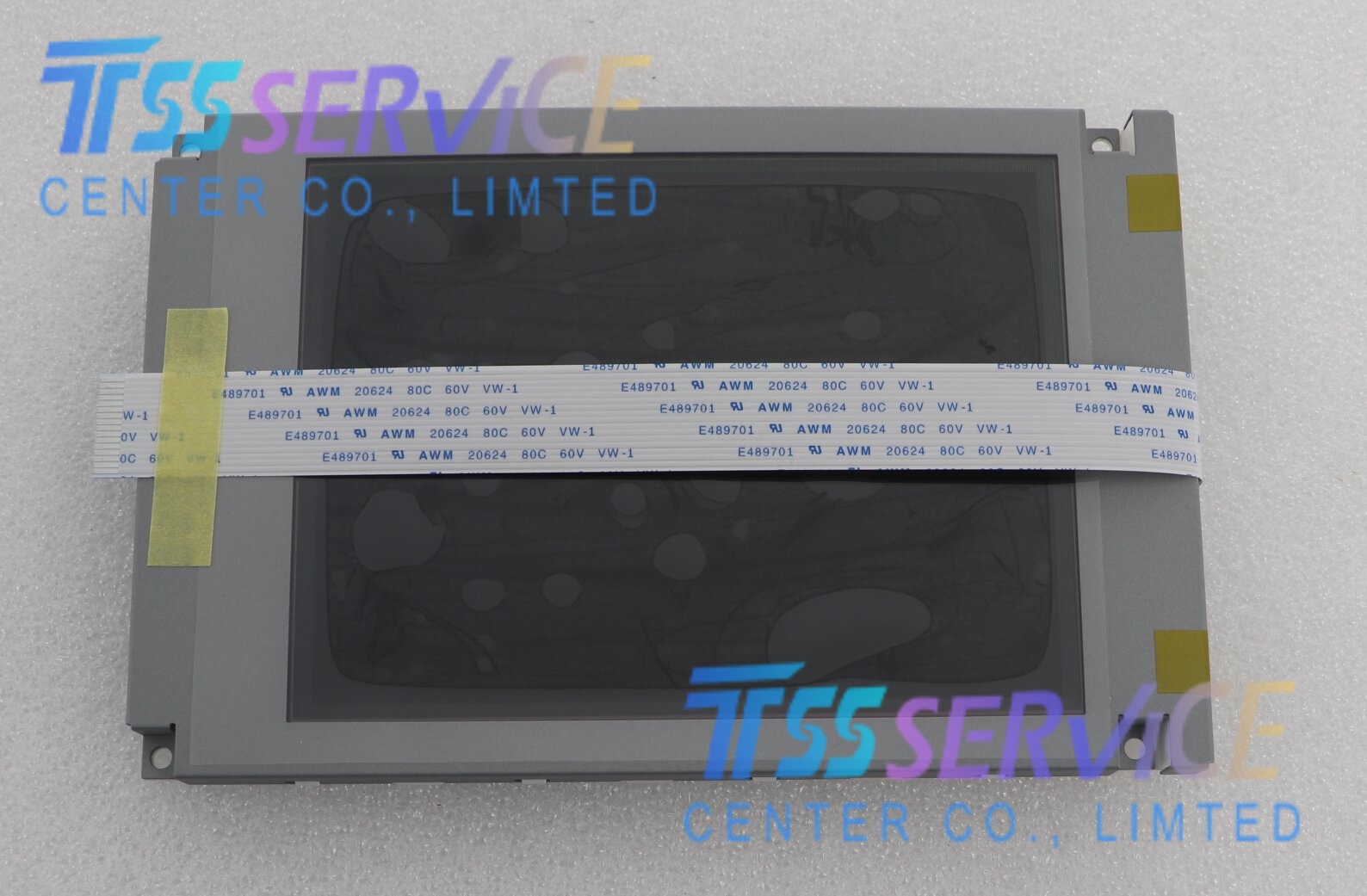

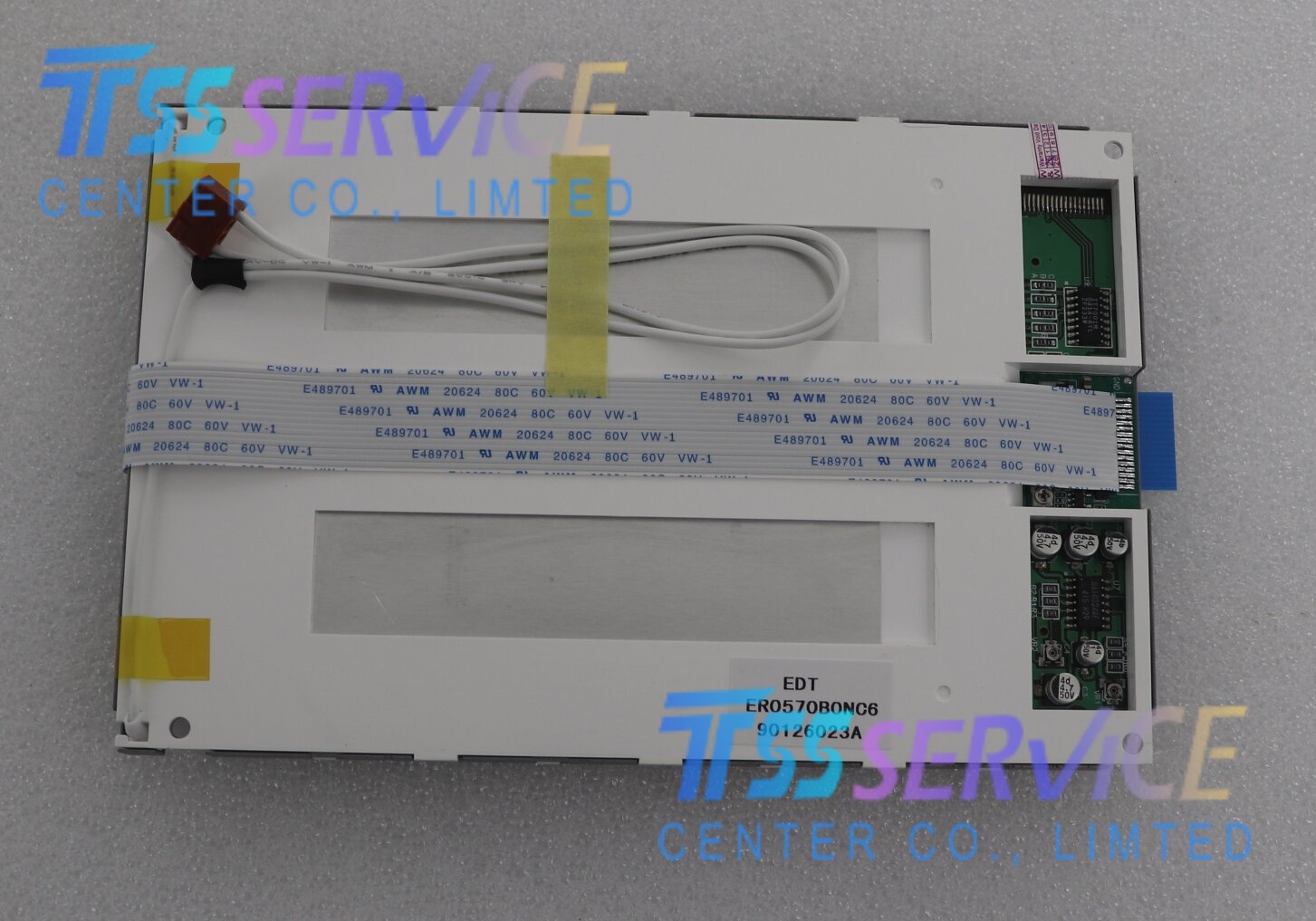

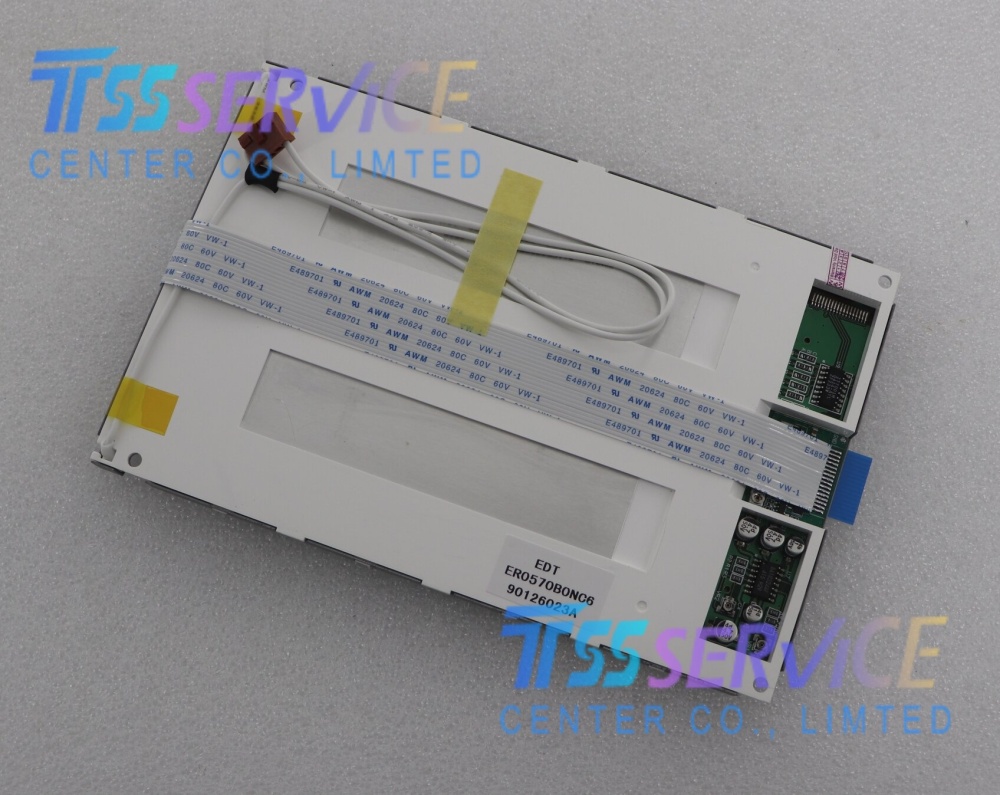

ER0570B0NC6 5.7" QVGA CSTN-LCD Display Panel Screen For Industrial

Name: ER0570B0NC6 5.7" QVGA CSTN-LCD Display Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: ER0570B0NC6
Price: 130 USD
Availability: InStock

SKU: ER0570B0NC6

Model: ER0570B0NC6
Size: 5.7 inches
Resolution: 320×240 (QVGA, 4:3)
Display Type: CSTN , Normally Black, Transmissive

0.0 (0 Reviews)

0 Sold

~~$140.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

ER0570B0NC6 5.7" QVGA CSTN-LCD Display Panel Screen For Industrial

Parameter	Details
Brand	EDT (Electro-Display)
Model	ER0570B0NC6
Size	5.7 inches
Resolution	320×240 (QVGA, 4:3)
Display Type	CSTN (Color Super Twisted Nematic), Normally Black, Transmissive
Brightness	150 cd/m² (Typ.)
Contrast Ratio	50:1 (Typ.)
Viewing Angle	40°/40°/20°/40° (L/R/U/D, CR≥2)
Response Time	350 ms / 250 ms (Tr/Td, Typ.)
Color Depth	262K Colors (6-bit)
Pixel Arrangement	RGB Vertical Stripe
Backlight	CCFL (1 lamp), 35,000 hrs lifetime, no driver
Interface	16-pin Parallel Data (8-bit), FPC connector
Surface	Standard, no hard coating
