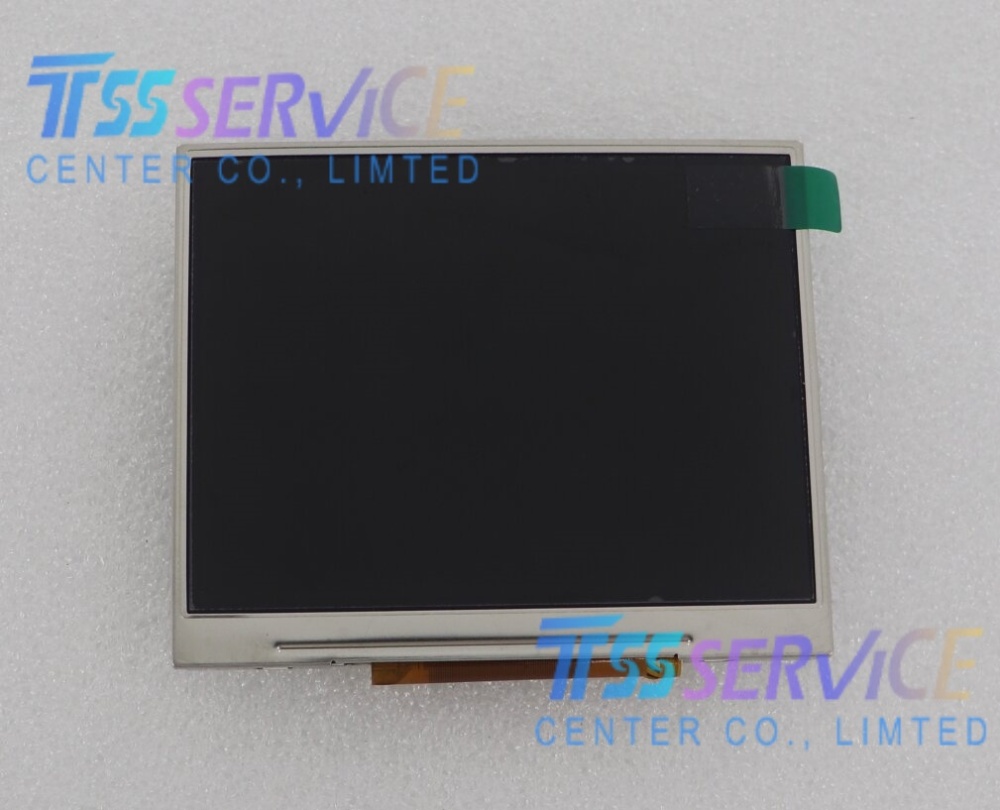

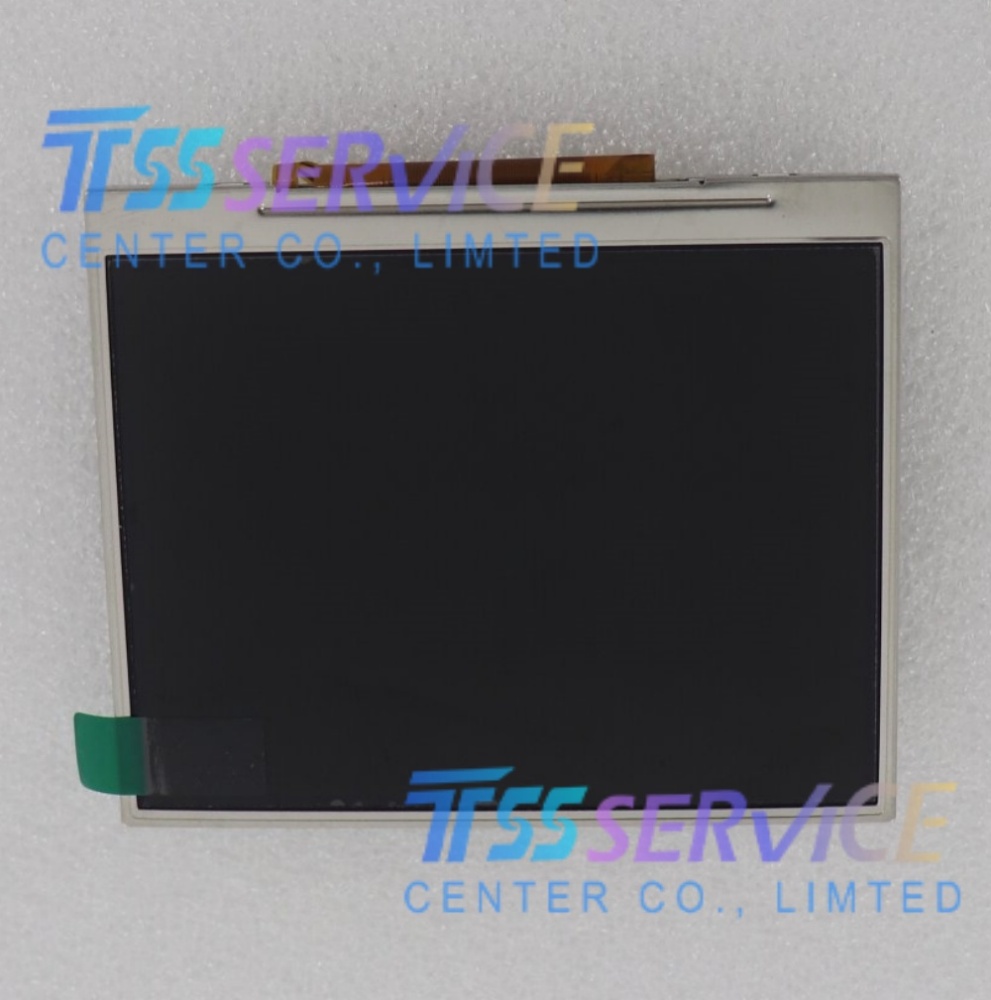

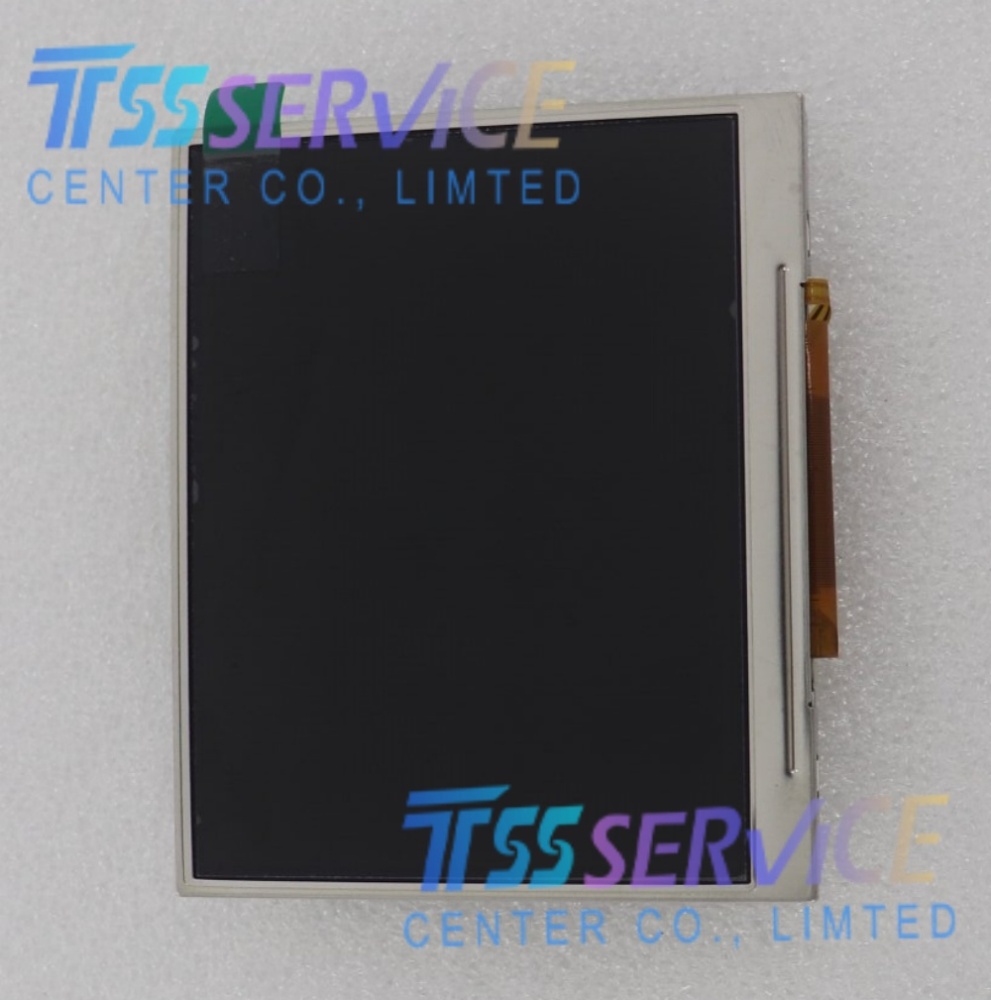

EDT ET0350A6DM6 3.5 INCH 320(RGB)×240 TFT-LCD Panel Display For Industrial
| Parameter |
Value |
Unit |
| Manufacturer |
EDT (EDTC / Emerging Display Technologies) |
- |
| Model |
ET0350A6DM6 |
- |
| Panel Type |
a‑Si TFT‑LCD, TN, Normally White, Transmissive |
- |
| Diagonal Size |
3.5 |
inch |
| Resolution |
320(RGB) × 240 (QVGA) |
Pixels |
| Aspect Ratio |
4:3 (W:H) |
- |
| Pixel Arrangement |
RGB Vertical Stripe |
- |
| Pixel Pitch |
0.219 × 0.219 |
mm |
| Pixel Density |
115 |
PPI |
| Active Area |
70.08 (W) × 52.56 (H) |
mm |
| Outline Dimension |
76.8 (W) × 63.8 (H) × 3.6 (D) |
mm |
| Viewing Area |
73.2 (W) × 55.7 (H) |
mm |
| Brightness (Typ.) |
450 |
cd/m² |
| Contrast Ratio (Typ.) |
450:1 |
- |
| Viewing Angle (Typ., CR≥10) |
75/75/55/75 (Left/Right/Up/Down) |
Degree |
| Best View Direction |
6 o'clock |
- |
| Response Time (Typ.) |
15 (Tr) / 35 (Td) |
ms |
| Display Colors |
16.7M (8‑bit) |
- |
| Backlight |
WLED, Side‑entry, No Driver |
- |
| Interface |
Serial RGB (8‑bit) |
- |
| Input Voltage (Typ.) |
3.3 |
V |
| Operating Temperature |
-20 ~ +70 |
°C |
| Storage Temperature |
-30 ~ +80 |
°C |
| Compliance |
RoHS |
- |
ET0350A6DM6 is a compact 3.5‑inch QVGA TFT‑LCD module with high brightness and wide temperature tolerance, widely used in portable, embedded, and industrial devices:
Consumer Electronics
- Digital cameras, camcorders, and portable media players
- Handheld gaming consoles and portable DVD players
- Early PDA and compact smart device displays
Industrial & Embedded
- Industrial handheld terminals, data collectors, and barcode scanners
- Factory automation HMI panels and small control interfaces
- Portable measurement instruments and field test equipment
- CNC machine tool auxiliary displays and robot teach pendants
Medical & Healthcare
- Portable medical diagnostic devices (ECG monitors, blood pressure meters)
- Patient monitoring system small screens and bedside displays
- Medical handheld scanners and point‑of‑care devices
Automotive & Transportation
- In‑vehicle infotainment auxiliary displays and dashboard monitors
- Vehicle navigation system small screens and fleet management terminals
- Railway/bus passenger information terminals and marine navigation displays
Other Professional
- Military/defense portable communication and control terminals
- Outdoor weather monitoring and data acquisition terminals
- Smart home control panels and thermostat displays
