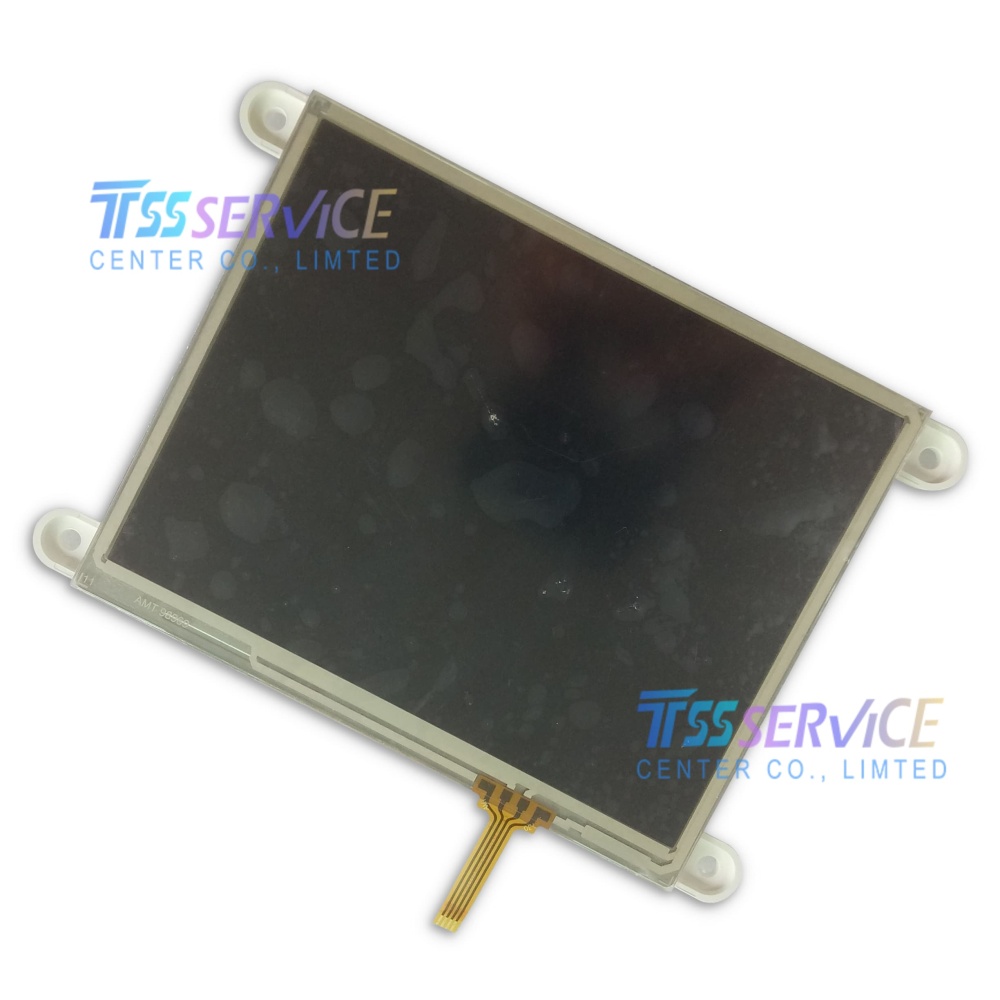

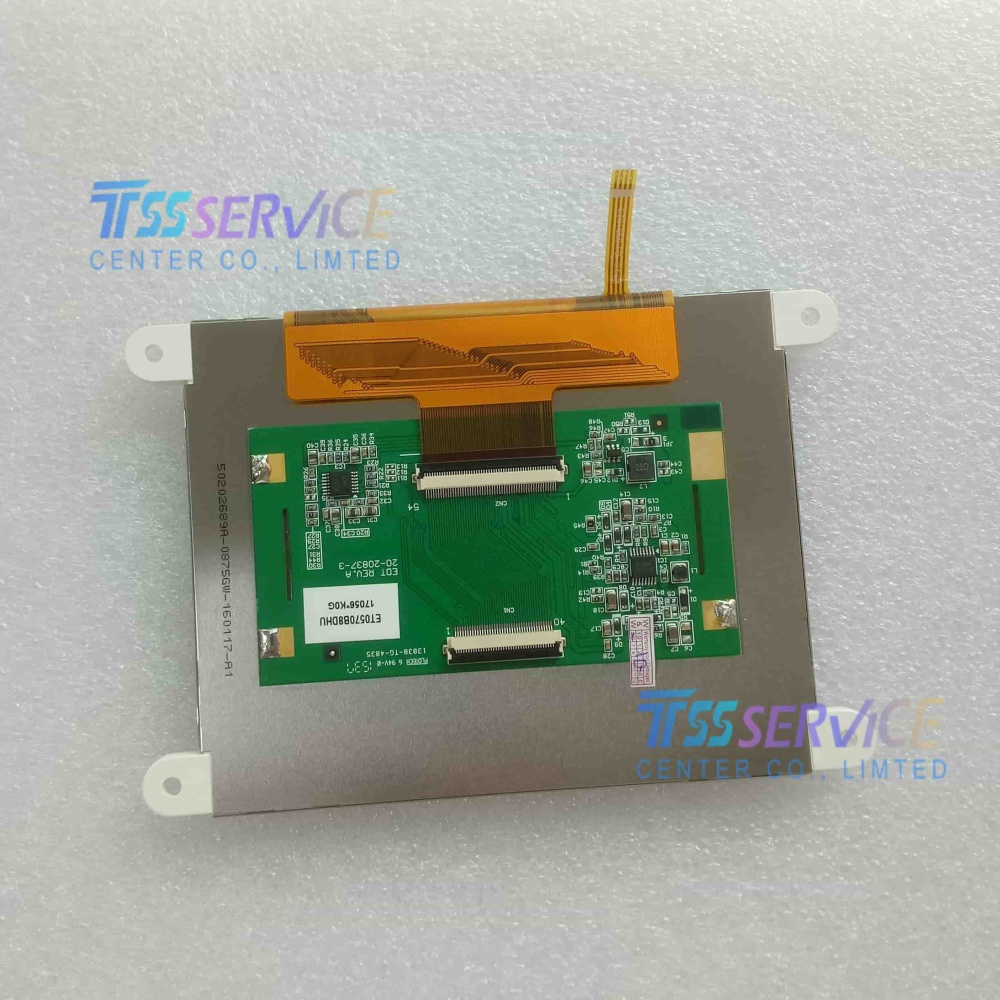

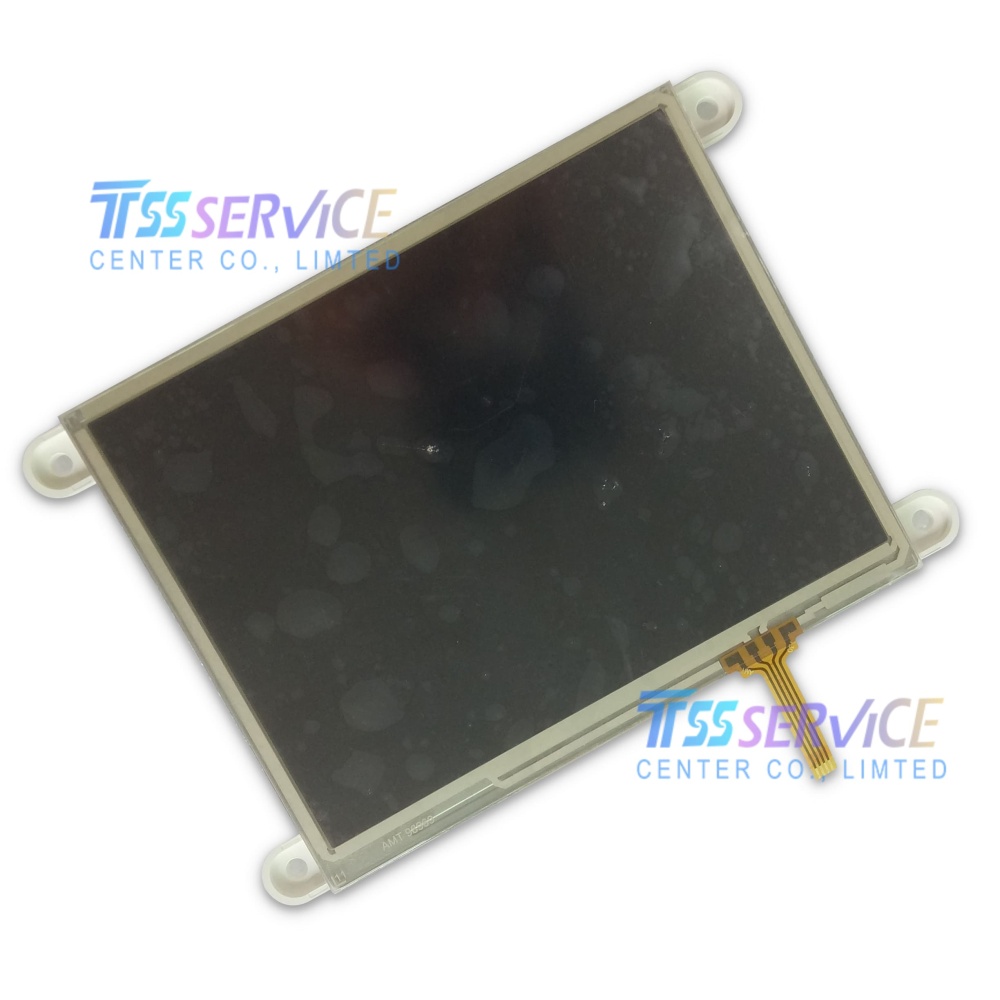

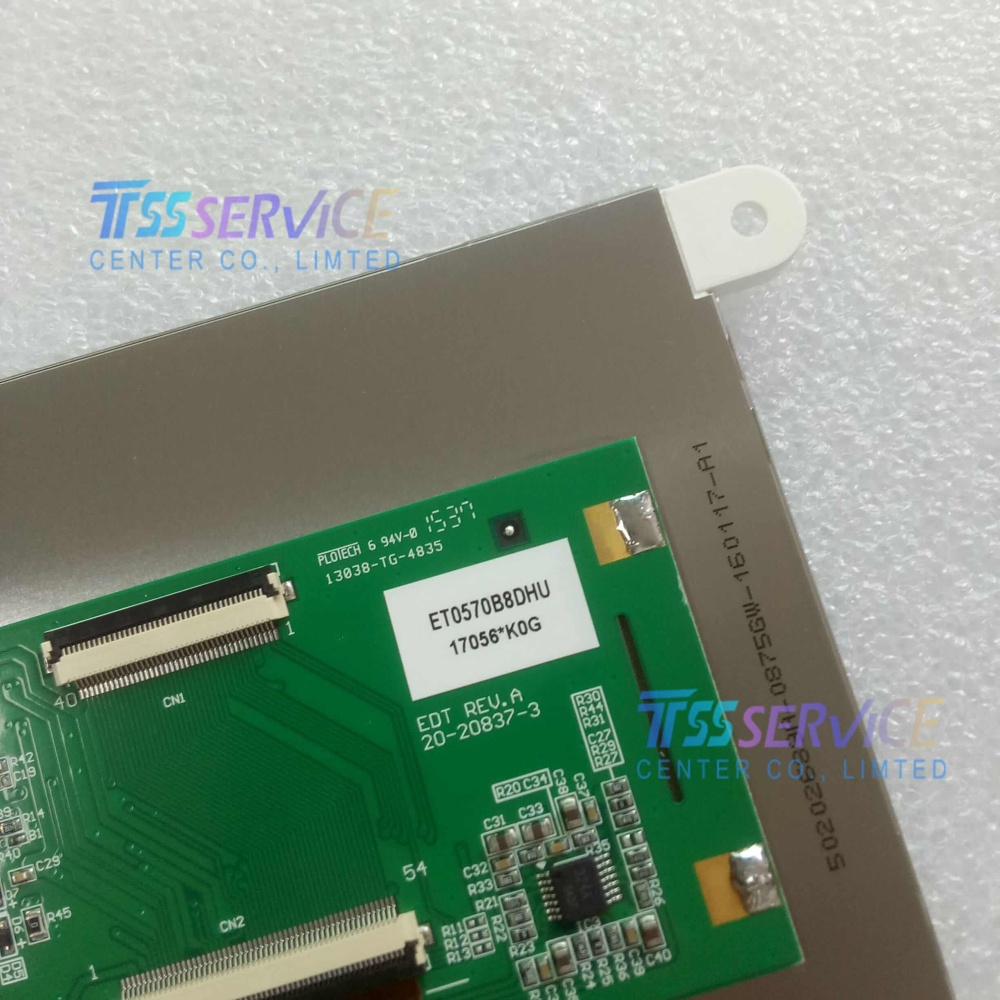

ET0570B8DHU 5.7 Inch 640×480 a-Si TFT-LCD Module Industrial Display Screen
| Spec Item |
Detailed Parameter |
| Model Number |
ET0570B8DHU |
| Screen Size |
5.7 inch Landscape |
| Panel Type |
a-Si TFT-LCD LCM, Normally White Transmissive |
| Native Resolution |
640(RGB) × 480, VGA, 4:3 Aspect Ratio |
| Dot Layout |
RGB Vertical Stripe |
| Typical Luminance |
400 cd/m² |
| Contrast Ratio |
350:1 (Typ.) |
| Display Color |
262K Colors, 6-bit RGB |
| Backlight |
WLED, 50,000 Hours Lifespan, Integrated Driver |
| Signal Interface |
40Pin Parallel RGB TTL Connector |
| Touch Option |
Optional 4-Wire Resistive Touch Glass (Separate FPC) |
| Outline Mounting |
Pre-drilled 4-corner mounting holes for direct chassis assembly |
| Net Weight |
Approx 0.3 KG |
| Supply Voltage |
3.3V / 5V Dual Input Support |
| Operating Temperature |
-20 ~ +70 ℃ Wide Industrial Grade |
| Storage Temperature |
-30 ~ +80 ℃ |
| Refresh Rate |
60Hz |
| Viewing Direction |
12 O'clock |
| RoHS |
RoHS Compliant |
Application
1. Industrial Automation & CNC Machinery
CNC machine operation panels, injection molding machine HMI control screens, textile machinery terminals, printing equipment operation displays, small PLC production line monitoring panels.
2. Medical Portable Testing Devices
Portable vital sign analyzers, ward bedside monitoring terminals, laboratory optical inspection instruments, compact clinical diagnostic equipment displays.
3. Handheld Industrial Measuring Instruments
Portable environmental detectors, electrical fault testers, field engineering debugging devices, logistics industrial data collectors.
4. Small Commercial & Self-Service Terminals
Mini fuel dispenser control screens, factory access control display panels, portable agricultural monitoring equipment, compact industrial remote controllers.
5. Equipment Repair & Refurbishment
Direct replacement spare panel for broken original EDT 5.7" VGA LCD modules, aftermarket maintenance parts for aging industrial machinery, second-hand equipment renovation projects.
