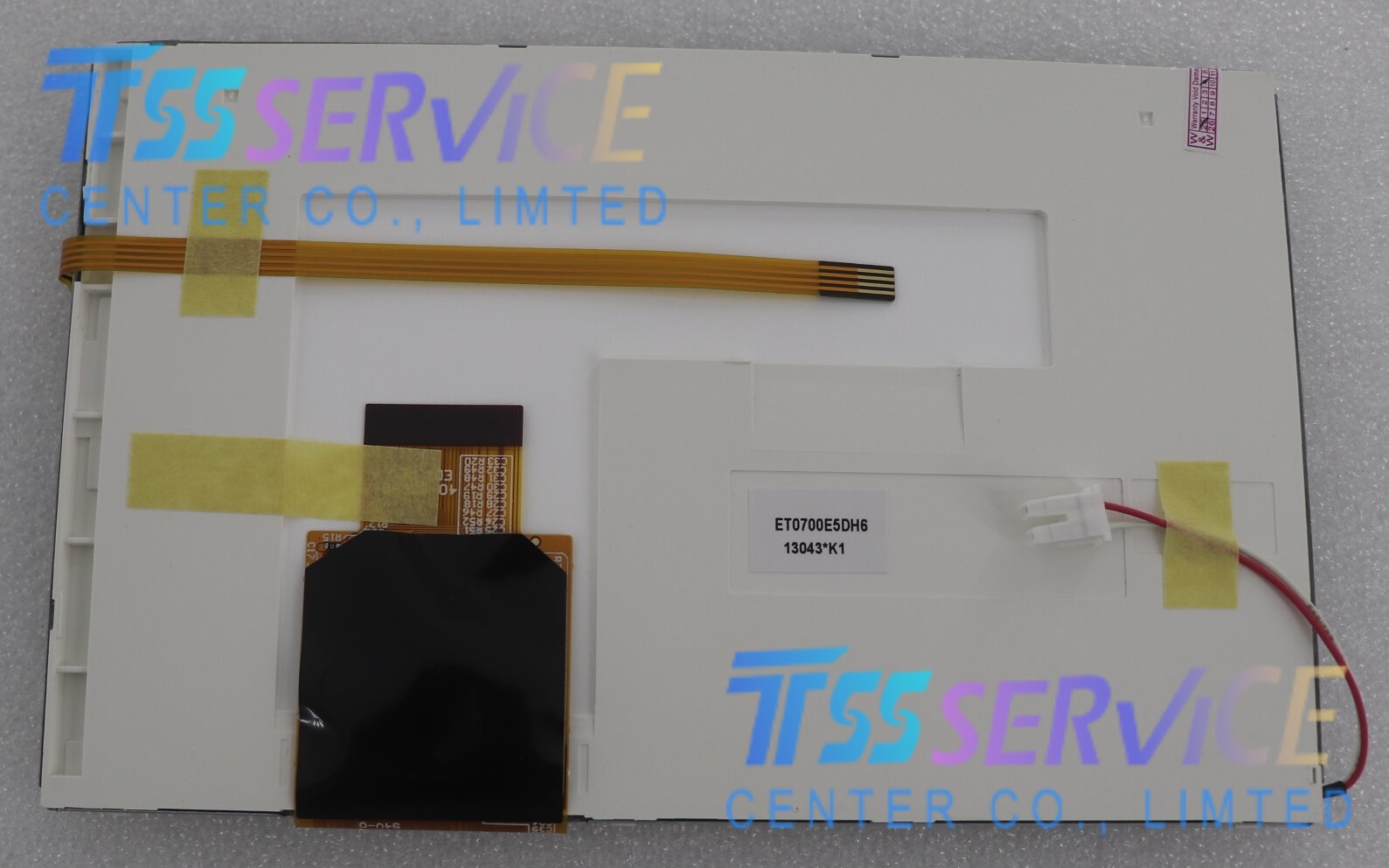

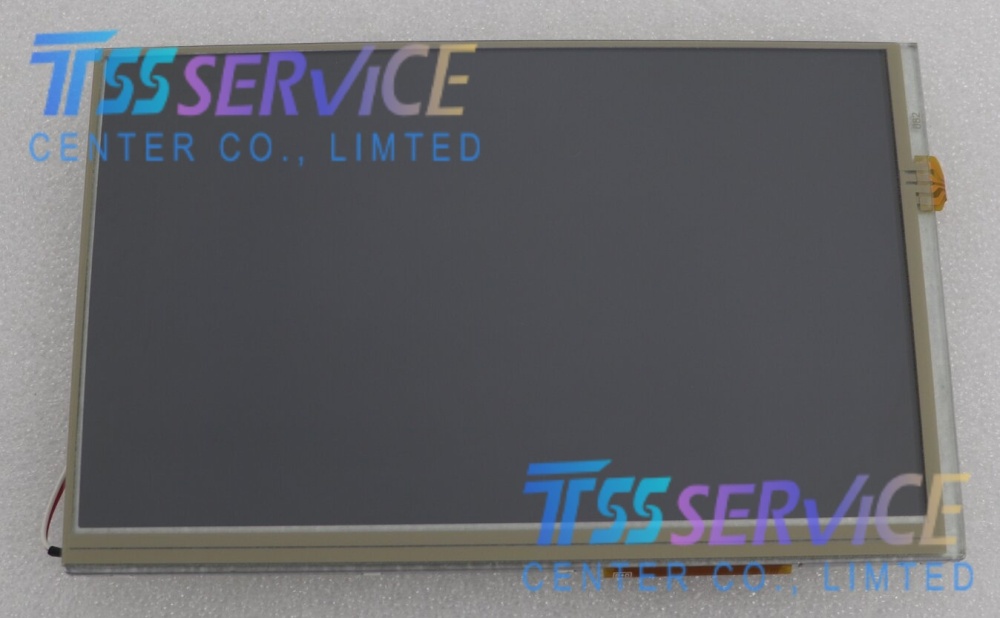

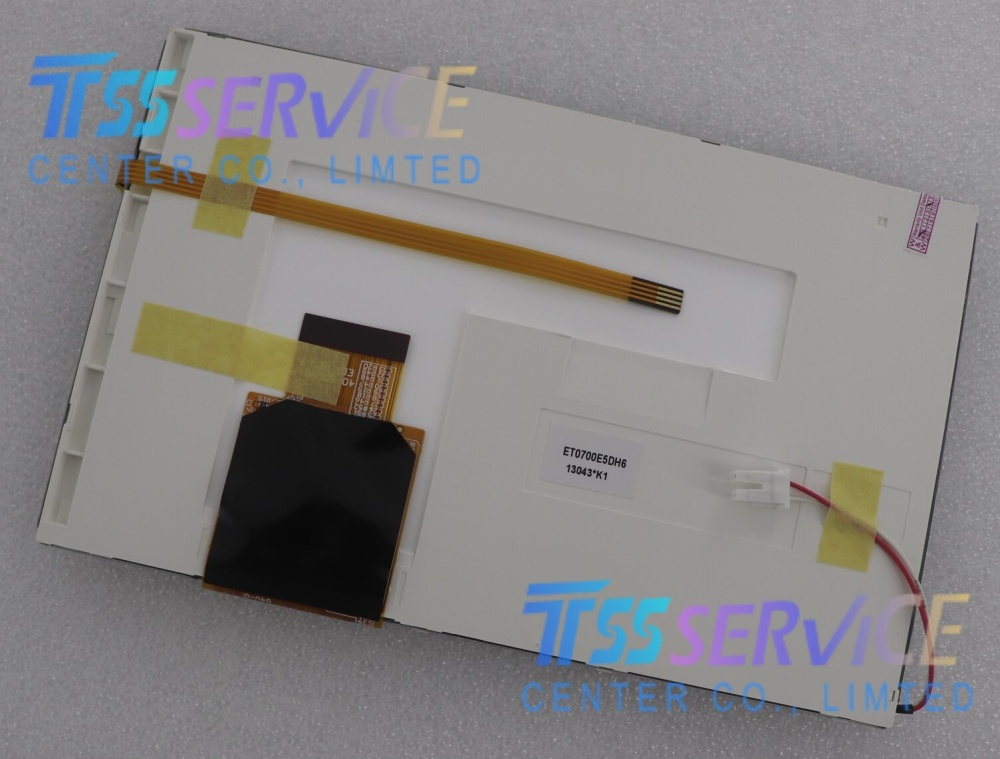

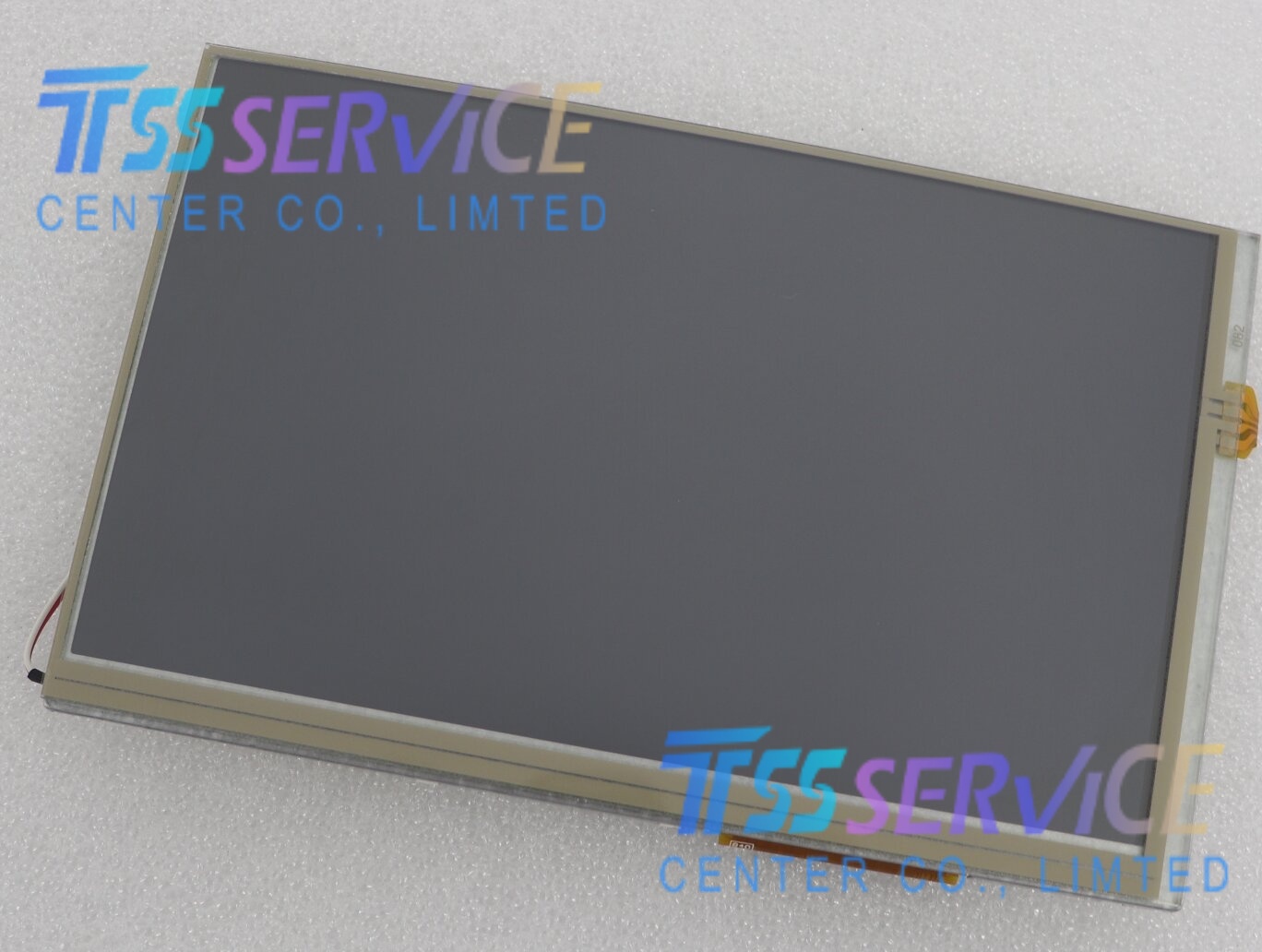

ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation

SKU: ET0700E5DH6
Model: ET0700E5DH6
Size: 7.0 inch
Resolution: 800(RGB)×480 (WVGA, 15:9)
Display Type: a-Si TFT-LCD, Transmissive TN (Normally White)
0.0 (0 Reviews)
0 Sold
$125.00 $120.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
1/1
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
  • Description
ET0700E5DH6 7.0" WVGA TFT Panel Industrial LCD Display for HMI & Automation
Item Parameter
Model ET0700E5DH6
Brand EDT
Size 7.0 inch
Resolution 800(RGB)×480 (WVGA, 15:9)
Display Type a-Si TFT-LCD, Transmissive TN (Normally White)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.)
Viewing Angle 70/70/50/60 (CR≥10)
Colors 262K
Backlight WLED, 20,000 hrs lifespan, with driver
Interface Parallel TTL (40-pin)
Frame Rate 60Hz
Power Supply 3.3V
Operating Temp -20°C ~ +70°C
Storage Temp -30°C ~ +80°C
Surface Antiglare, Hard coating (3H)
Active Area 152.4 × 91.44 mm
Outline Dim 165 × 104 × 5.7 mm
Touch Panel Without
Warranty 12 Months
Applications
  • Industrial HMI / Operator Panels
  • PLC & Factory Automation Systems
  • CNC Machinery & Machine Tools
  • Embedded Industrial Controllers
  • Medical & Diagnostic Equipment
  • Building Automation & Smart Panels
  • Marine & Outdoor Industrial Terminals
  • Legacy Industrial Equipment Screen Replacement
