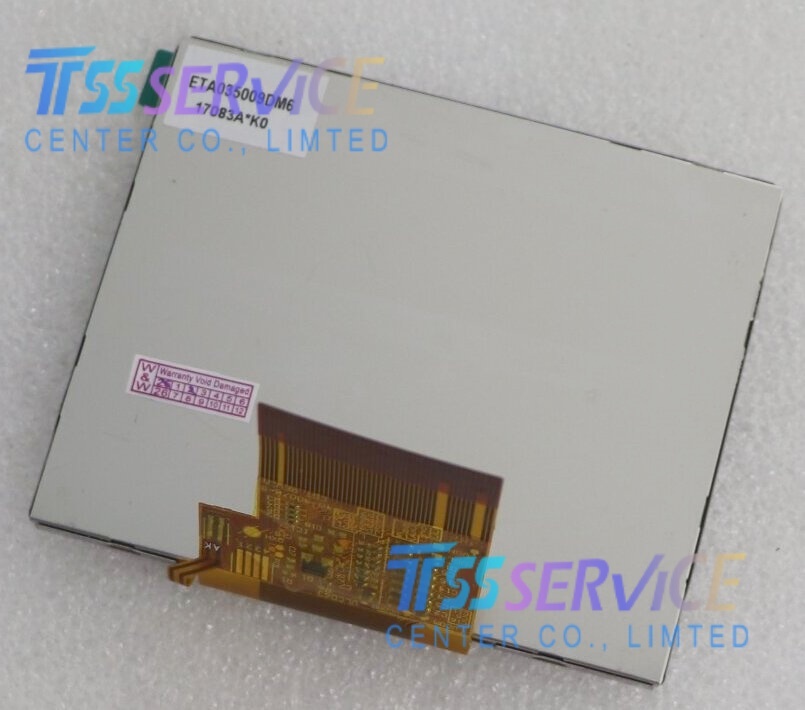

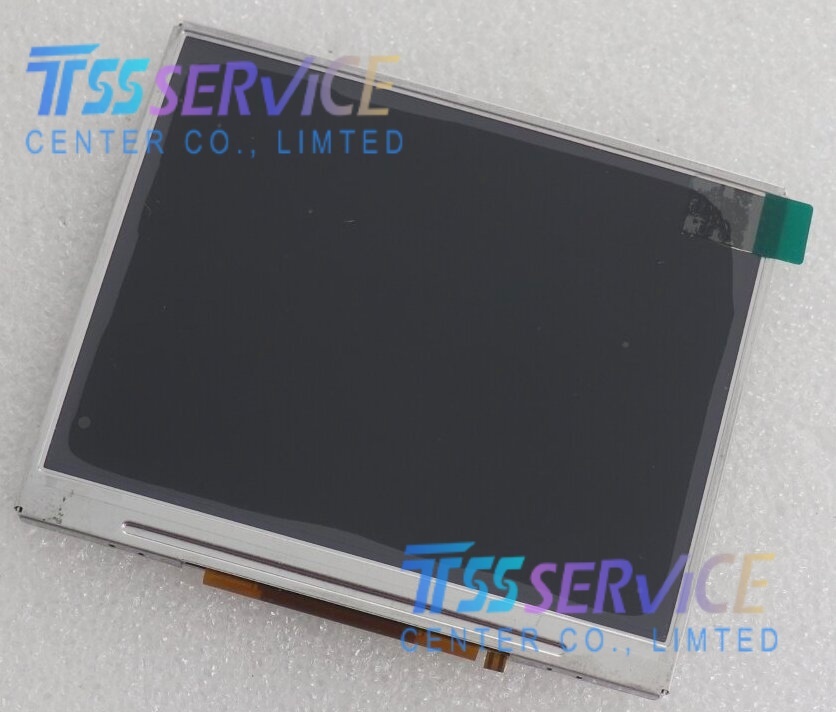

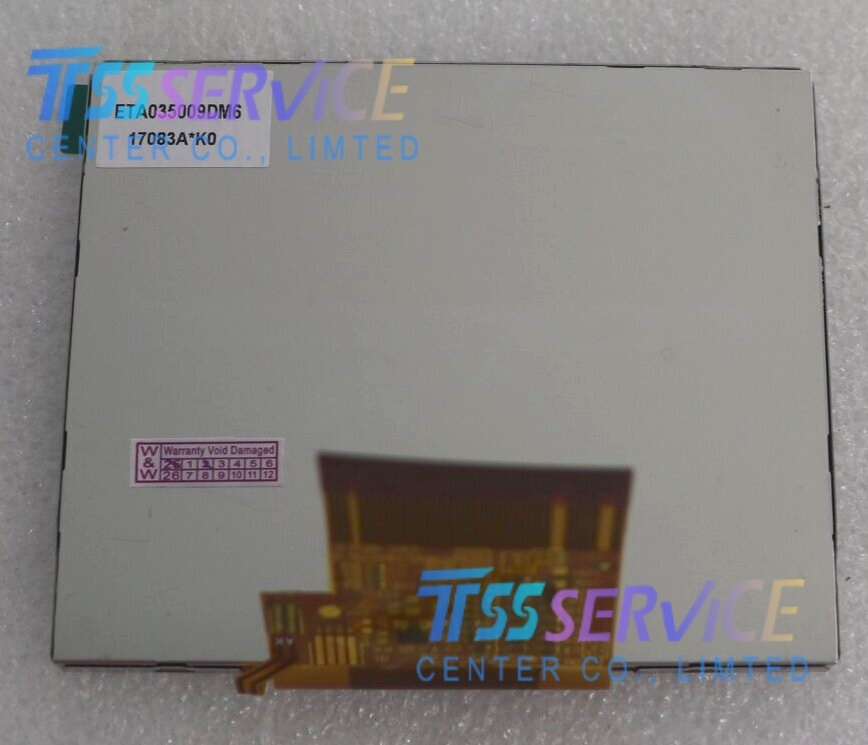

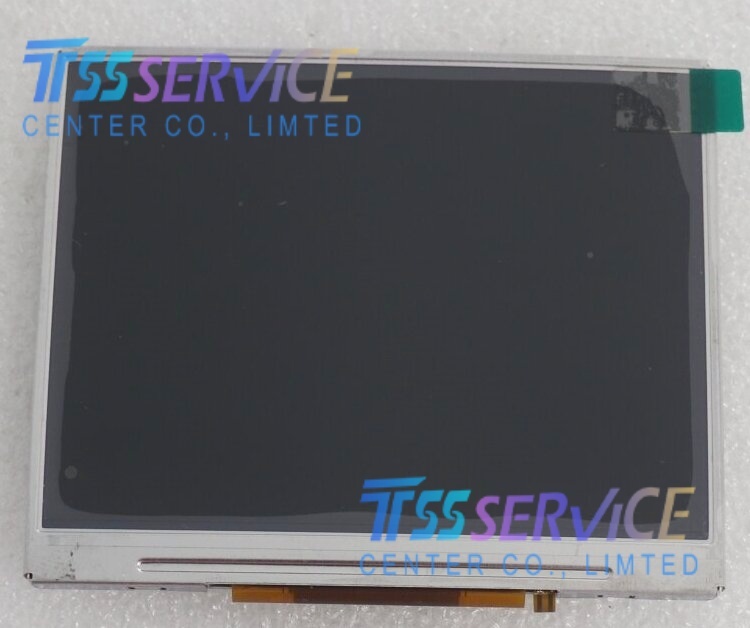

ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen

SKU: ETA035009DM6
Model P/N: ETA035009DM6
Diagonal Size: 3.5"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 320(RGB)×240, QVGA, 4:3
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$50.00 $48.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
1/1
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
  • Description
ETA035009DM6 EDT 3.5 INCH 320×240 Industrial LCD Display Screen
Parameter Spec Unit
Diagonal Size 3.5 inch
Resolution 320 × 240 QVGA pixel
Panel Type a-Si TFT-LCD
Display Mode Normally White, Transmissive
Brightness 350 (Typ.) cd/m²
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 65/65/55/75 (Typ.)(CR≥10) deg
View Direction 6 o'clock
Interface MCU 8-bit Parallel
Backlight LED, Long life
Operating Temp -20 ~ +70 °C
Storage Temp -30 ~ +80 °C
Outline Size Custom 3.5 inch standard outline mm
Application Grade Industrial / Commercial
ETA035009DM6 is a cost-effective 3.5‑inch QVGA industrial TFT display module with stable performance and wide temperature adaptability.
Suitable for:
  • Industrial handheld devices and portable measuring instruments
  • Household appliance control display and smart home control panel
  • Medical portable diagnostic equipment
  • Small industrial HMI, automation control terminals
  • Access control system, door intercom and security monitor
  • Automotive small instrument and industrial portable equipment
