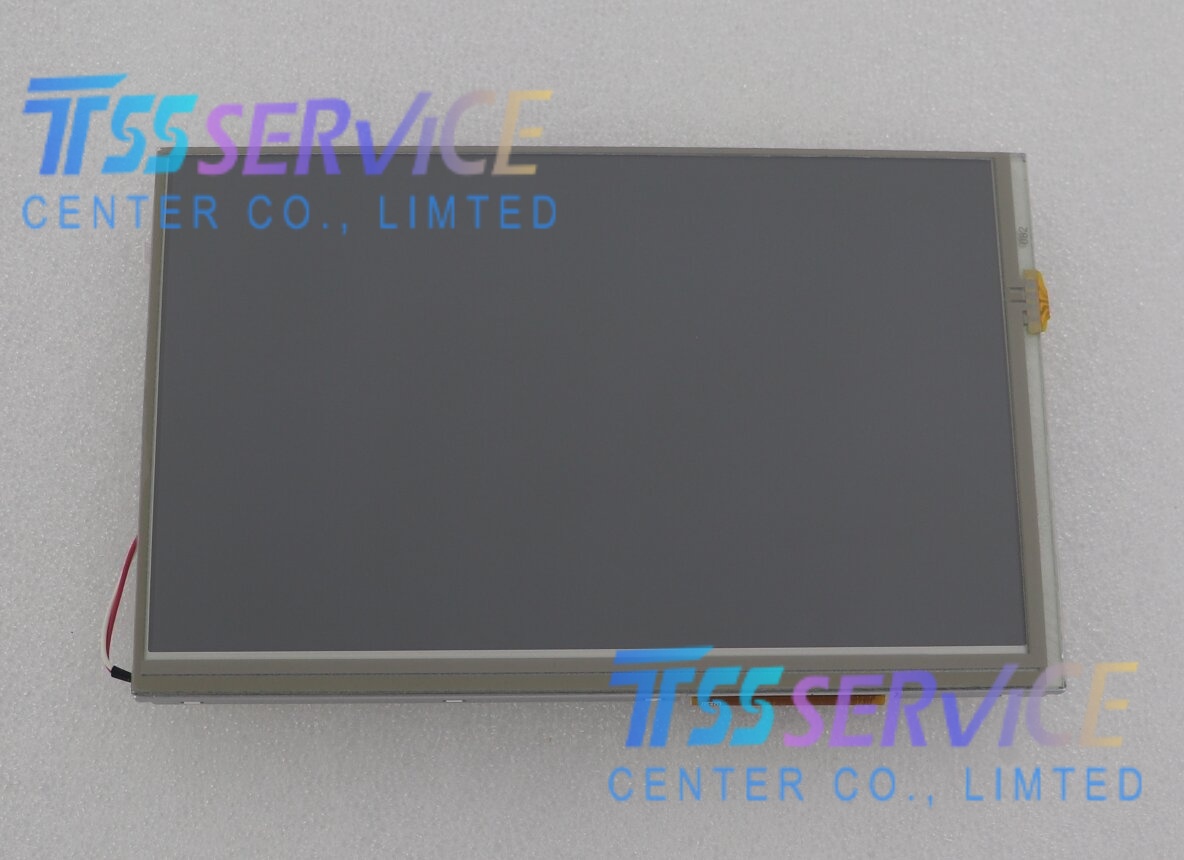

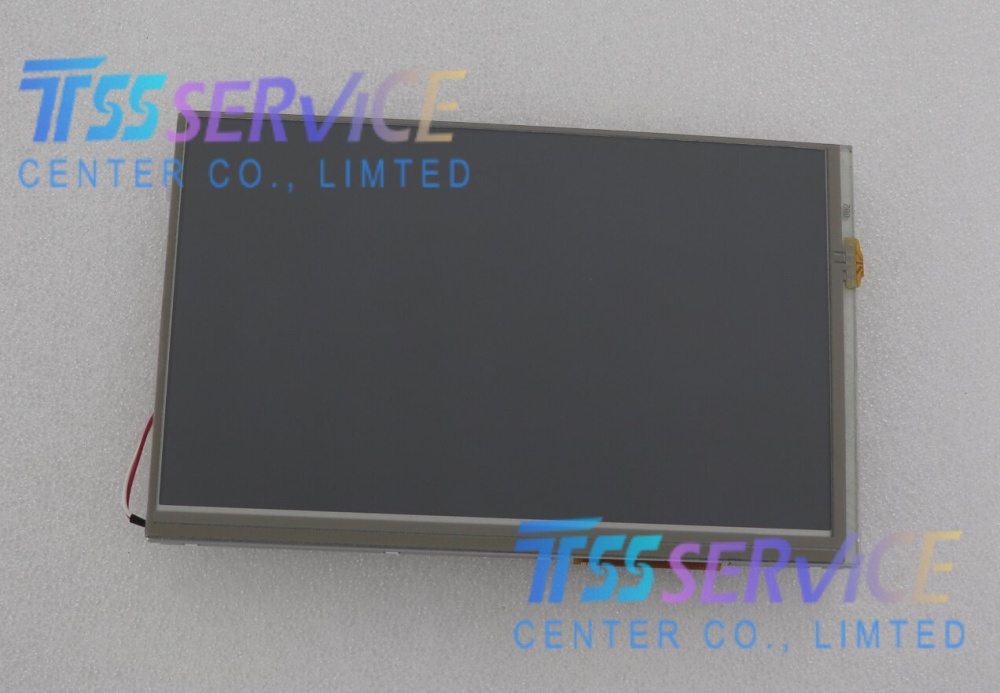

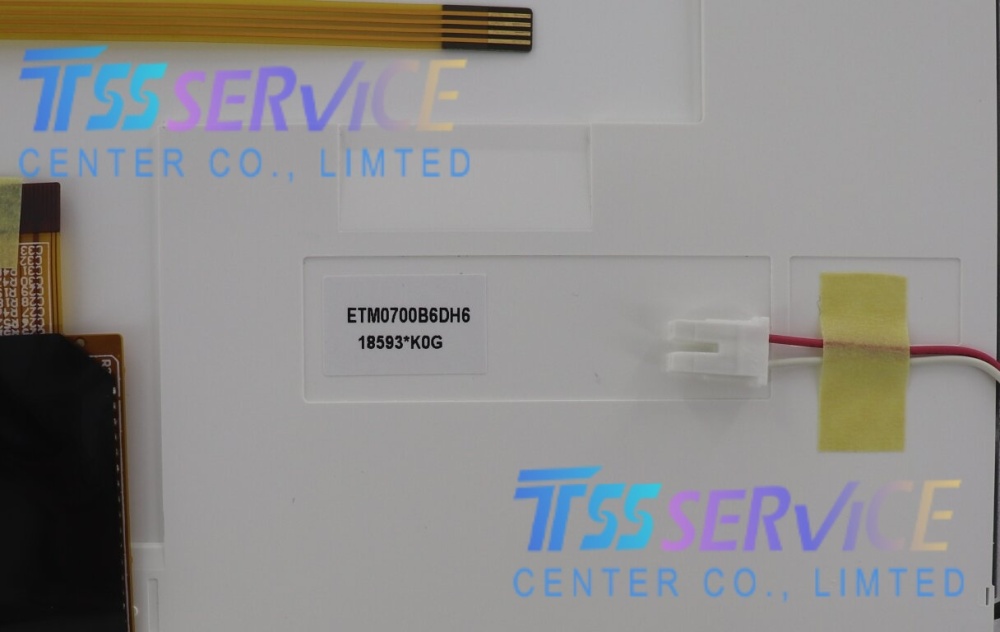

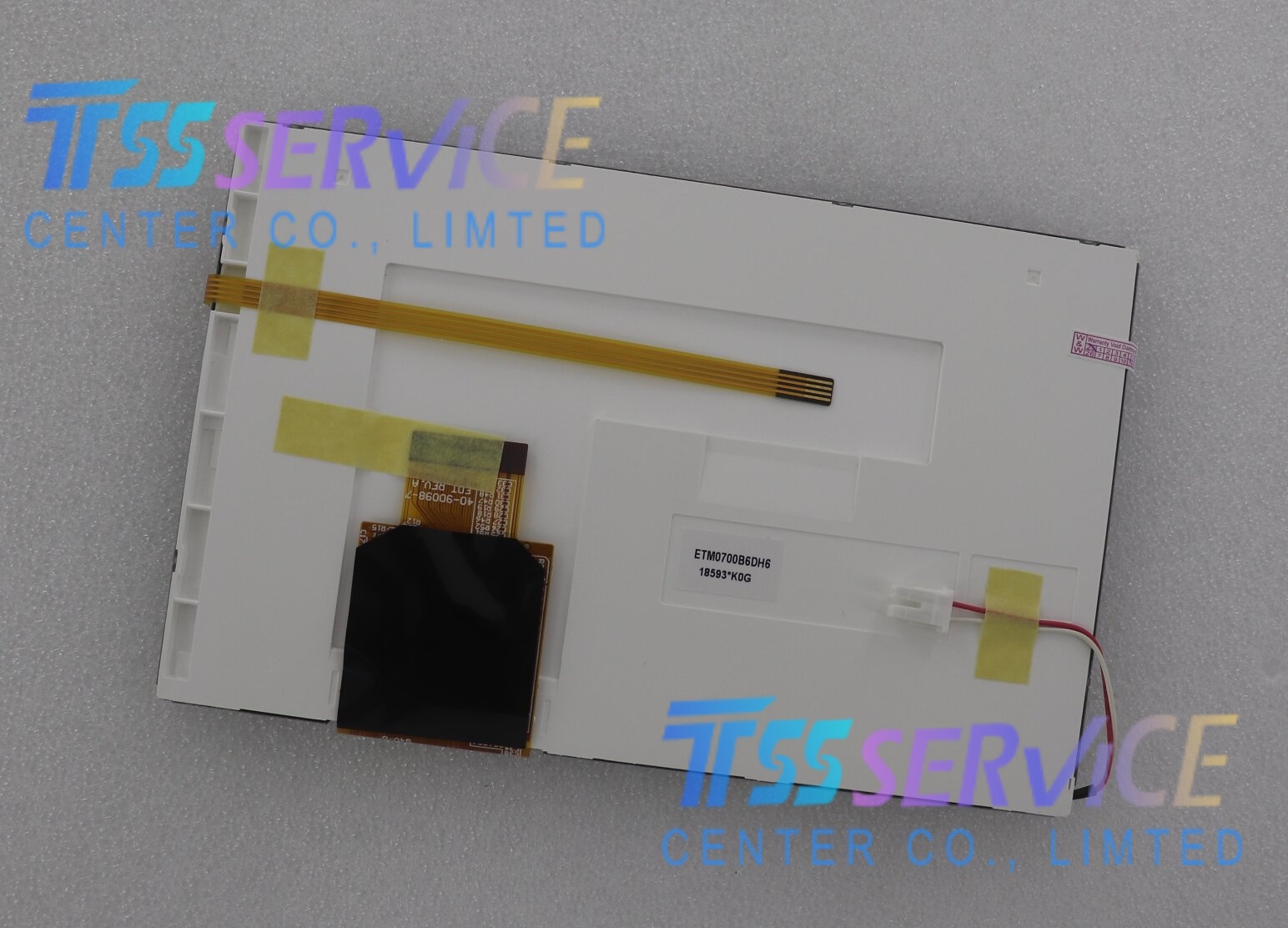

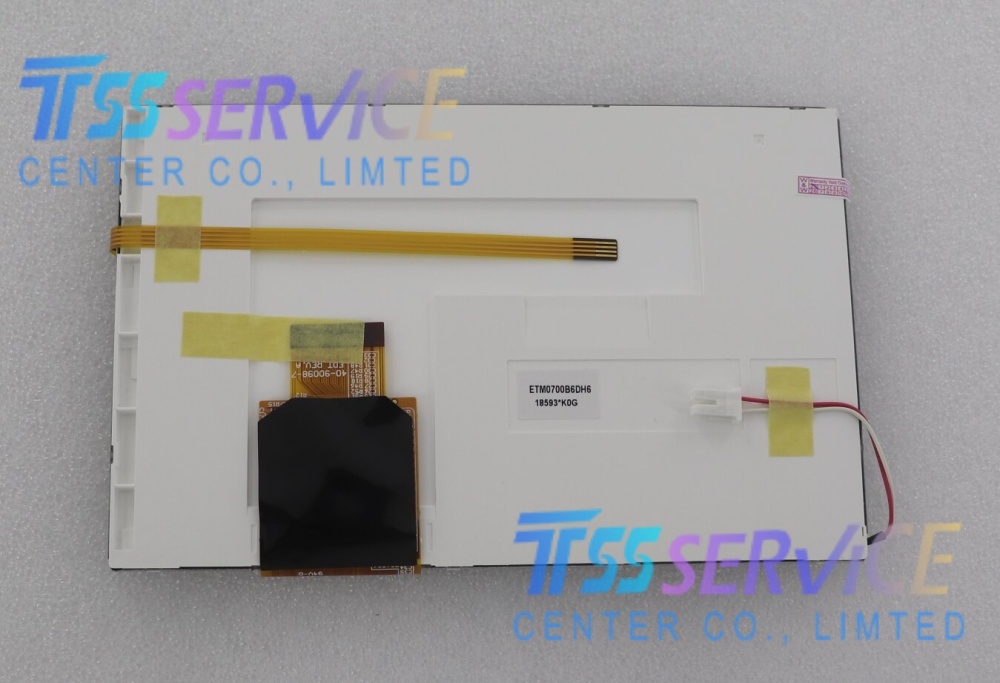

ETM0700B6DH6 EDT 7 inch LCD Display Screen For Industrial

Name: ETM0700B6DH6 EDT 7 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: ETM0700B6DH6
Price: 88 USD
Availability: InStock

SKU: ETM0700B6DH6

Model: ETM0700B6DH6
Diagonal Size: 7.0 inch
Resolution: 800×480 (WVGA), 133 PPI
Display Mode: TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

ETM0700B6DH6 EDT 7 inch LCD Display Screen For Industrial

Parameter	Specification
Brand	EDT (E-Display Technology)
Model	ETM0700B6DH6
Diagonal Size	7.0 inch
Resolution	800×480 (WVGA), 133 PPI
Display Mode	TN, Normally White, Transmissive
Aspect Ratio	16:9 (Landscape)
Active Area	154.08 (W) × 85.92 (H) mm
Pixel Pitch	0.1926 × 0.179 mm
Outline Dimension	164.9 (W) × 100.3 (H) × 7.34 (D) mm
Luminance	300 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.)
Color Depth	262K colors (6-bit RGB)
Backlight	WLED, 30,000 hours lifespan
Touch Panel	Without touch (optional)
Interface	24-bit RGB Parallel (SYNC/DE mode)
Operating Temp.	-20 ~ +70 °C
Storage Temp.	-30 ~ +80 °C
Viewing Angle	70°/70°/65°/65° (L/R/U/D)
RoHS	Compliant

Applications

Industrial HMI: Factory automation panels, PLC interfaces, and machine control stations.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments.
Smart Home & Building Automation: Control panels, HVAC systems, and security interfaces.
Retail & POS: Self-service kiosks, vending machines, and checkout terminals.
Portable Industrial Equipment: Handheld terminals, data loggers, and field measurement devices.
