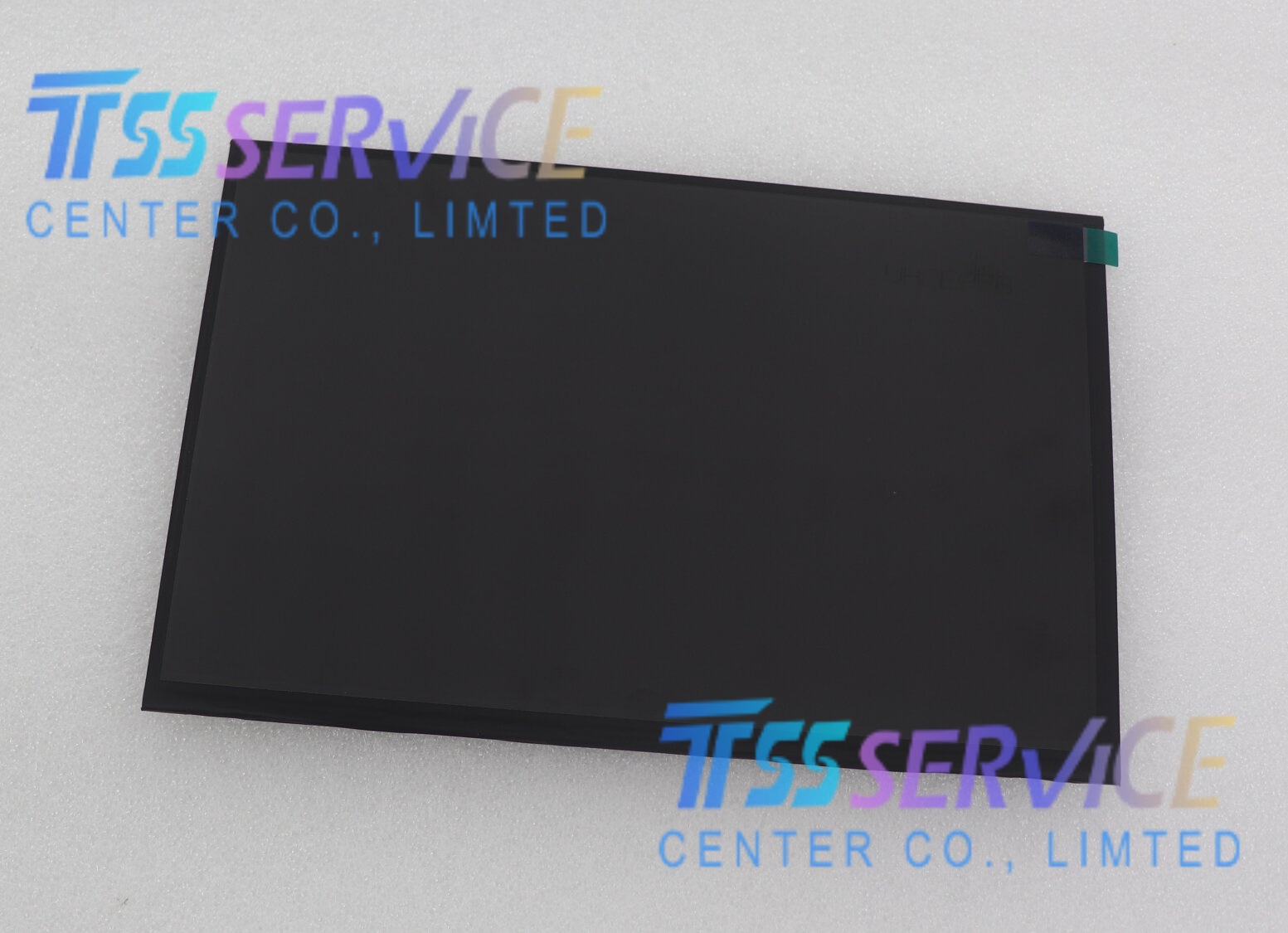

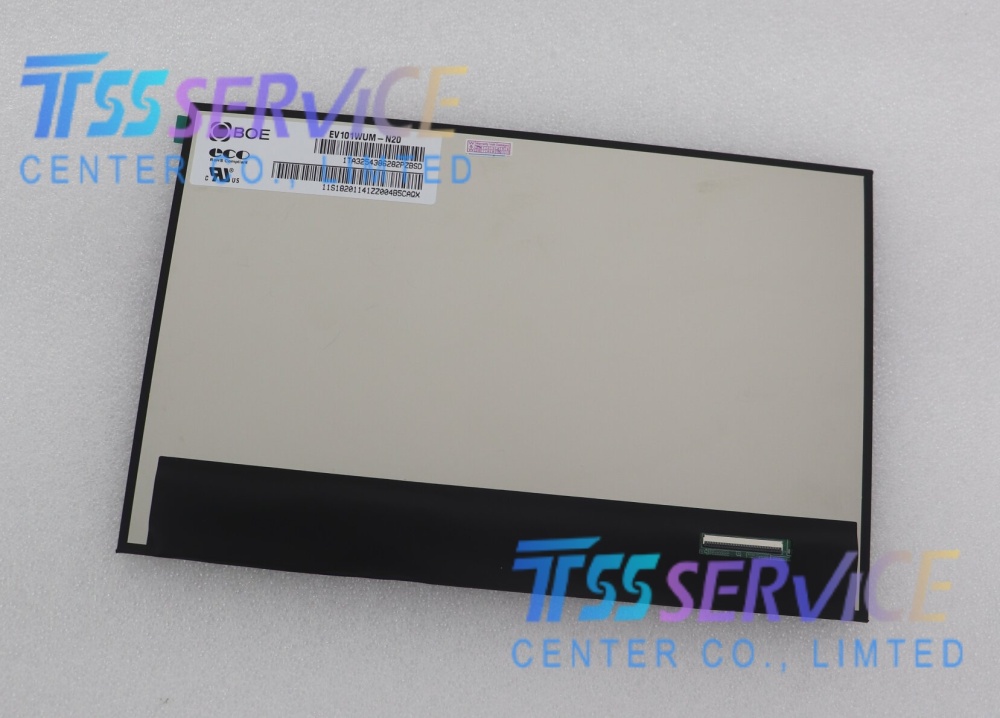

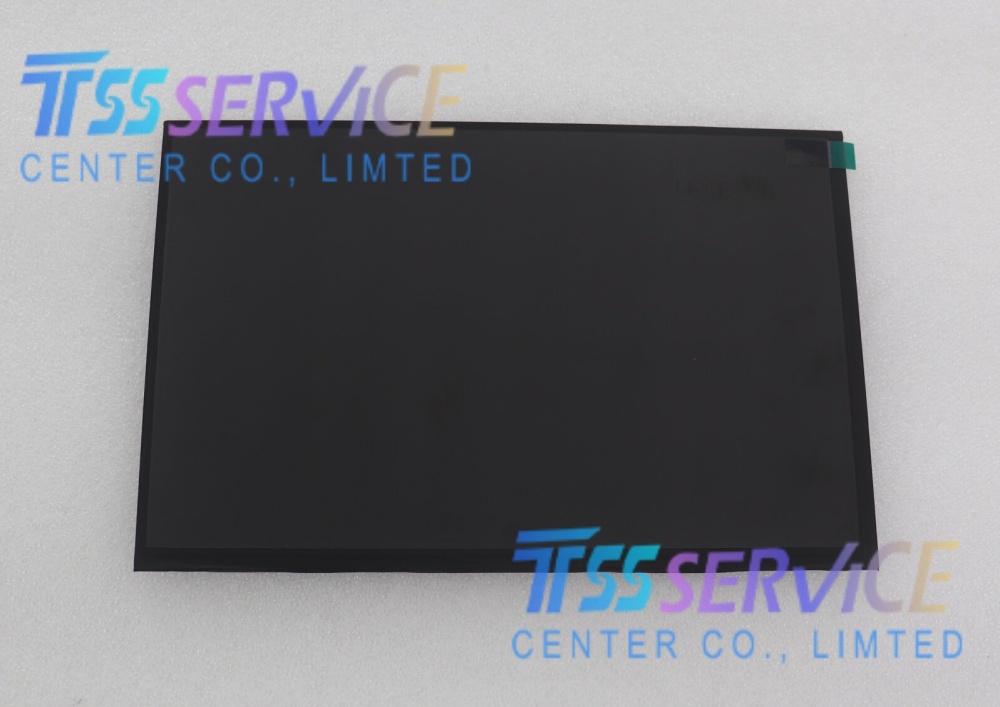

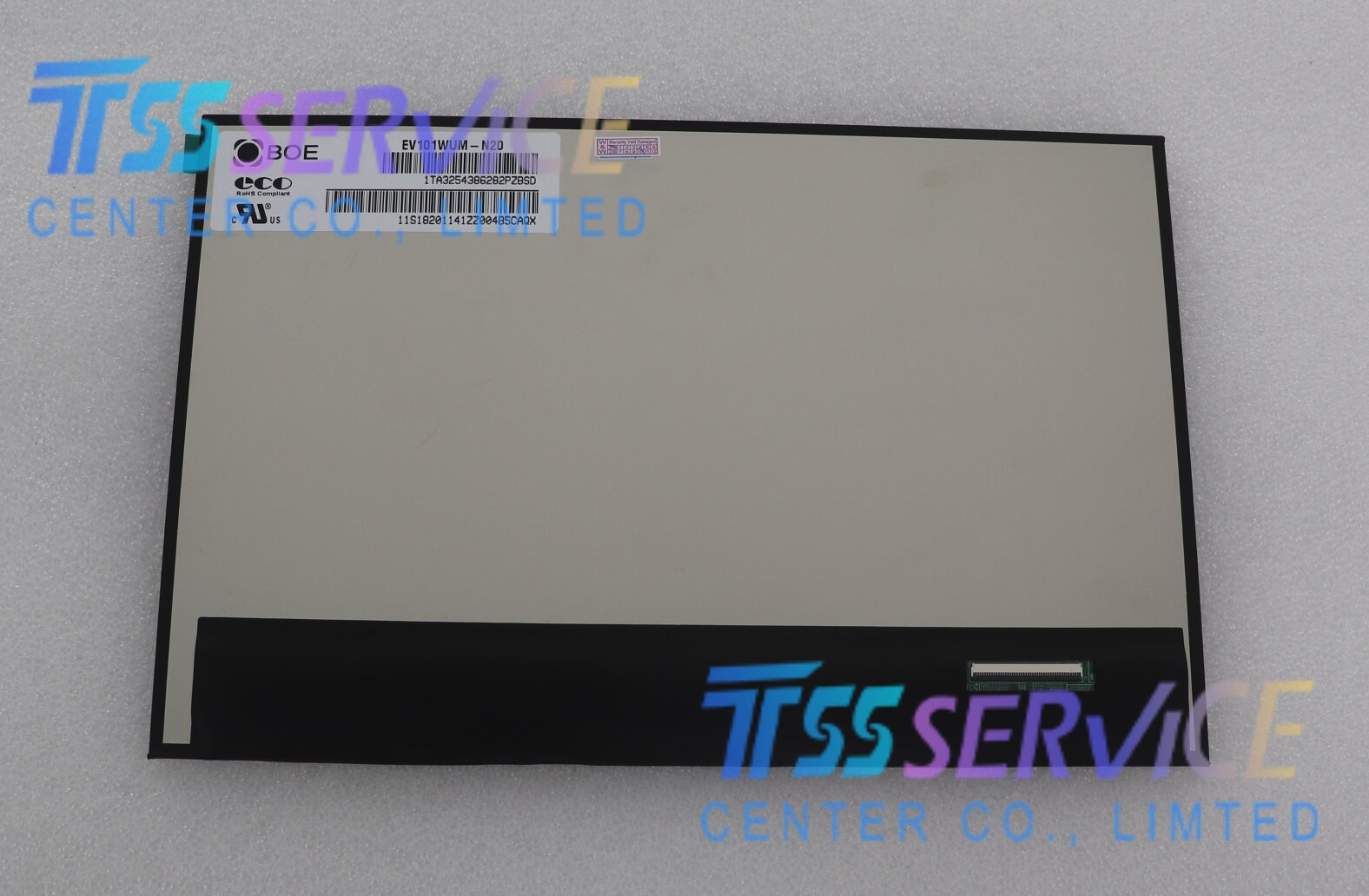

BOE EV101WUM-N20 10.1 Inch 1920×1200 ADS TFT LCD Panel Industrial Display Screen
| Item |
Detailed Parameter |
| Manufacturer (Mfr.) |
BOE |
| Model Name |
EV101WUM-N20 |
| Diagonal Display Size |
10.1" Inch |
| Panel Type |
a-Si TFT-LCD, LCM Module |
| Native Resolution |
1920(RGB) × 1200 (WUXGA), 16:10 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe |
| Active Display Area |
216.806(W) × 135.504(H) mm |
| Overall Outline Dimension |
228.41(W) × 149.22(H) × 4.6(D) mm |
| Typical Panel Weight |
187g |
| Surface Treatment |
No Special Coating |
| Typical Brightness |
600 cd/m² |
| Typical Contrast Ratio |
900:1 (TM Mode) |
| Viewing Angle (U/D/L/R) |
85° / 85° / 85° / 85° (CR≥10) |
| View Direction |
Symmetrical Full Angle |
| Display Mode |
ADS, Normally Black, Transmissive |
| Total Response Time |
30ms (Tr+Td Typical) |
| Display Colors |
16.7M True Colors, 72% NTSC Color Gamut |
| Refresh Frequency |
60Hz |
| Touch Function |
Without Touch Screen |
| Typical Power Consumption |
4.2W |
| Backlight Light Source |
7S7P WLED, 30,000 Hours Lifespan, Without Built-in Driver IC |
| Signal Interface |

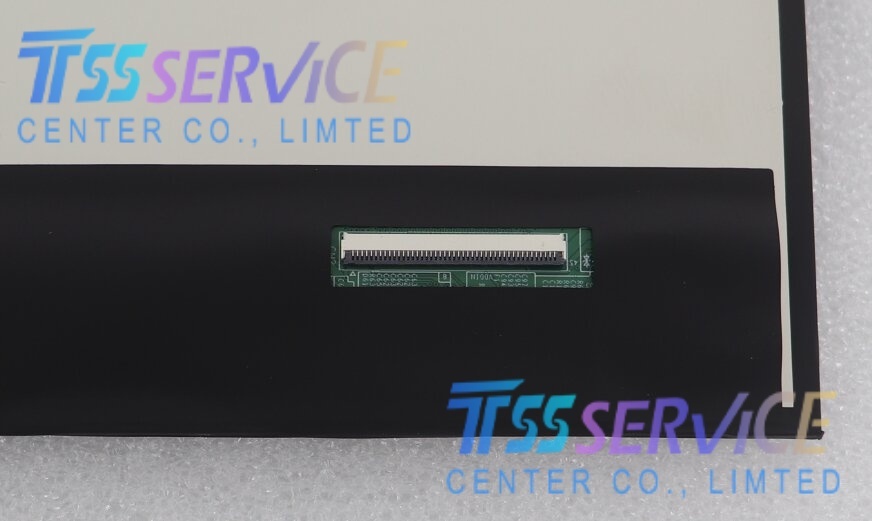

LVDS (2 Channel, 8-bit), 45 Pins FPC Connector |
| Typical Input Supply Voltage |
3.3V |
| Operating Temperature |
-20 ℃ ~ +70 ℃ |
| Storage Temperature |
-25 ℃ ~ +80 ℃ |
| Grade Condition |
Brand New Original Grade A, Fully Pre-tested |
Application Scenarios
1. Industrial Embedded Control Equipment
- High-definition industrial HMI touch control terminals
- Portable industrial detection & measuring instruments
- CNC equipment auxiliary HD display screens
- Factory workshop real-time data monitoring panels
- Automation machinery operation display terminals
2. Self-Service & Commercial Kiosks
- Indoor & semi-outdoor self-service ordering kiosks
- Retail advertising HD display screens
- Vending machine interactive display panels
- Information inquiry public service terminals
3. Medical & Portable Electronic Devices
- Portable medical diagnostic monitoring equipment
- Medical beauty instrument HD operation screens
- Handheld industrial data collection terminals
- Portable vehicle-mounted industrial display modules
4. Other High-Definition Embedded Displays
- Small-size industrial digital signage
- Smart equipment embedded HD display modules
