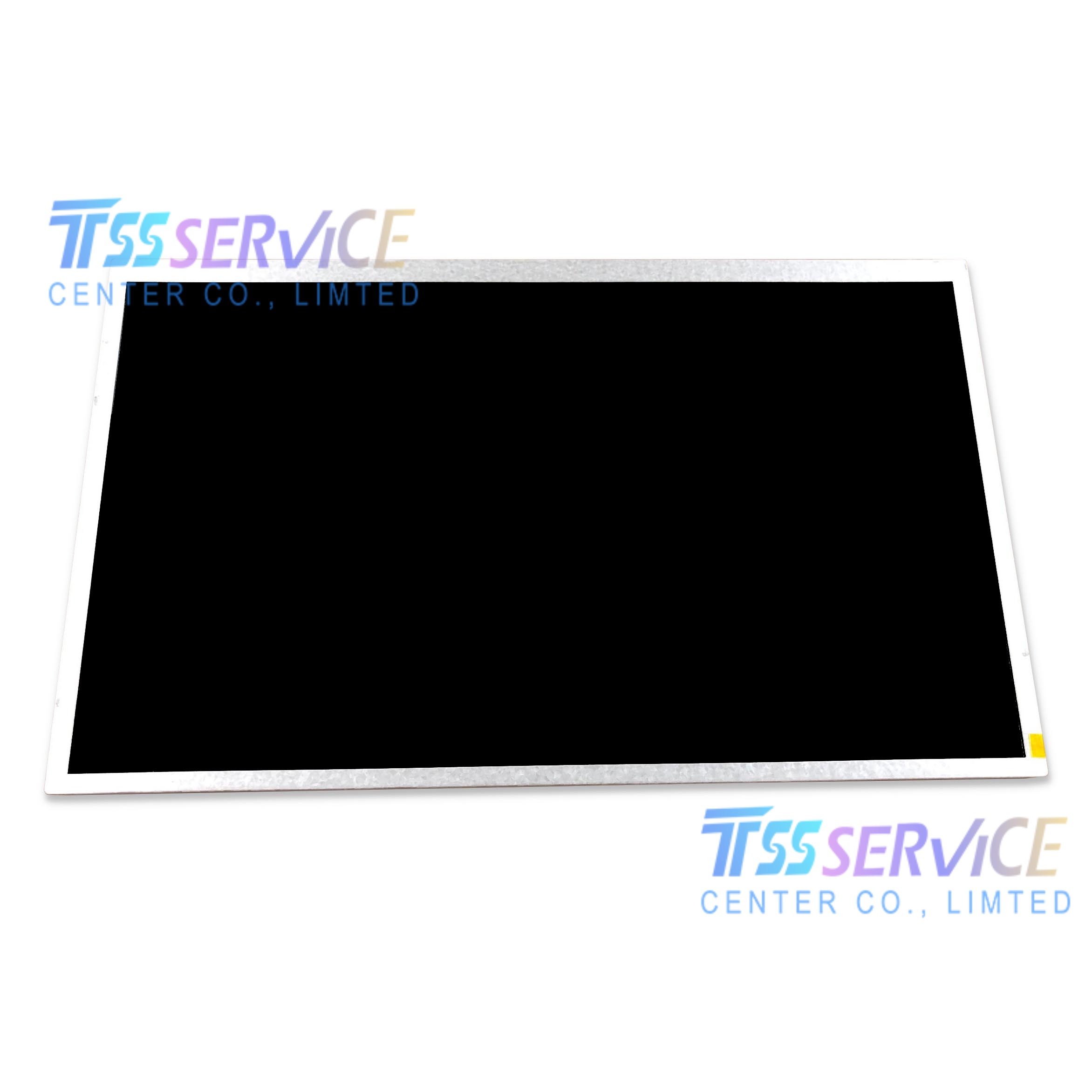

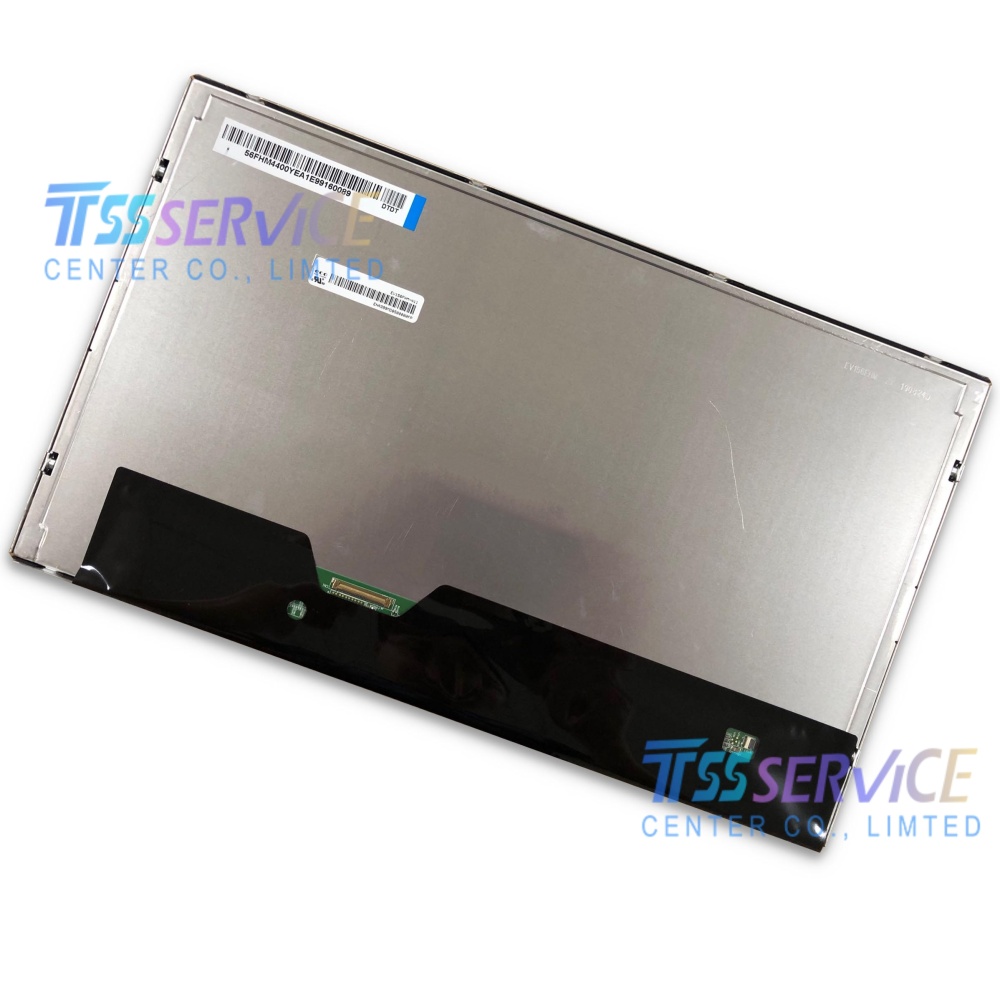

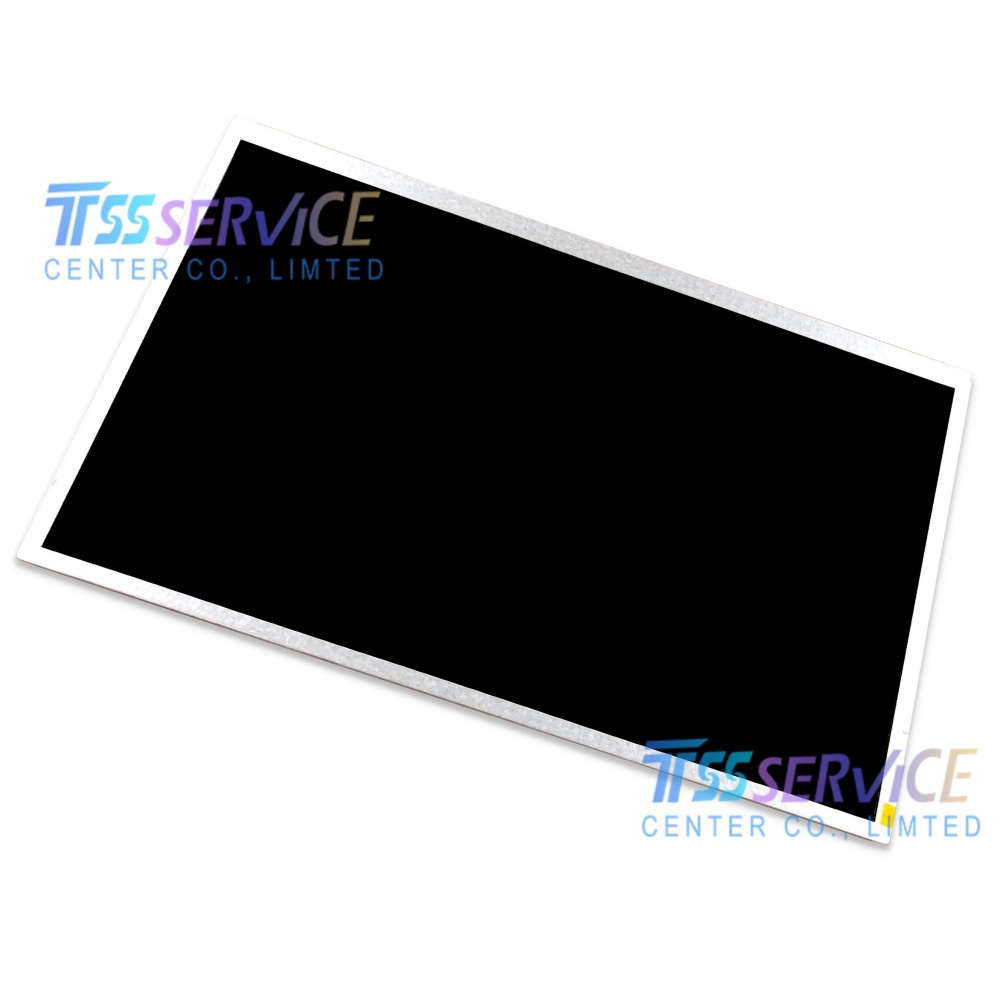

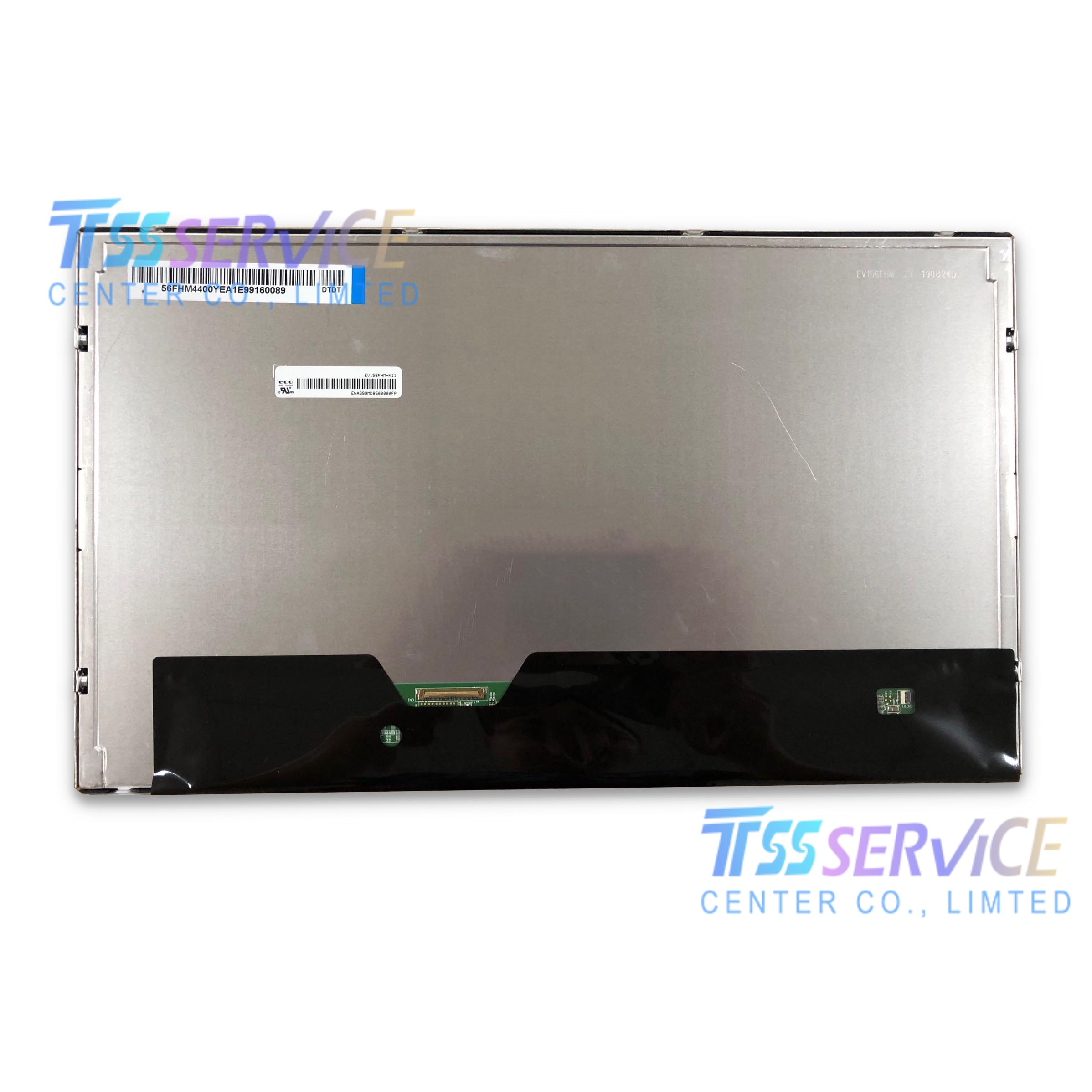

15.6 Inch BOE EV156FHM-N11 Industrial TFT LCD Screen 1920×1080 Display Panel for Medical Monitor Industrial HMI

Name: 15.6 Inch BOE EV156FHM-N11 Industrial TFT LCD Screen 1920×1080 Display Panel for Medical Monitor Industrial HMI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EV156FHM-N11
Price: 170 USD
Availability: InStock

SKU: EV156FHM-N11

Model Number: EV156FHM-N11
Manufacturer: BOE (BOE Technology)
Diagonal Display Size: 15.6 Inch
Panel Type: a-Si TFT-LCD Complete LCM Module
Native Resolution: 1920(RGB) × 1080 FHD, 16:9 Wide Aspect Ratio

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $170.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

15.6 Inch BOE EV156FHM-N11 Industrial TFT LCD Screen 1920×1080 Display Panel for Medical Monitor Industrial HMI

Item	Specification Parameter
Model Number	EV156FHM-N11
Manufacturer	BOE (BOE Technology)
Diagonal Display Size	15.6 Inch
Panel Type	a-Si TFT-LCD Complete LCM Module
Native Resolution	1920(RGB) × 1080 FHD, 16:9 Wide Aspect Ratio
Dot Layout	RGB Vertical Stripe Pixel Arrangement
Active Display Area	344.16 (W) × 193.59 (H) mm
Overall Outline Dimension	363.8 (W) × 216 (H) × 9.9 (D) mm
Max Panel Weight	850g
Surface Treatment	Anti-glare Matte Surface, Haze 25%
Typical Brightness	500 cd/m²
Typical Contrast Ratio	1200:1 (TM Mode)
Viewing Angle L/R/U/D (CR≥10)	89° / 89° / 89° / 89° Full Symmetric Wide View
Display Mode	ADS Technology, Normally Black, Transmissive
View Direction	Full Symmetric View Angle
Typical Response Time (Tr+Td)	25 ms
Display Color Performance	16.7M True Colors, 78% NTSC Color Gamut
Touch Screen Function	Without Integrated Touch Digitizer
Max Power Consumption	13.3W
Backlight Light Source	Built-in WLED with Integrated LED Driver, Lifespan 50,000 Hours
Refresh Frequency	60Hz
Signal Interface	Dual Channel LVDS, 8-bit, 40 Pin FPC Connector
Typical Input Logic Voltage	3.3V
Operating Temperature Range	0℃ ~ +70℃
Storage Temperature Range	-20℃ ~ +80℃

Applications

Medical Diagnostic & Monitoring Displays
Hospital bedside patient monitors, clinical medical imaging auxiliary screens, portable medical diagnostic equipment, veterinary inspection workstations, medical consultation display terminals, lab medical analysis equipment monitors.
Industrial HMI & Factory Automation Workstations
Industrial control workstation monitors, factory assembly line operation display screens, CNC equipment auxiliary monitoring panels, packaging machine human-machine interfaces, industrial quality inspection visual stations, robotic control console displays.
Commercial Fixed Workstation & Office Equipment
Industrial all-in-one PC display modules, industrial rugged workstation replacement screens, factory office fixed monitoring monitors, laboratory precision testing equipment main displays, environmental data recording station screens.
Self-service & Special Industrial Kiosks
Industrial information query kiosk display panels, factory workshop parameter monitoring terminals, medical self-service registration & report printing equipment screens, factory safety monitoring display modules.
Portable & Fixed Test Measuring Instruments
Large-size laboratory signal analysis equipment monitors, industrial optical inspection workstations, power energy quality monitoring display screens, environmental big data centralized monitoring terminals.
