EV240WUM-N10 BOE 24 Inch Industrial LCD Display Panel 1920×1200 LCD Screen for Medical Equipment HMI

Name: EV240WUM-N10 BOE 24 Inch Industrial LCD Display Panel 1920×1200 LCD Screen for Medical Equipment HMI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EV240WUM-N10
Price: 230 USD
Availability: InStock

SKU: EV240WUM-N10

Model Number: EV240WUM-N10
Screen Size: 24 inch
Resolution: 1920 × 1200 WUXGA
Aspect Ratio: 16:10

0.0 (0 Reviews)

0 Sold

~~$235.00~~ $230.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

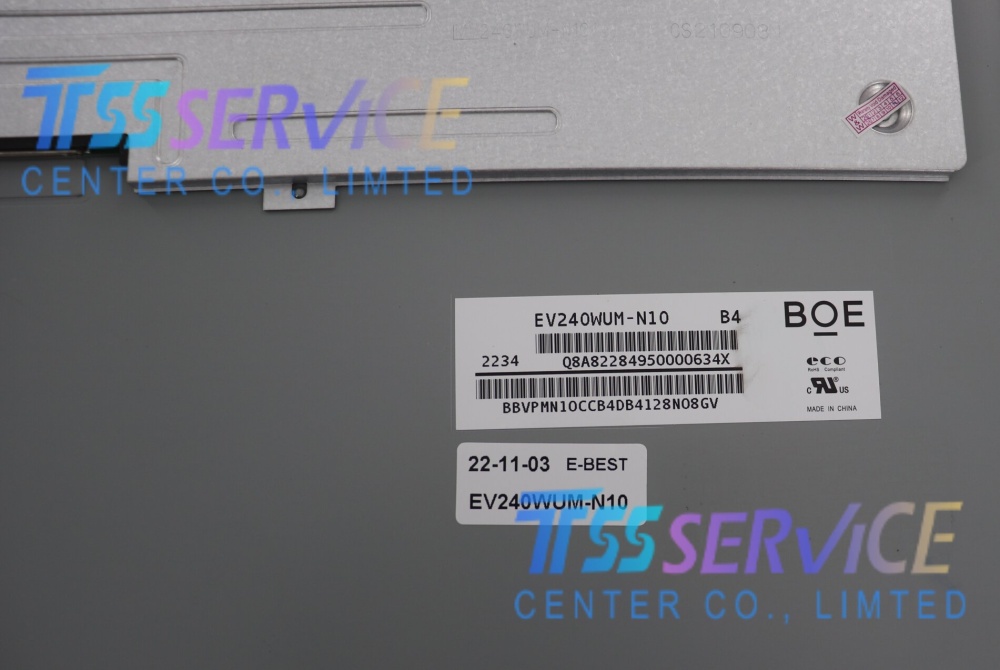

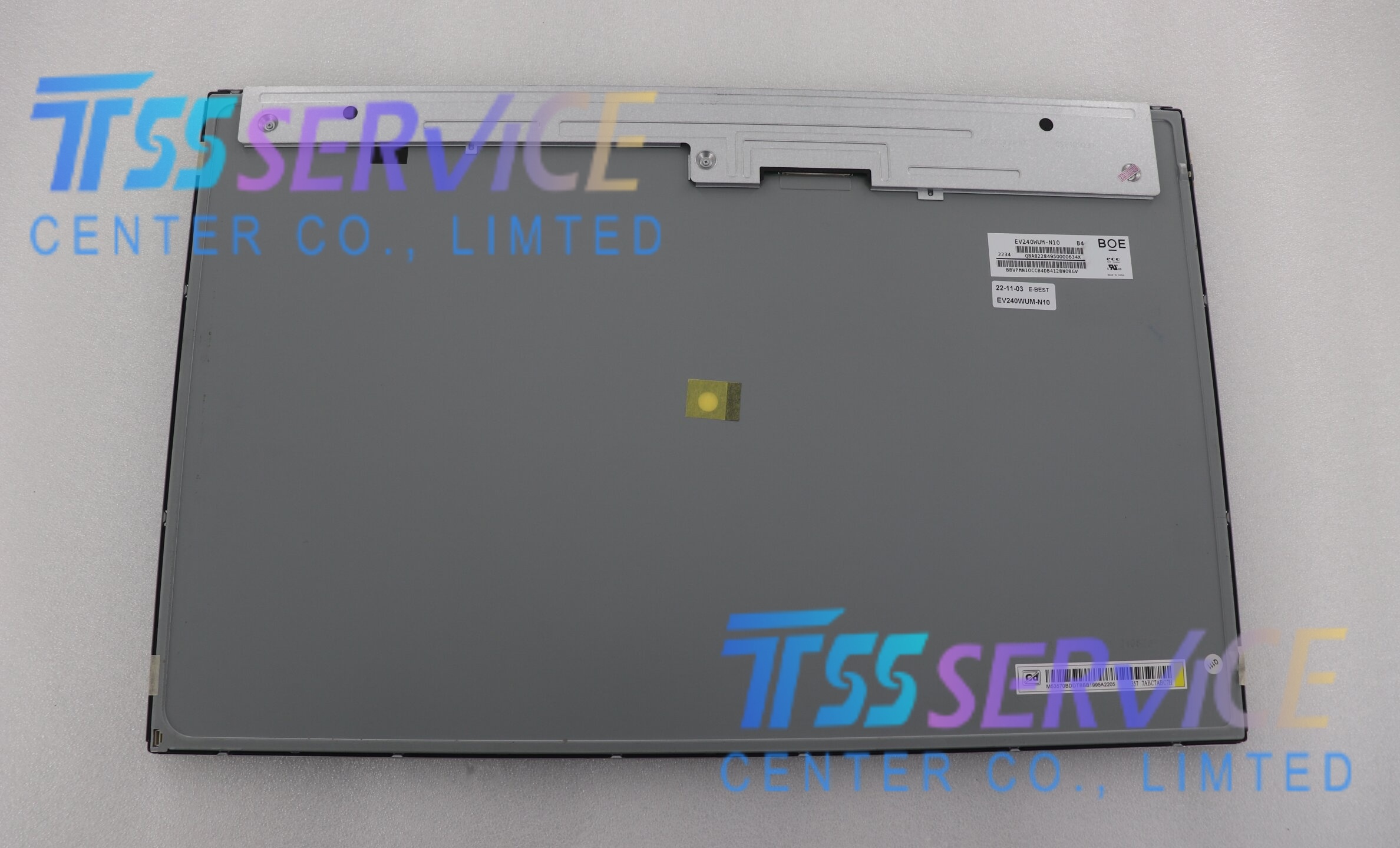

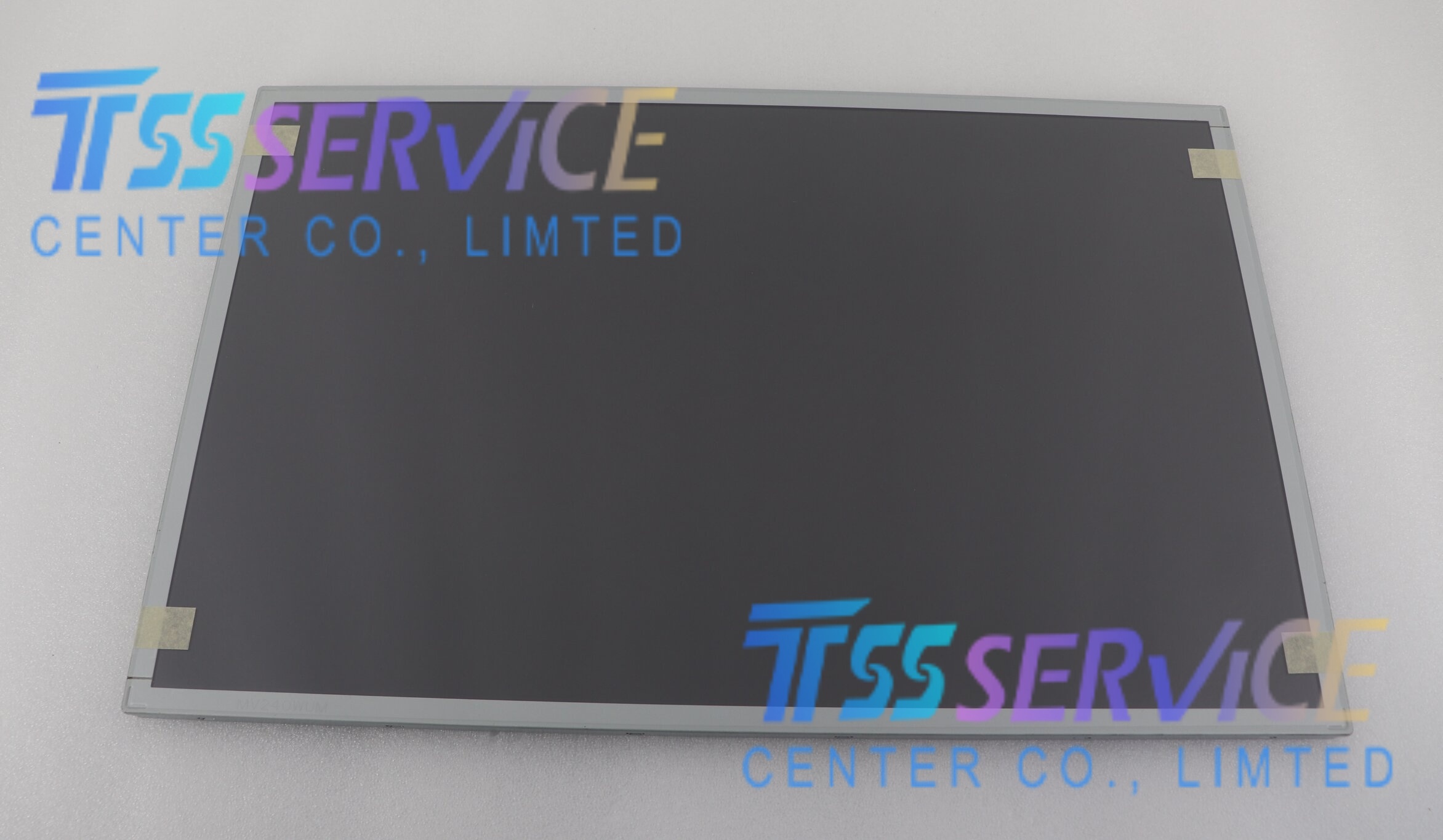

EV240WUM-N10 BOE 24 Inch Industrial LCD Display Panel 1920×1200 LCD Screen for Medical Equipment HMI

Spec Item	Detailed Parameter
Manufacturer	BOE
Model Number	EV240WUM-N10
Screen Size	24.0 inch
Display Type	a-Si TFT-LCD LCM, ADS, Normally Black, Transmissive
Native Resolution	1920(RGB)×1200, WUXGA, 16:10 Aspect Ratio
Dot Layout	RGB Vertical Stripe
Active Area (H×V)	518.4 × 324 mm
Outline Dimension (H×V×D)	546.4 × 352 × 12.2 mm
Net Weight	2.61±0.15 Kgs
Surface Treatment	Antiglare (Haze 25%), 3H Hard Coating
Typical Luminance	600 cd/m²
Contrast Ratio (Typ.)	1000:1 (TM)
Viewing Angle (CR≥10)	89°/89°/89°/89° (Symmetric Full View)
Gray to Gray Response Time	14 ms (Typ.)
Display Color	16.7M Colors, 72% NTSC Color Gamut
Backlight	13S3P WLED, 50,000 Hours Lifespan, No Built-in Driver
Refresh Rate	60Hz
Touchscreen	Without Touch Function

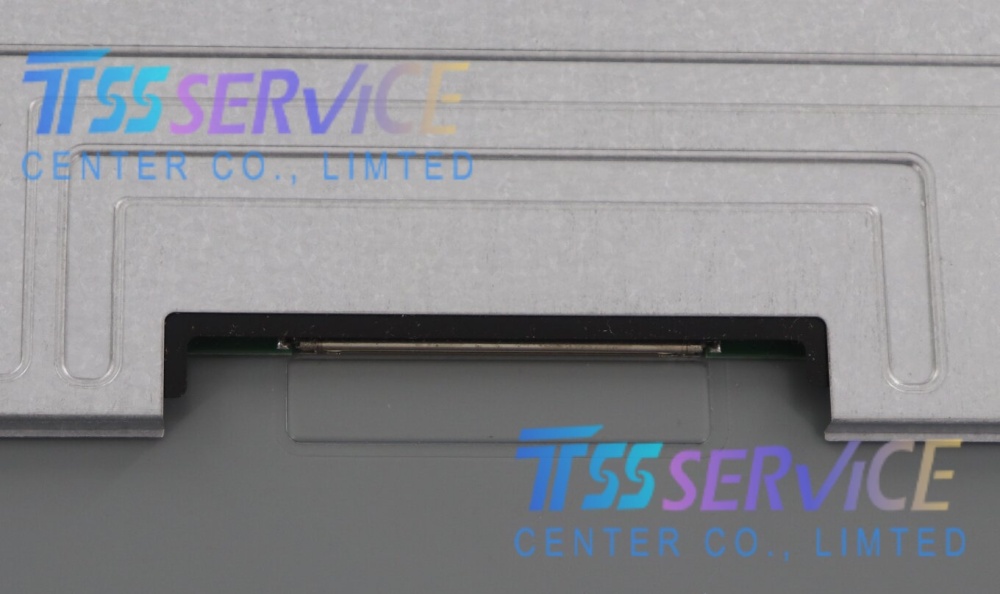

Signal Interface	LVDS (2 Channel, 8-bit), 30 Pins Connector
Supply Voltage	5.0V (Typical)
Operating Temperature	0 ~ 50 ℃
Storage Temperature	-20 ~ 60 ℃

Applications

Medical Industry: Medical diagnostic monitors, medical testing equipment, surgical auxiliary display, patient monitoring terminals
Industrial Automation: Industrial HMI touch all-in-one machine, CNC machine tool display, PLC control panel, production line monitoring screen
Self-service Terminal: Shopping mall self-service kiosk, hospital registration inquiry machine, factory access control display, vending machine display
Testing & Measuring Equipment: Laboratory testing instrument, optical detection equipment, industrial inspection monitor
Other Industrial Scenarios: Outdoor industrial monitoring equipment, mechanical equipment operation display, logistics warehouse control terminal
