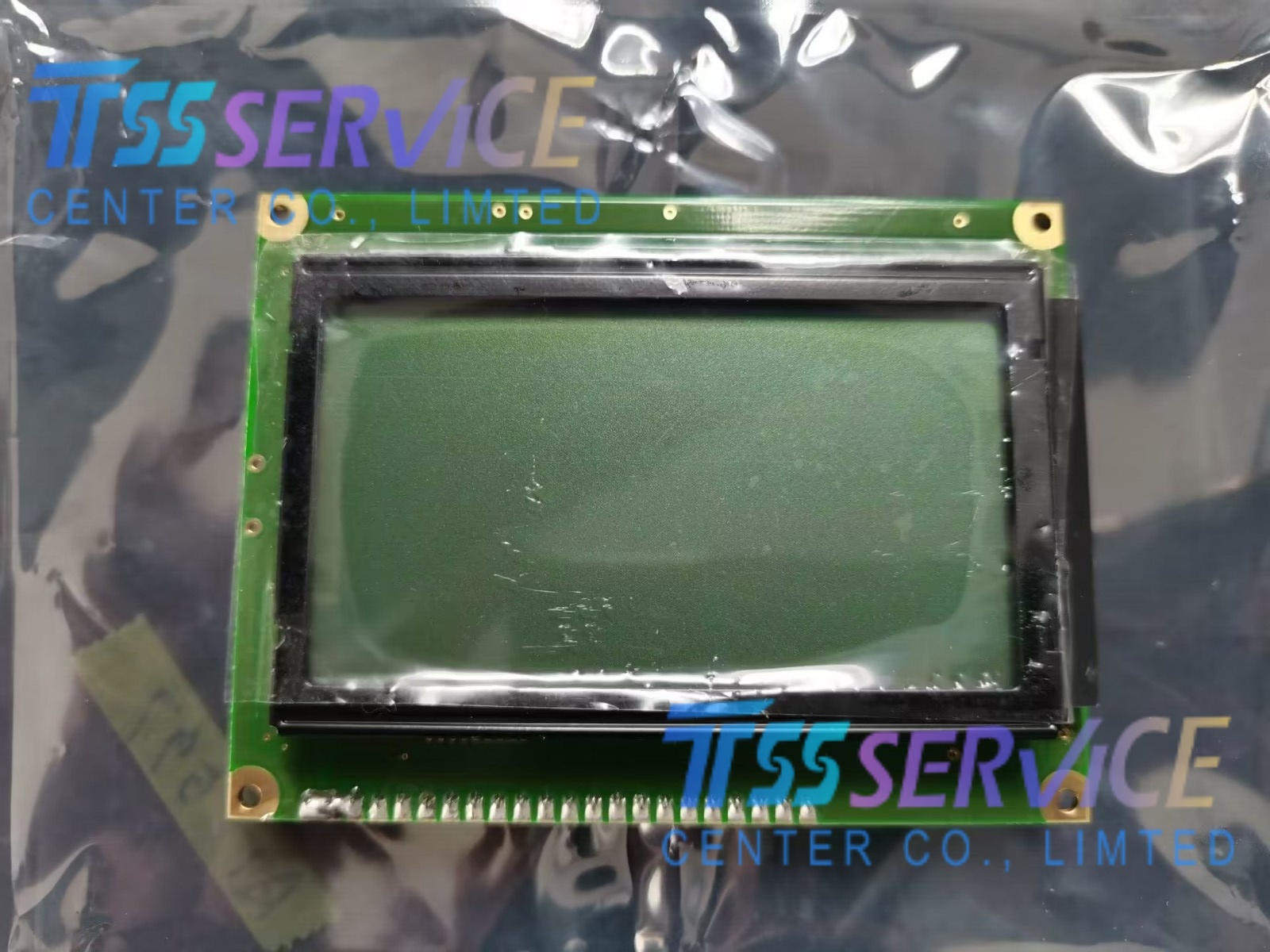

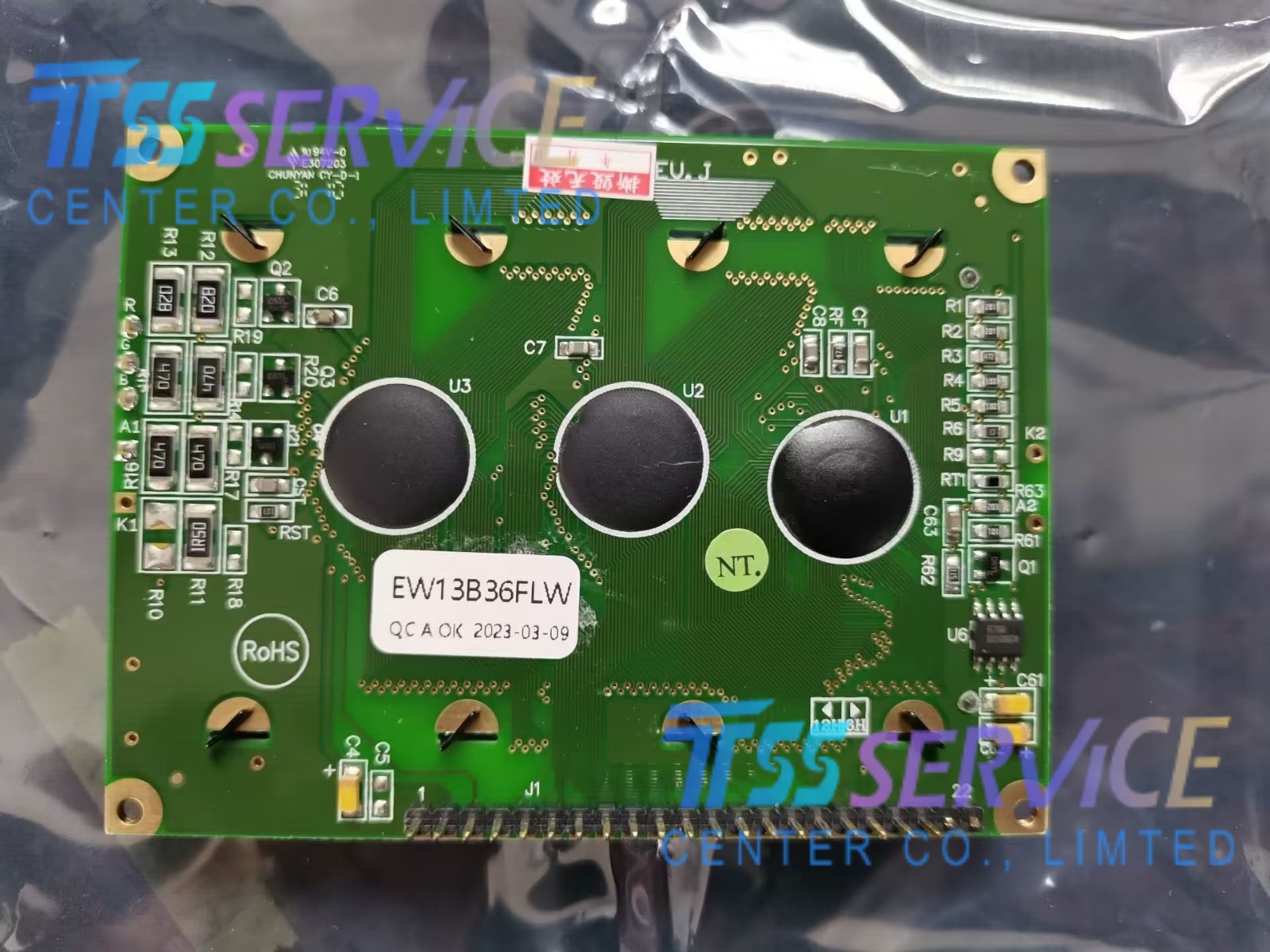

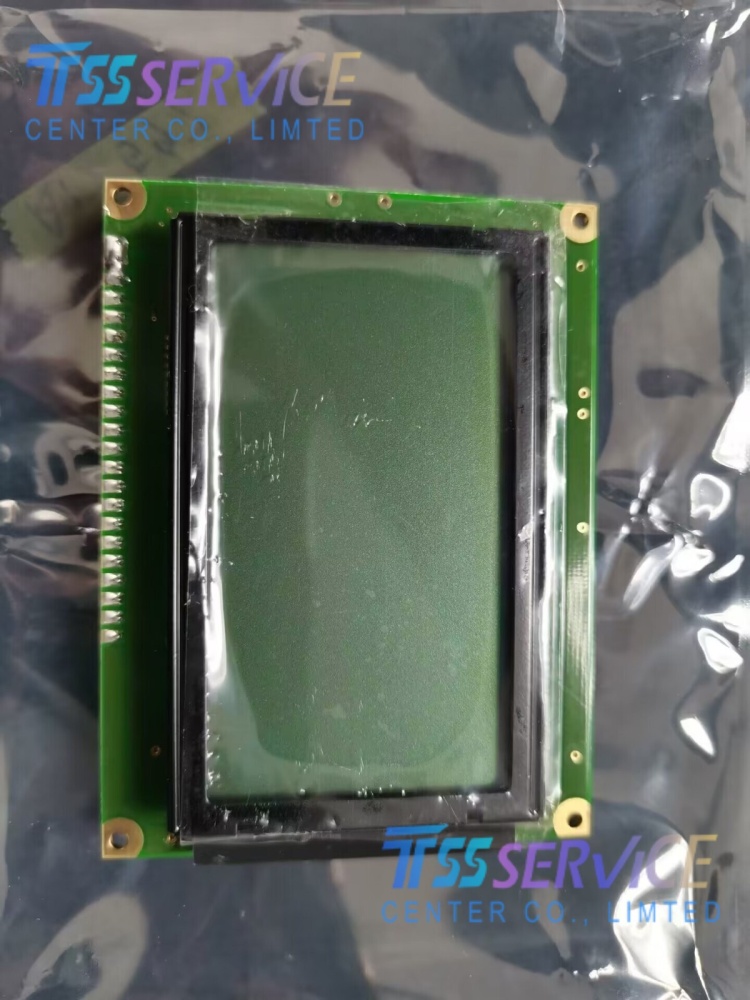

EW13B36FLW 20-20620-3 LCD Display Panel For Industrial

Name: EW13B36FLW 20-20620-3 LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EW13B36FLW
Price: 70 USD
Availability: InStock

SKU: EW13B36FLW

Model P/N: EW13B36FLW
Resolution: 128 × 64 pixels
Display Mode: Reflective (no backlight required)
Contrast Ratio: 15:1 (Typical)

0.0 (0 Reviews)

0 Sold

~~$72.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

EW13B36FLW 20-20620-3 LCD Display Panel For Industrial

Parameter	Specification
Model	EW13B36FLW
Manufacturer	EDT (Emerging Display Technologies)
Display Type	FSTN (Film Super Twisted Nematic)
Size	1.3 inches
Resolution	128 × 64 pixels
Display Mode	Reflective (no backlight required)
Contrast Ratio	15:1 (Typical)
Viewing Angle	6 o’clock (Bottom View)
Operating Voltage	3.3V
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Interface	Parallel (8-bit)
Module Dimensions	40.0 mm × 35.0 mm × 2.5 mm
Dot Pitch	0.24 mm × 0.24 mm
Weight	~10g

Key Features

Reflective FSTN: Sunlight readable, no backlight needed (ultra-low power)
Wide temperature range: -20°C to +70°C (industrial grade)
Compact size: 1.3" (128×64) with thin profile (2.5mm)
Low power: 3.3V operation, ideal for battery-powered devices
High reliability: Rugged design for harsh industrial environments
