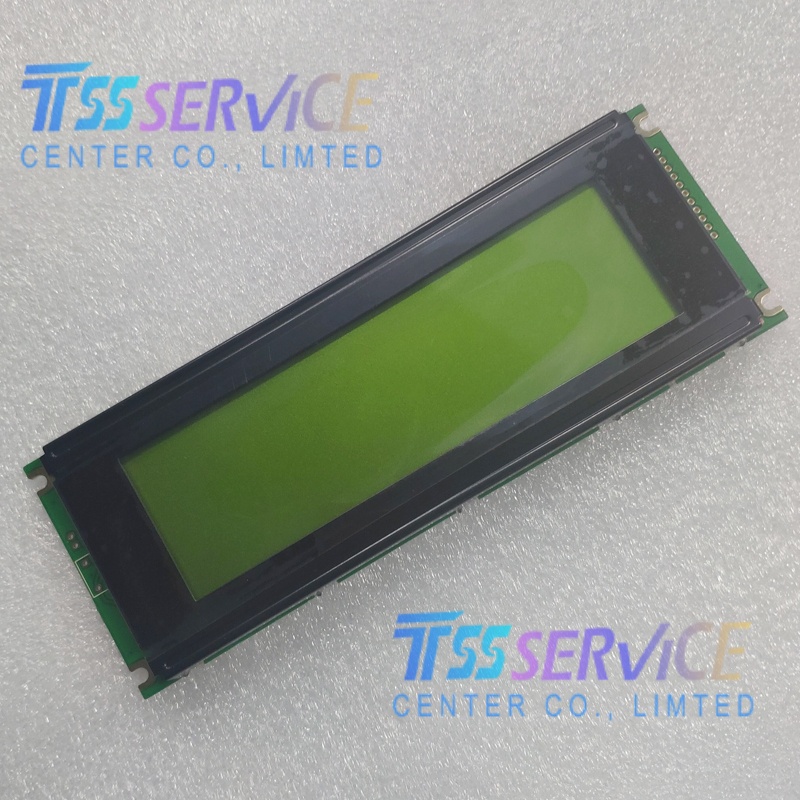

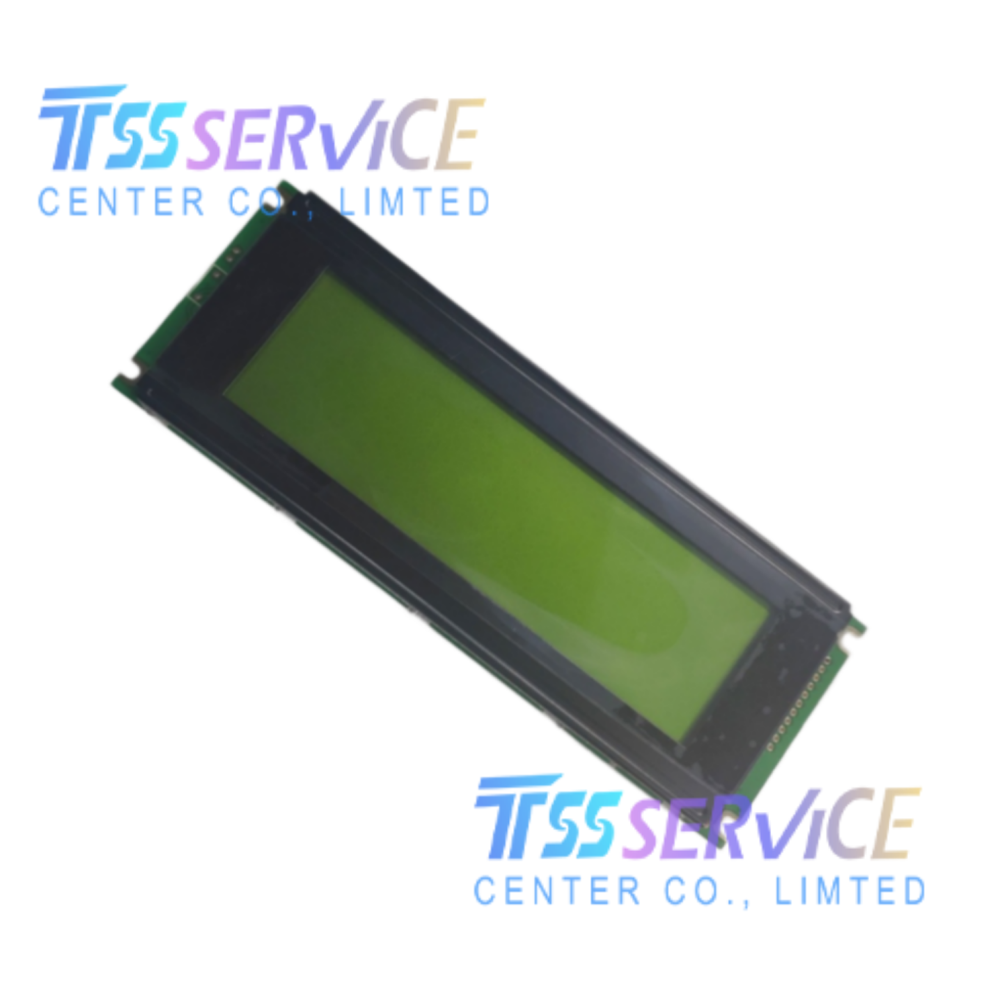

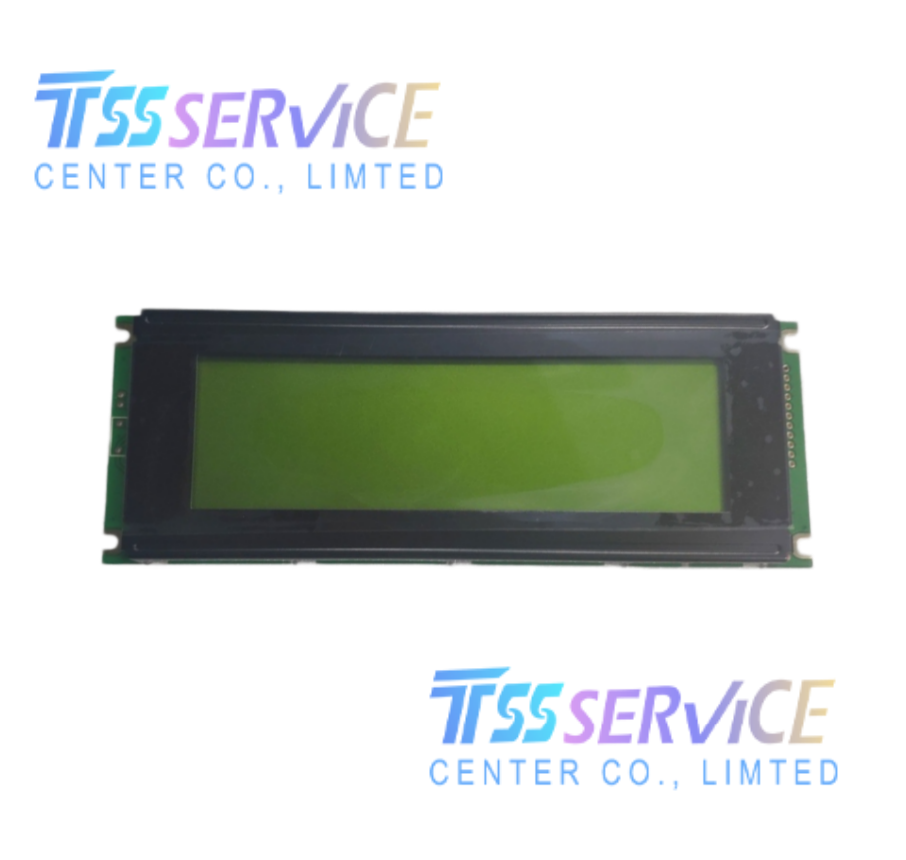

EW24B00YLY 5.2 Inch 240×64 LCD Module Industrial Monochrome Display
| Spec Item |
Detailed Parameter |
| Model Number |
EW24B00YLY |
| Screen Size |
5.2 inch Wide Landscape |
| Panel Type |
STN Graphic Dot Matrix LCD, Transflective Monochrome |
| Native Resolution |
240 × 64 Pixels |
| Viewing Area (L×H) |
133.0 mm × 40.0 mm |
| Backlight |
Yellow-Green LED, Built-in Driver Circuit |
| Operating Supply Voltage |
Nominal 8.7V, Range 7.7V ~ 9.7V |
| Operating Temperature |
-20 ℃ ~ +70 ℃ Wide Industrial Grade |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Display Mode |
Transflective (Works with ambient light + backlight) |
| Compliance |
EU RoHS Compliant |
| Interface |
Standard Parallel CPU Interface, 20Pin FPC Connector |
| Touchscreen |
Without Touch Function |
| Panel Series Compatible |
Interchangeable with EW24B00GLY |
| Weight |
Approx 0.12 KG |
Application
1. Industrial Control HMI Panels
Legacy small PLC monitoring terminals, injection molding machine auxiliary data display, textile machinery parameter panels, printing equipment status screens, factory workshop data recorders.
2. Portable Testing & Measuring Instruments
Field environmental detectors, electrical fault testers, laboratory aging analysis equipment, portable optical measuring devices, industrial gas monitoring controllers.
3. Medical & Laboratory Compact Devices
Lab small analytical instruments, portable medical vital sign auxiliary display, clinical test parameter readout panels, compact diagnostic equipment status screens.
4. Outdoor & Field Portable Equipment
Agricultural monitoring controllers, logistics handheld data collectors, construction engineering debugging terminals, portable fire alarm display units.
5. Equipment Repair & Refurbishment
Direct replacement spare screen for broken original EDT EW24B00 series STN LCD modules, aftermarket maintenance spare parts for aging industrial machinery, second-hand equipment renovation projects.
