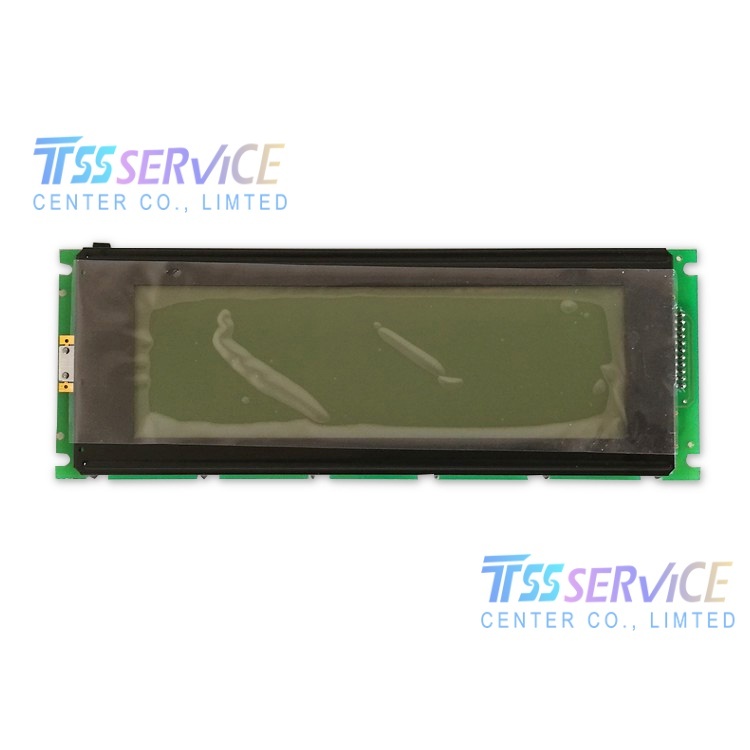

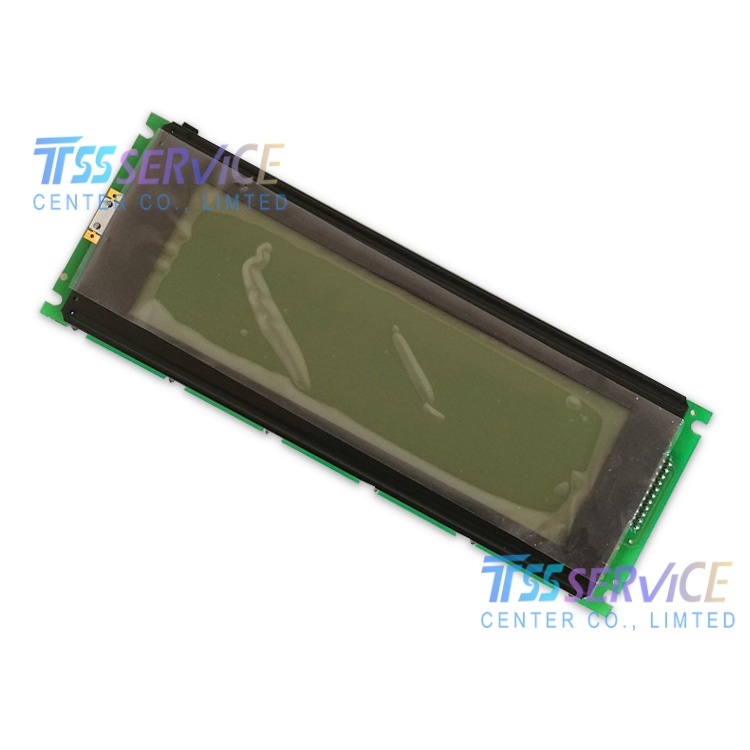

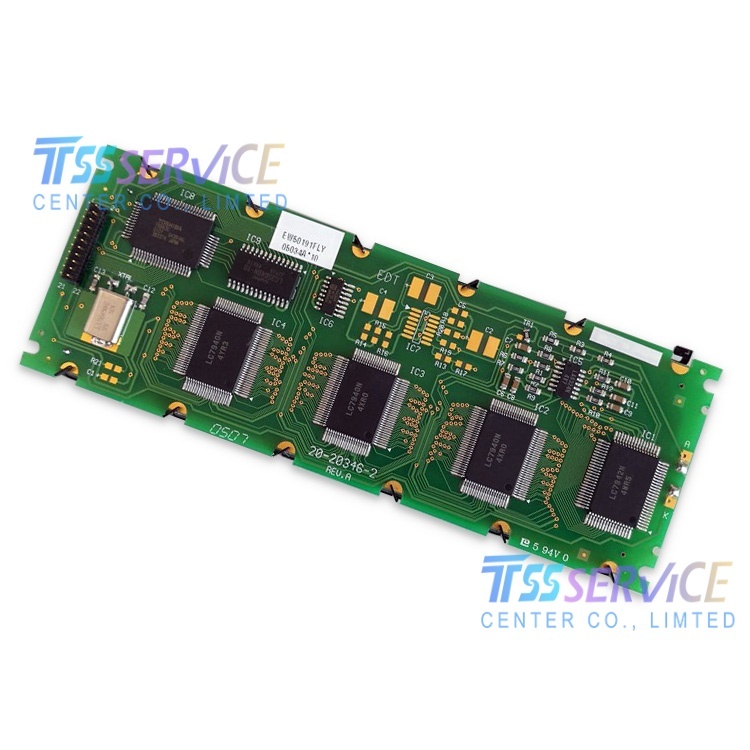

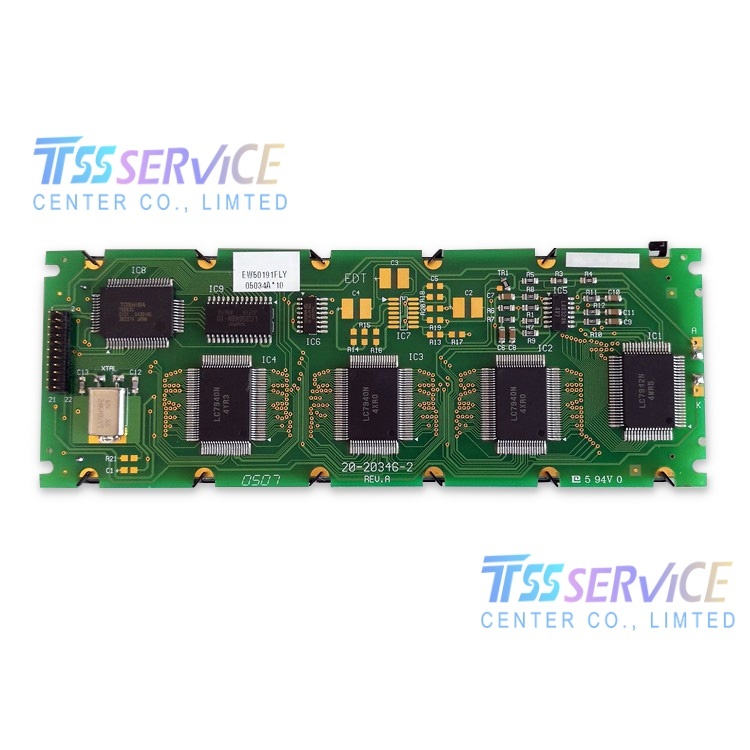

EW50191FLY 20-20346-2 EDT compatible LCD Display Panel

Name: EW50191FLY 20-20346-2 EDT compatible LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EW50191FLY
Price: 68 USD
Availability: InStock

SKU: EW50191FLY

Model P/N: EW50191FLY (20-20346-2 REV.A)
Diagonal Size: 5.01"
Panel Type: a-Si TFT-LCD, LCM

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

EW50191FLY 20-20346-2 EDT compatible LCD Display Panel

Parameter	Value	Unit
Model	EW50191FLY (20-20346-2 REV.A)	-
Brand	EDT	-
Panel Type	a-Si TFT-LCD, LCM	-
Diagonal Size	5.01	inch
Resolution	854 × 480 (WVGA)	pixels
Active Area	110.0 × 61.8	mm
Outline Dimension	118.0 × 69.0 × 3.5	mm
Brightness (Typ.)	500	cd/m²
Contrast Ratio (Typ.)	500:1	-
Display Colors	262K (6-bit)	-
Viewing Angle (Typ.)	60/60/40/40 (L/R/U/D)	degrees
Response Time (Typ.)	20/30 (Tr/Td)	ms
Display Mode	TN, Normally White, Transmissive	-
Backlight	CCFL (1 lamp)	-
Interface	LVDS	-
Input Voltage	3.3	V
Operating Temperature	-30 ~ +80	°C
Storage Temperature	-30 ~ +85	°C
RoHS Compliance	Yes	-

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and industrial workstations.
Medical Devices: Portable patient monitors, diagnostic equipment, and medical terminals.
Embedded Systems: Rugged handheld terminals, industrial IoT devices, and embedded control systems.
Automotive & Transportation: On-board instrumentation, infotainment, and vehicle control units.
Test & Measurement Equipment: Data loggers, industrial meters, and precision measurement displays.
