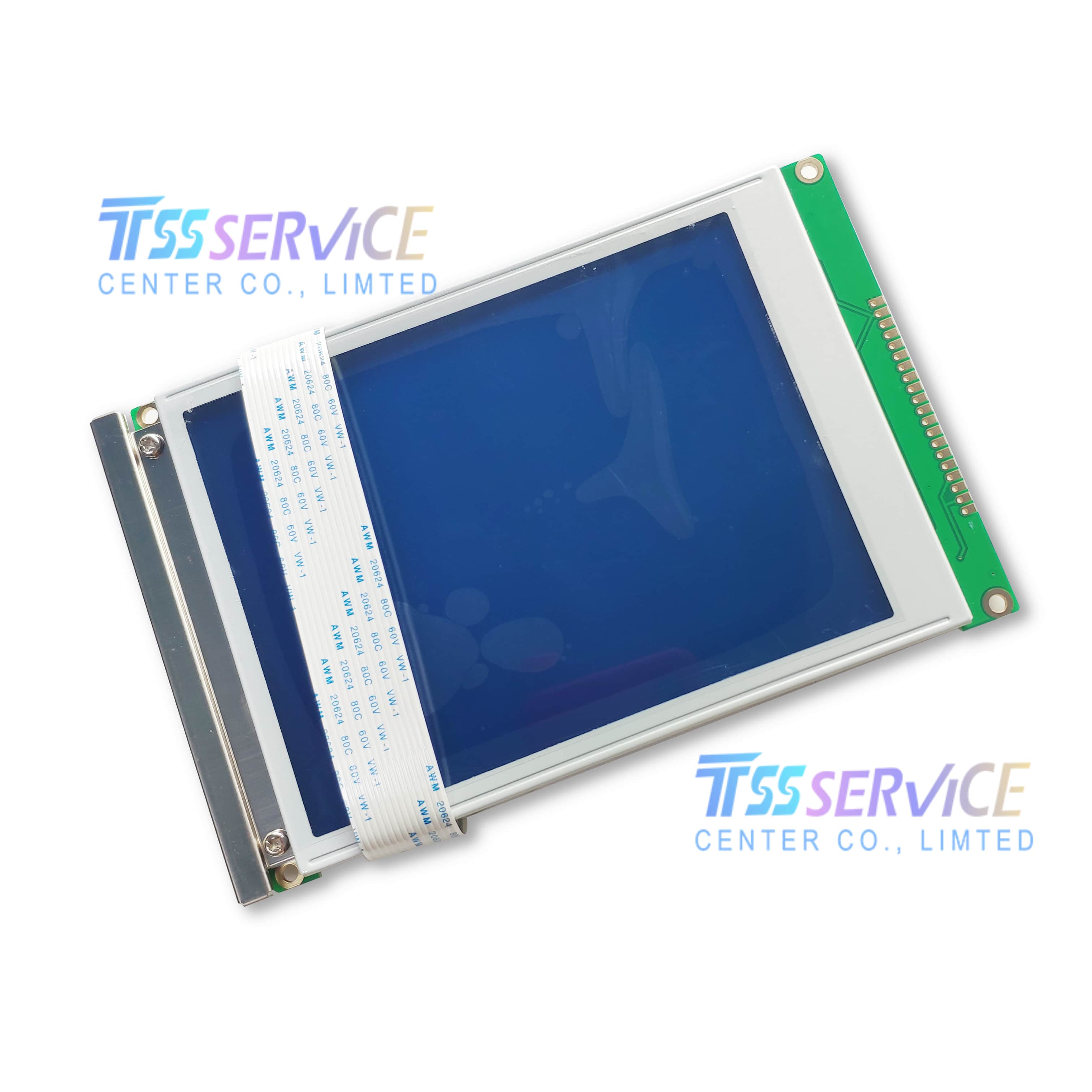

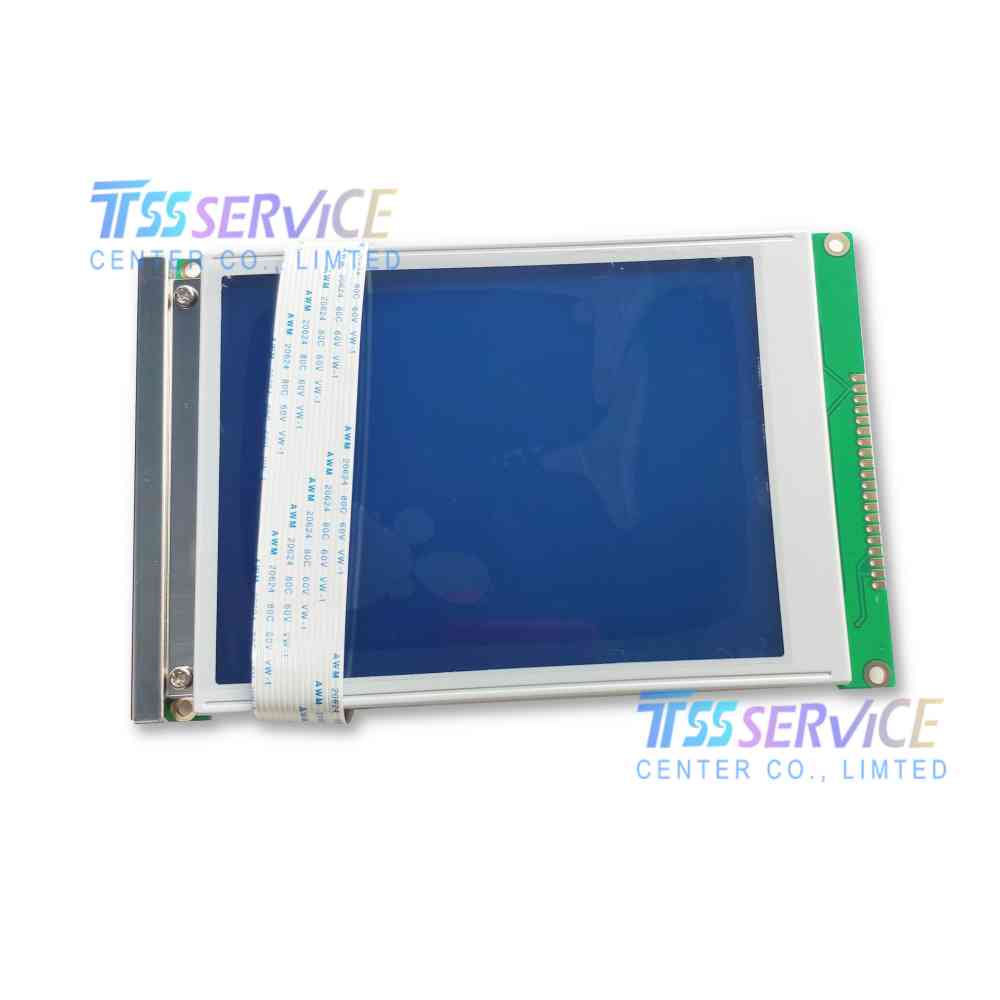

EW50570FLW 5.7" 320×240 STN Graphic LCD Module Industrial Display Screen
| Spec Item |
Detailed Parameter |
| Model Number |
EW50570FLW (Alias: 20-20332-4 / 20-20332-6) |
| Screen Size |
5.7 inch Landscape |
| Panel Type |
STN Graphic Dot Matrix LCD, Green Mode, Transflective Monochrome |
| Native Resolution |
320 × 240 QVGA, 4:3 Aspect Ratio |
| Display Color |
Monochrome (Green Background, Black Text & Graphics) |
| Signal Interface |

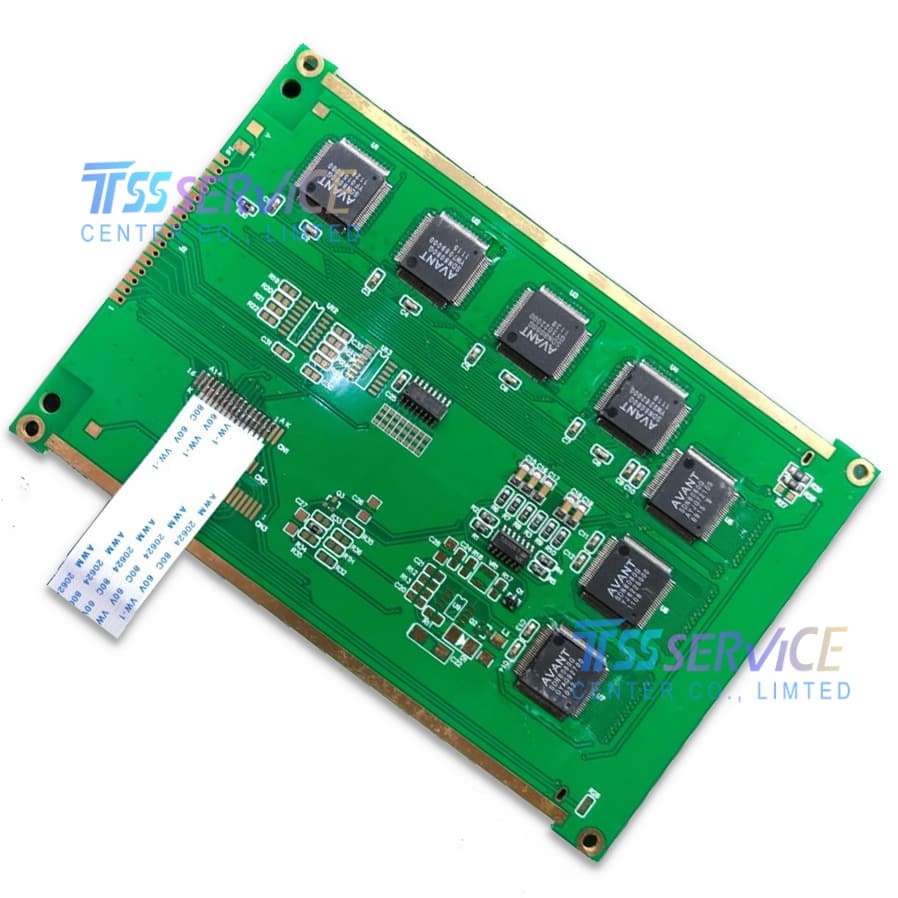

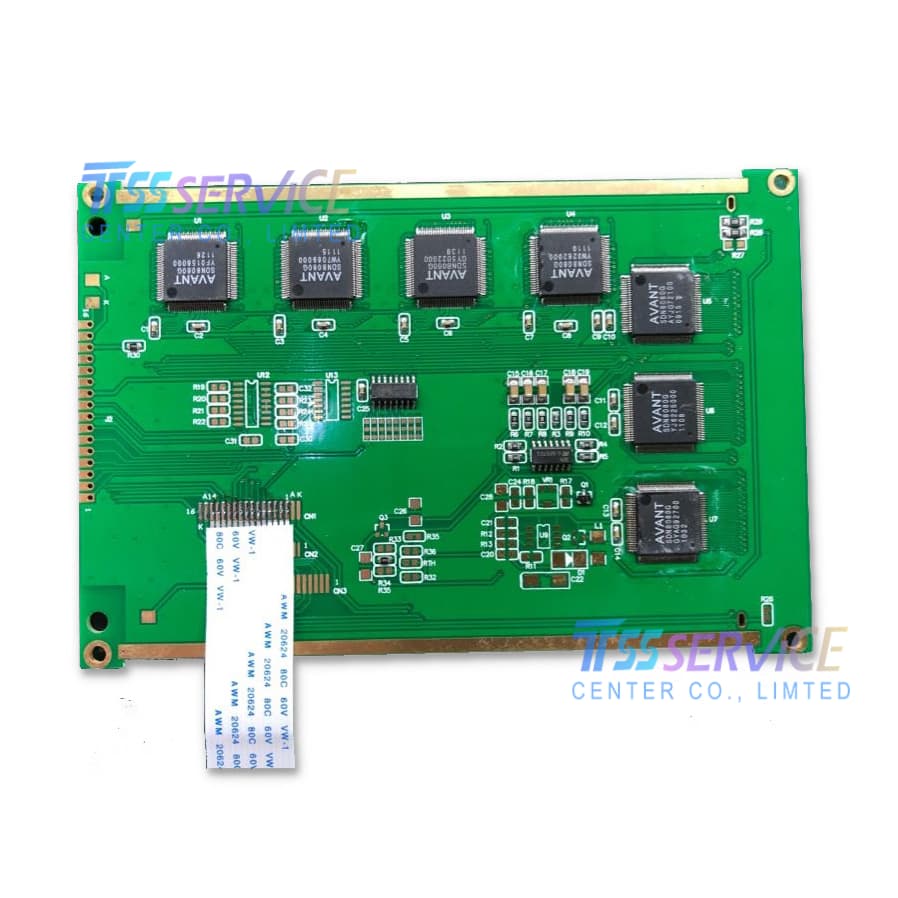

Standard Parallel CPU Interface, Dual-Side Pin Header PCB |
| Mounting Design |
4 Corner Pre-drilled Mount Holes for Direct Chassis Installation |
| Touchscreen |
Without Touch Function |
| Operating Temperature |
-10 ℃ ~ +60 ℃ Industrial Grade |
| Storage Temperature |
-20 ℃ ~ +70 ℃ |
| Display Mode |
Transflective (Visible Under Sunlight Without Backlight) |
| Compatibility |
Direct Pin-to-Pin Replacement for OEM Original EDT Panels |
| Net Weight |
Approx 0.4 KG |
Application
1. CNC & Plastic Molding Industrial Automation
Legacy CNC machine control operation panels, injection molding machine parameter HMI screens, blow molding equipment status display, textile machinery PLC monitoring terminals, printing press control panels.
2. Factory Testing & Measuring Instruments
Industrial environmental gas detectors, electrical fault diagnostic testers, laboratory aging test equipment, mechanical defect inspection devices, logistics weighing control terminals.
3. Fire Safety & Building Control Terminals
Fire alarm host data display panels, elevator car operation control screens, factory access control monitoring units, central air-conditioner parameter controllers.
4. Laboratory & Portable Medical Auxiliary Devices
Compact lab analytical instruments, portable medical vital sign auxiliary readout panels, clinical testing parameter display units, small biological analysis equipment screens.
5. Equipment Refurbishment & Aftermarket Maintenance
Direct replacement spare screen for broken original EDT EW50570FLW series LCD modules, aftermarket maintenance spare parts for discontinued industrial machinery, second-hand factory equipment renovation projects.
