EW60367NCW 5.7 Inch LCD Display Screen For Industrial

Name: EW60367NCW 5.7 Inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: EW60367NCW
Price: 76 USD
Availability: InStock

SKU: EW60367NCW

Model P/N: EW60367NCW
Diagonal Size: 5.7"
Pixel Number: 320 × 240 (QVGA)

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $76.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

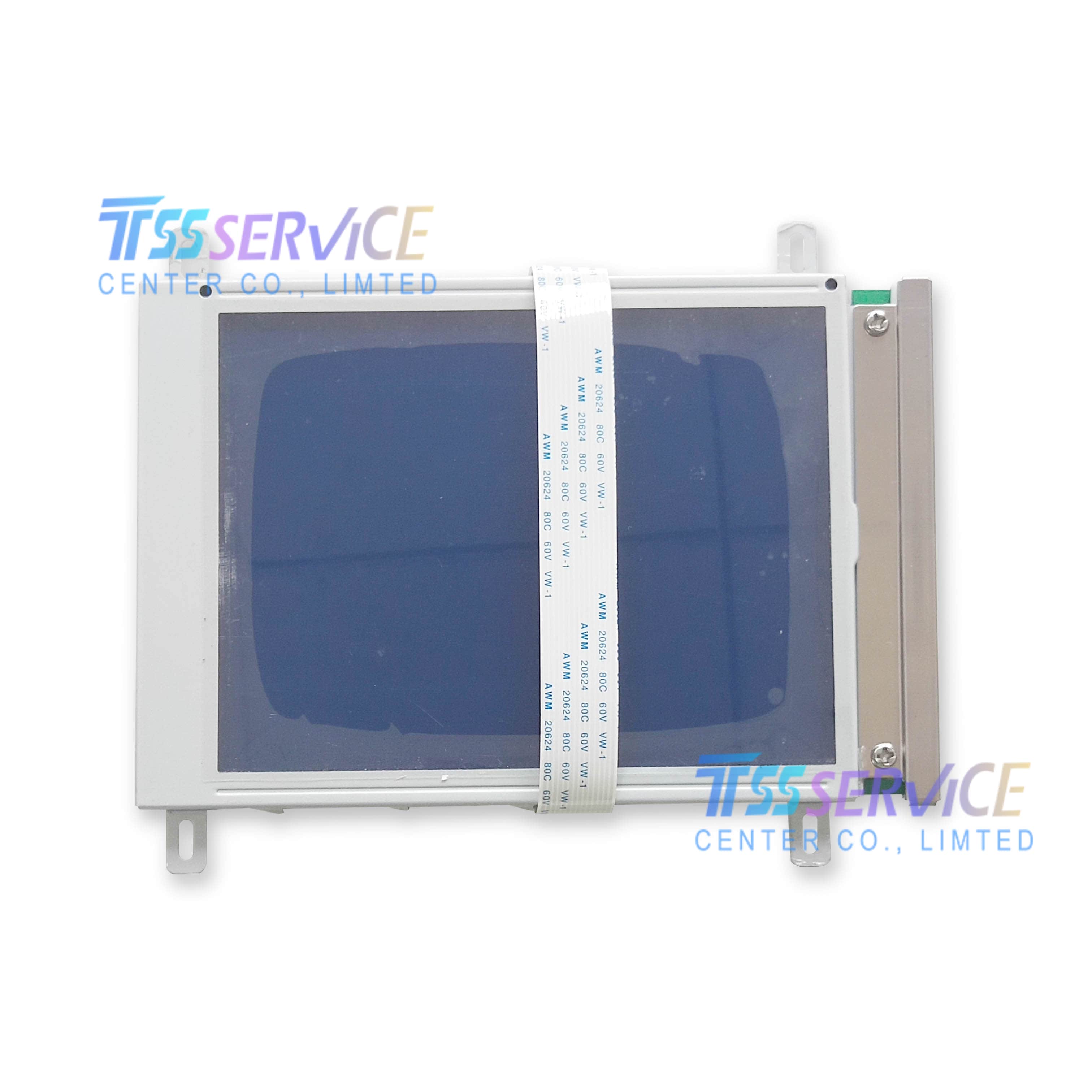

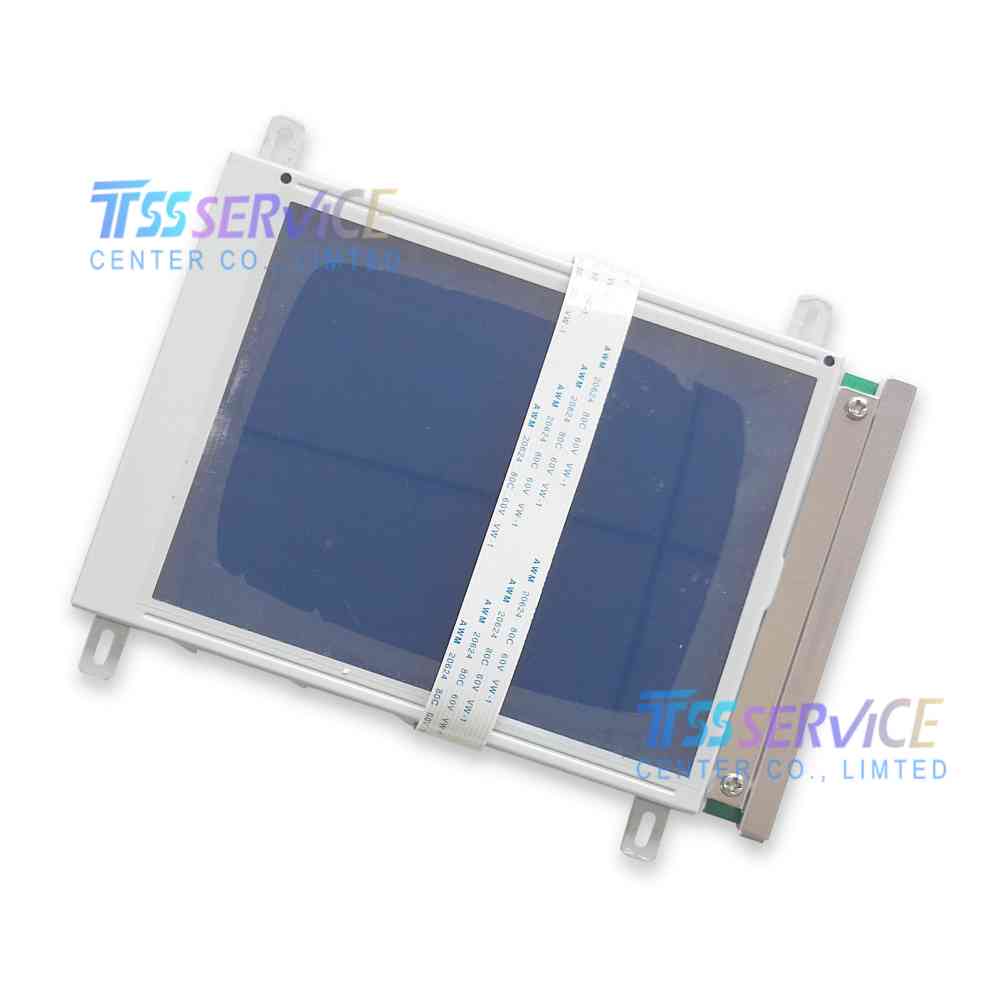

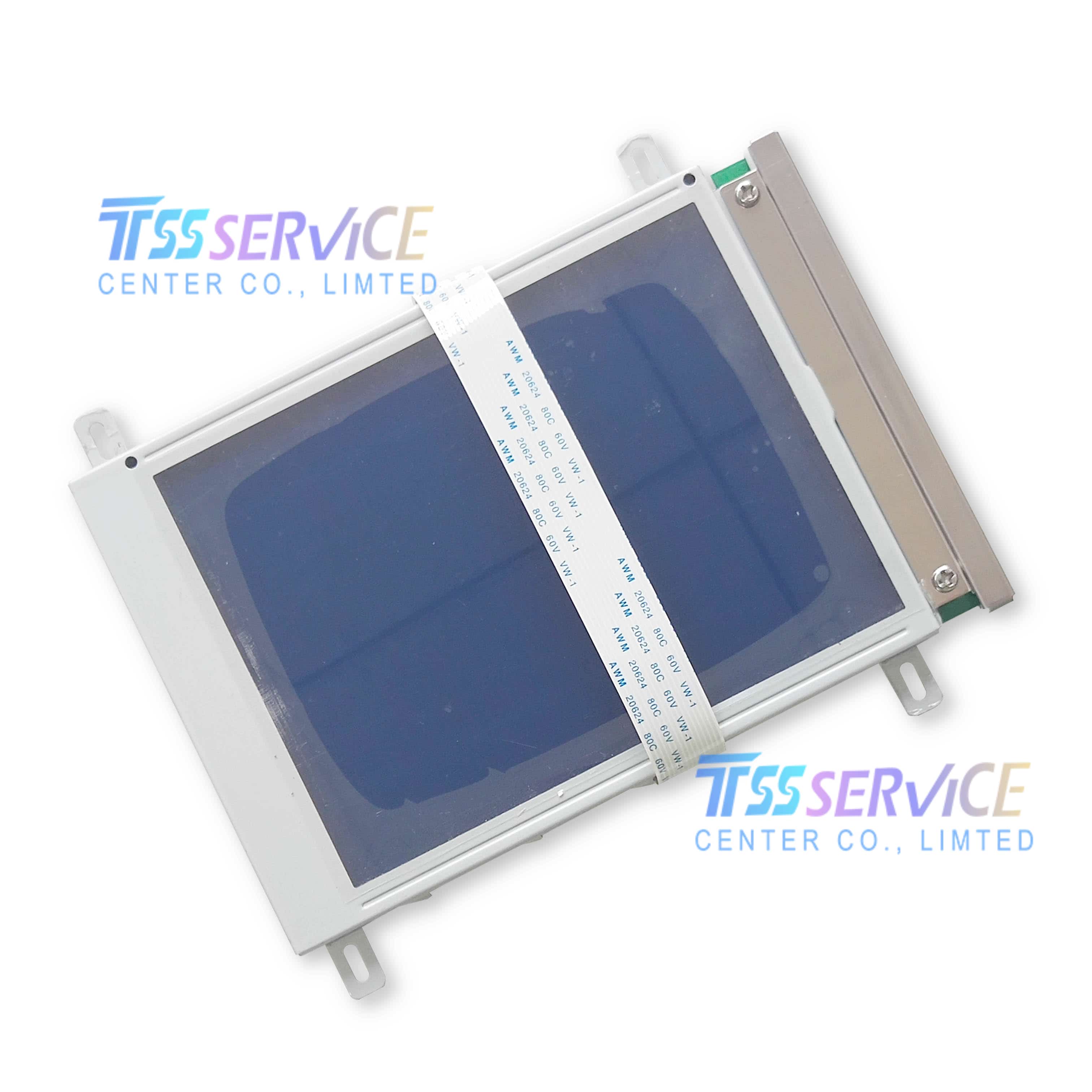

EW60367NCW 5.7 Inch LCD Display Screen For Industrial

Parameter	Value	Unit
Model	EW60367NCW	-
Brand	EDT	-
Diagonal Size	5.7	inch
Resolution	320 × 240 (QVGA)	pixels
Active Area	115.2 × 86.4	mm
Outline Dimension	135.0 × 105.0 × 5.5	mm
Brightness (Typ.)	400	cd/m²
Contrast Ratio (Typ.)	500:1	-
Display Colors	262K (6-bit)	-
Viewing Angle (Typ.)	60/60/40/40 (L/R/U/D)	degrees
Response Time (Typ.)	25/35 (Tr/Td)	ms
Display Mode	TN, Normally White, Transmissive	-
Backlight	WLED (20,000 hrs)	-
Interface	8-bit Parallel (MCU)	-
Input Voltage	3.3	V
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Weight (Max.)	180	g
RoHS Compliance	Yes	-

Heidelberg Printing Press
Industrial HMI & Control Panels: Factory automation, PLC interfaces, and industrial workstations。
Medical Devices: Portable patient monitors, diagnostic equipment。
Embedded Systems: Rugged handheld terminals, industrial IoT devices。
Test & Measurement: Data loggers, industrial meters。
