F-51430NFU-FW-AA 9.4 inch 640×480 LCD Panel for Industrial Machine

Name: F-51430NFU-FW-AA 9.4 inch 640×480 LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: F-51430NFU-FW-AA
Price: 285 USD
Availability: InStock

SKU: F-51430NFU-FW-AA

Model P/N: F-51430NFU-FW-AA
Diagonal Size: 9.4"
Panel Type: FSTN-LCD, LCM
Resolution: 640×480, VGA 84PPI

0.0 (0 Reviews)

0 Sold

~~$300.00~~ $285.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

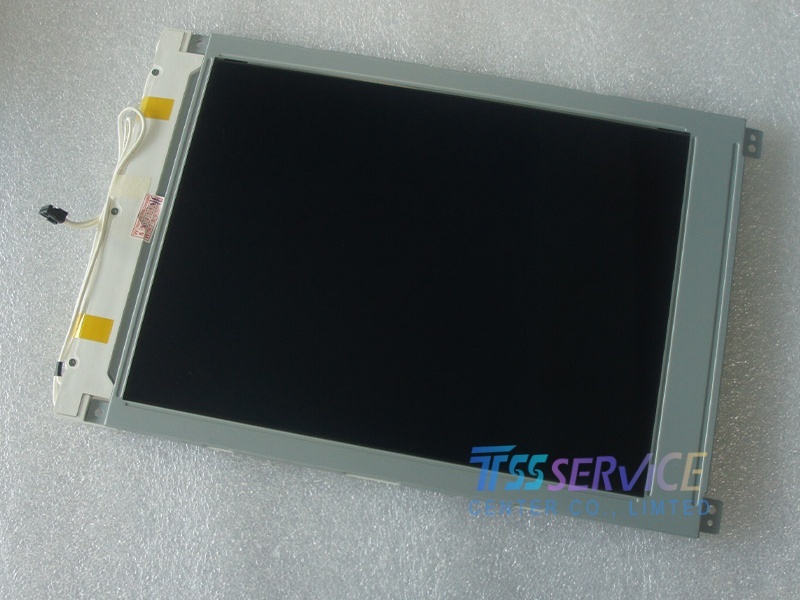

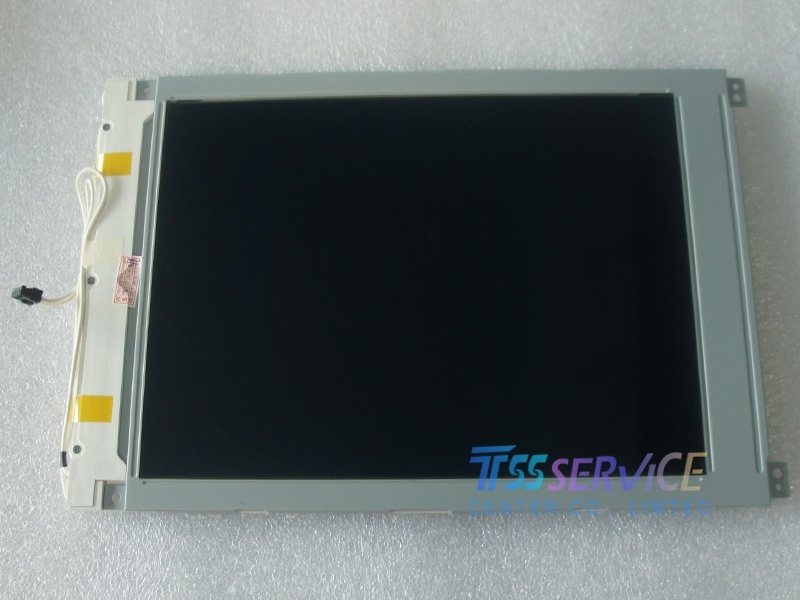

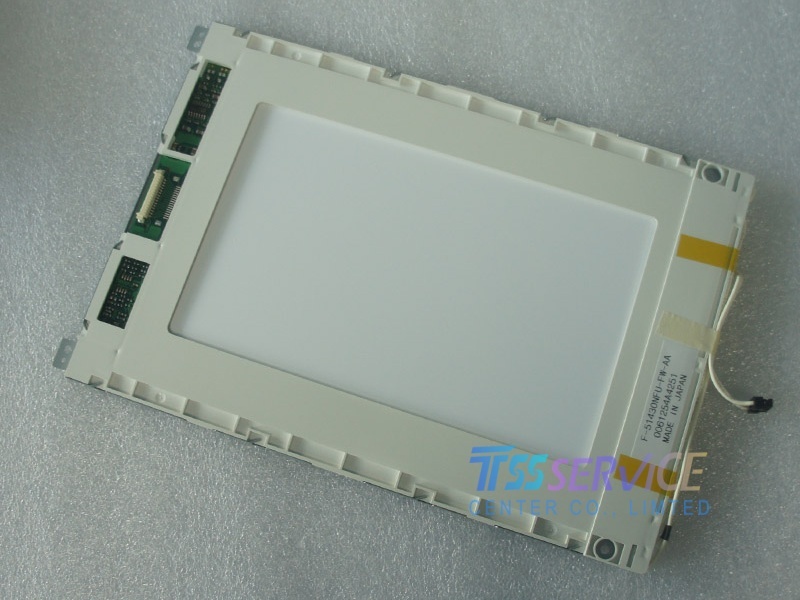

F-51430NFU-FW-AA 9.4 inch 640×480 LCD Panel for Industrial Machine

Parameter	Specification
Manufacturer	Kyocera (Optrex)
Part Number	F-51430NFU-FW-AA
LCD Type	FSTN, Black/White, Transmissive
Diagonal Size	9.4 inches
Resolution	640 (H) × 480 (V) pixels (VGA)
Active Area	191.97 × 143.97 mm
Outline Dimensions	260 × 174 × 8.5 mm
Pixel Pitch	0.30 × 0.30 mm
Brightness	110 cd/m² (Typ.)
Contrast Ratio	14:1 (Typ.)
Viewing Angle	60/60/23/32° (Typ.) (CR≥2)
Response Time	210/120 ms (Tr/Td, Typ.)
Backlight	CCFL (1 lamp), 10,000 hrs (No driver)
Interface	Parallel Data (2ch, 4-bit), 15-pin
Input Voltage	2.5 / 5.5 V (Min./Max.)
Refresh Rate	70 Hz (Typ.)
Weight	410 g (Max.)
Operating Temp.	0°C to +50°C
Storage Temp.	-20°C to +60°C

Applications

Industrial Control Panels & HMIs: Factory automation systems, machinery operation interfaces, and process control terminals.
Medical Diagnostic Equipment: Monochrome display for ultrasound machines, patient monitors, and laboratory analyzers.
Test & Measurement Instruments: Oscilloscopes, spectrum analyzers, signal generators, and data recorders.
POS & Banking Terminals: Cash registers, ATM machines, and financial transaction devices.
Legacy Industrial Systems: Replacement display for older CNC machines, PLCs, and industrial computers requiring stable VGA graphics.
Gaming & Arcade Machines: Retro arcade cabinets and coin-operated equipment.
