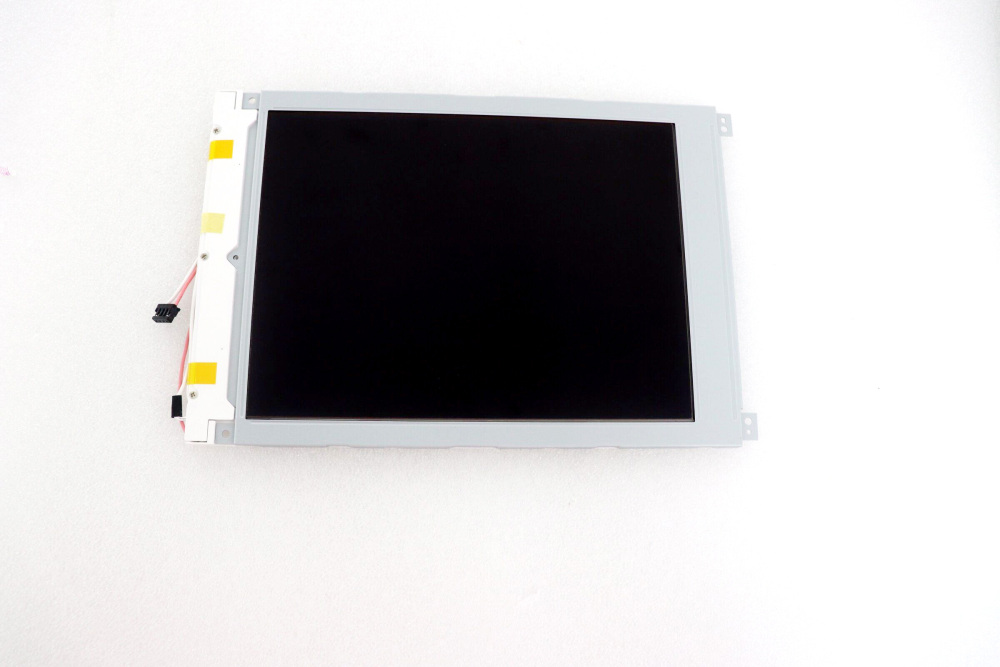

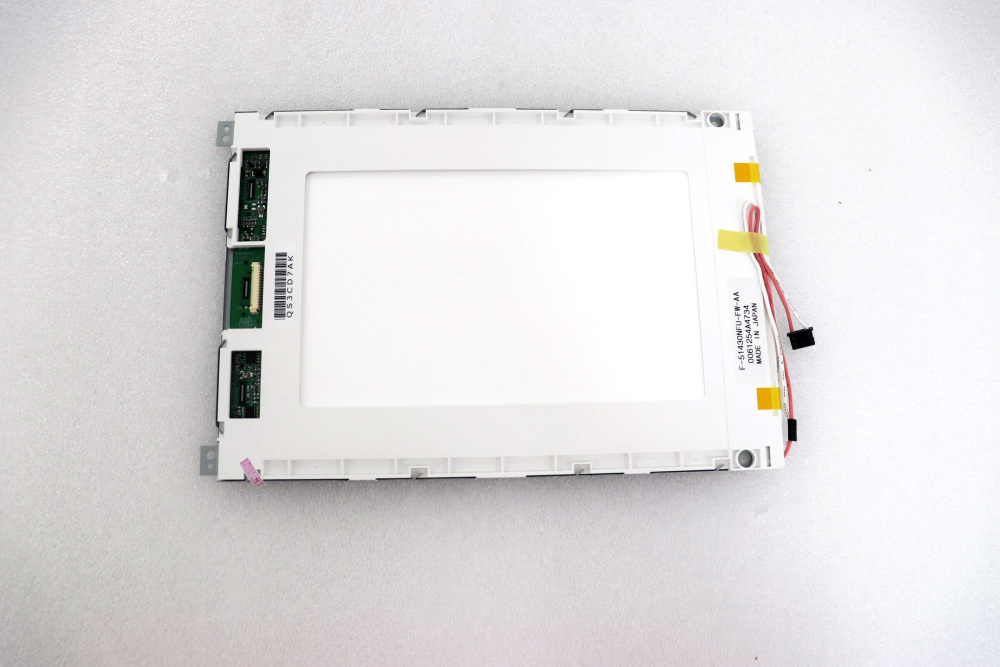

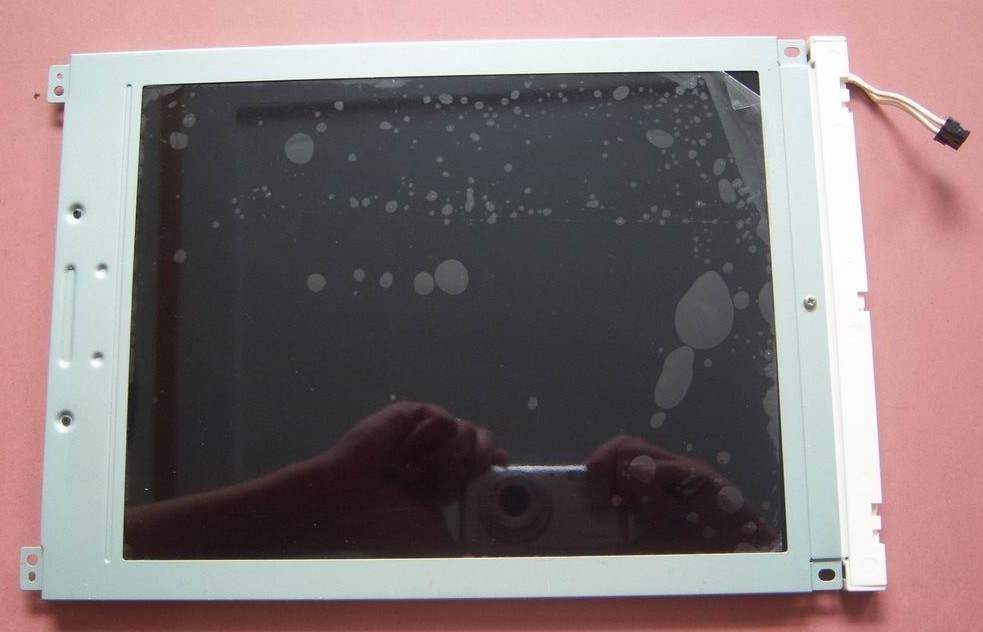

F-51430NFU-FW-AEN | Optrex(Kyocera) 9.4" VGA Monochrome FSTN Industrial Graphic LCD Module
F-51430NFU-FW-AEN is a 9.4-inch monochrome transmissive FSTN graphic LCD module manufactured by Optrex (Kyocera Display). It features standard VGA 640×480 high dot resolution, single CCFL backlight, dual 4-bit parallel MCU interface, built-in graphic controller, thin metal shielding frame and industrial 0~50°C temperature range. The suffix AEN stands for dedicated 19-pin FPC wiring definition, RoHS lead-free industrial version. This stable monochrome screen is widely used for legacy injection molding machine HMI, laboratory analytical instruments, industrial test equipment, medical diagnostic devices and drop-in replacement spare screens for discontinued automation equipment.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Full Part Number |
F-51430NFU-FW-AEN |
| Manufacturer |
Optrex Corporation (Kyocera Display) |
| Diagonal Size |
9.4 inch, landscape, 4:3 aspect ratio |
| Native Dot Resolution |
640(H) × 480(V) dots (VGA monochrome graphic) |
| LCD Technology |
FSTN-LCD, Black background / white dot, Transmissive |
| Dot Size |
0.27 mm (W) × 0.27 mm (H) |
| Dot Pitch |
0.30 mm (W) × 0.30 mm (H) |
| Active View Area (AA) |
198.0 mm (W) × 150.0 mm (H) |
| Overall Outline Dimension |
260.0(W) × 174.0(H) × 8.3(D) mm (without CCFL cable) |
| Typical Brightness |
110 cd/m² |
| Typical Contrast Ratio |
10:1 (CR≥2 standard) |
| Optimal Viewing Direction |
12 o'clock |
| Viewing Angle (L/R/U/D, CR≥2) |
60° / 60° / 34° / 24° |
| Response Time (Tr/Td) |
320 ms / 420 ms typical |
| Backlight System |
Single CCFL white lamp, service life ≥25,000 hours, external inverter required |
| Signal Interface |
Dual 4-bit parallel MCU bus, 19-pin dedicated AEN FPC connector |
| Built-in Controller |
Integrated graphic driver IC, support text, curve, bitmap display |
| Logic Supply Voltage VCC |
4.5V ~ 5.5V DC (Typical 5V) |
| LCD Drive Bias / Duty |
1/480 duty cycle, 1/14 bias |
| Refresh Frequency |
70 Hz standard |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Touch Function |
No integrated touch panel (external resistive touch customizable) |
| Housing Structure |
Thin metal shielding frame, anti-electromagnetic interference |
| Net Weight |
Max 438.5 g |
| Compliance Standard |
RoHS lead-free compliant |
| Production Status |
Discontinued original production, mass stock only for equipment maintenance replacement |
