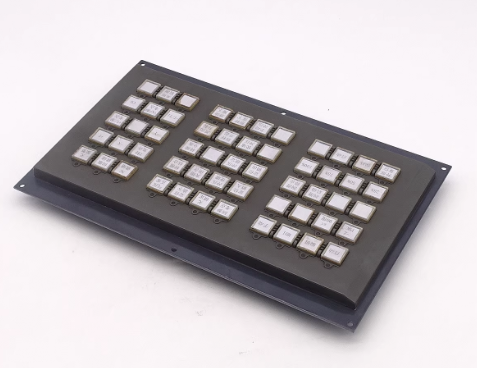

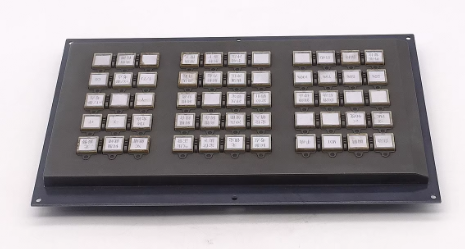

Membrane Keypad for FANUC A02B-0236-C231
SKU: FANUC A02B-0236-C231
(0 Reviews)
0 Sold
1/1
CATEGORIES
| Parameter | Details |
|---|---|
| Part Number | A02B-0236-C231 |
| Product Type | Operator Panel Keyboard / Main Panel B |
| Brand | FANUC (GE-FANUC) |
| Description | Main operator panel for FANUC CNC systems, featuring membrane keypad with symbol keys and white keys |
| Dimensions (WxH) | 290 mm × 180 mm (11.4" × 7.1") -1 |
| Key Configuration | 34 symbol keys + 21 white keys -1 |
| Power Supply | DC 24V -3-8-10 |
| Interface / Connectivity | FANUC I/O Link (serial interface to CNC system) -1 |
| Compatible Sub Panel | A02B-0236-C350 (Sub Panel E) -4 |
| Associated Cables | Ribbon cable A02B-0303-K891 (for CM65/CM66 connection) -4 |
| Protection Rating (Front) | IP65 (dust-tight and protected against water jets) -3-7-9 |
| Operating Temperature | 0°C to 55°C (ambient) -4 |
| Storage Temperature | -20°C to 60°C -4 |
| Relative Humidity | 75% or less (normal operation), 95% or less (short term) -4 |
| Key Switch Type | Membrane / Mylar type keypad |
| Backlight | Adjustable brightness -3-6 |
Main Control Interface: Serves as the primary operator panel for FANUC CNC systems, enabling manual data input, program editing, and machine operation commands.
Robust Construction: IP65-rated front panel provides protection against dust and water splashes, suitable for harsh industrial environments -3-10.
Intuitive Key Layout: Features 34 symbol-labeled keys and 21 white function keys, designed for efficient CNC machine control -1.
Seamless Integration: Connects to the CNC system via FANUC I/O Link serial interface, with dedicated connector mapping for input signals (Xm+0 to Xm+10) -1.
Sub Panel Compatibility: Designed to work with Sub Panel E (A02B-0236-C350), which provides additional controls including axis override, spindle override, emergency stop, and memory protect switches -4.
