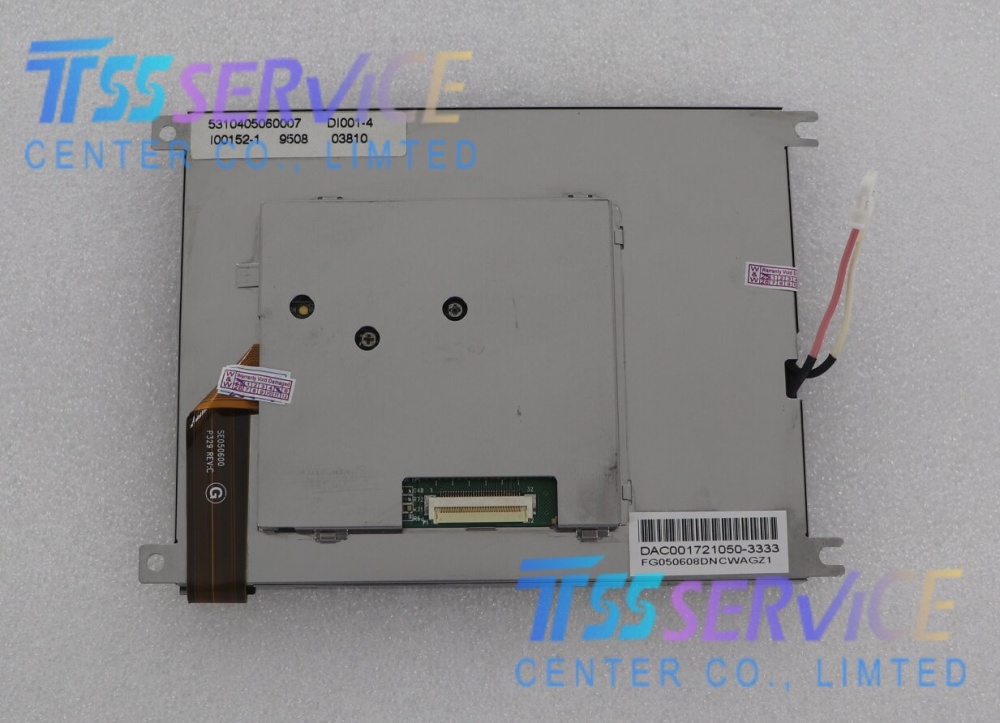

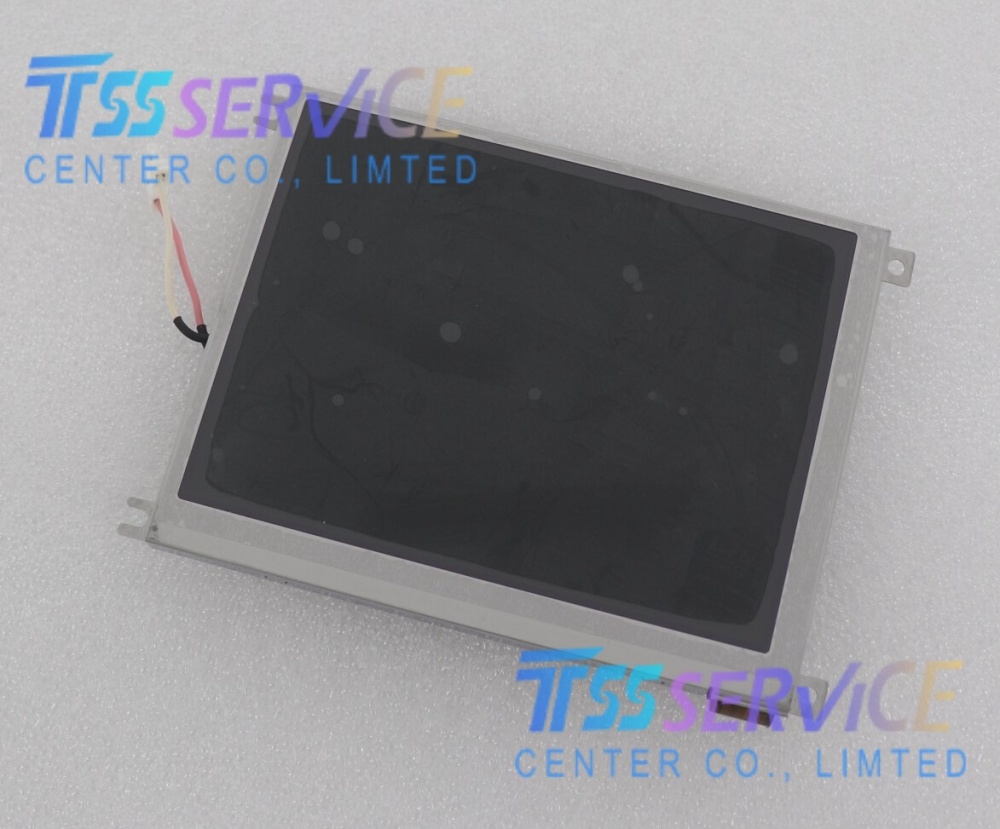

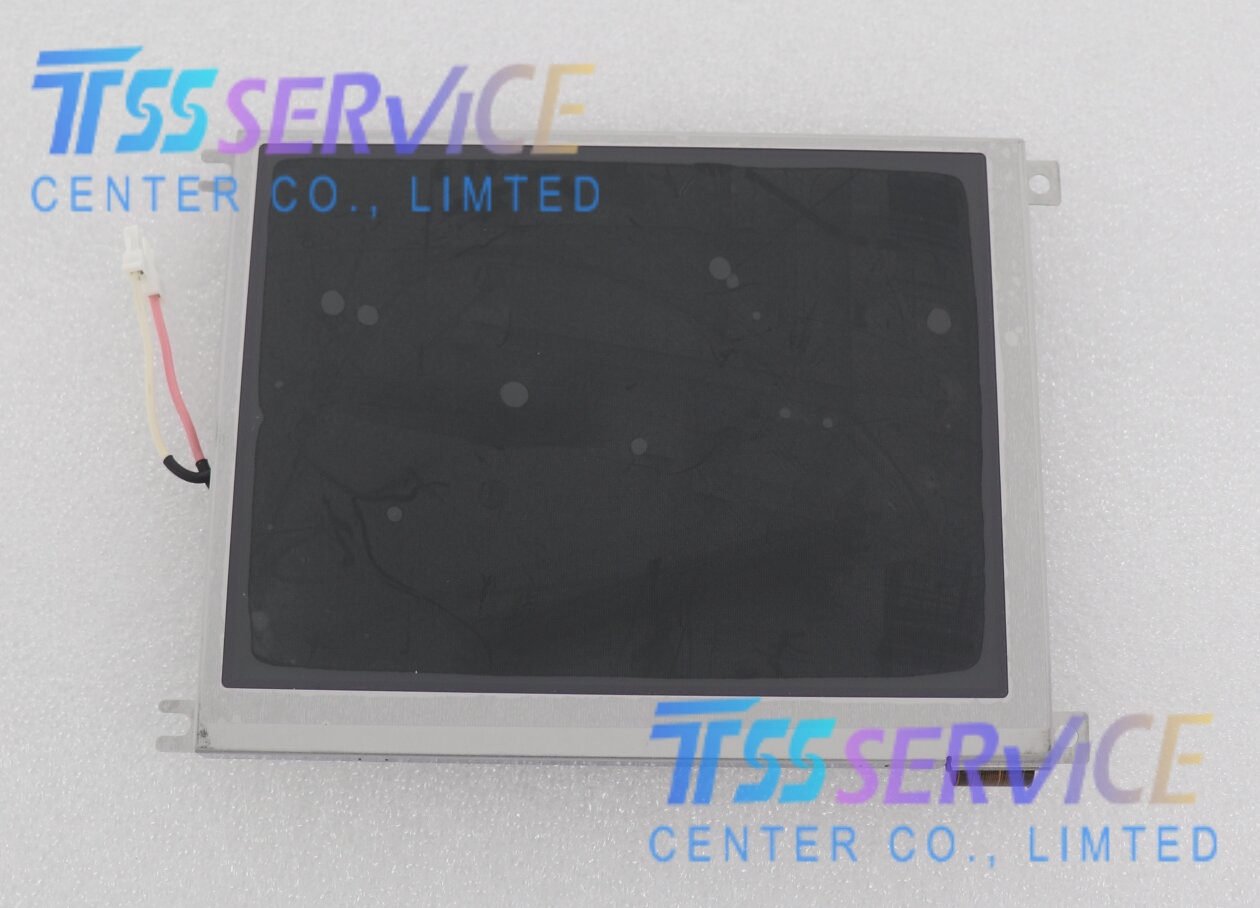

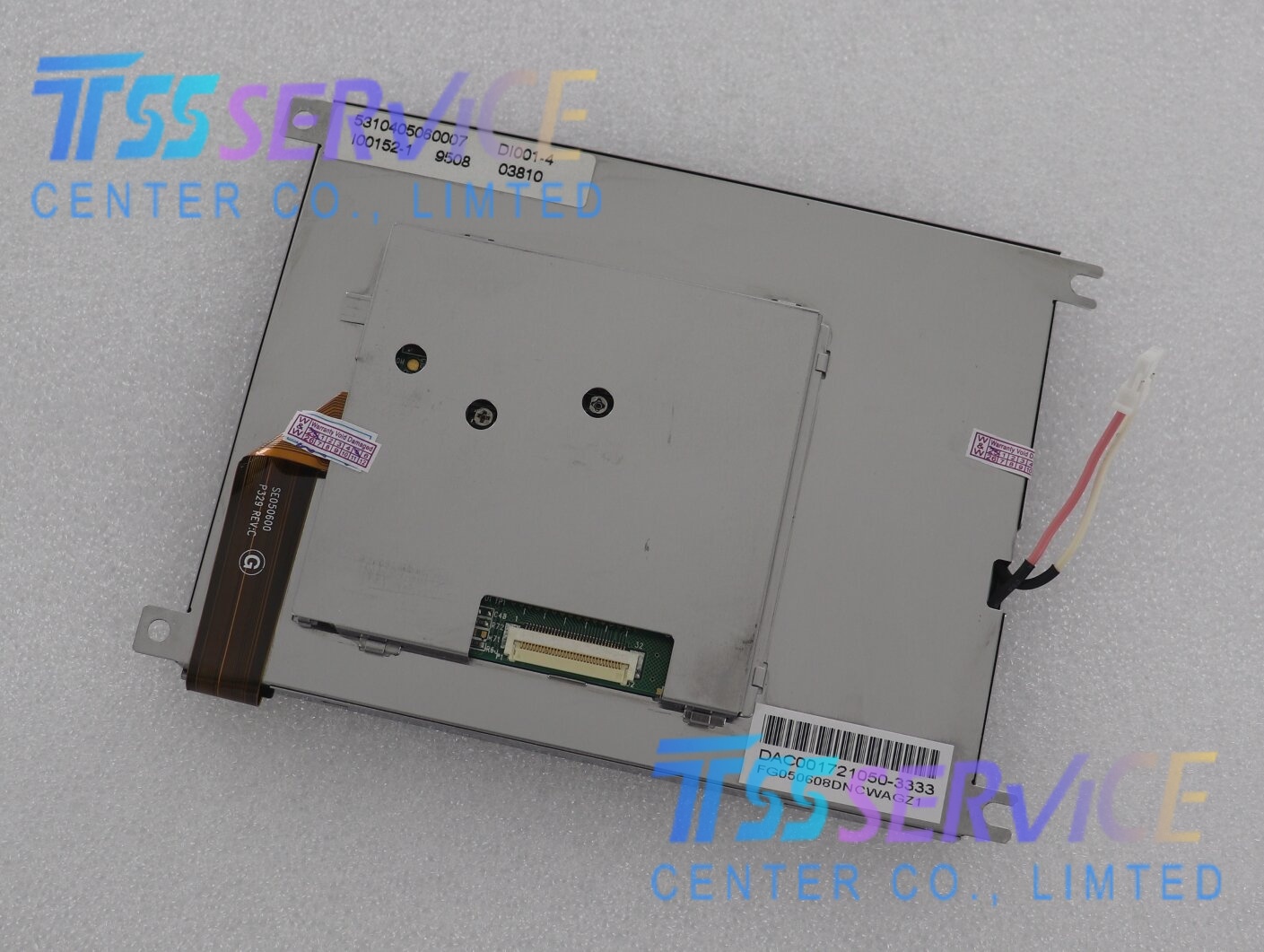

FG050608DNCWAGZ1 Data Image 5.6 INCH LCD Display Screen For Industrial

Name: FG050608DNCWAGZ1 Data Image 5.6 INCH LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG050608DNCWAGZ1
Price: 78 USD
Availability: InStock

SKU: FG050608DNCWAGZ1

Model P/N: FG050608DNCWAGZ1
Diagonal Size: 5.6"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 320 (RGB) × 234
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

FG050608DNCWAGZ1 Data Image 5.6 INCH LCD Display Screen For Industrial

Parameter	Value	Unit
Model	FG050608DNCWAGZ1	-
Brand	Data Image	-
Panel Type	a-Si TFT-LCD, LCM	-
Diagonal Size	5.6	inch
Resolution	320 (RGB) × 234	pixels
Pixel Arrangement	RGB Vertical Stripe	-
Active Area	113.28 × 84.708	mm
Outline Dimension	116.08 × 87.51	mm
Brightness (Typ.)	500	cd/m²
Contrast Ratio (Typ.)	400:1	-
Display Colors	262K (6-bit)	-
Viewing Angle (Typ.)	50/50/20/40 (L/R/U/D)	degrees
Response Time (Typ.)	15/25 (Tr/Td)	ms
Display Mode	TN, Normally White, Transmissive	-
Backlight	CCFL (1 lamp)	-
Interface	TTL (6-bit)	-
Input Voltage	3.3	V
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
RoHS Compliance	Yes	-

Applications

Industrial Control Panels: Factory automation, PLC interfaces, and industrial HMI.
Medical Devices: Portable patient monitors, diagnostic equipment, and medical terminals.
Automotive Displays: In-vehicle infotainment, instrument clusters, and rear-seat entertainment.
Consumer Electronics: Industrial handheld terminals, POS systems, and portable GPS.
Embedded Systems: Smart home devices, IoT terminals, and industrial embedded displays.
