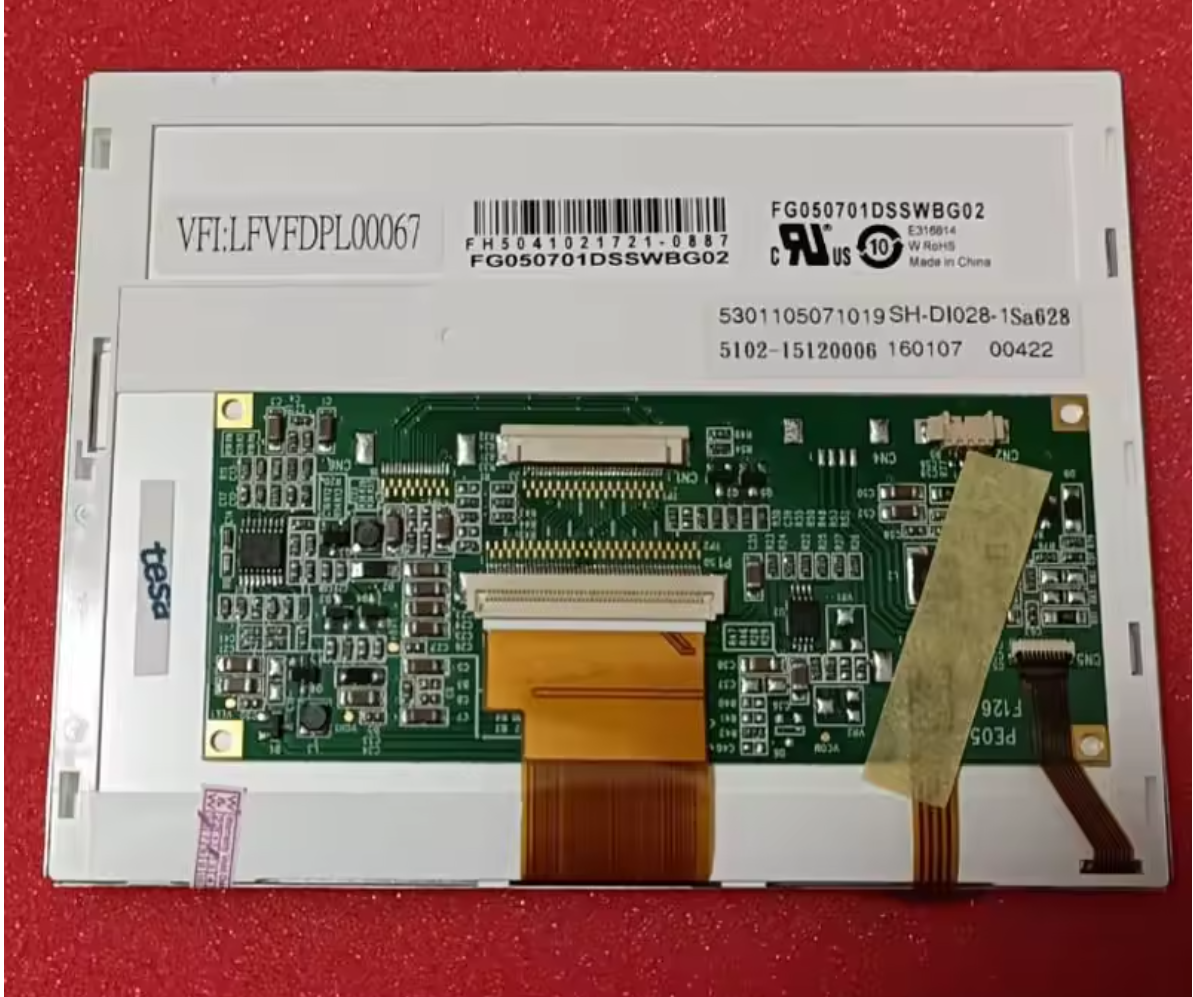

FG050701DSSWBG02 5.7" 320*240 TFT-LCD Display with 4-wire Resistive Touch

Name: FG050701DSSWBG02 5.7" 320*240 TFT-LCD Display with 4-wire Resistive Touch
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG050701DSSWBG02
Price: 65 USD
Availability: InStock

SKU: FG050701DSSWBG02

1，Condition: New，Grade A

2，Description: FG050701DSSWBG02 5.7inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $65.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The FG050701DSSWBG02 is a 5.7-inch industrial-grade a-Si TFT-LCD module manufactured by Data Image . This QVGA display features a built-in 4-wire resistive touch panel, making it an ideal solution for human-machine interface (HMI) applications in industrial control, medical equipment, and embedded systems.

Parameter	Value
Manufacturer	Data Image
Model No.	FG050701DSSWBG02
Screen Size	5.7 inch
Screen Type	a-Si TFT-LCD, LCM
Number of Dots	320(RGB)×240, QVGA, 4:3
Pixel Format	RGB Vertical Stripe
Active Area	115.2×86.4 mm (H×V)
Outline Area	127×98.43×11 mm (H×V×D)
Weight	128g
Surface Feature	Antiglare, Hard coating (3H)
Luminance	390 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response (ms)	15/35 (Typ.)(Tr/Td)
Display Type	TN, Normally White, Transmissive
Good View at	6 o'clock
Display Colors	262K, 55% NTSC
Used for	Backlight
Light Source	3S7P WLED, 50K hrs, With LED Driver
Touchscreen	4-wire Resistive Touch
Refresh Rate	60Hz
Power Cons.	-
Signal Type	Parallel RGB (1 ch, 6-bit), Connector 33 pins
Voltage Supply	3.3V (Typ.)
Operating Temp.	-20 ~ 70 °C
Storage Temp.	-30 ~ 80 °C

Applications

Industrial control panels and HMI (Human-Machine Interface)
Medical diagnostic and monitoring equipment
Point of Sale (POS) terminals
Test and measurement instruments
Embedded systems and automation equipment
Legacy system replacements and repairs
