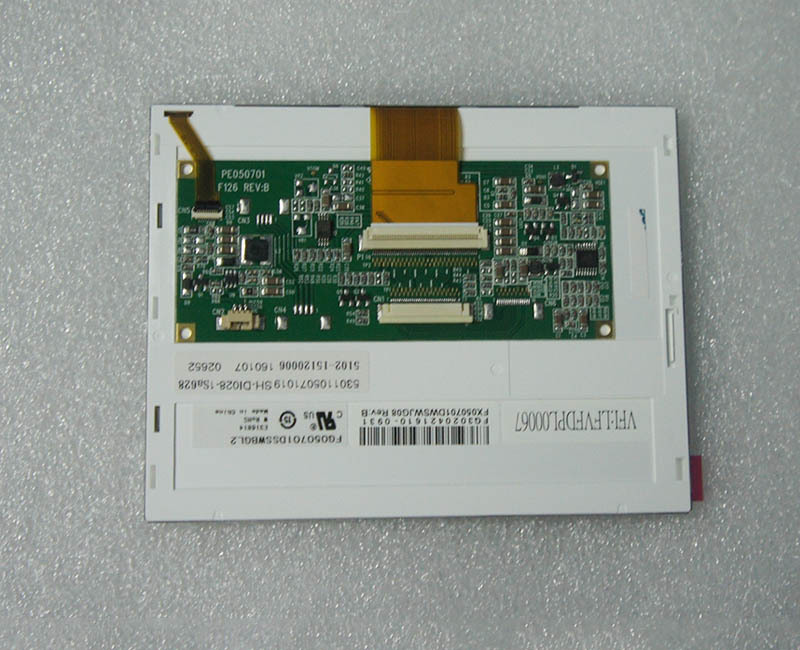

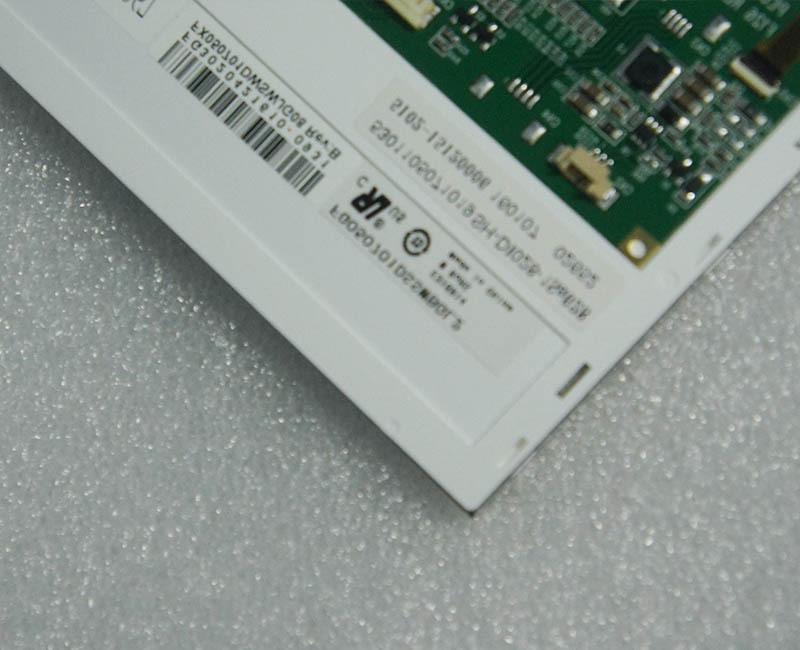

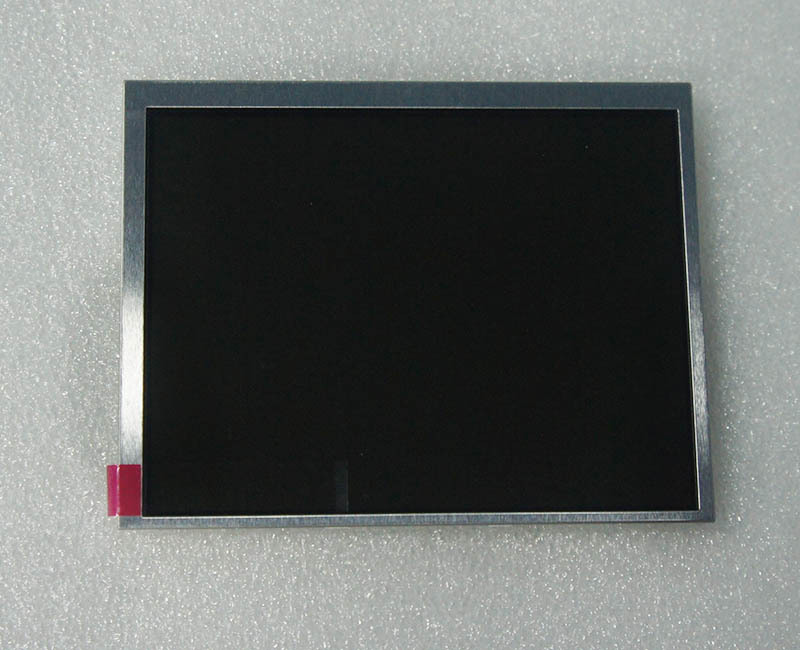

FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image

SKU: FG050701DSSWBGL2
Model P/N:FG050701DSSWBGL2
Diagonal Size:5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution:320(RGB)×240, QVGA  70PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$65.00 $60.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
1/1
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • FG050701DSSWBGL2 5.7inch 320×240 Lcd Panel for Data Image
  • Description
The Data Image FG050701DSSWBGL2 is a high-performance 5.7-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for a wide range of industrial and professional applications . This panel combines reliable performance with clear visual output, making it a versatile solution for Human-Machine Interfaces (HMI), industrial equipment, and instrumentation.

Brand Data Image
Model P/N FG050701DSSWBGL2
Diagonal Size 5.7"
Panel Type a-Si TFT-LCD, LCM
Resolution 320(RGB)×240, QVGA 70PPI
Pixel Format RGB Vertical Stripe
Active Area 115.2(W)×86.4(H) mm
Bezel Opening 118.2(W)×89.4(H) mm
Outline Size 127(W)×98.43(H) ×9.2(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 490 cd/m² (Typ.)
Contrast Ratio 350:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 15/35 (Typ.)(Tr/Td)
Display Colors 262K 55% NTSC
Lamp Type 3S7P WLED , 50K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 110g (Typ.)
Application Icon
Signal Interface Parallel RGB (1 ch, 6-bit) , 33 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Applications:
This display is particularly suited for industrial applications, including control panels, medical devices, portable instrumentation, and other embedded systems requiring a reliable and bright color display .
