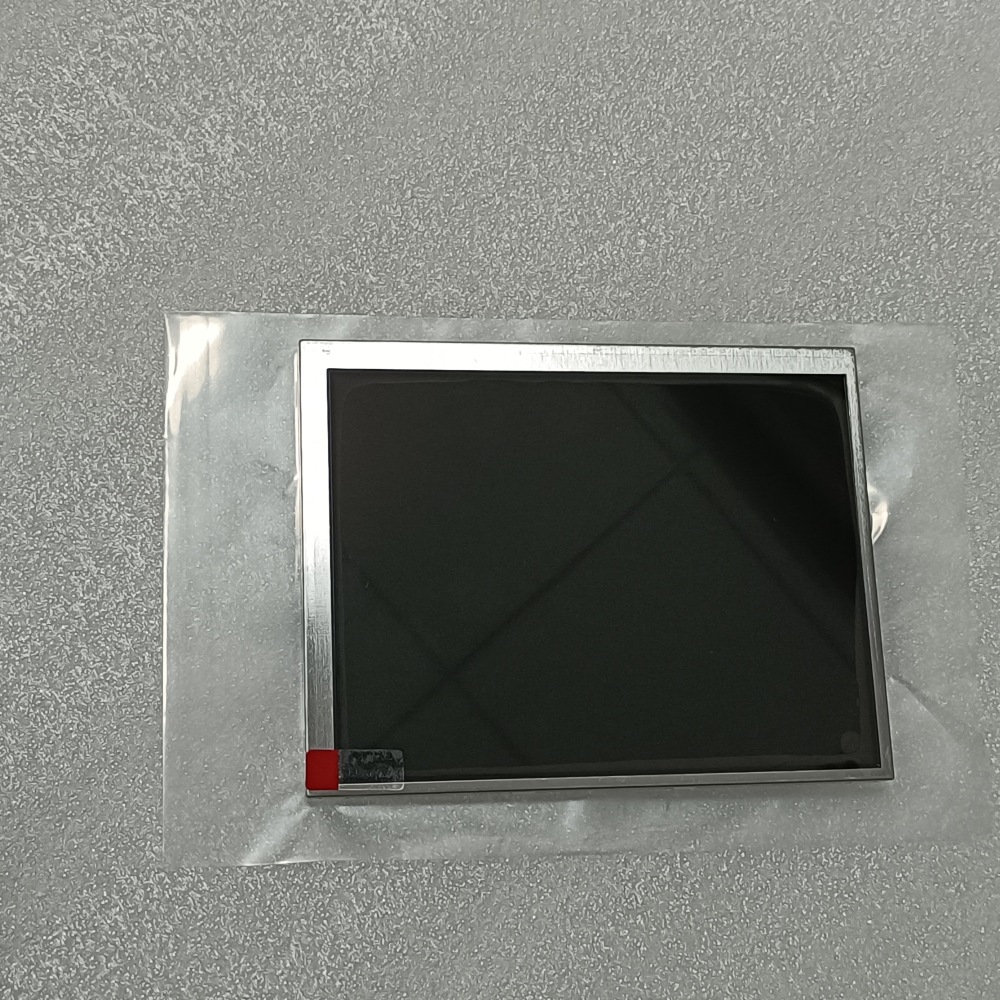

The FG050720DSSWDG01 is a 5.7-inch a-Si TFT-LCD module manufactured by Data Image . This model is specifically engineered for industrial applications that require high brightness and reliable performance in demanding environments . It features a VGA resolution of 640×480 pixels with an RGB vertical stripe pixel arrangement.
| Brand |
Data Image |
| Model P/N |
FG050720DSSWDG01 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA, 141 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
118.16(W)×89.12(H) mm |
| Outline Size |
127(W)×98.43(H)×7(D) mm |
| Surface |
Clear |
| Luminance |
670 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| Viewing Angle |
70/70/60/40 (Typ.)(CR≥10) |
| Response Time |
15/35 (Typ.)(Tr/Td) ms |
| Good View at |
12 o'clock |
| Work Mode |
TN, Normally White, Transmissive |
| Color Depth |
262K, 48% NTSC |
| Backlight |
WLED, 50K hours, With LED Driver |
| Panel Mass |
110g (Typ.) |
| Refresh Rate |
60Hz |
| Touchscreen |
Without |
| Signal Type |
Parallel RGB (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The FG050720DSSWDG01 is engineered for industrial and commercial applications that require high brightness and reliable performance:
-
Industrial Automation: Human-Machine Interface (HMI) panels, industrial control systems, and factory automation equipment
-
Medical Equipment: Suitable for medical devices and instrumentation requiring clear visibility
-
Outdoor Applications: Due to its high brightness of 670 cd/m², it is ideal for outdoor kiosks, ticketing machines, and applications requiring good sunlight readability
-
Portable Devices: Suitable for handheld equipment and mobile industrial terminals .
