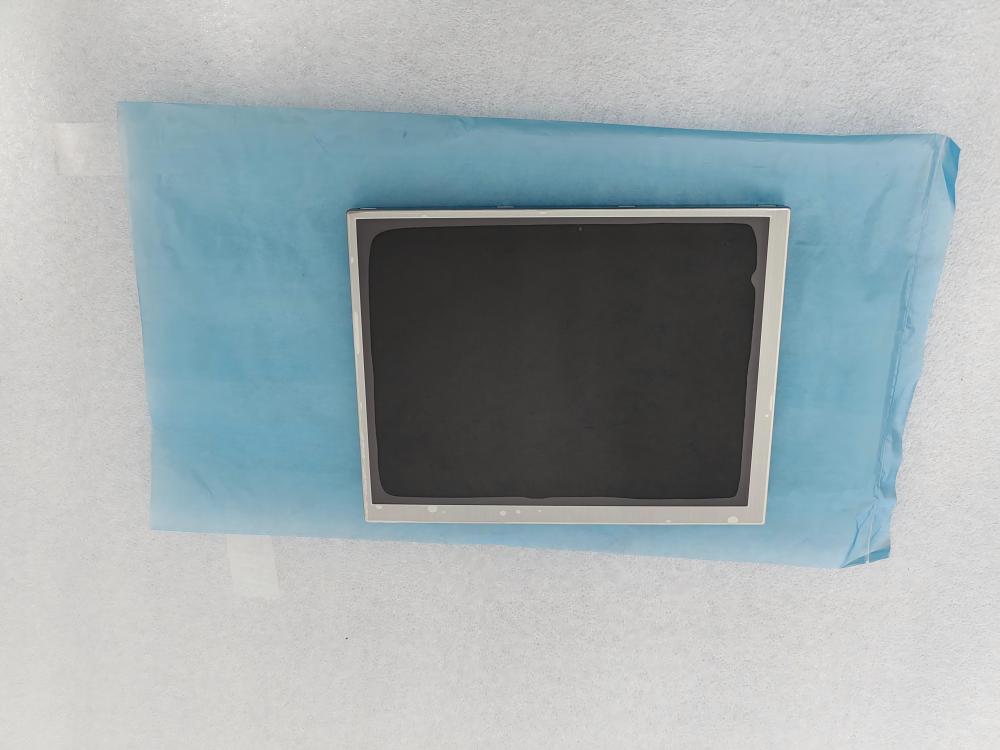

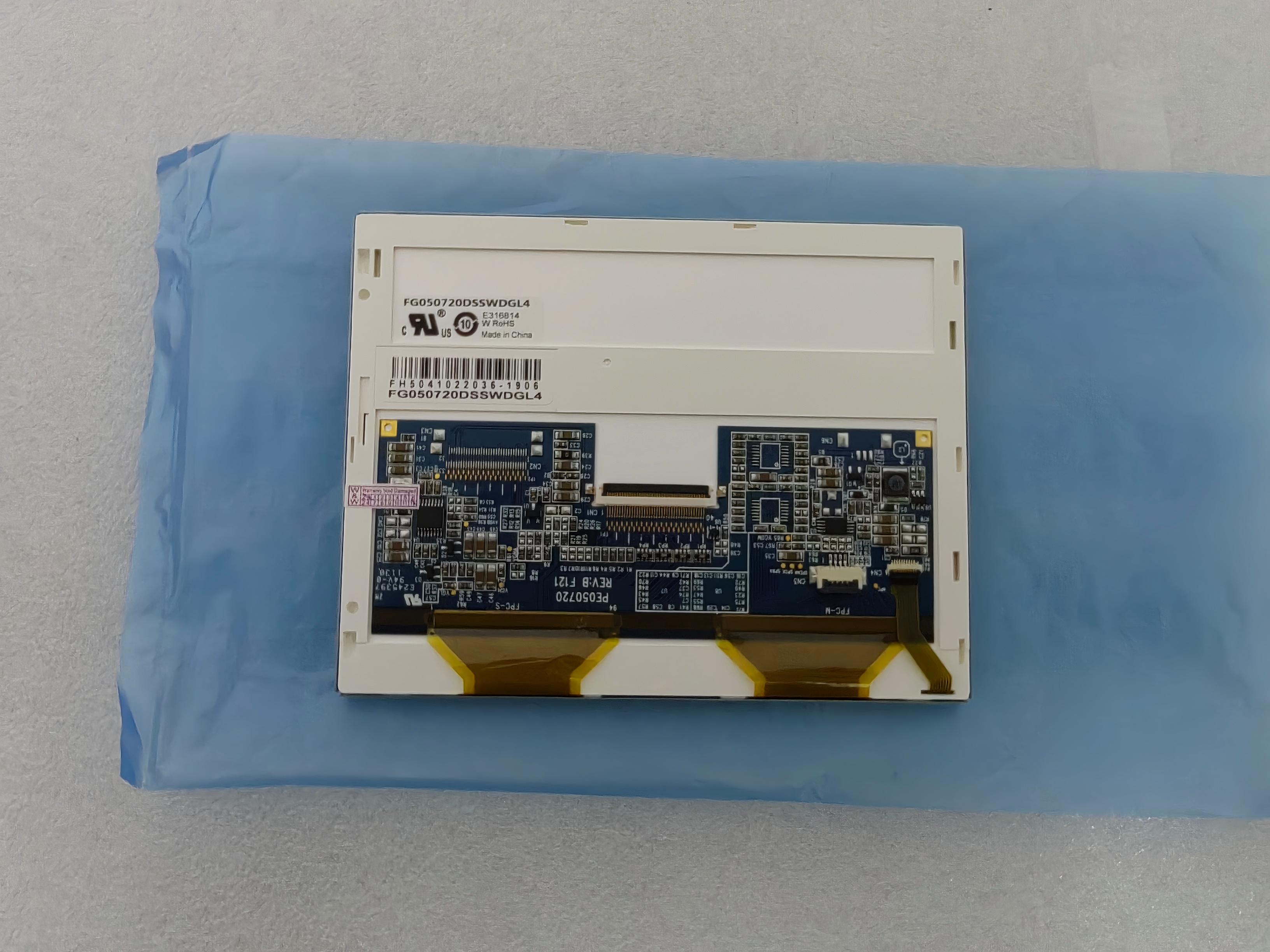

The FG050720DSSWDGL4 is a 5.7-inch a-Si TFT-LCD module manufactured by Data Image. This model is specifically engineered for industrial and outdoor applications that require ultra-high brightness and reliable performance in demanding environments . It features a VGA resolution of 640×480 pixels with an RGB vertical stripe pixel arrangement .
| Brand |
Data Image |
| Model P/N |
FG050720DSSWDGL4 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA, 141 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
118.16(W)×89.12(H) mm |
| Outline Dim. |
127.4(W)×98.43(H)×7(D) mm |
| Surface |
Clear |
| Luminance |
900 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| View Direction |
12 o'clock |
| Viewing Angle |
70/70/60/40 (Typ.)(CR≥10) |
| Response Time |
15/35 (Typ.)(Tr/Td) ms |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K, 48% NTSC |
| Light Source |
WLED, 50K hours, With LED Driver |
| Panel Weight |
110g (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 40 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The FG050720DSSWDGL4 is engineered for industrial and commercial applications that require ultra-high brightness and reliable performance:
-
Outdoor Applications: Due to its exceptional brightness of 900 cd/m² and sunlight readability, it is ideal for outdoor kiosks, ticketing machines, information displays, and applications requiring excellent visibility in direct sunlight
-
Industrial Automation: Human-Machine Interface (HMI) panels, industrial control systems, and factory automation equipment
-
Commercial Equipment: Point of Sale (POS) terminals, self-service kiosks, and digital signage
-
Transportation: Suitable for applications in transportation hubs and vehicle-mounted displays requiring high visibility.
