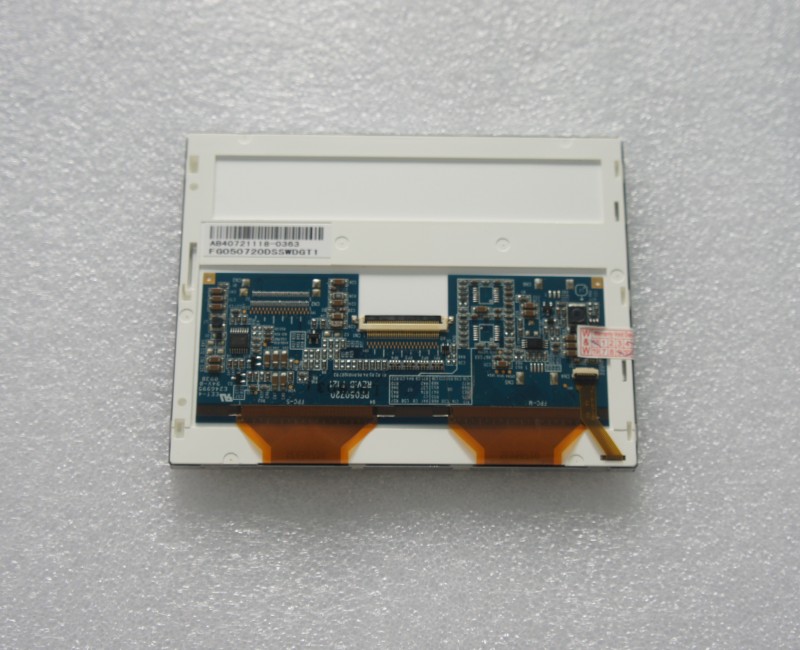

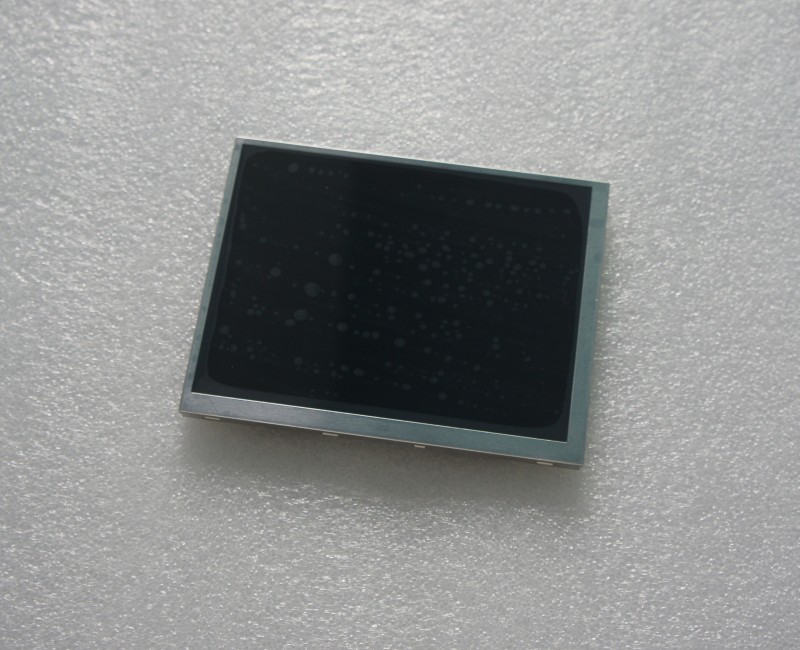

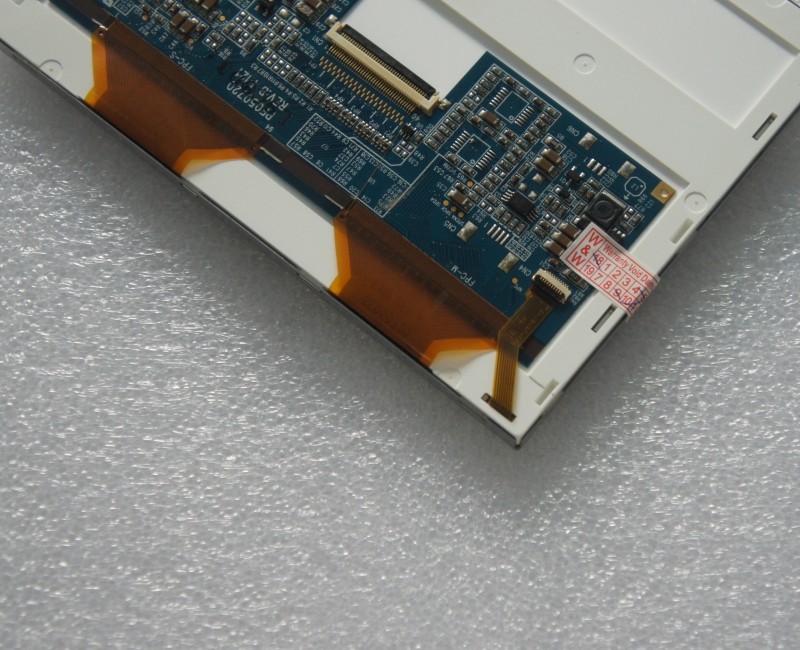

The FG050720DSSWDGT1 is a 5.7-inch a-Si TFT-LCD module manufactured by Data Image . Released in Q3 2014, this model is specifically engineered for industrial applications that require reliable performance, high brightness, and integrated touch functionality . It features a VGA resolution of 640×480 pixels with an RGB vertical stripe pixel arrangement and includes a 4-wire resistive touch screen.
| Brand |
Data Image |
| Model P/N |
FG050720DSSWDGT1 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA, 141 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
118.16(W)×89.12(H) mm |
| Outline Dim. |
127.4(W)×98.43(H)×9.2(D) mm |
| Surface |
Clear, Hard coating (3H) |
| Luminance |
530 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| View Direction |
12 o'clock |
| Viewing Angle |
70/70/60/40 (Typ.)(CR≥10) |
| Response Time |
15/35 (Typ.)(Tr/Td) ms |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K, 46% NTSC |
| Light Source |
WLED (3S7P), 50K hours, With LED Driver |
| Panel Weight |
128g (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
4-wire Resistive Touch |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 40 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The FG050720DSSWDGT1 is engineered for industrial and commercial applications that require reliable performance, high visibility, and integrated touch functionality :
-
Industrial Automation: Human-Machine Interface (HMI) panels, industrial control systems, factory automation equipment, and CNC machine controls .
-
Commercial Equipment: Point of Sale (POS) terminals, self-service kiosks, and ticketing machines .
-
Specialized Instrumentation: Medical devices, test and measurement equipment, and security/monitoring systems .
-
Outdoor Applications: Due to its high brightness of 530 cd/m², it is suitable for outdoor kiosks and applications requiring good sunlight readability .
