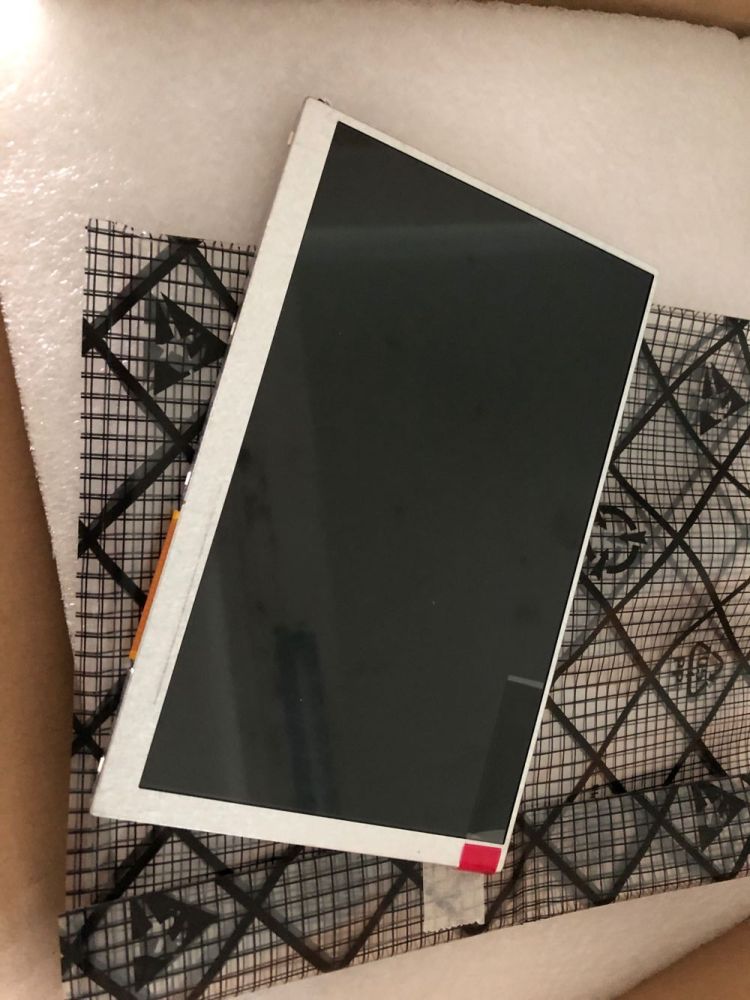

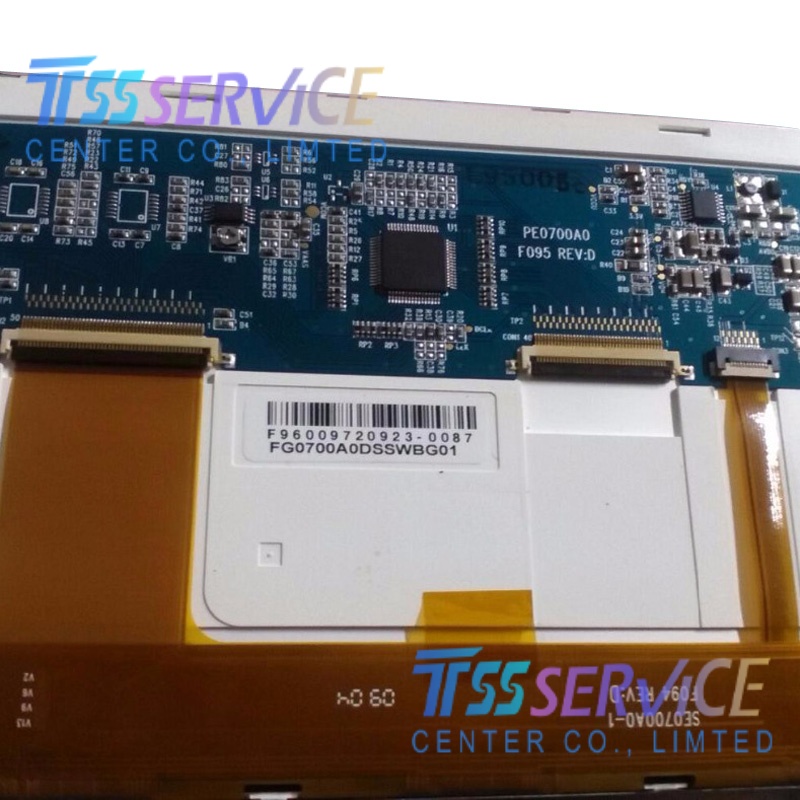

FG0700A0DSSWBG01 7 inch WVGA Industrial TFT LCD Screen 800×480 For Industrial

Name: FG0700A0DSSWBG01 7 inch WVGA Industrial TFT LCD Screen 800×480 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG0700A0DSSWBG01
Price: 68 USD
Availability: InStock

SKU: FG0700A0DSSWBG01

Model: FG0700A0DSSWBG01
Brand: Data Image (众福)
Size: 7.0 inch
Resolution: 800(RGB)×480 (WVGA, 15:9)
Display Type: a-Si TFT-LCD, Transmissive TN (Normally White)

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

FG0700A0DSSWBG01 7 inch WVGA Industrial TFT LCD Screen 800×480 For Industrial

Item	Parameter
Model	FG0700A0DSSWBG01
Brand	Data Image
Size	7.0 inch
Resolution	800(RGB)×480 (WVGA, 15:9)
Display Type	a-Si TFT-LCD, Transmissive TN (Normally White)
Brightness	320 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Viewing Angle	70/70/50/60 (Typ., CR≥10)
Colors	262K
Backlight	WLED, 20,000 hrs lifespan, with driver
Interface	Parallel RGB (1 ch, 6-bit), 40-pin connector
Frame Rate	60Hz
Power Supply	3.3V (Typ.)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Surface	Antiglare, Hard coating (3H)
Active Area	152.4(W) × 91.44(H) mm
Physical Size	165(W) × 104(H) × 5.7(D) mm
Touch Panel	Without
