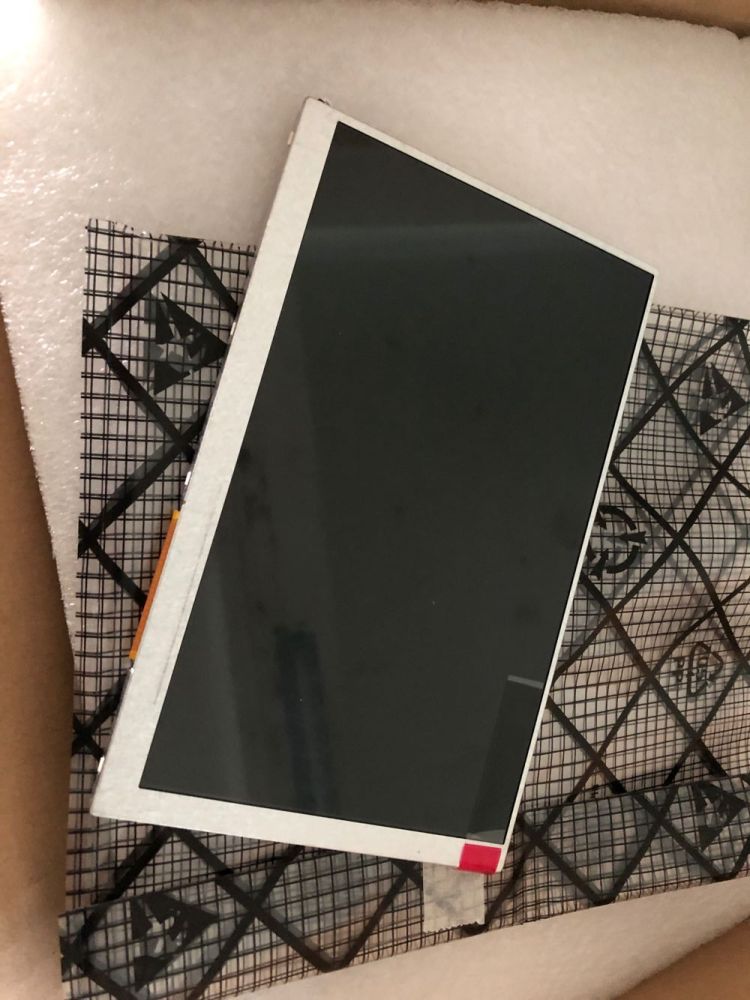

Data Image 7 inch 800×480 FG0700GCDSSWBGL1 LCD Display Screen For Industrial

Name: Data Image 7 inch 800×480 FG0700GCDSSWBGL1 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG0700GCDSSWBGL1
Price: 88 USD
Availability: InStock

SKU: FG0700GCDSSWBGL1

Model: FG0700GCDSSWBGL1
Brand: Data Image (Taiwan)
Display Type: a-Si TFT‑LCD, LCM (TN, Normally White)
Diagonal Size: 7.0 inch
Resolution: 800 (RGB) × 480 (WVGA), 133 PPI

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Data Image 7 inch 800×480 FG0700GCDSSWBGL1 LCD Display Screen For Industrial

Item	Specification	Unit
Model	FG0700GCDSSWBGL1	–
Brand	Data Image	–
Display Type	a-Si TFT‑LCD, LCM (TN, Normally White)	–
Diagonal Size	7.0	inch
Resolution	800 (RGB) × 480 (WVGA), 133 PPI	–
Pixel Arrangement	RGB Vertical Stripe	–
Active Area (W×H)	152.4 × 91.44	mm
View Area	154.4 × 93.44	mm
Outline Dimension	169.8 × 106 × ～6.5	mm
Brightness	1000 (Typ.)	cd/m²
Contrast Ratio	400:1 (Typ.)	–
Viewing Angle (CR≥10)	70/70/60/50 (L/R/U/D)	°
Display Colors	16.7M (24‑bit RGB)	–
Backlight	WLED, 20,000 hrs (w/o driver)	–
Interface	Parallel RGB (1ch 8‑bit), FPC 40‑pin	–
Supply Voltage	3.3 (Typ.)	V
Operating Temperature	‑20 ~ +70	°C
Storage Temperature	‑30 ~ +80	°C
Surface Treatment	AG (Anti‑Glare)	–
Weight	Approx. 130	g
Compliance	RoHS	–

Typical Applications

Industrial HMI & Control Panels: CNC, PLC, factory automation, test & measurement equipment.
Outdoor & Sunlight‑Readable Displays: Kiosks, parking systems, outdoor signage, construction machinery.
Marine & Vehicle Displays: Boat instruments, heavy‑duty vehicles, agricultural machinery (wide temp + high brightness).
Medical Equipment: Diagnostic devices, patient monitors (reliable wide‑range operation).
Smart Home & Appliances: High‑end HVAC, industrial refrigeration, kitchen equipment.
