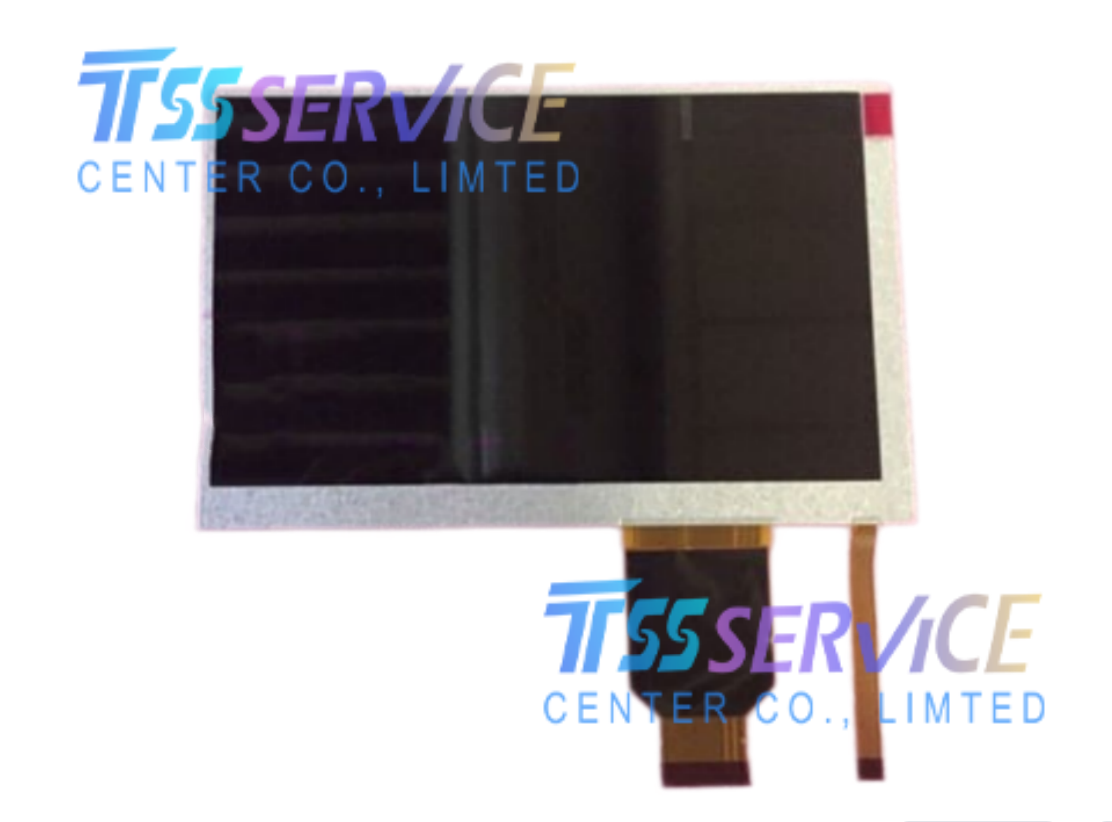

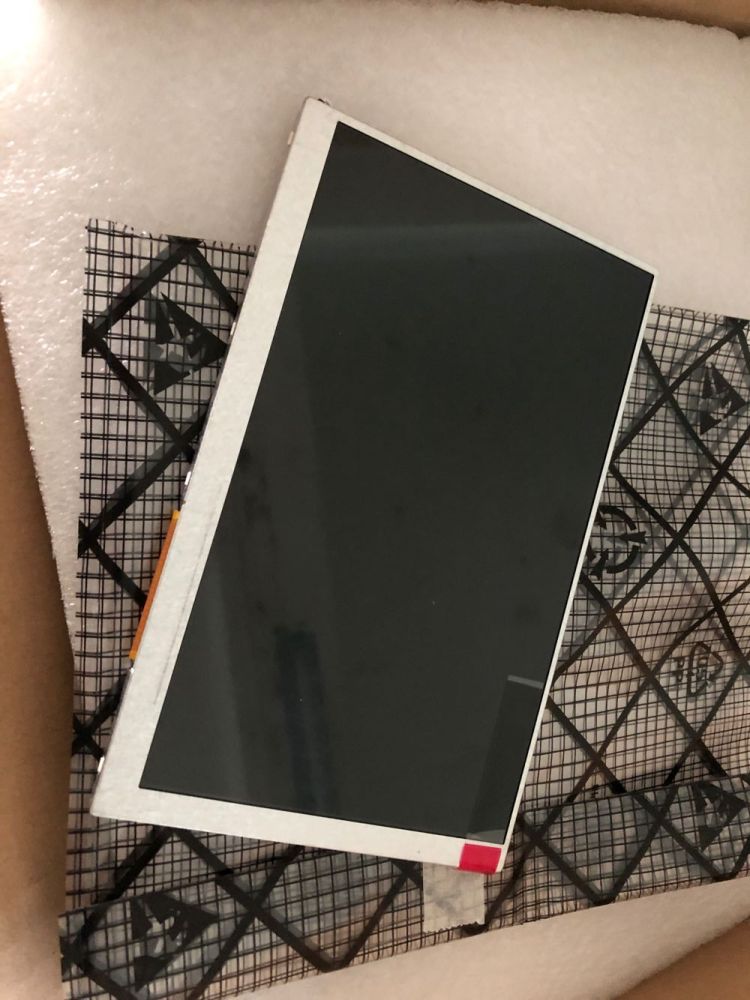

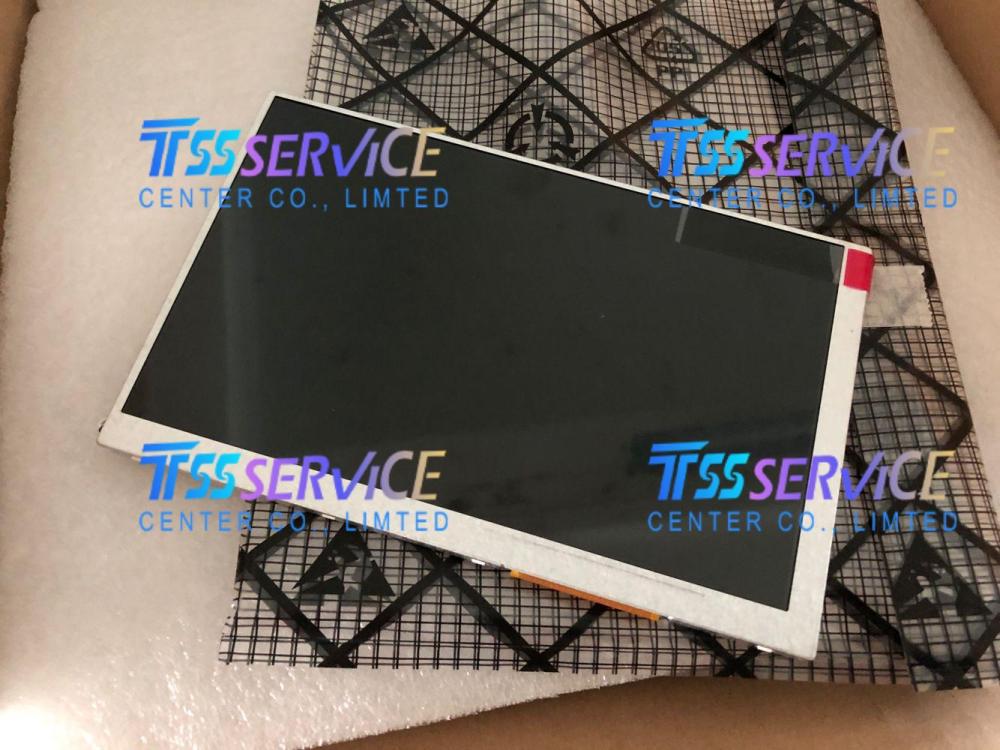

Data Image 7 inch 800×480 LCD Panel FG0700GDDUSWMG01 for Industrial
| Category |
Parameter |
Details (with Unit Conversions) |
| Basic Info |
Manufacturer |
Data Image |
|
Model |
FG0700GDDUSWMG01 |
|
Display Size |
7.0 inches |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB) × 480 (WVGA, 15:9 aspect ratio) |
|
Pixel Format |
RGB Vertical Stripe |
| Mechanical |
Display Area |
152.4(W) × 91.44(H) mm (6.00” × 3.60”) |
|
Outline Dimensions |
165(W) × 106.4(H) × 6.45(D) mm (6.50” × 4.19” × 0.25”) |
|
Panel Weight |
140 g (Typ.) (0.309 lbs) |
|
Surface Treatment |
Antiglare, Hard coating (3H) |
| Optical |
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ., Transmissive/TM) |
|
Viewing Angle |
80°/80°/80°/80° (L/R/U/D, Typ., CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
View Direction |
Not specified |
|
Display Colors |
262K (6-bit), 46% NTSC color gamut |
|
Response Time |
5/15 ms (Typ., Tr/Td) |
|
Refresh Rate |
60 Hz |
| Backlight |
Light Source |
WLED, 30,000 hrs lifespan, with integrated LED driver |
| Electrical |
Interface |
Parallel RGB (1 channel, 6-bit), 40-pin FPC |
|
Input Voltage |
3.3 V (Typ.) |
|
Power Consumption |
3.75 W (Typ.) |
| Environmental |
Operating Temperature |
-20 °C ~ +70 °C (-4 °F ~ +158 °F) |
|
Storage Temperature |
-30 °C ~ +80 °C (-22 °F ~ +176 °F) |
|
Touch Screen |
Without touch panel |
Typical Applications
This 7-inch WVGA TFT LCD is optimized for industrial and automotive environments, balancing wide viewing angles, antiglare readability, and robust temperature tolerance.
- Automotive Displays: Rear-view monitors, dashboard control panels, and in-vehicle infotainment systems.
- Industrial HMI & Control Panels: Factory automation PLC interfaces, process monitoring equipment, and machine control terminals.
- Outdoor & Field Devices: Portable industrial terminals, marine navigation systems, and rugged handheld data collectors.
- Smart Appliances & Vending Machines: Industrial-grade touchless kiosks, commercial refrigerators, and self-service terminals.
- Medical & Diagnostic Equipment: Portable patient monitors and point-of-care testing devices requiring stable performance in variable environments.
